Rotwild R.EX DJI Pro
Rotwild R.EX DJI Pro
Out of stock
SKU:PROM
files/Rotwild-R_EX-DJI-Pro-BRINK.png
01:05 AM
Couldn't load pickup availability

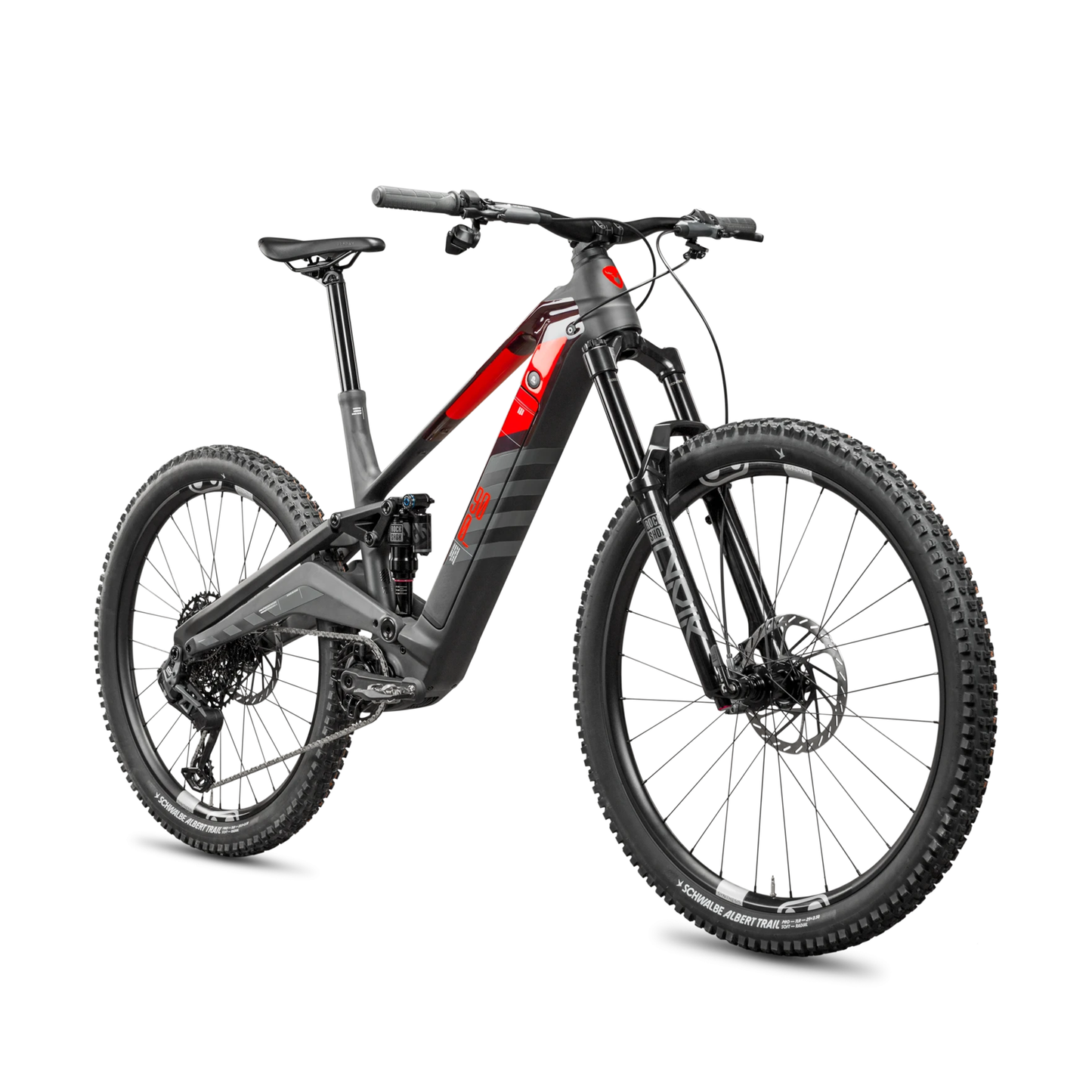

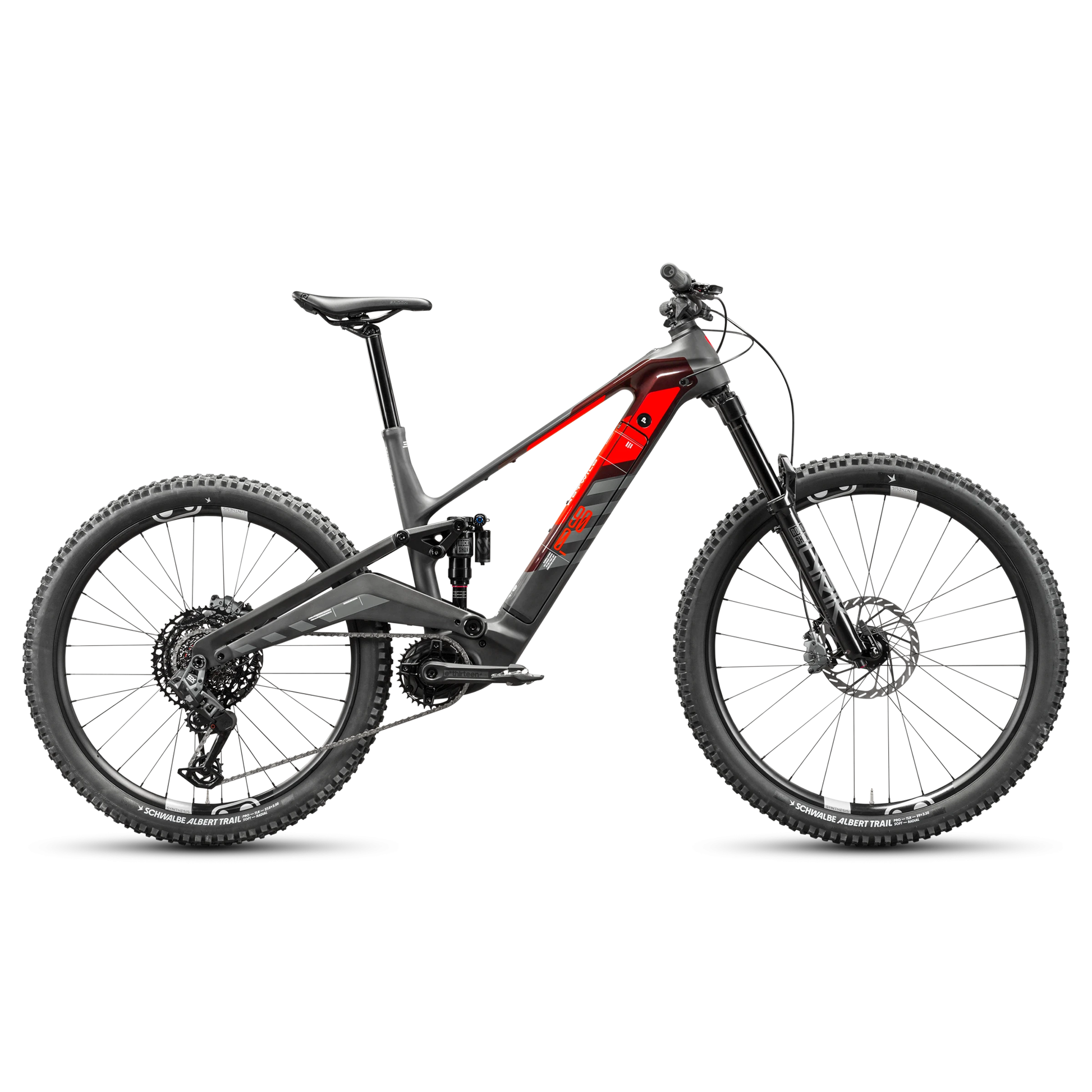

Rotwild R.EX DJI Pro. German precision, DJI power!
Just imagine blasting your very favourite mountain over and over and over again on a bike that not only has all the power you could ever need but also wants to go faster on the downs than can on the ups!
You've spent hours in the saddle. Your arms hurt from 20 laps of the best ever descent, your eyes hurt from taking in the constant speed, your face hurts from smiling so much and you've smashed through the entire 864wh battery. But dont worry! If you've got some more left in you just replace the battery and go again!
We are pretty sure you'll give up before the 2nd battery does! Prove us wrong!
With a precision made high modulus carbon frame, 160/150 mm travel, DJI power unit, replaceable battery, killer spec and super lightweight. This is the one E-bike that cant be beaten on features and performance.
Key Features
Elevated Chain Stay & Carbon Frame
The signature raised rear swingarm gives you more clearance, better stiffness, and reduced chain slap — all wrapped in hand-laid high modulus carbon.
Mid-High Pivot Suspension
ROTWILD places the pivot up and slightly forward, so you get playful suspension that resists brake dive and keeps traction on both climbs and descents.
Travel & Wheel Setup
Front: 160 mm travel
Rear: 150 mm travel
Mullet setup (29″ front / 27.5″ rear) to balance rollover and agility
Motor & Battery
DJI AVINOX, with up to 120Nm torque and peak 1,000w power output.
Paired with an IPU900 Carbon battery (864 Wh), fully integrated with QR side access.
Tool mount under the top tube for multi-tools or mini kits
Fully internal cable routing keeps things clean and protected
Weight: ~22.0 kg (ULTRA spec)
Max total weight: 130 kg allowable
Geometry snapshot
(size M/L/XL): head angle 64°, seat angle 78°, reach 462 / 487 / 512 mm
Highlights
-
Frame material
Carbon
-
Wheelsize
Mullet 29 /27.5
-
Front travel
160mm
-
Rear travel
150mm
-
Motor brand
DJI
-
Max torque
120nm
-
Peak power
10001
-
Battery capacity
864wh
Specifications
-
Rotwild R.EX PRO
Frame
Polydynamic Carbon
Fork
ROCK SHOX Lyrik Select+ 160 mm / CHARGER 3.1 / RC2
Shock
ROCK SHOX Super Deluxe Select+ 185 x 55 mm / 3P
Handlebar
ROTWILD B280 15 mm Rise / 780 mm Width
Stem
ROTWILD S120 35 mm Length
Brakes
SRAM Maven Bronze
Front rotor
SRAM HS2 / 200 mm
Rear rotor
SRAM HS2 / 200 mm
Shifter
SRAM AXS Pod
Rear derailleur
SRAM GX Eagle Transmission AXS
Crankset
e*thirteen Plus 165 mm (M/L) / 170 mm (XL) e*thirteen Direct Mount Chainring 34 T
Bottom bracket
Sram DUB
Cassette
SRAM GX Eagle XS 1270 10-52 T. / 12-Speed
Chain
SRAM GX Eagle Transmission
Chain guide
ROTWILD EXC Chainguide
Seatpost
8PINS NGS3.0 up to 225 mm (XL)
Saddle
ERGON SM Sport
Front hub
CRANKBROTHERS Synthesis Enduro 110-15 mm / 6-Bolt
Rear hub
CRANKBROTHERS Synthesis Enduro 148-12 mm / 6-Bolt
Rims
Synthesis Enduro 31.5 mm Width
Rear rim
CRANKBROTHERS Synthesis Enduro 29.5 mm Width
Front tyre
SCHWALBE Albert Evo Trail / Soft / TLE / 29x2.5
Rear tyre
SCHWALBE Albert Evo Trail / Soft / TLE / 27.5x2.5
Motor
DJI AVINOX M1.24
Battery
IPU900 Carbon - Push+ 864 Wh / 36 V / 21.700 Cell / 3.580 g / QR-Button

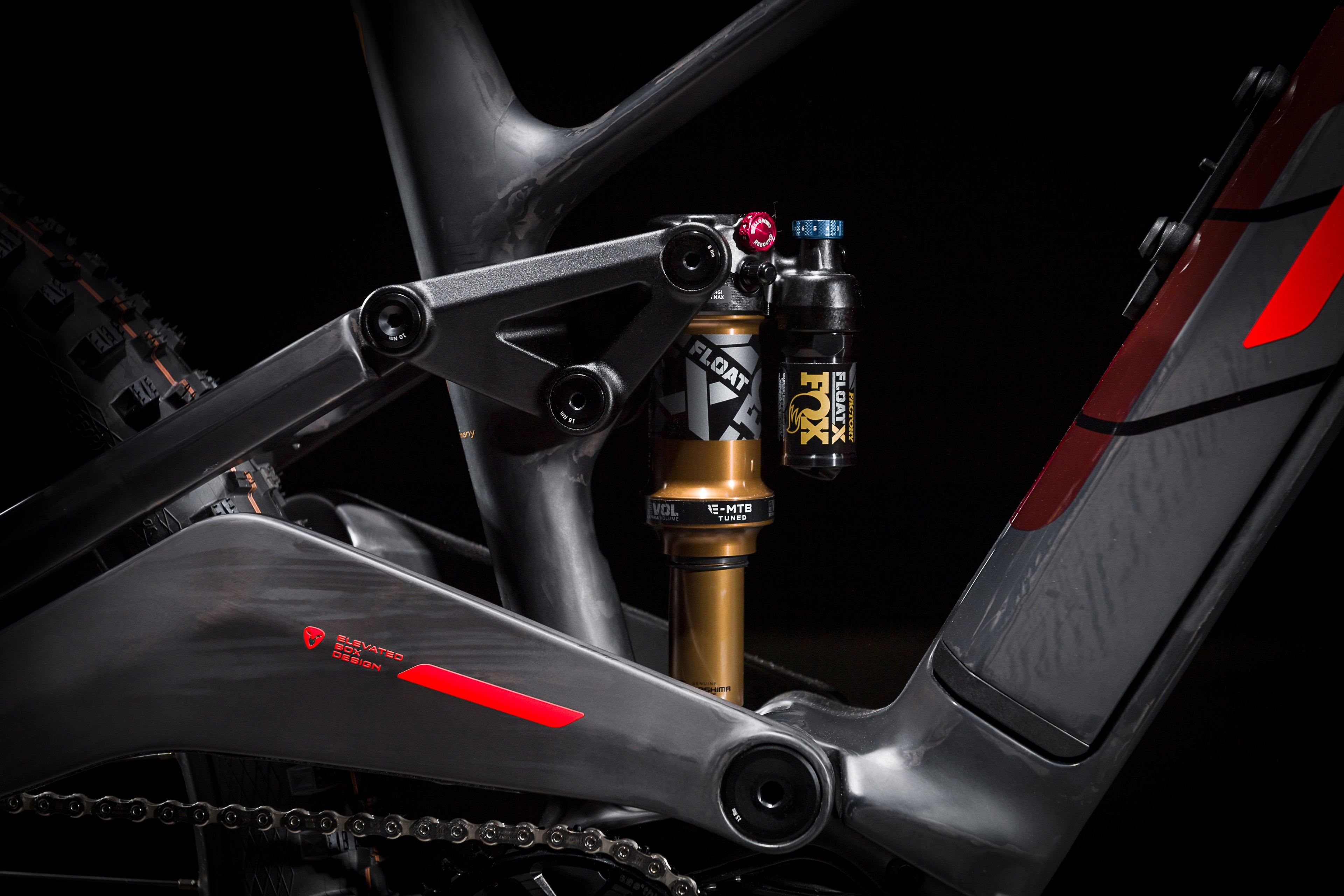

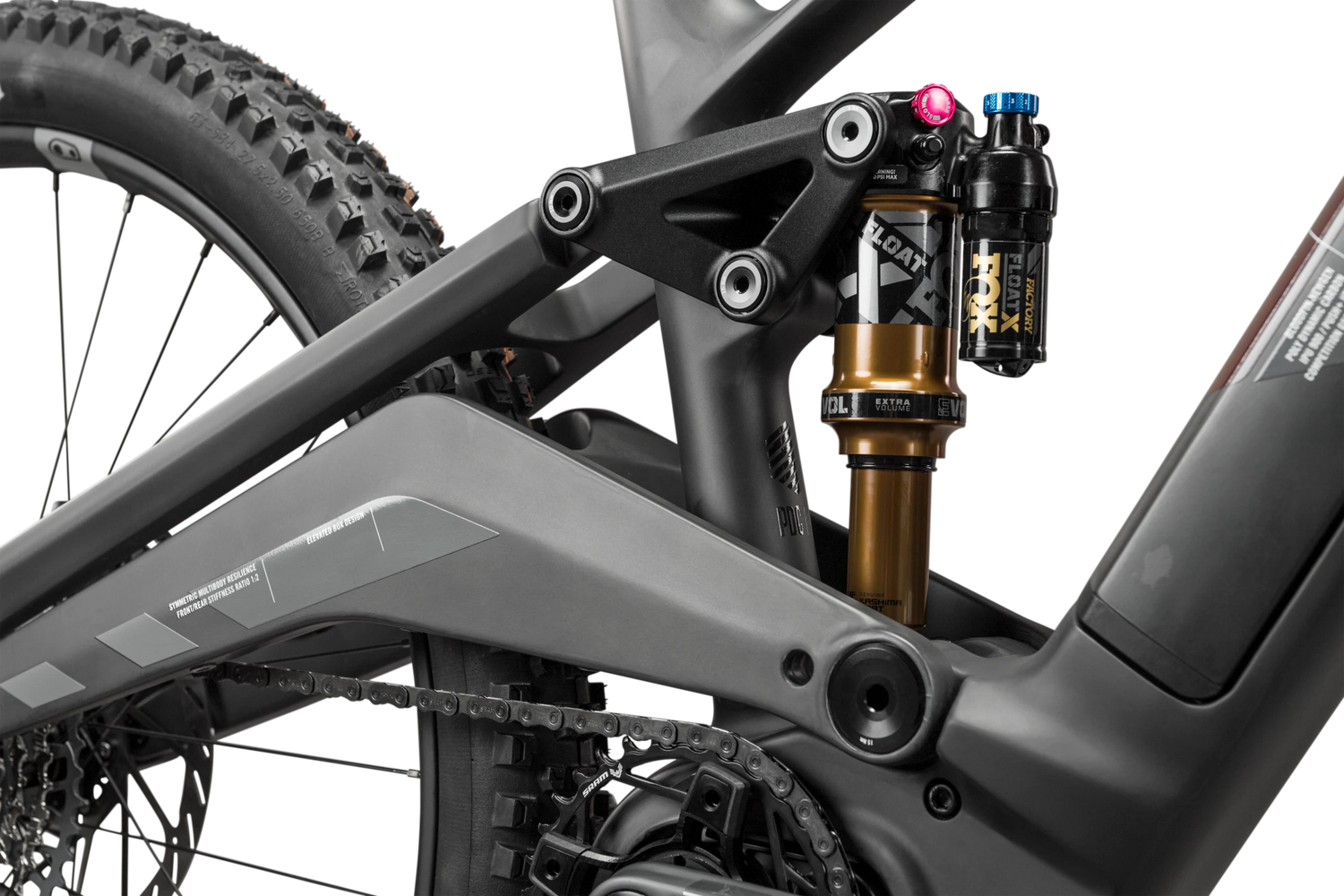

Mid - High Pivot Suspension
Combining the advantages of a classic four-link rear triangle with those of a high-pivot setup whilst maintain chainstay length through the suspensions action. With optimized anti-rise and anti-squat values the result is a very active 150 mm chassis with stable suspension travel.

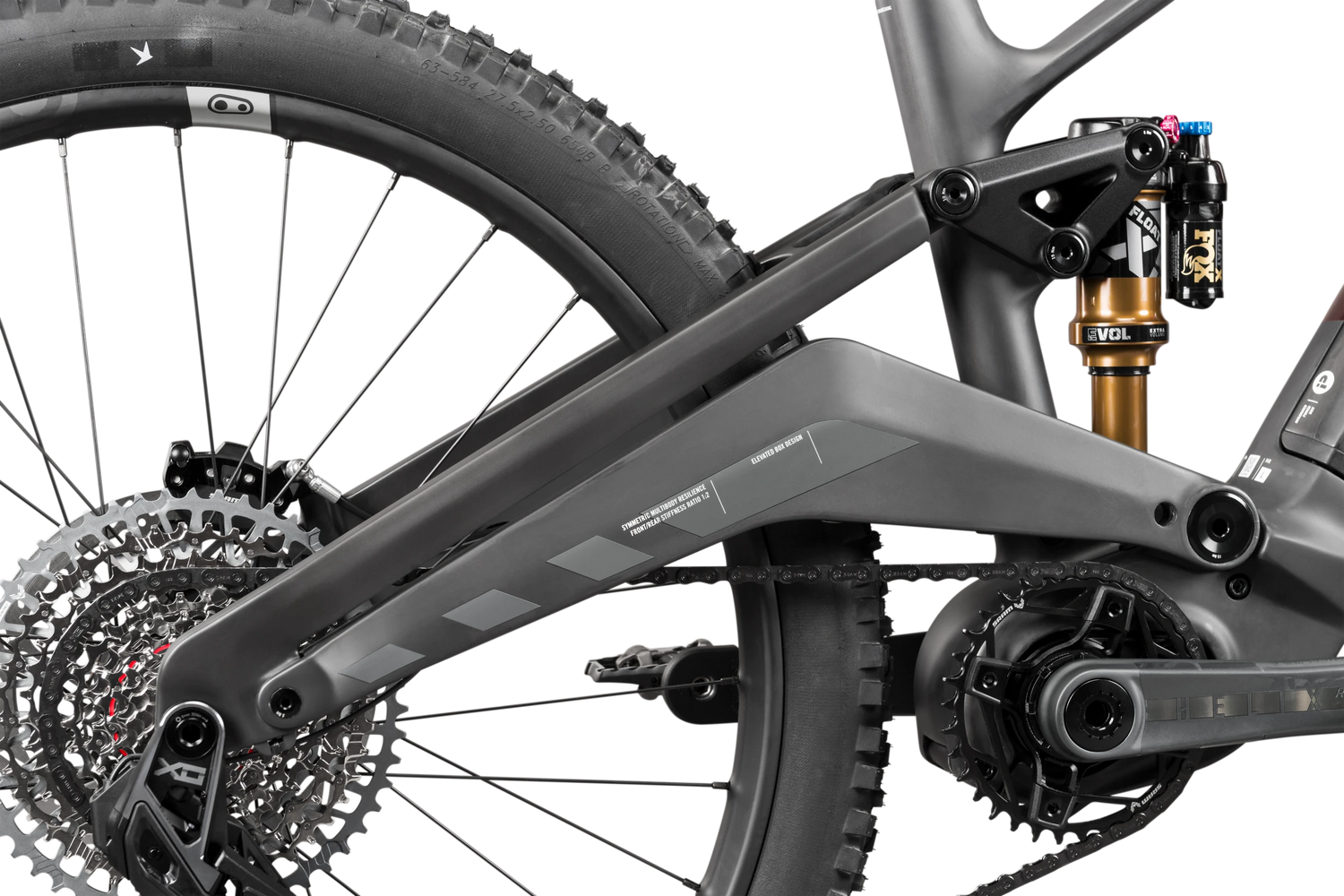

Elevated Chainstay Design
The huge carbon swingarm on the REX .ensures symmetrical stiffness performance. The crossbar between the two chainstays also moves upwards, giving the rear wheel plenty of tire clearance. In addition, chain slap is a thing of the past! This thing is quiet!

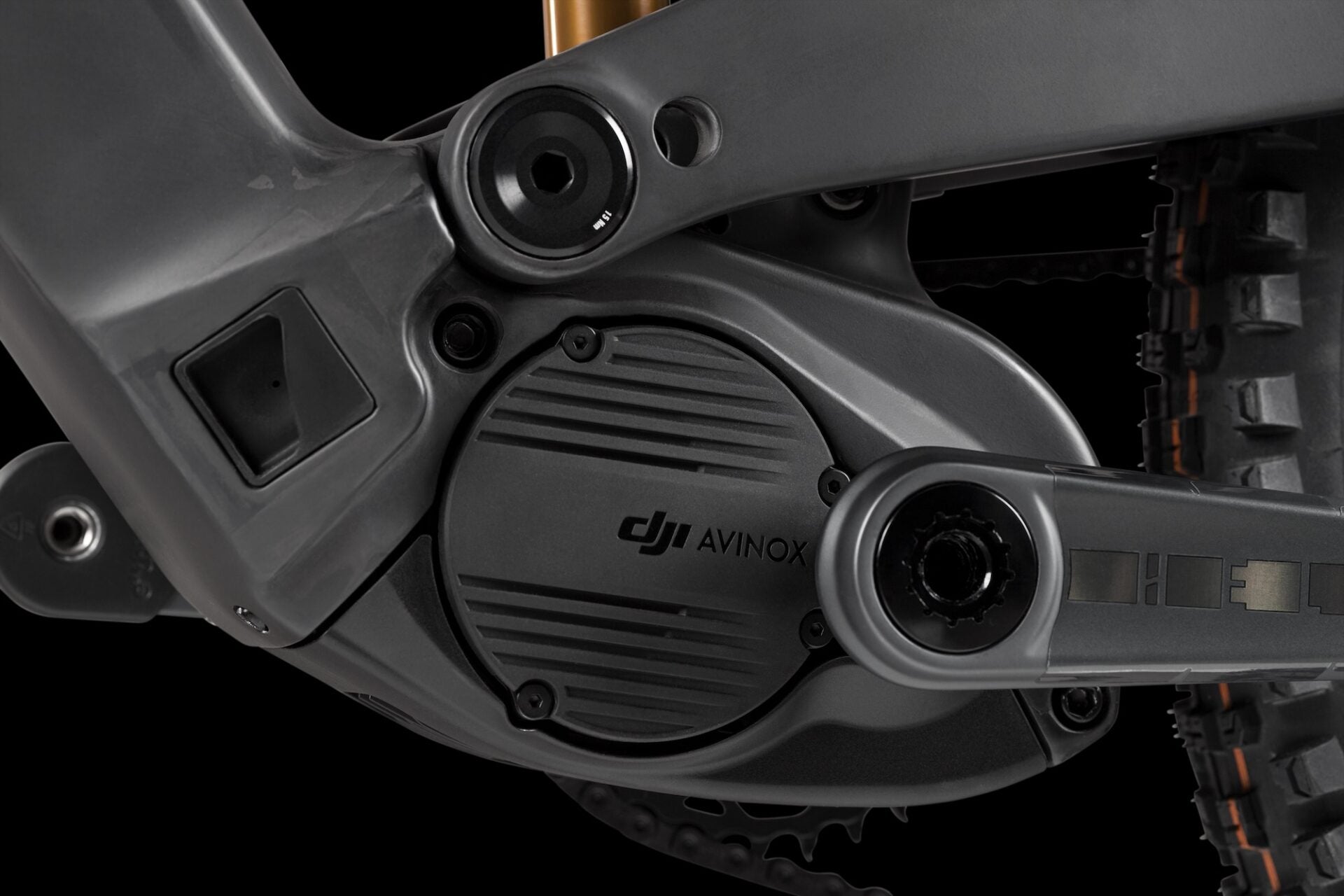

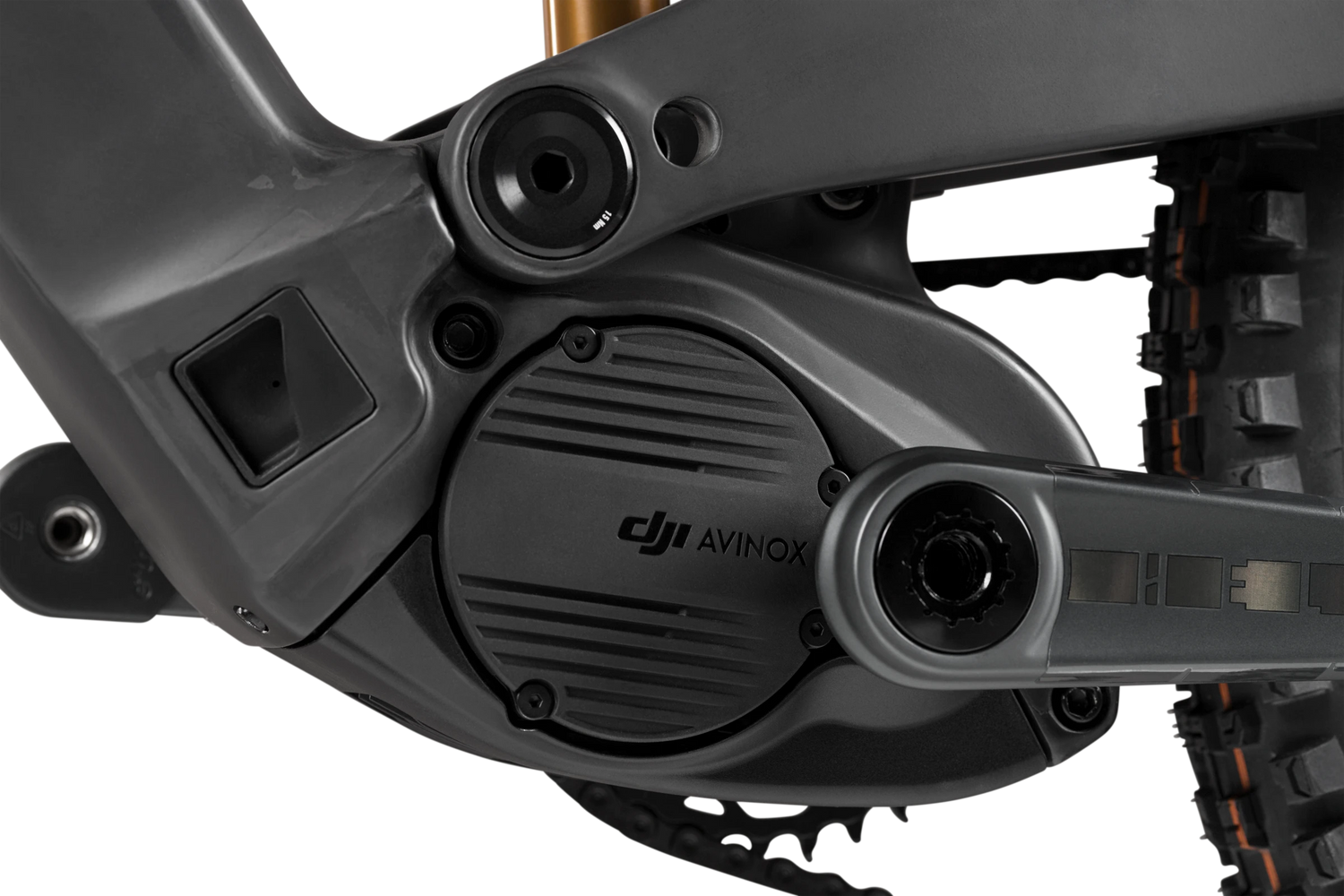

DJI Avinox Motor
Inside the DJI Avinox, the innovative compound planetary gear ensures a lot of power development in a small space. The result is an extremely compact drive with high torque and boost mode, which can generate a maximum power of 1,000 W and 120nm of torque.

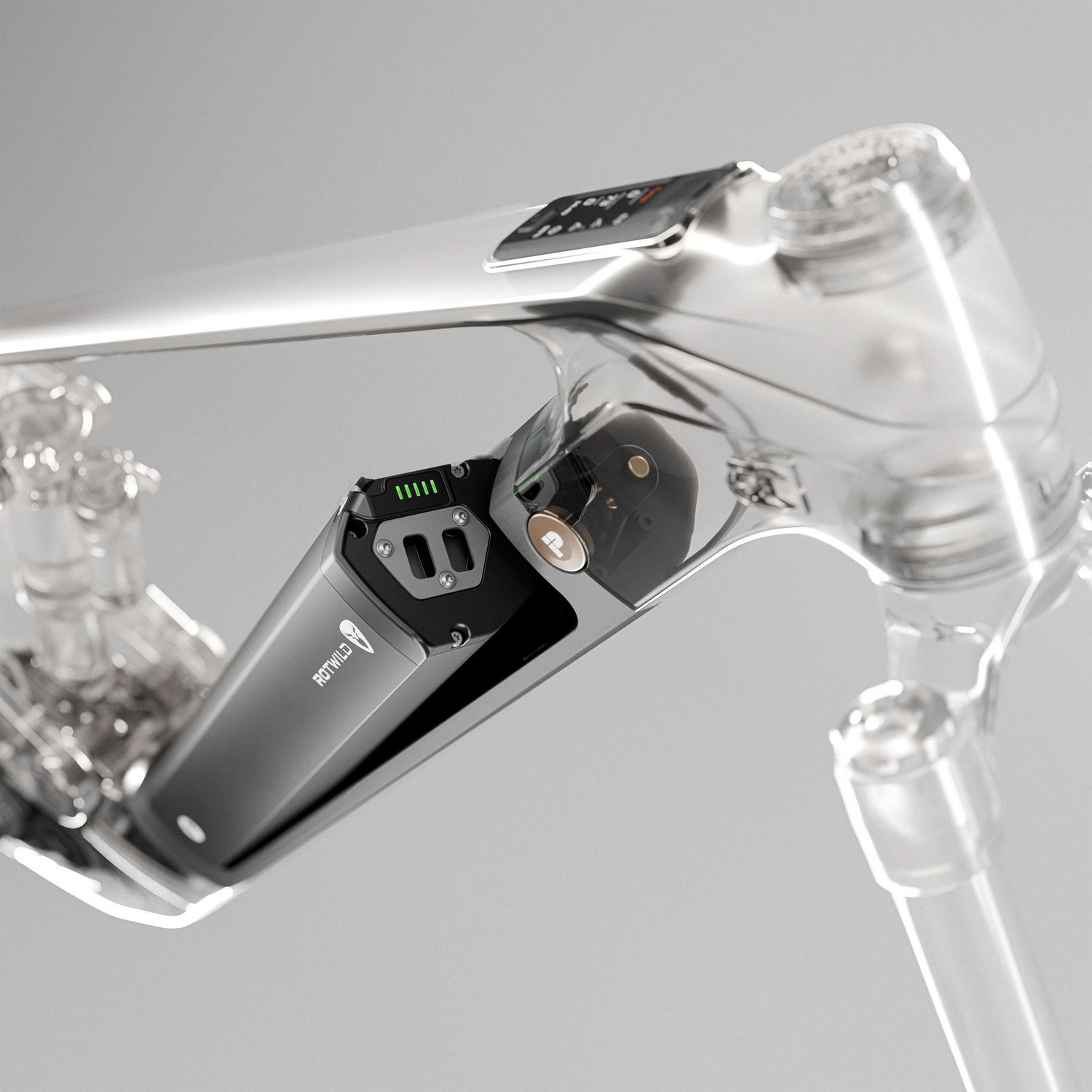

Rotwild Removable Battery
The IPU Gen4 boasts a high battery capacity with a super small volume and light weight. Together with the lightweight carbon housing, the IPU Gen4 guarantees maximum power density and particularly easy handling via the one button push battery release system
