Unno MITH Bosch Race

Every now and then a brand comes along that just flippin knocks your riding socks off, with epic styling, perfect ride characteristics, awesome features and a deep racing heritage and Unno is the pinnacle of one of those brands!

Cesar Rojo's company Cero is a carbon design house that make and design high end components for some of the world biggest brands from KTM, Sram, Huskvana to Mondraker, Felt and many others.

Unno caught our eye as an ideal Brink brand way back in 2015 and we are now finally able to bring you the worlds finest mountain bikes from the foothills of Barcelona!

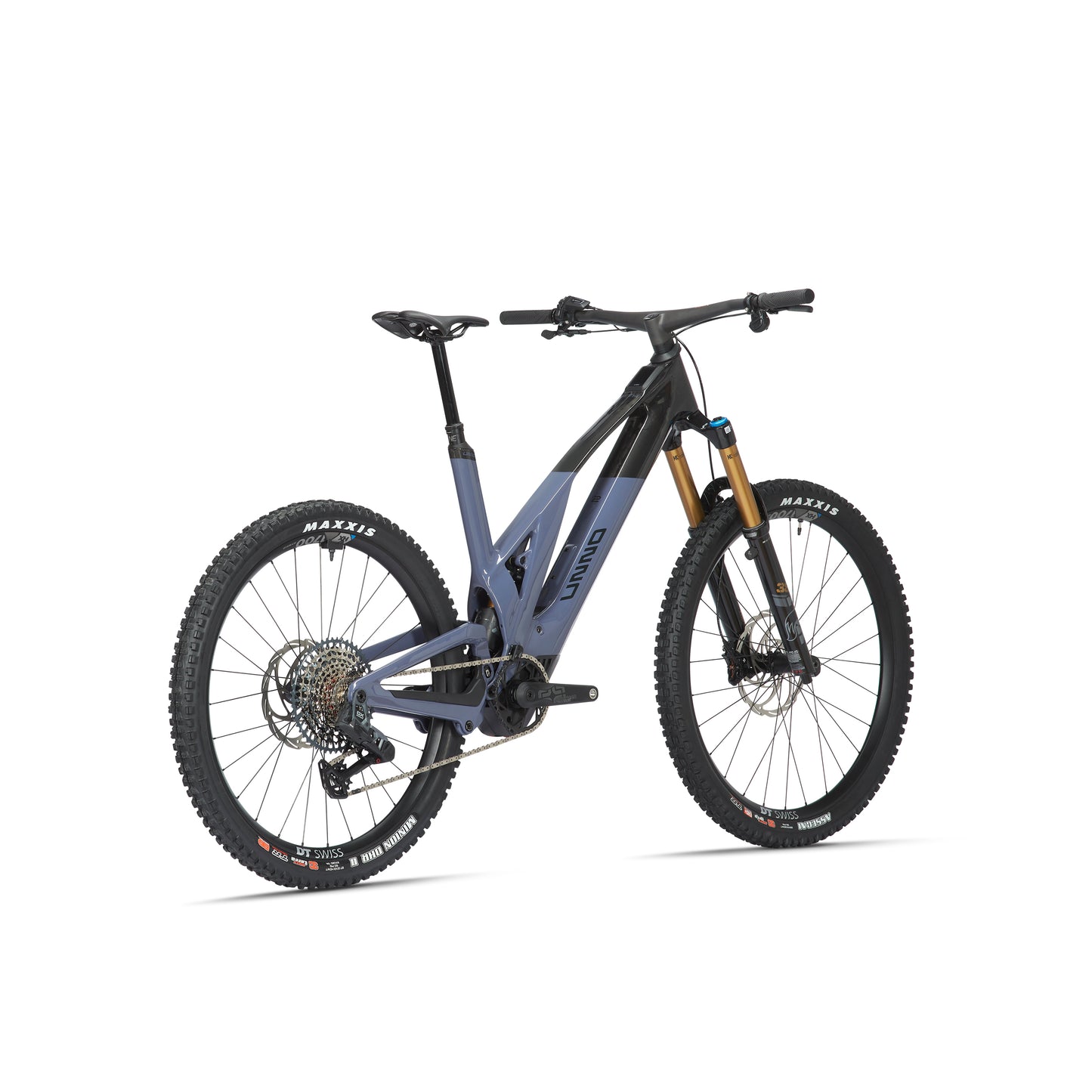

The MITH Race

The Unno Mith Race is a high-performance electric mountain bike that seamlessly blends innovative design with top-tier components, delivering an exceptional riding experience. Crafted with a carbon fibre monocoque frame, it offers 160mm of rear travel through a virtual pivot suspension system, ensuring responsive handling and comfort across diverse terrains. The integration of the Bosch Performance Line CX Gen4 motor, paired with a 750Wh battery and Kiox 300 display, provides robust power and an intuitive user interface. ​
unno.com

Equipped with a 170mm Fox 38 Factory fork and Fox Float X2 Factory shock, the Mith Race adeptly absorbs trail imperfections, enhancing control and ride quality. The mullet wheel setup, featuring a 29" front and 27.5" rear DT Swiss alloy wheels wrapped in Continental Kryptotal tires, offers a balance of stability and agility. ​

The SRAM GX Transmission AXS 12-speed drivetrain ensures precise shifting across a wide gear range, while Formula Cura 4 brakes with 203mm rotors deliver reliable stopping power. The inclusion of a RockShox Reverb AXS dropper post allows for quick saddle height adjustments, enhancing adaptability on varied trails. ​

Weighing approximately 22.6kg in size S2 with the 750Wh battery, the Mith Race stands out as a competitive option among Bosch-powered e-bikes. The use of double row EnduroMAX bearings enhances frame stiffness and durability, contributing to a solid and responsive ride. ​

Unno's commitment to sustainability is evident in the Mith Race, with all resin parts of the frame made from recycled nylon in collaboration with Oceanworks. The bike's geometry, featuring a 64º head tube angle and generous wheelbases across sizes S1 (435mm), S2 (470mm), and S3 (510mm), is designed to provide a balance between stability and agility, making it both fun and easy to ride. ​

In summary, the Unno Mith Race is a thoughtfully engineered e-mountain bike that combines cutting-edge technology, high-quality components, and sustainable materials to offer a ride that is as enjoyable as it is responsible.

Frame:

• Unno MITH, carbon fiber monocoque, 160mm rear travel with a virtual pivot suspension system.

• Features like integrated display, battery, chain guide, seat tube clamp, motor protector, EnduroMAX bearings, internal cable routing, and Boost thru axle.

• Max tire width: 2.6”.

• Made with recycled materials (Oceanworks plastic, recycled rubber). Recommended sag: 35%.

Motor:

• Bosch Performance Line CX (85Nm).

• Bosch Smart System with Bosch Connectmodule compatibility.

• Rim Magnet for motor interaction.

Display:

• Bosch KIOX 300 with integrated screen and navigation functions.

Controller:

• Bosch Remote LED Control Unit BRC3600 Smart System.

Battery:

• Bosch 750Wh, integrated into the frame.

Headset:

• Acros Internal Cable Routing IS52, with spider and cable entry ports.

Suspension:

• Fork: Fox 38 Factory, 170mm travel, Kashima coating, adjustable (HSC, LSC, HSR, LSR).

• Shock: Fox Float X2 Factory, 230x65mm, Kashima coating, adjustable (HSC, LSC, HSR, LSR).

Transmission:

• Derailleur: SRAM GX AXS T-Type, 12-speed, wireless.

• Chainring: EThirteen Espec, 36T, Bosch Gen4 direct mount.

• Cassette & Chain: SRAM GX T-Type 12-speed.

• Crankset: EThirteen Espec Plus, 160mm for Bosch Gen4.

Wheelset:

• Wheels: DT Swiss HX1700 Spline, 29” front, 27.5” rear, E-bike specific.

• Tyres: Continental Kryptotal-F (29x2.40) front, Continental Kryptotal-R (27.5x2.40) rear.

Brakeset:

• Brakes: Formula Cura 4, 4-piston calipers, SRAM Mixmaster, sintered pads.

• Discs: Formula Monolitic, 220mm front, 203mm rear.

Cockpit and Seat:

• Cockpit: DEUX Enduro Integrated, 800mm width, 40mm length, 20mm rise.

• Dropper: OneUp V3 (120mm for S1, 150mm for S2, 180mm for S3).

• Saddle: Selle Italia SLR Boost.
