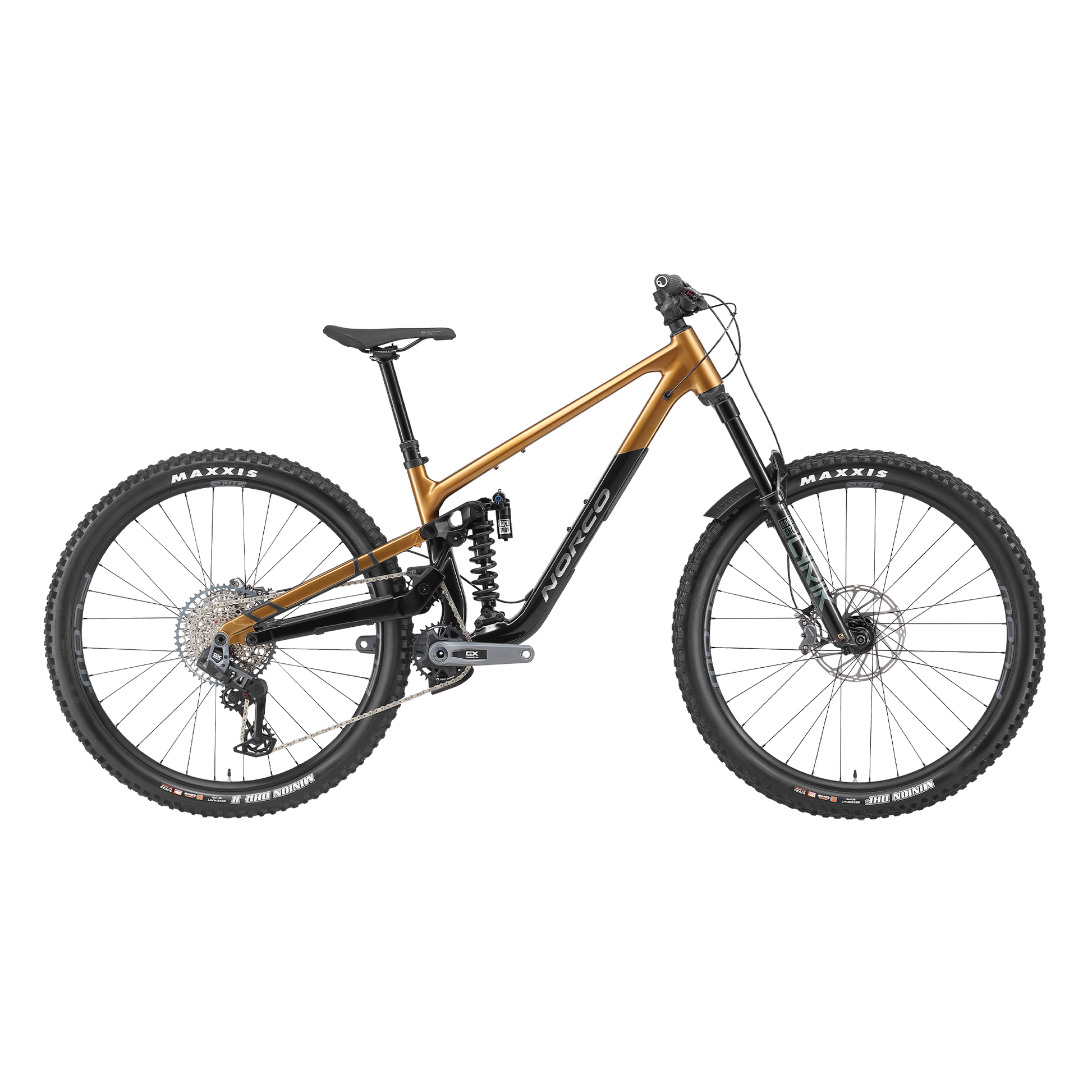

Norco Sight A1

VPShp Suspension Platform

Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.

With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.

Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.

FRAME Sight Aluminum, VPS HP, 150mm Travel, UDH Compatible

FORK RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm offset, Fender Included

REAR SHOCK RockShox Super Deluxe Ultimate Coil, 205x60mm Trunnion, Sprindex Spring

REAR SHIFTER SRAM Pod Ultimate Controller

REAR DERAILLEUR SRAM GX Eagle AXS T-Type

CRANKSET SRAM GX Eagle T-Type, 30T, 170mm

BOTTOM BRACKET SRAM DUB BSA Threaded

CASSETTE SRAM CS 1275 Eagle T-Type 10-52T

CHAIN SRAM GX Eagle T-Type

CHAIN GUIDE Norco Idler Guide and Lower Guide

FRONT BRAKE SRAM Code Bronze Stealth

FRONT BRAKE ROTOR SRAM Centerline 200mm

REAR BRAKE SRAM Code Bronze Stealth, 4-Piston, Sintered Pads

REAR BRAKE ROTOR SRAM Centerline 180mm

BRAKE LEVERS SRAM Code Bronze Stealth

HANDLEBAR 6061 Alloy, 800mm 25mm Rise

STEM CNC Alloy 40mm Length, 35mm Clamp

SEATPOST TranzX YS108 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)

HEADSET FSA #57 E Sealed Bearing

SADDLE SDG Bel Air V3

GRIPS WTB Wavelength Lock-On

SEATPOST CLAMP Norco Alloy Nutted Clamp

FRONT HUB Race Face Vault, 15x110mm Boost, 6-Bolt

REAR HUB Race Face Vault 12x148mm Boost, XD, 6-Bolt

RIMS Stan's Flow S2, Black 32H, 29"/29"

FRONT TIRE Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding

REAR TIRE Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding

SPOKES/NIPPLES DT Competition Butted Black Stainless
