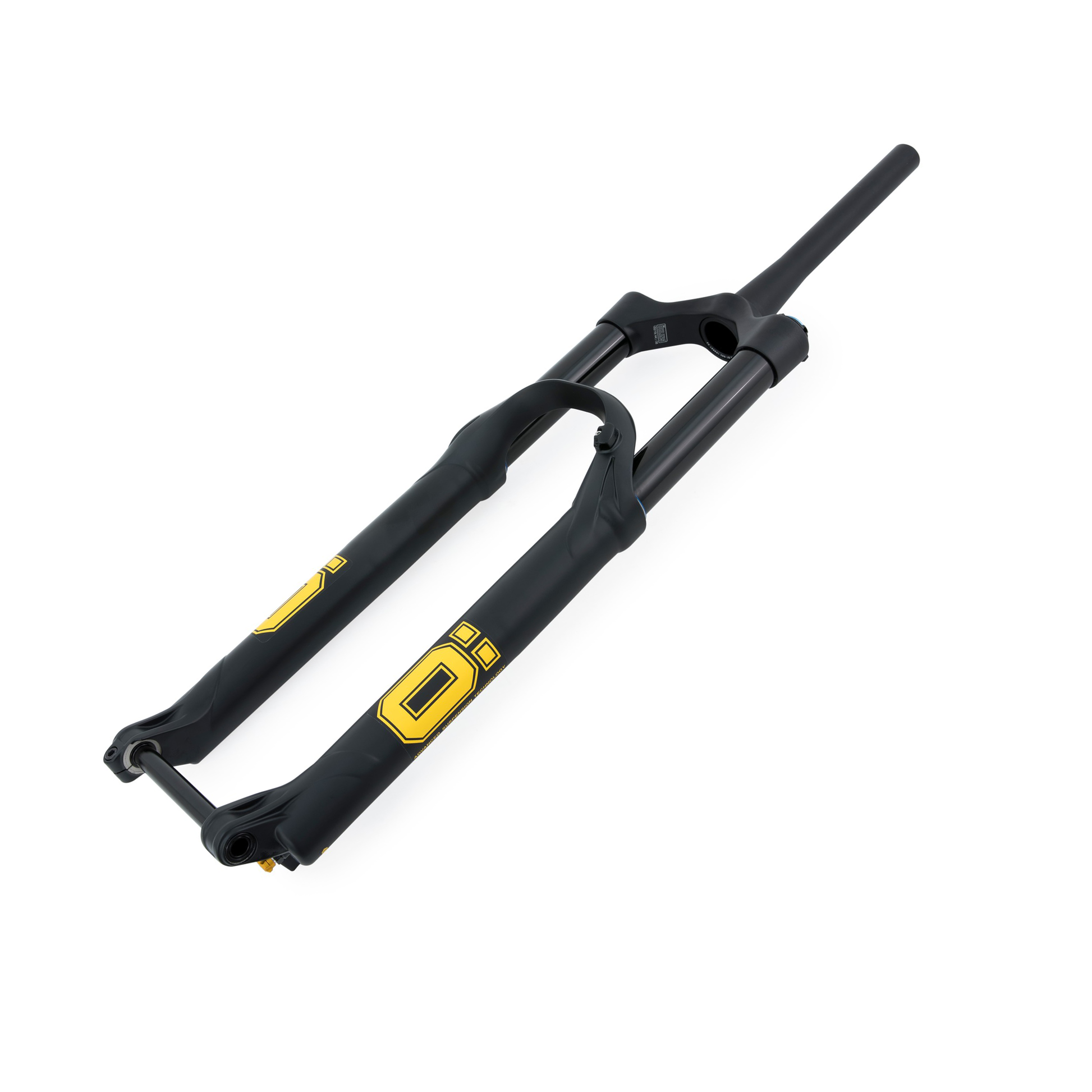

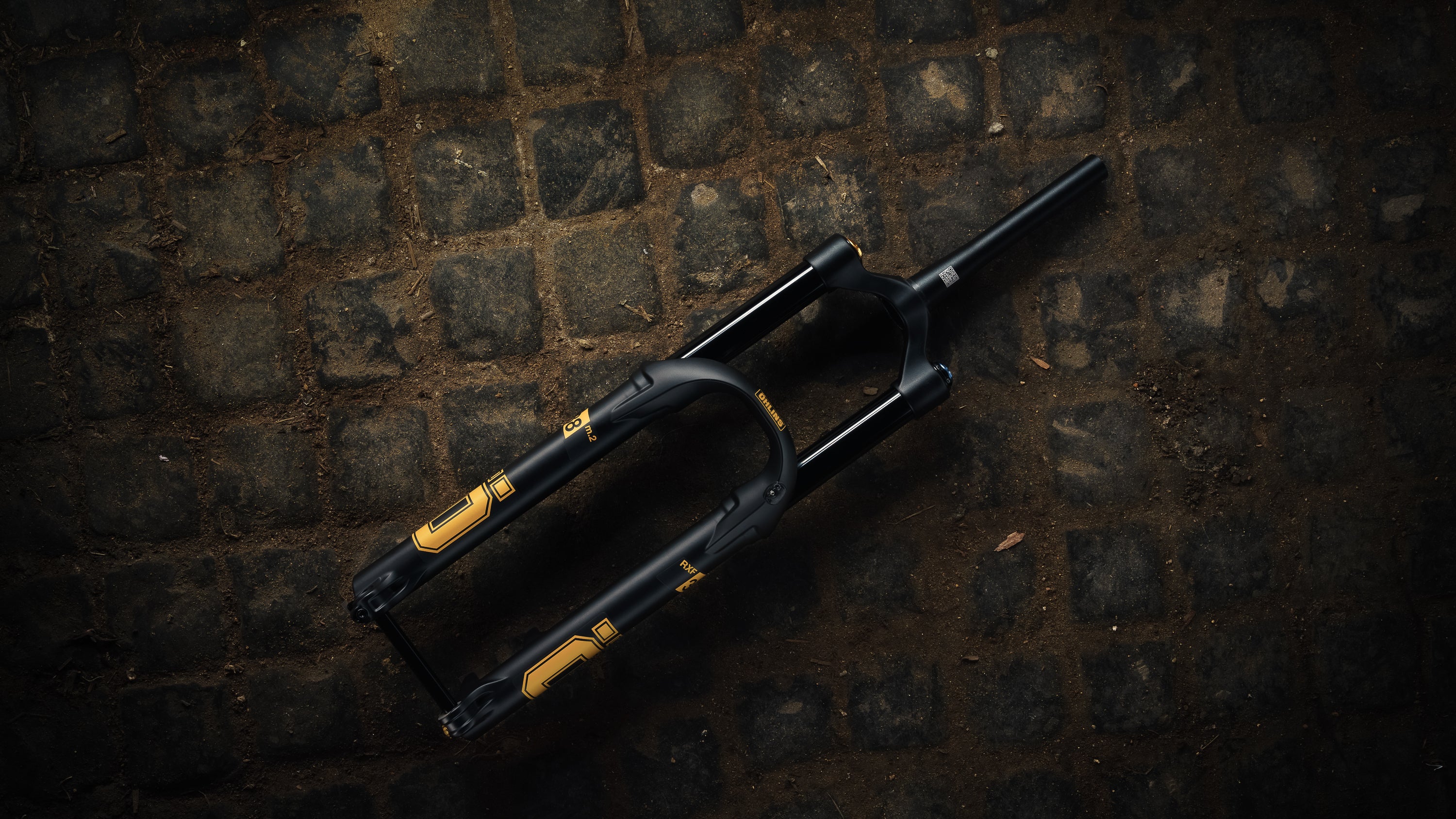

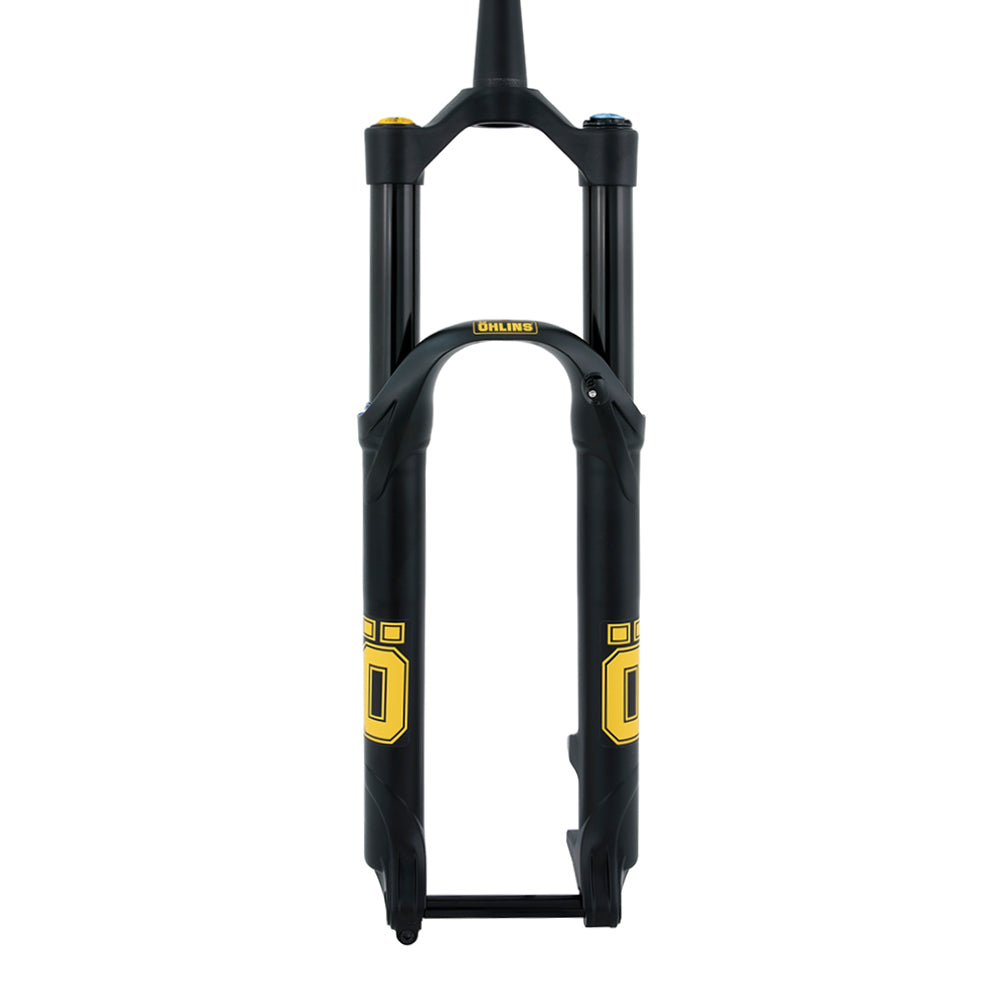

Öhlins RXF36 m.2 Fork – Trail and Enduro Precision with Race-Proven Damping
The Öhlins RXF36 m.2 brings the race-winning TTX18 damping system—originally developed for the DH38 Race Fork—to the trail and enduro world. Re-engineered with an 18mm piston optimized for aggressive trail use, this fork delivers unmatched traction, control, and small-bump sensitivity.
Refined Damping for Unrivalled Control
The TTX18 cartridge kit offers a broader damping pressure bandwidth than its predecessor, the RXF36, resulting in quicker valve response and enhanced sensitivity. This translates to superior traction and consistent performance, even in the most demanding trail conditions.
Plush Performance Meets All-Terrain Capability
Riders will immediately notice the RXF36 m.2’s ultra-smooth action, which enhances comfort on long rides and maintains speed over technical terrain. The fork’s composed, confidence-inspiring performance helps riders stay connected to the trail and push their limits with control.
Trail-Tuned Adjustability

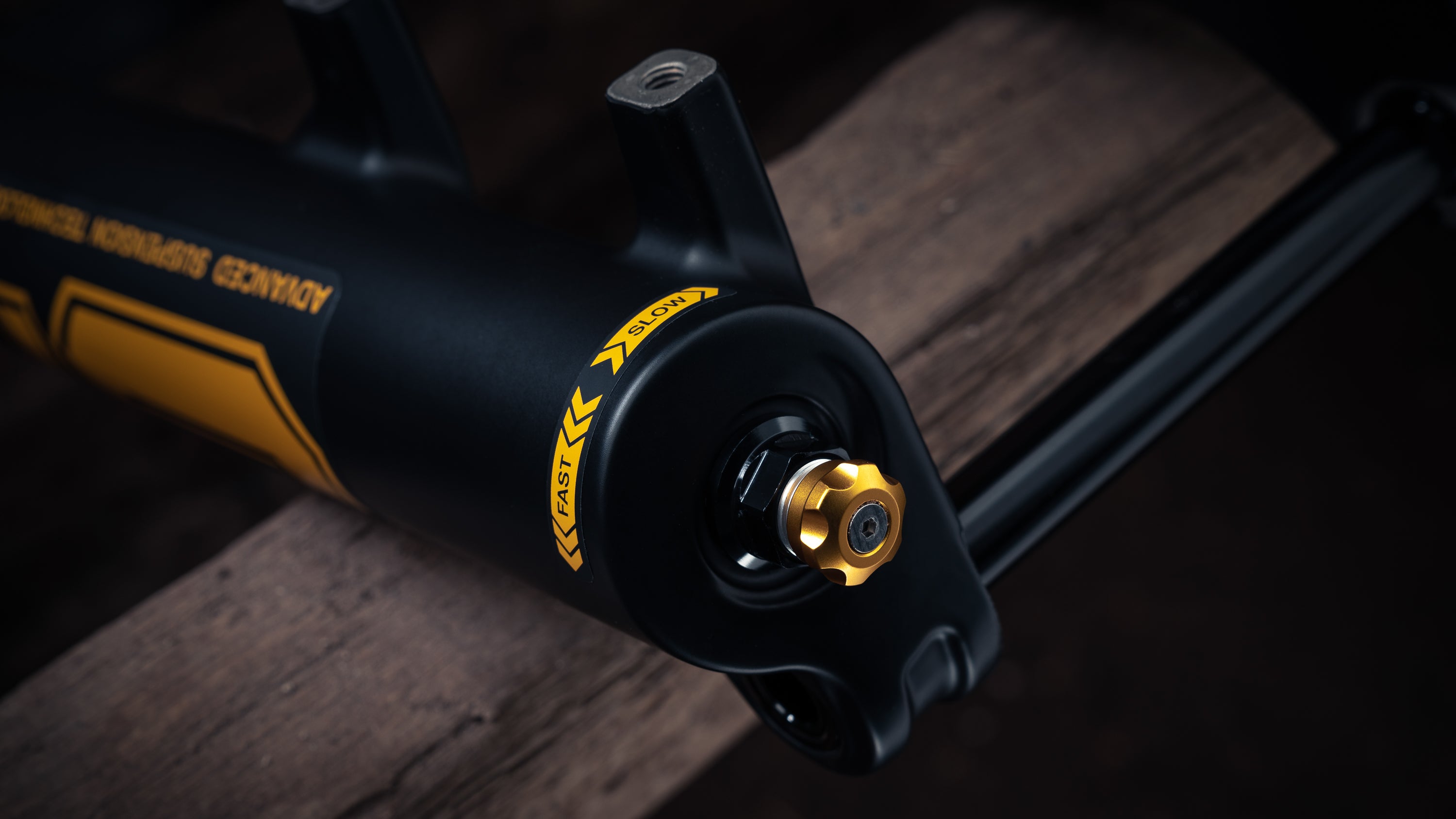

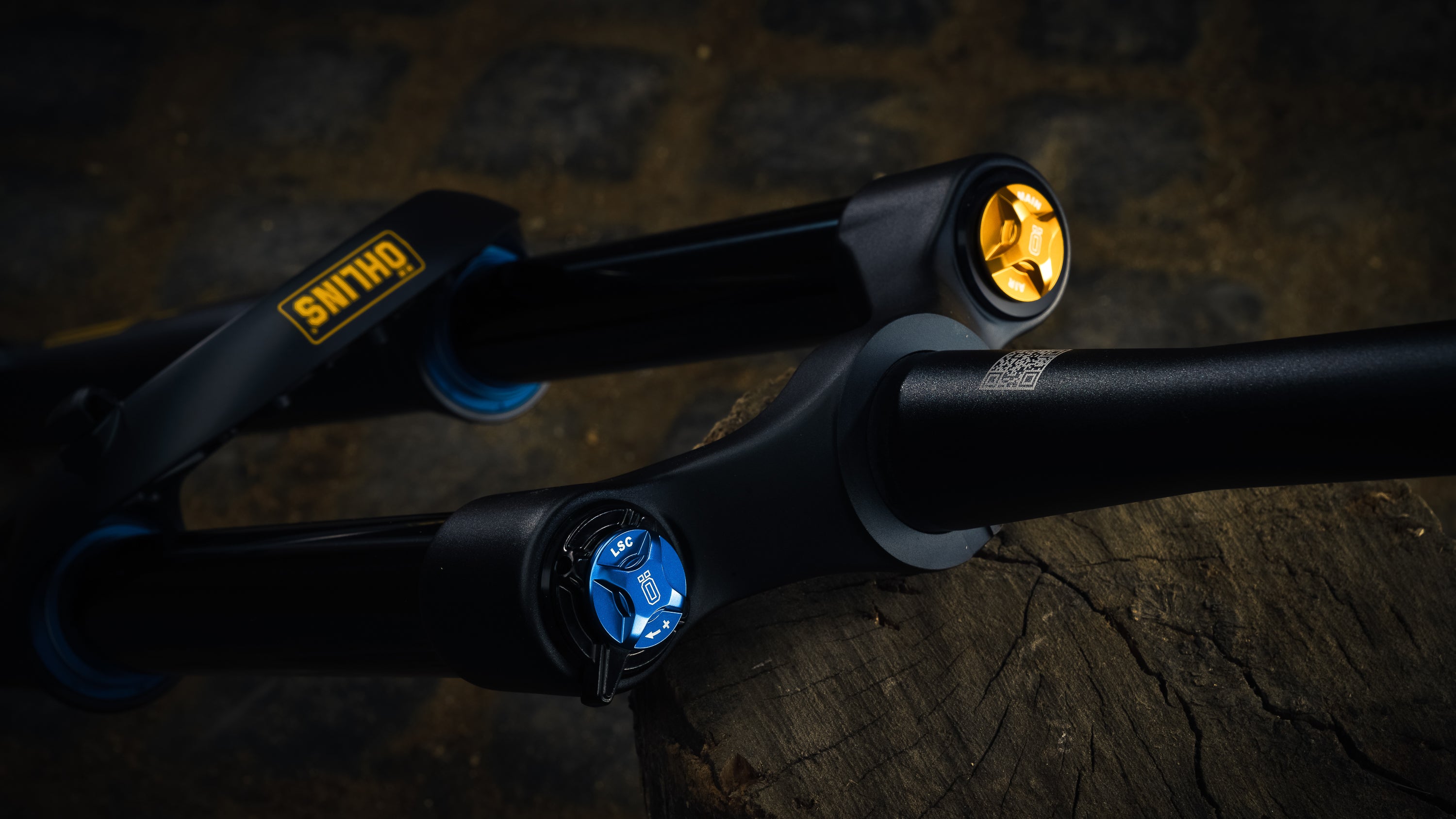

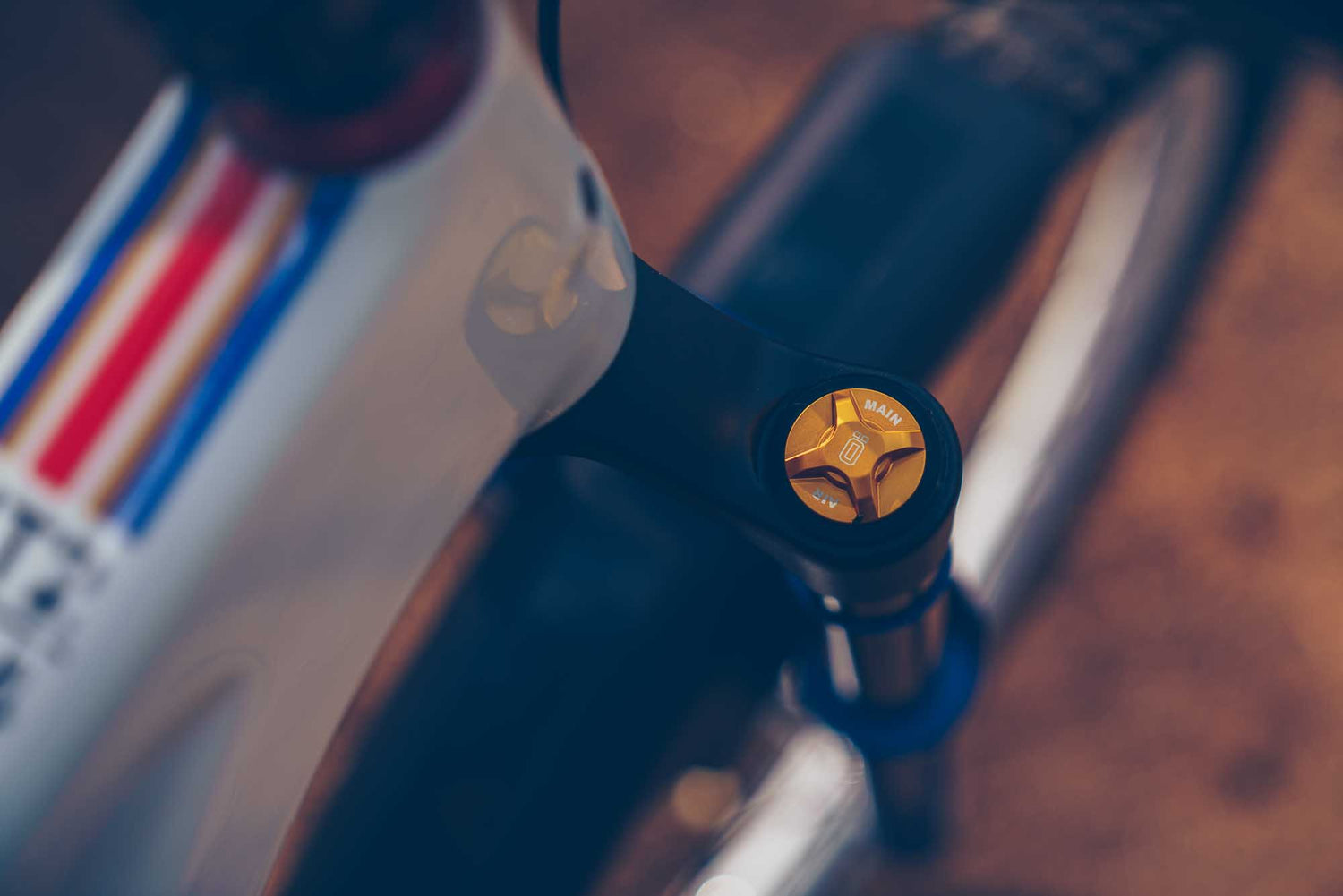

Purpose-built for enduro and tough trail use, the RXF36 m.2 offers 15 clicks of low-speed compression and low-speed rebound adjustment, along with 3 high-speed compression settings and a dedicated climb mode. External dials provide quick, tool-free adjustments on the fly.
Customizable Air Spring System
A retuned, twin-piston, three-chamber air spring system allows precise tuning of progression throughout the travel—from initial movement to bottom-out. The cartridge-based design also makes it easy to swap between air and coil spring cartridges to suit rider preference or riding style.*
Optimized for Larger Tires and eMTBs

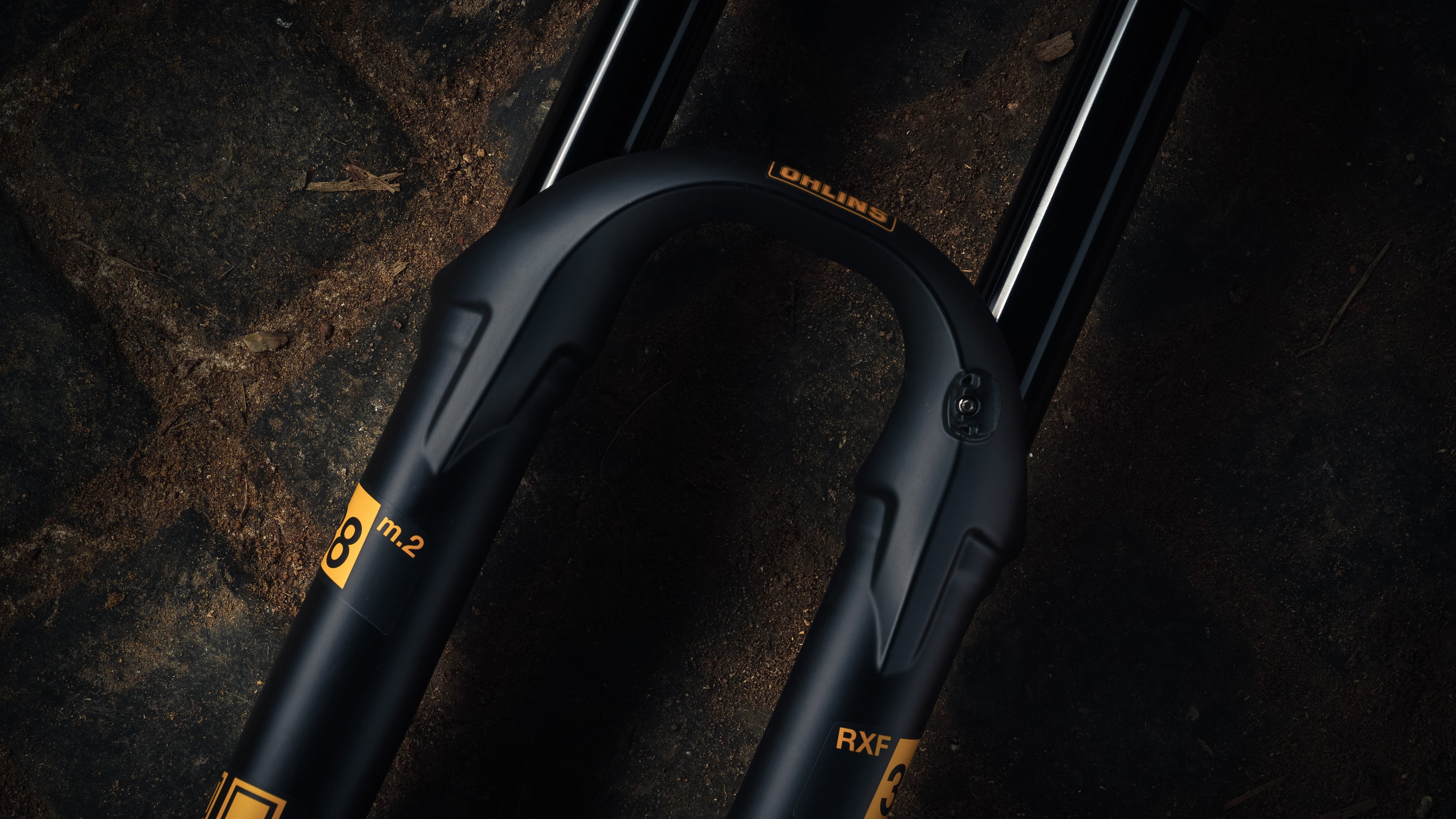

With improved tire clearance, the RXF36 m.2 supports up to 29 x 2.8" or 27.5+ x 3.2" tires. Combined with a stiff, reinforced chassis, this fork is an excellent option for both e-MTBs and pedal-powered bikes.
Race-Proven Tunability
As with all Öhlins suspension featuring TTX damping, the RXF36 m.2 gives riders access to a comprehensive, race-developed tuning bank—allowing complete customization based on rider, bike, and terrain.
Features
- Fork travel 140-160mm (170 for 27.5")
- Independent spring system
- Independent damper system
- Retuned air spring system
- 38, 44 and 51-mm offset
- Wheel size 29" and 27.5"
- Race-proven setting bank
- Prepared for coil spring
- Reduced chassis friction
- Floating 15x110 axel for minimum friction
- Weight 2050 g (with bolts + axle)
