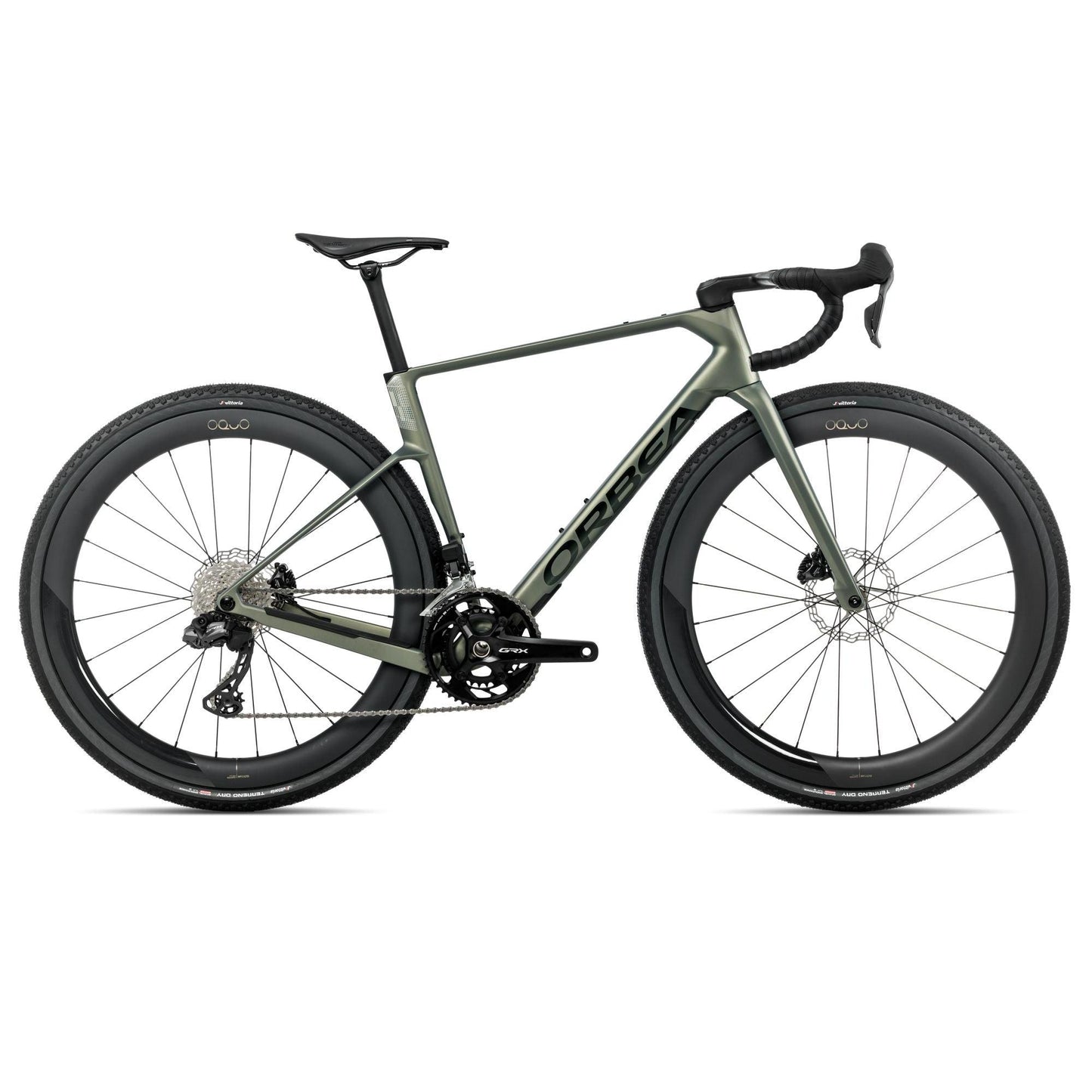

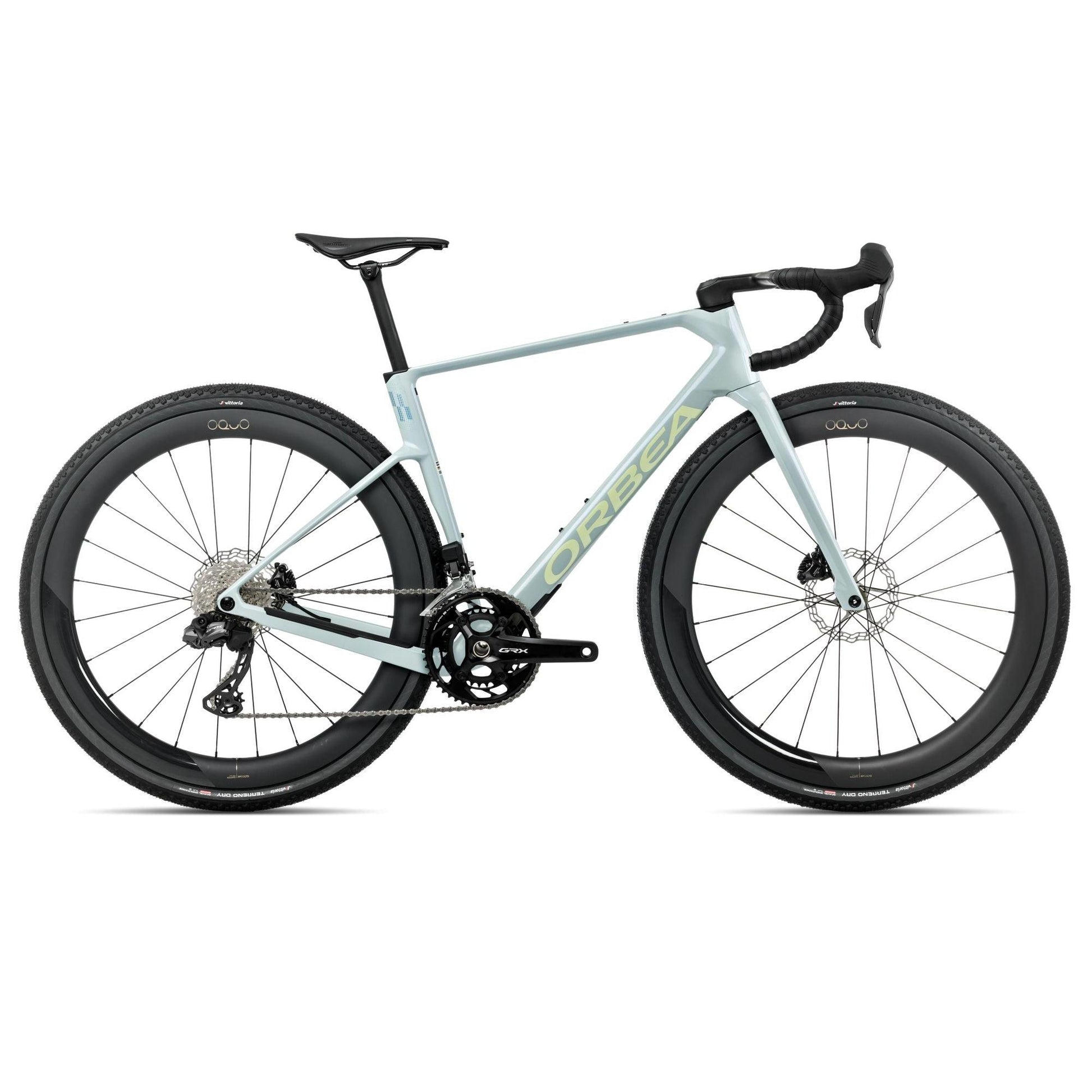

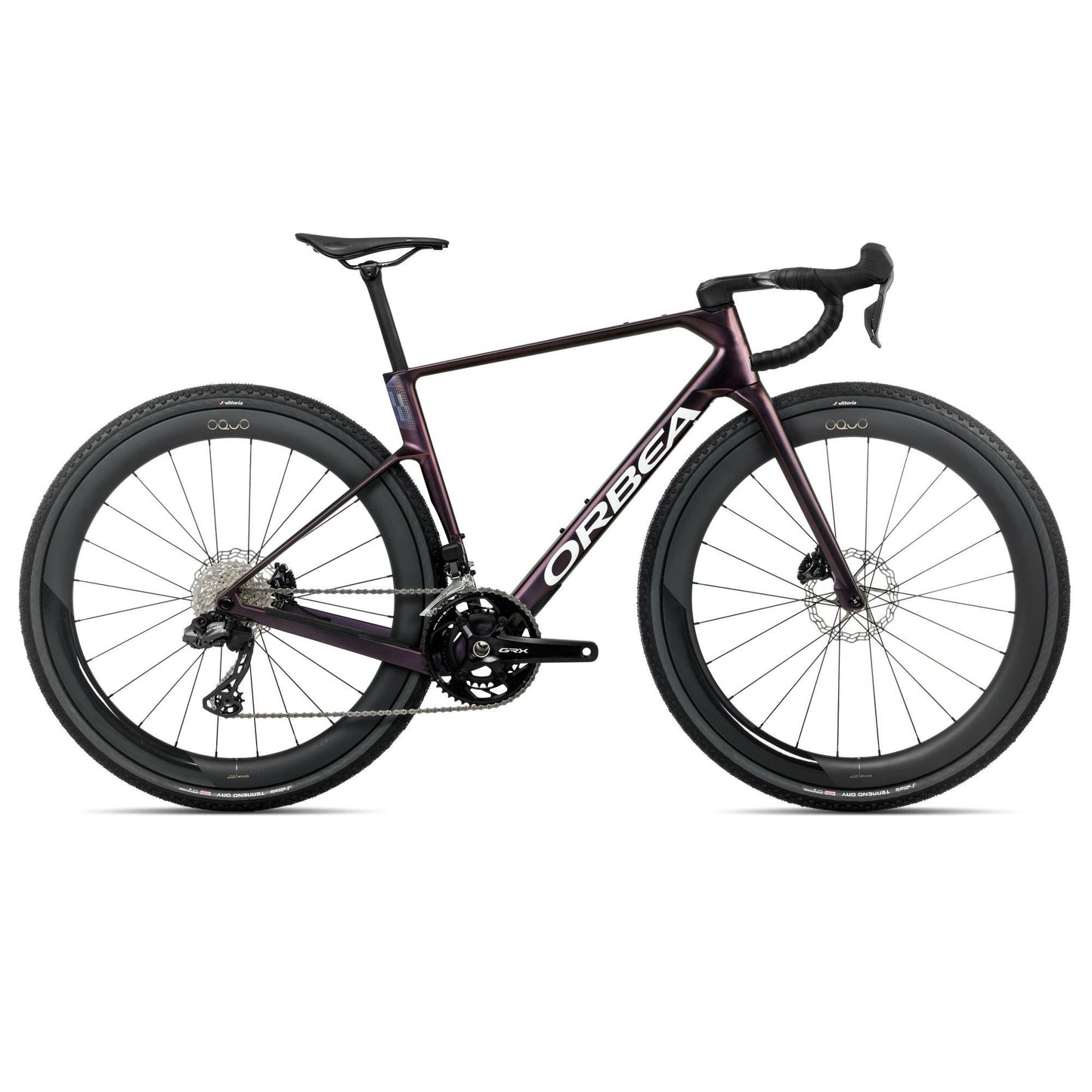

Orbea Terra Race M20i LTD 2026
Orbea Terra Race M20i LTD 2026
Special Order
SKU:T14702ID
files/Orbea-Terra-Race-M20i-LTD-2026-BRINK-2.jpg
12:05 PM
Couldn't load pickup availability
2026 Orbea Terra Race M20i LTD - The Precision Di2 Terra
The Terra Race M20i LTD is the electronically shifted, wide-range 2× Terra — perfect for high-mileage gravel racers who want the widest gear range and the crispest shifting Shimano has to offer.
OMX Frame – Fast & Composed
The vibration-damping rear triangle smooths washboard surfaces, while the stiff front triangle responds instantly under power.
Integrated Aero Cockpit
The OC SH-RA10 carbon cockpit gives the Terra a clean front profile and stiff handling suited to race speeds.
Fast Rolling, Race-Ready Wheels
Oquo RP50 LTD carbon wheels maximise speed on rolling terrain, finished with Vittoria Terreno T30 tyres for confident grip.
GRX Di2 – Electronic 2× for Maximum Range
The new GRX Di2 RX825 brings instant shifts and the versatility of a 48/31t × 11-34t drivetrain. Perfect for big mountain routes, loaded racing or long-distance adventures.
Shimano RX820 Braking Confidence
Strong, predictable braking performance for steep gravel and wet weather.
The Verdict
A premium 2× electronic Terra with huge gearing versatility and elite-level wheels — ideal for endurance racers and riders exploring deeper terrain.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
Specifications
-
2026 Orbea Terra Race M20i LTD
Frame
Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Handlebar
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Stem
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Headset
FSA 1-1/2" Integrated Aluminium Cup
Brakes
Shimano RX820 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano GRX Di2 RX825
Rear derailleur
Shimano GRX Di2 RX825 F&R
Crankset
Shimano GRX RX820 31x48t
Bottom bracket
Shimano
Cassette
Shimano Ultegra R8100 11-34t 12-Speed
Chain
Shimano M7100
Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road
Front hub
Oquo Road Performance RP50LTD
Rear hub
Oquo Road Performance RP50LTD
Spokes
Oquo
Rims
Oquo Road Performance RP50LTD
Rear rim
Oquo Road Performance RP50LTD
Front tyre
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x40c
Rear tyre
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x40c
Lightest, Strongest, OMX Carbon
Speed starts with OMX: our lightest, stiffest carbon layup. By using fewer pieces and taking more time on each frame to reduce overlap, we are able to save 300 g without losing rigidity.
OC SH-RA10 Aero Cockpit
An exceptionally light and aerodynamic integrated cockpit, with fully internal routing, ergonomic tops, and sprint-ready stiffness - all engineered for speed.
Vibration Damping Rear Triangle
Shaped for speed on rough ground, the rear triangle smooths out vibrations and keeps the rear wheel planted for maximum traction when the pace gets punchy.
Just Right Tyre Clearance
Tyre clearance up to 45C gives you the freedom to run wider, faster-rolling setups — perfect for racing over rough terrain without sacrificing speed.
Size-Tuned Stiffness
Our size-tuned stiffness ensures every frame feels equally responsive and efficient.
