Burgtec Evil Shock Bolts

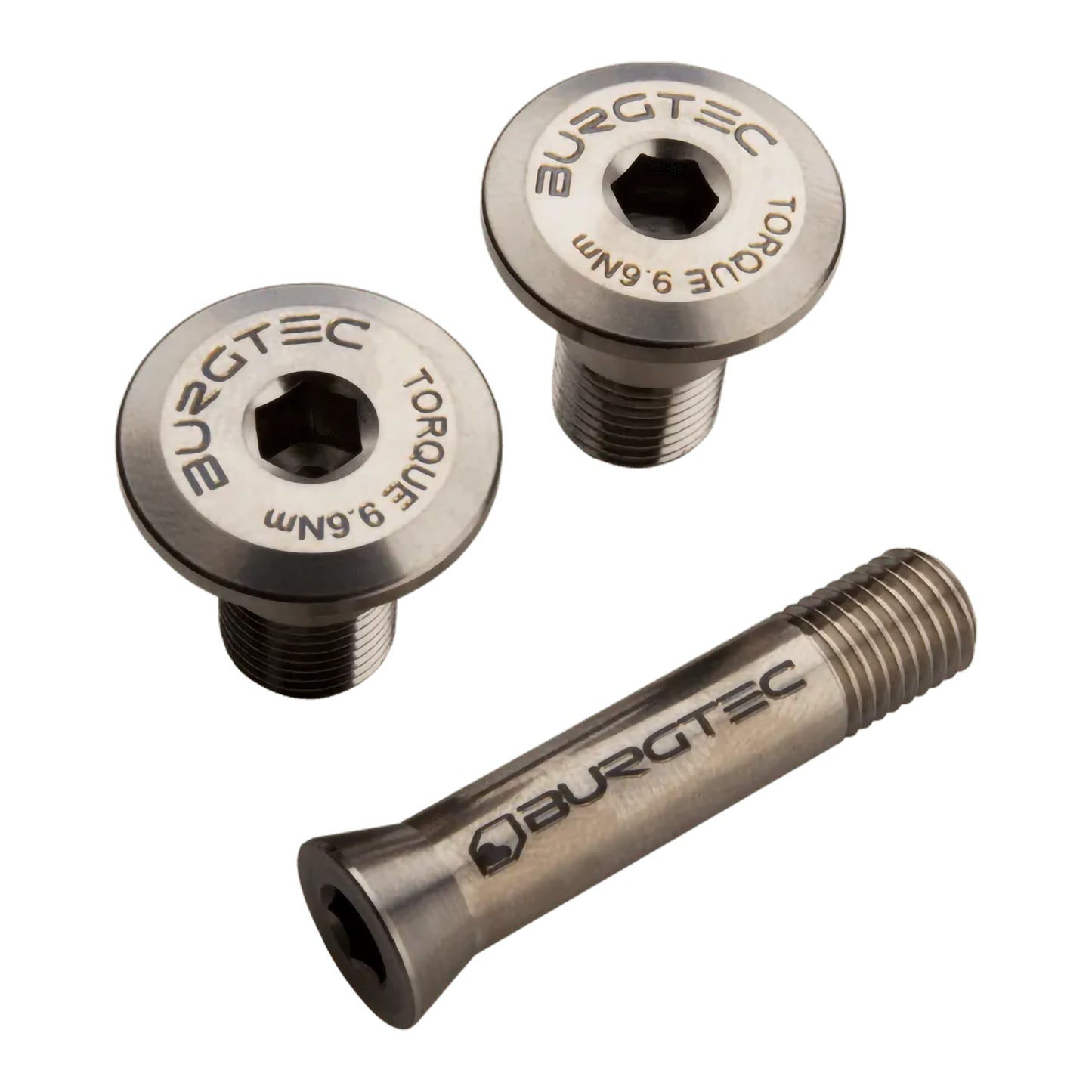

Burgtec's Grade 5 titanium shock bolts let you replace the relevant upper trunnion or lower shock hardware on a compatible Evil frame. The complete option contains two upper bolts and one lower bolt; choose the separate option only for the position you need.

Upper and lower fitment is not identical across the range. Check the lists below against your frame generation rather than assuming that every D.E.L.T.A. bike uses the same shock mount.

Upper and lower applications

• Following MB (V2), Following V3 (2021) and Following LS.
• Wreckoning V3 (2021) and Wreckoning LS.
• Offering V1, Offering V2 (2021) and Offering LS.
• Insurgent V3 (2021) and Insurgent LS.
• Calling V1 and Epocalypse V1.

Additional lower-bolt applications

• Wreckoning V1 and Wreckoning LB (V2).
• Insurgent V1 and Insurgent LB (V2).

The bolts are 6AL-4V Grade 5 titanium. Burgtec specifies a maximum of 85in-lb (9.6Nm); follow the instruction for your exact frame. Listed original references are 50402_B, 50302 and 50603.
