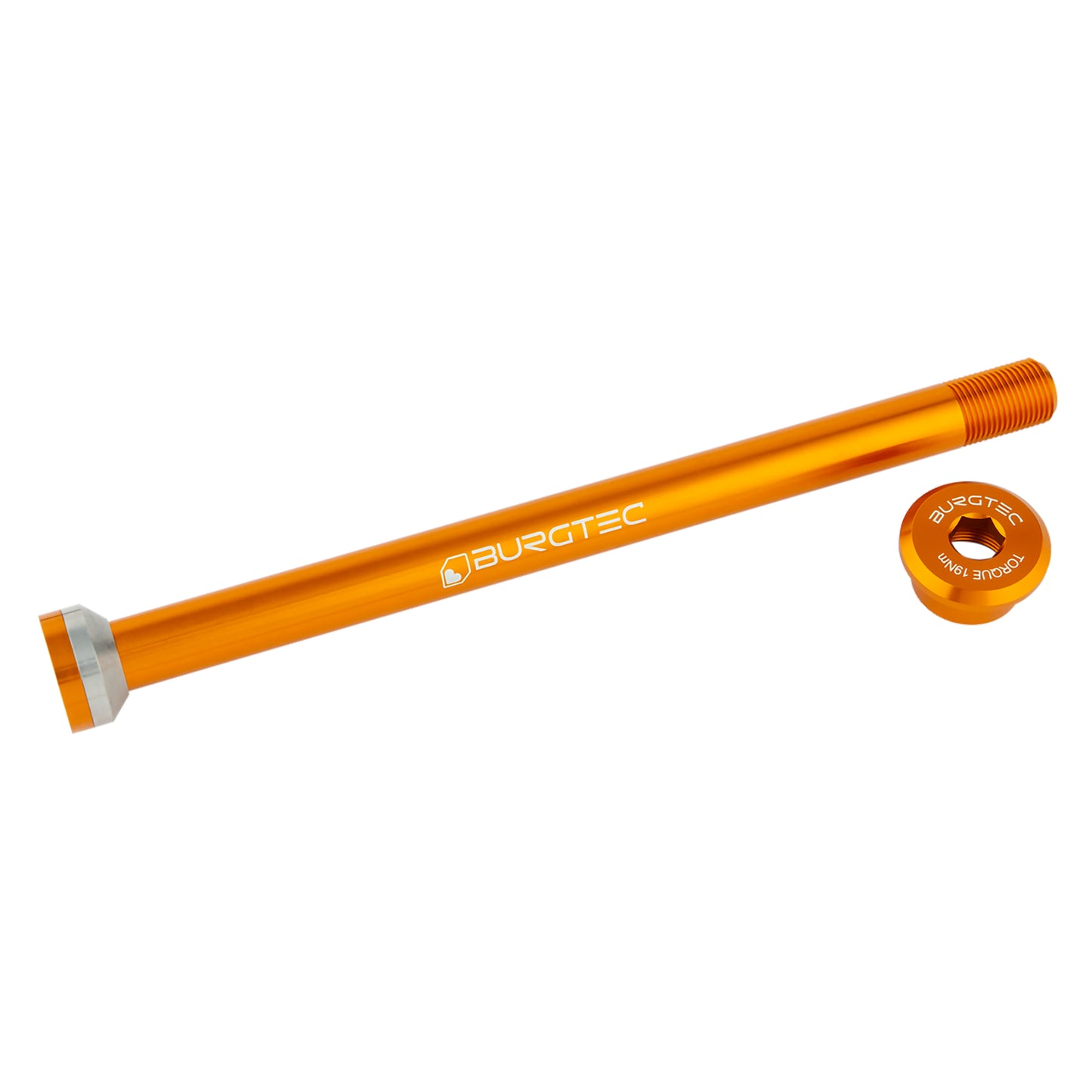

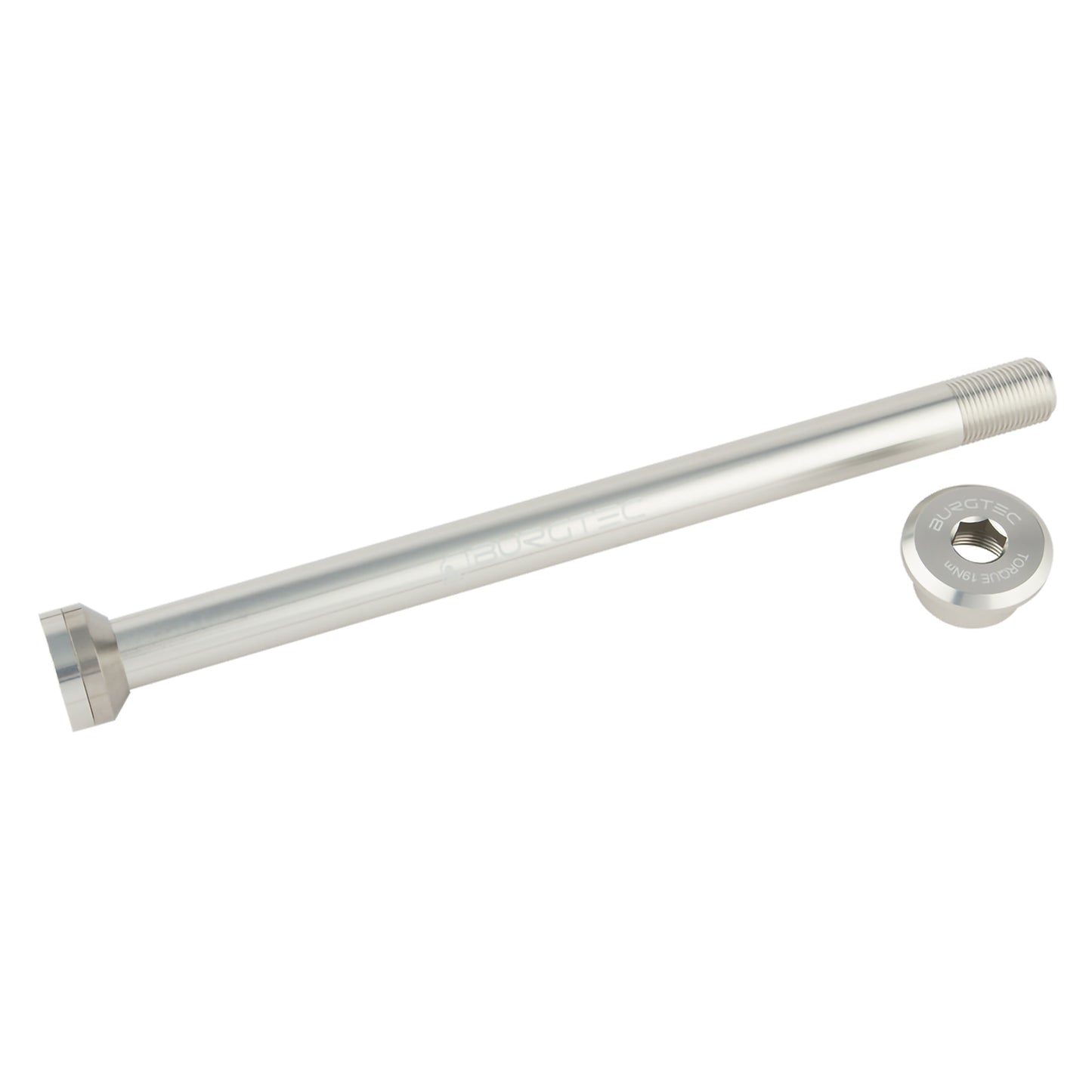

Choose this Burgtec rear axle by your Transition model, frame material and year. The 171mm and 175mm versions use different applications, even when the bike names are the same.
Both are made from 7075 aluminium, with a leverless shape and a 6mm hex fitting at each end. That second fitting provides another removal point if one is damaged.

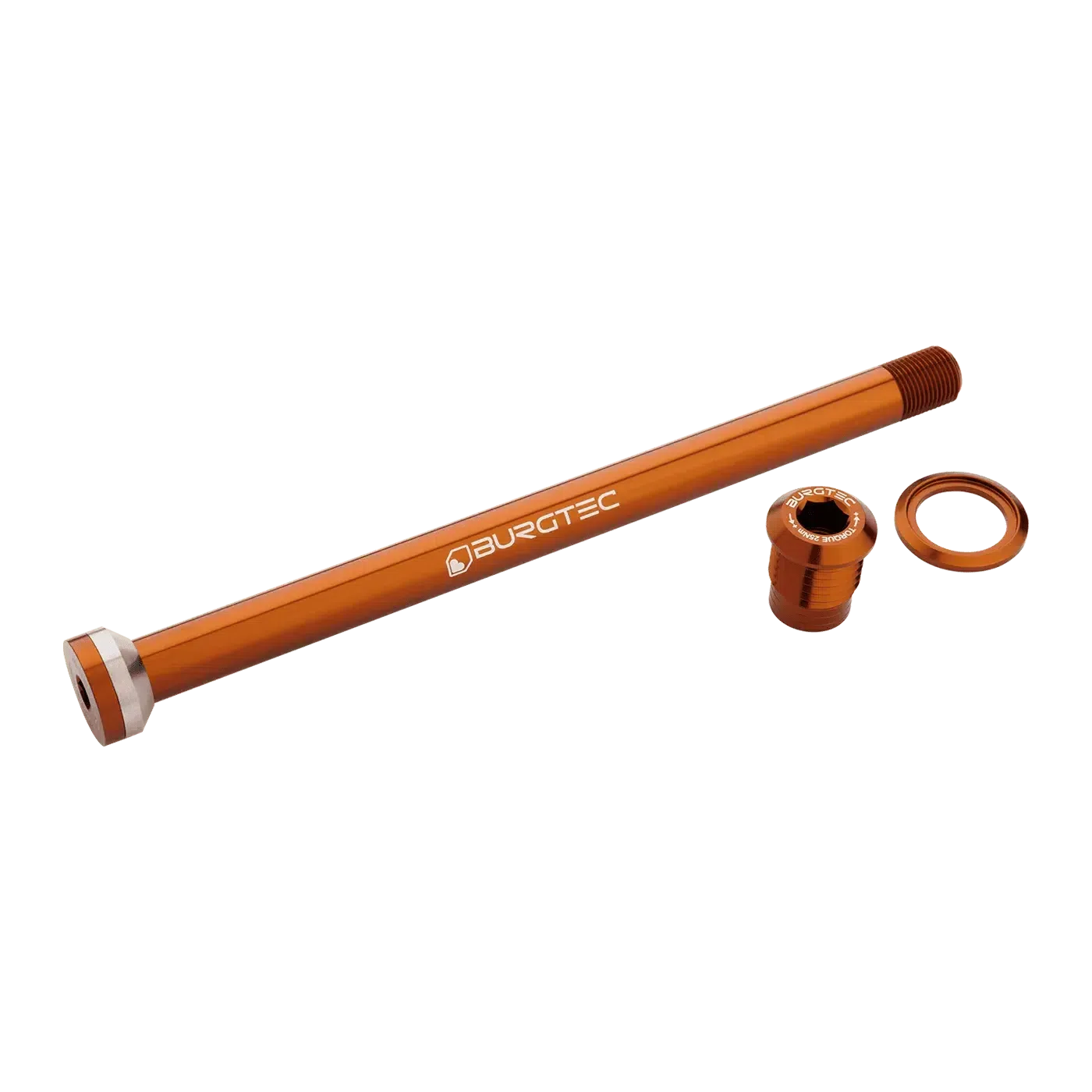

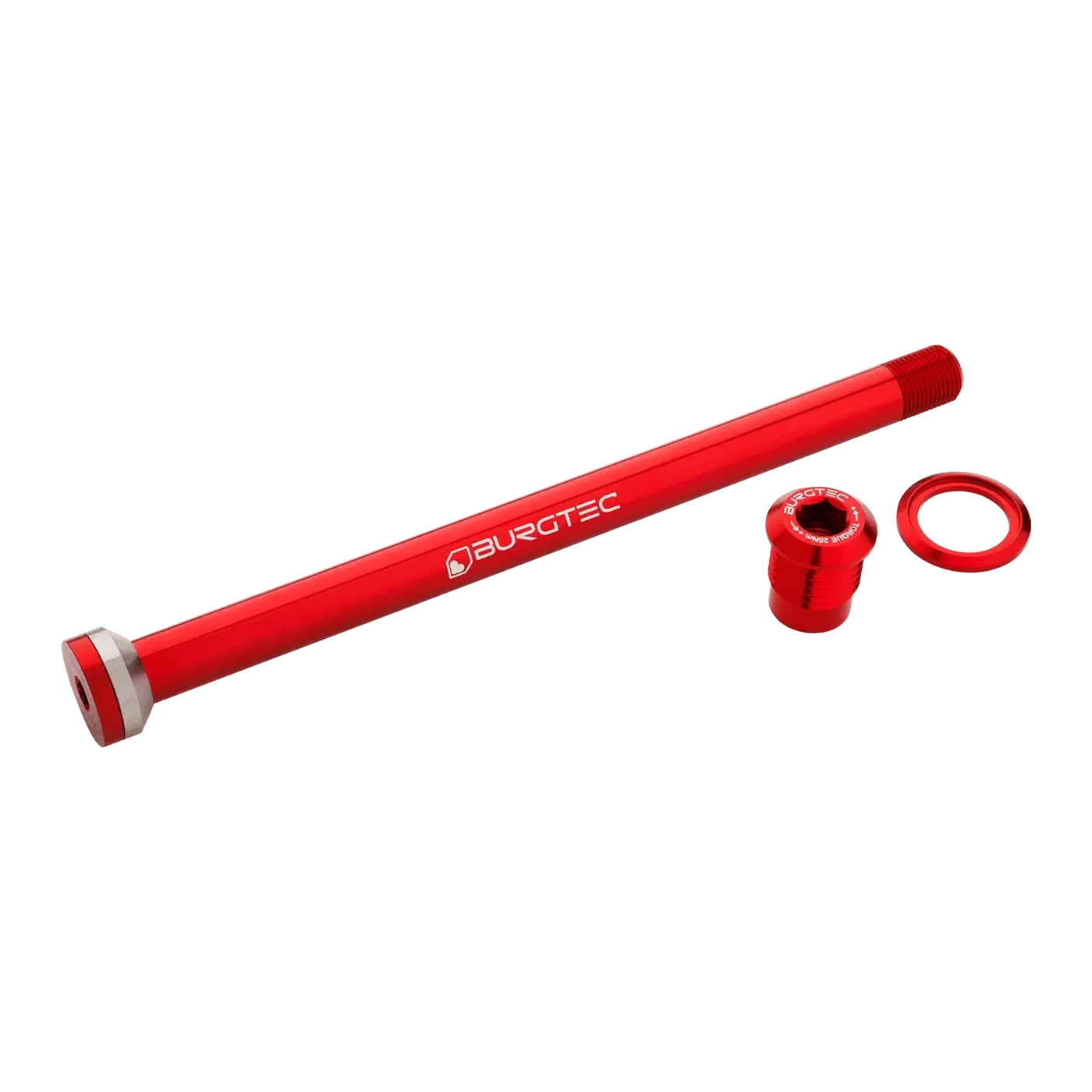

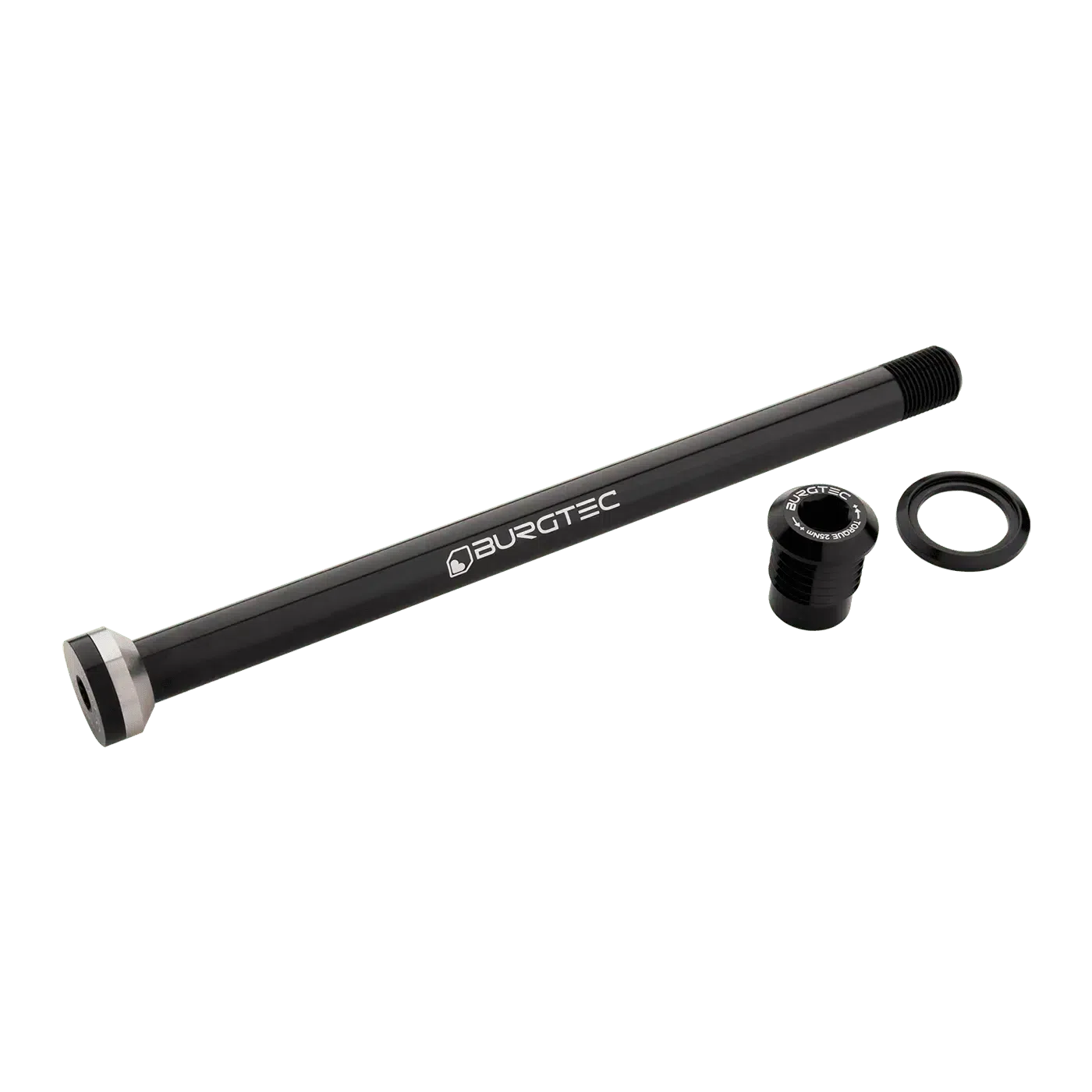

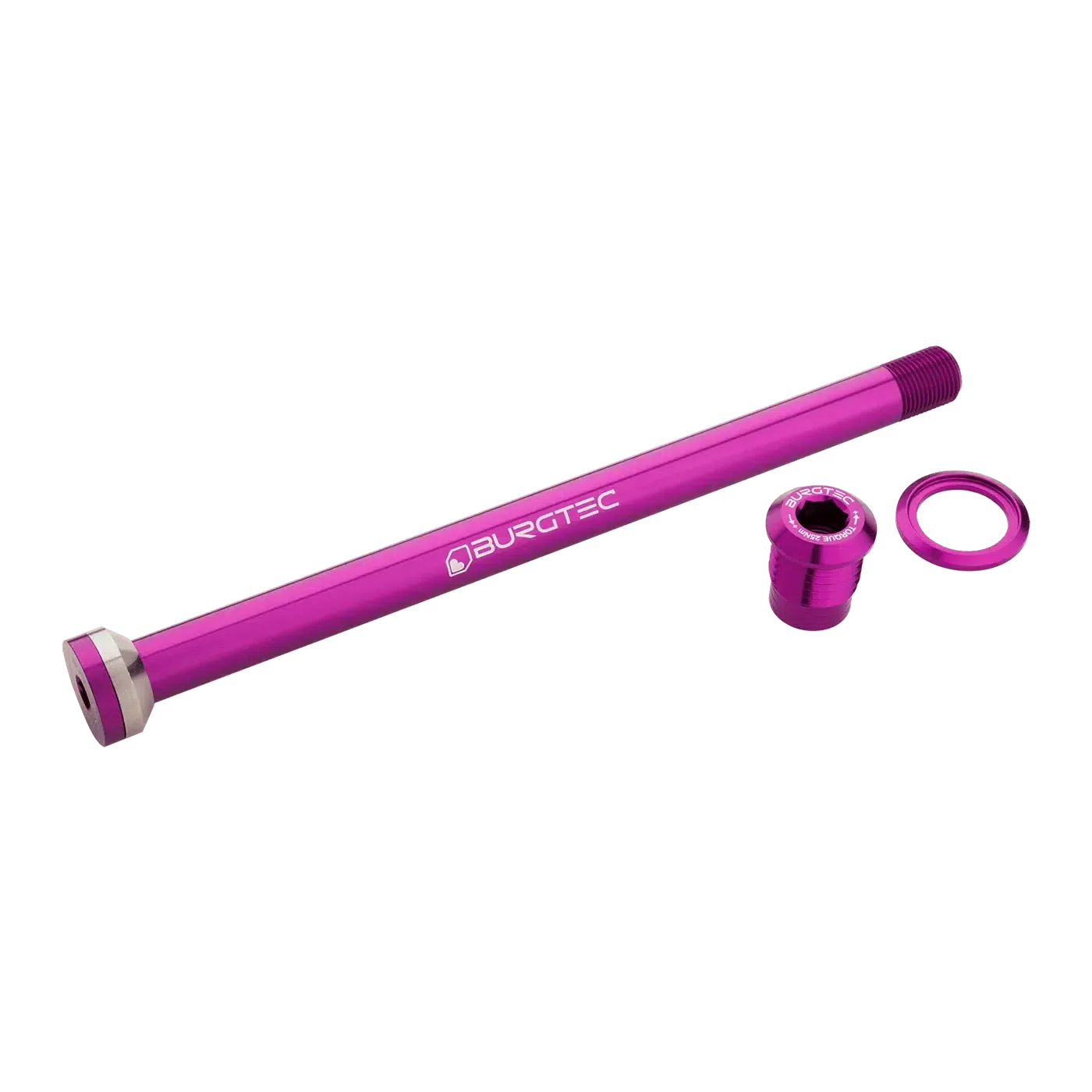

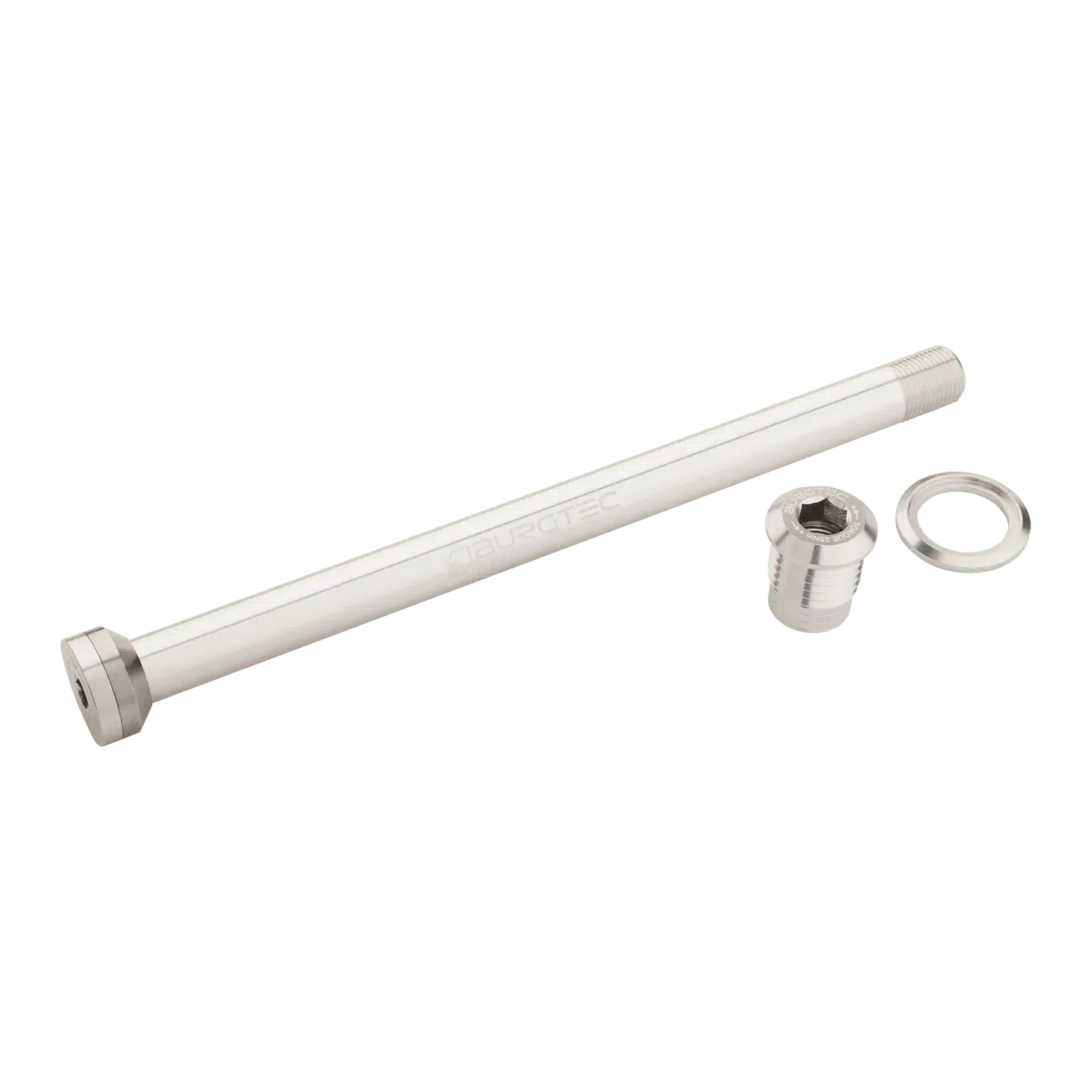

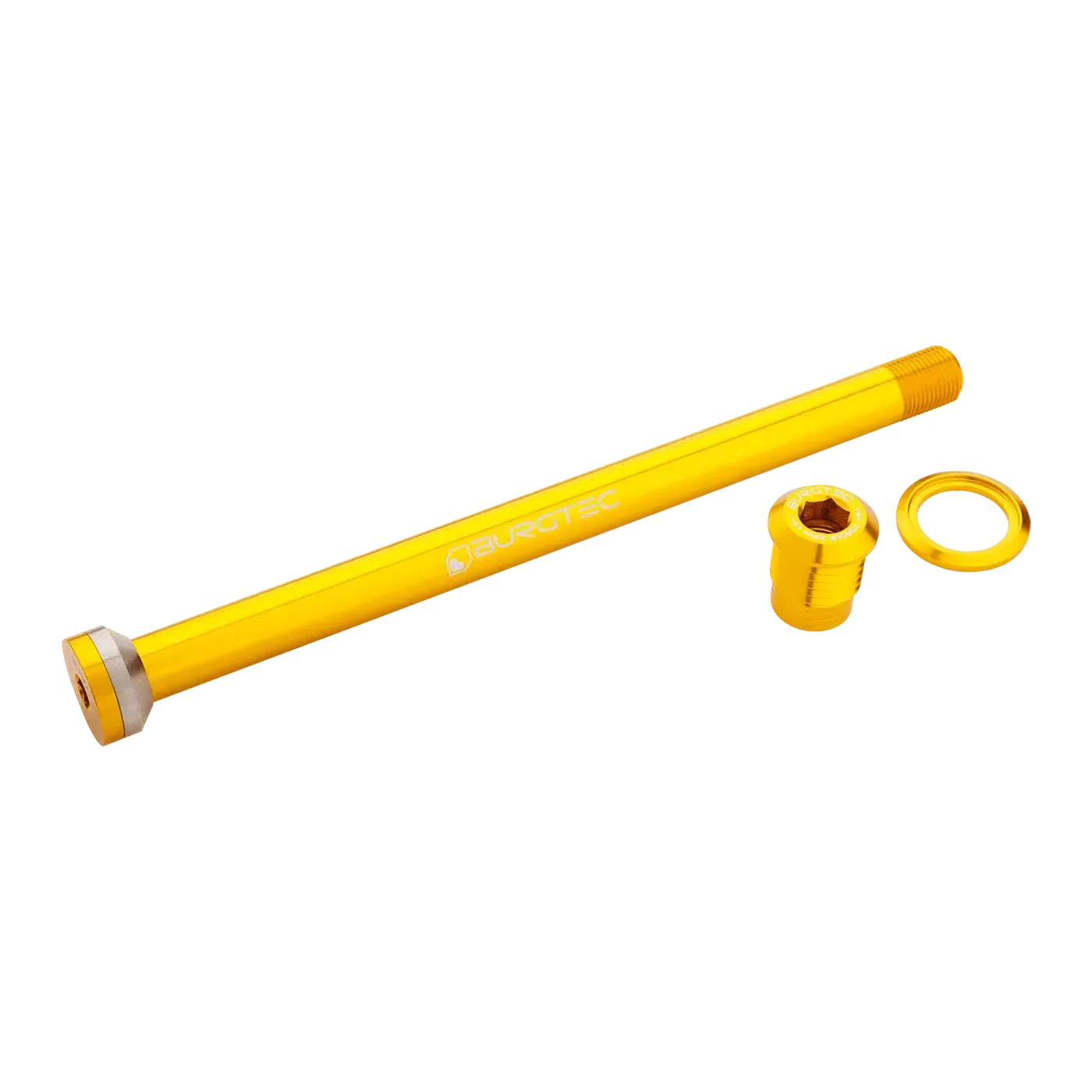

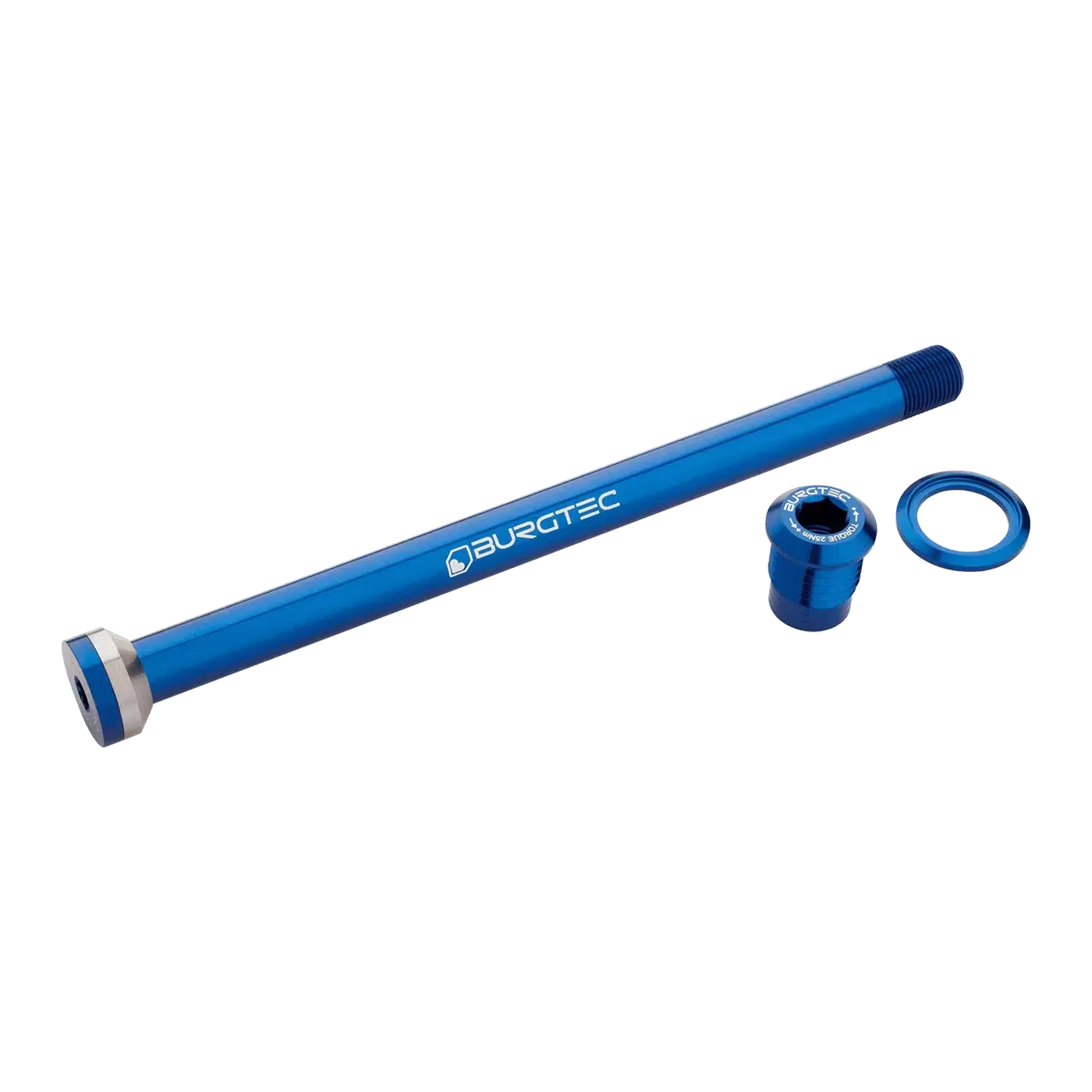

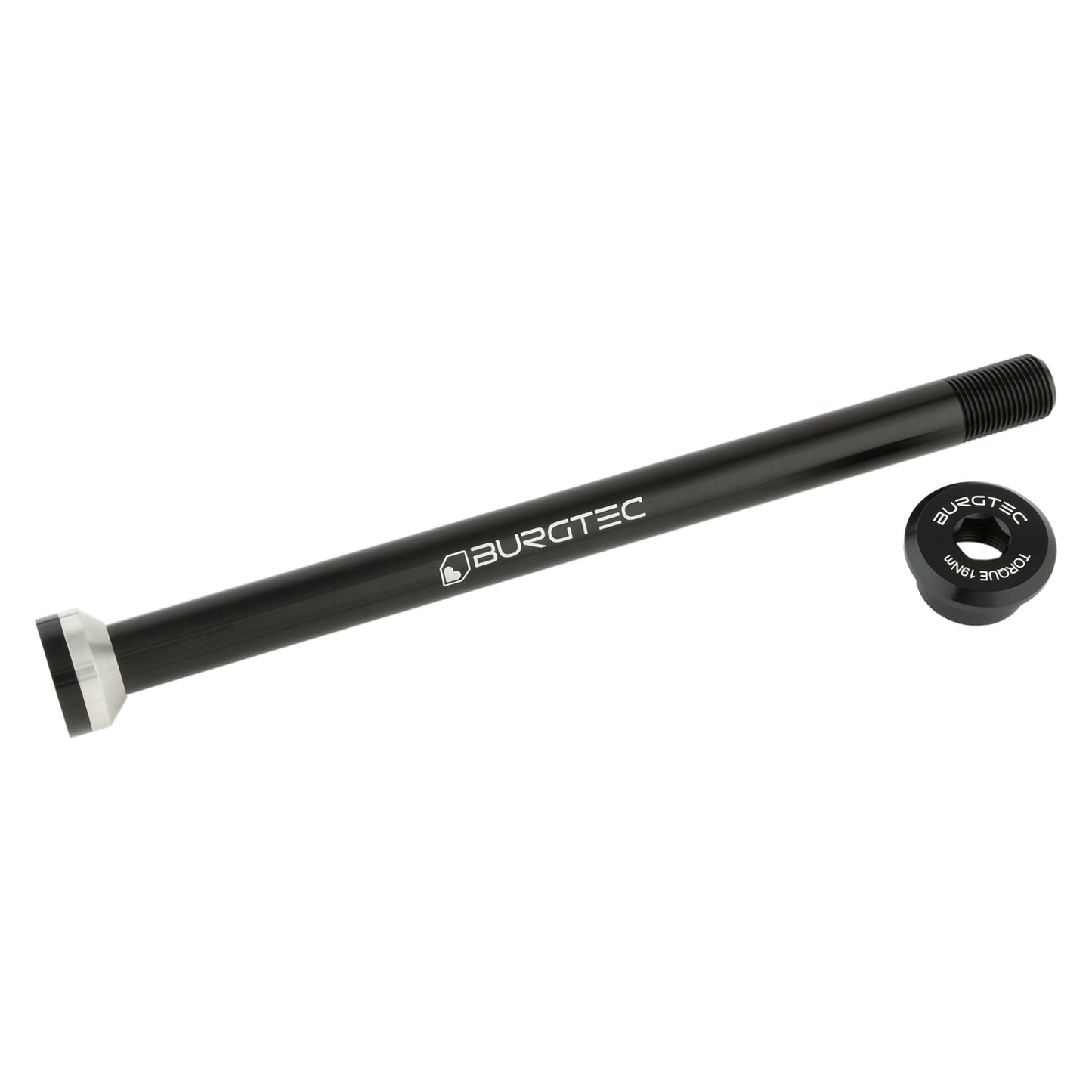

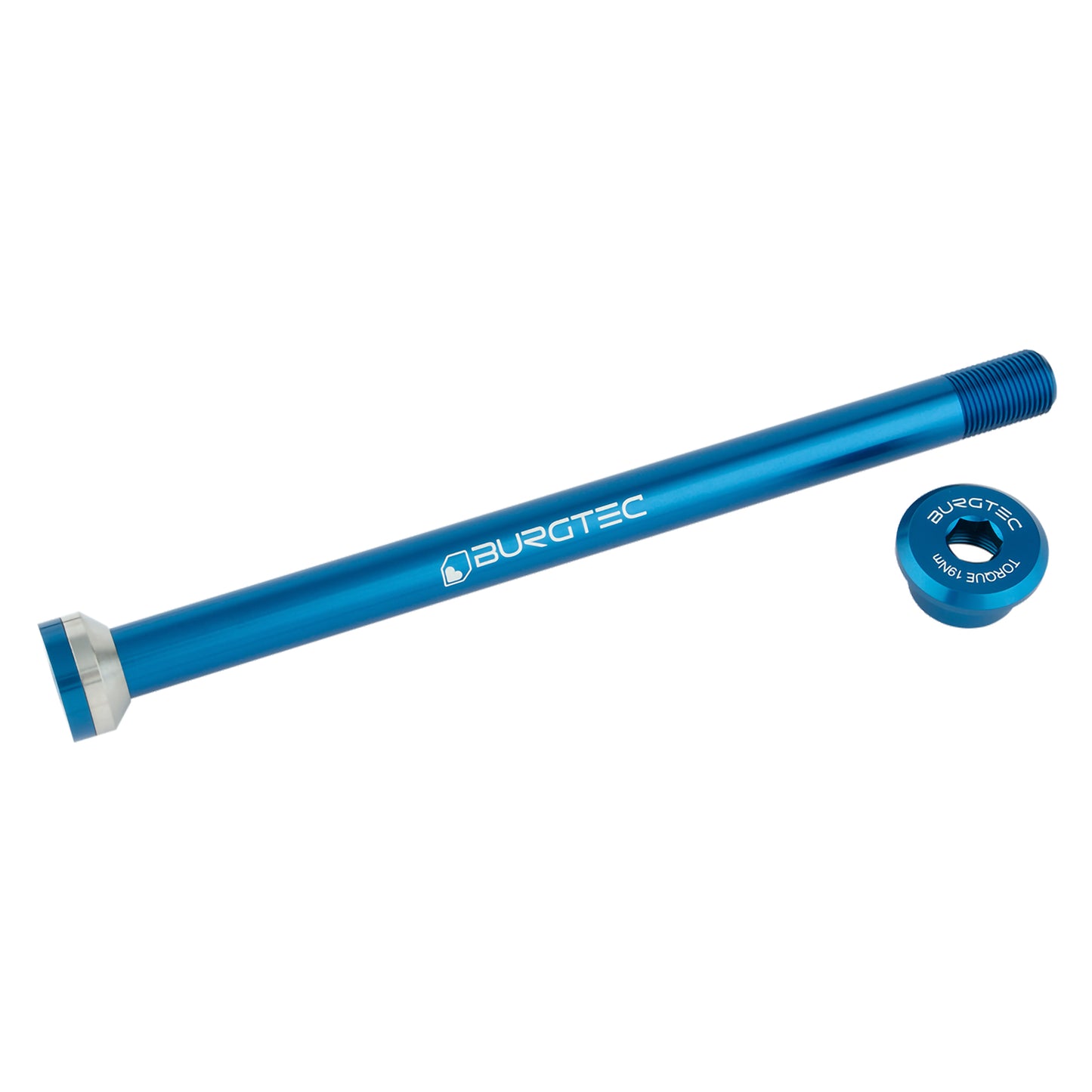

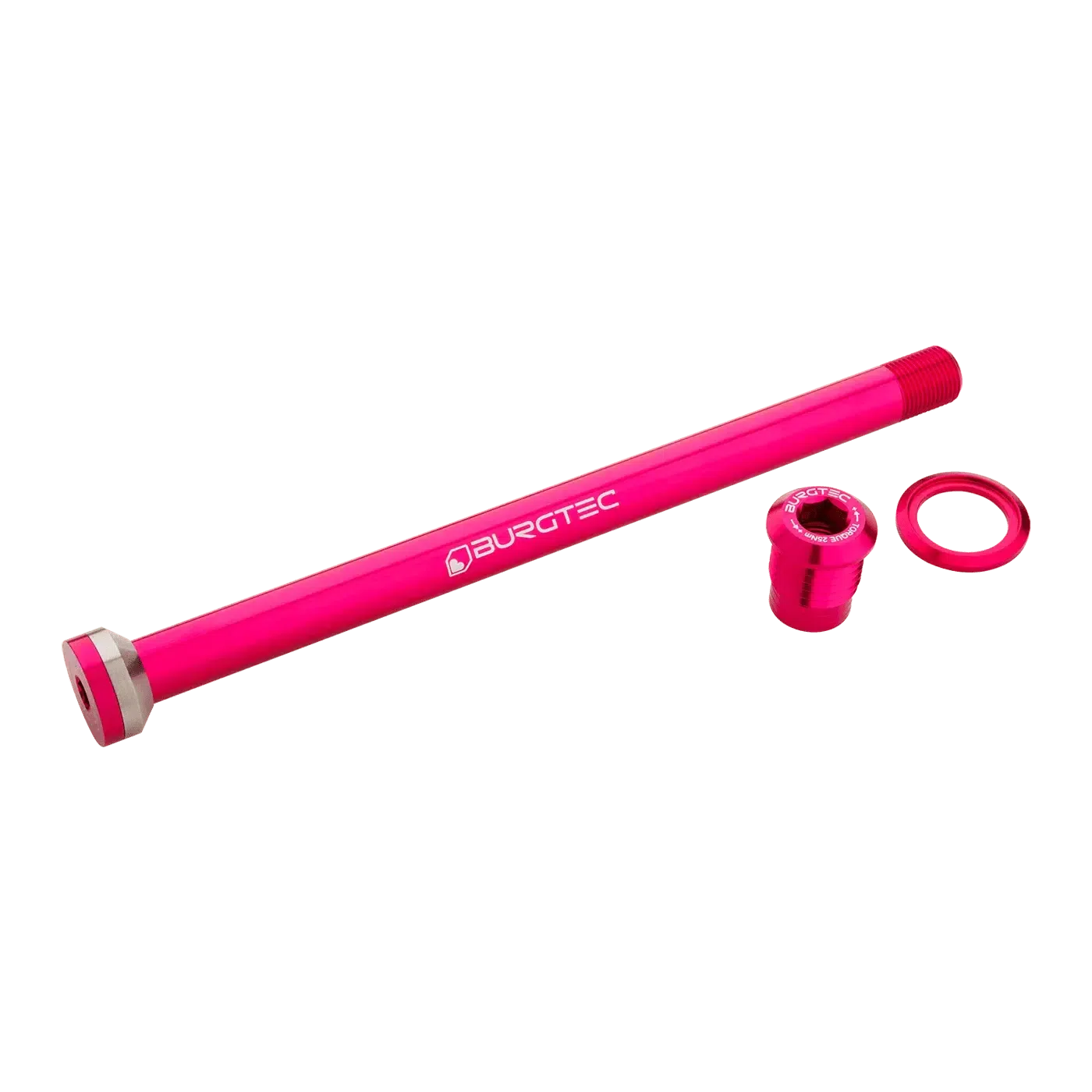

Both options include a hanger bolt. The 175mm option also includes a hanger washer. Use the generation-specific lists and original references below to select your length.

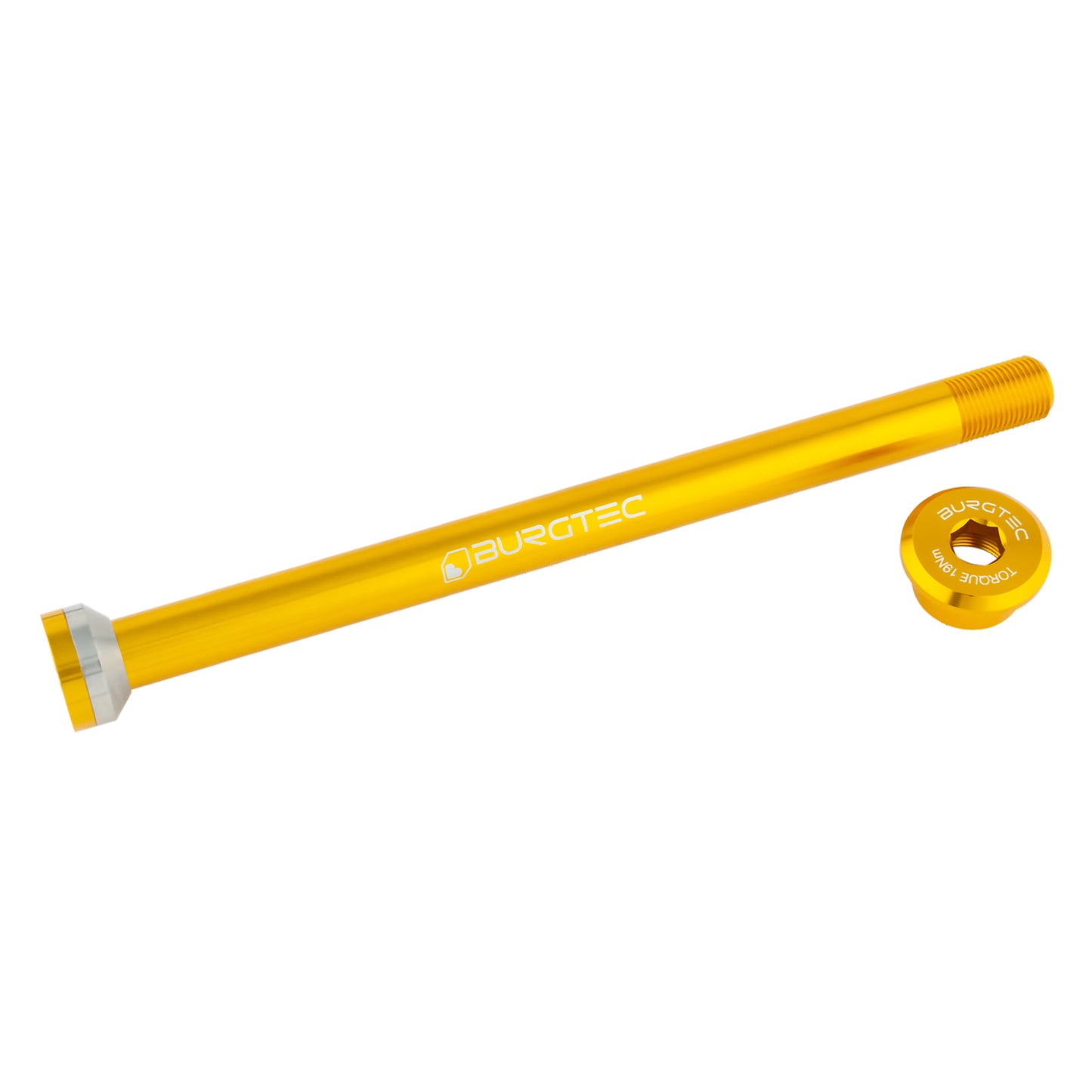

171mm compatibility
Patrol Alloy: 2018 - 2020.
Patrol Carbon: 2019 - 2020.
Scout Alloy: 2018 - 2020.
Scout Carbon: 2020 - 2023.
Sentinel Alloy: 2018 - 2020.
Smuggler Carbon: 2018 - 2020.
Spur: 2020 - 2023.
Original part reference: 01.17.51.1122 01.19.93.0002 119017.
