Crankbrothers Mallet E Pedals

The ultimate pedal for enduro racing and riding.

The mallet E was developed with the help some well known enduro athletes.  12% smaller than the Mallet DH pedals but with many of its well loved features.

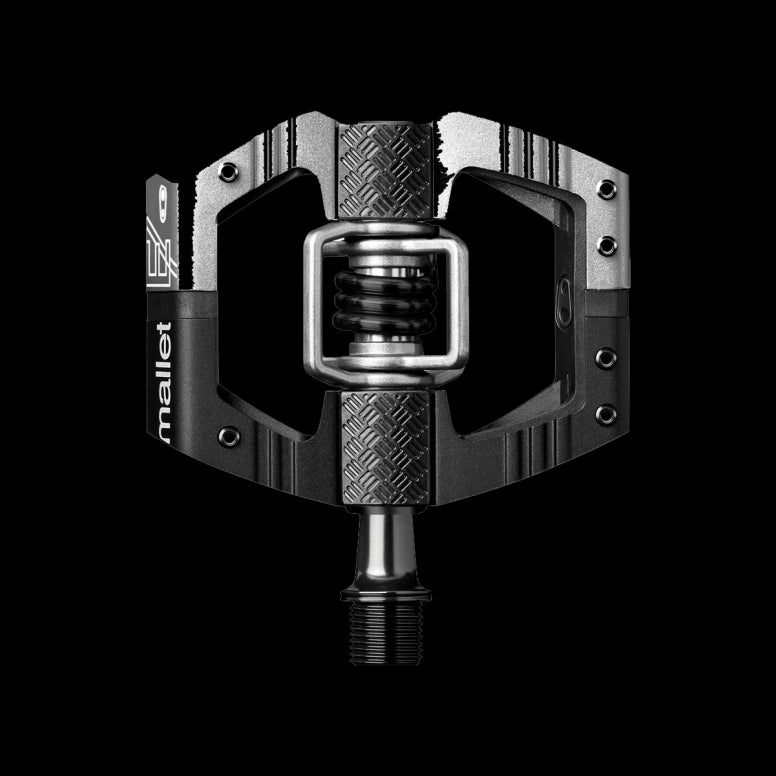

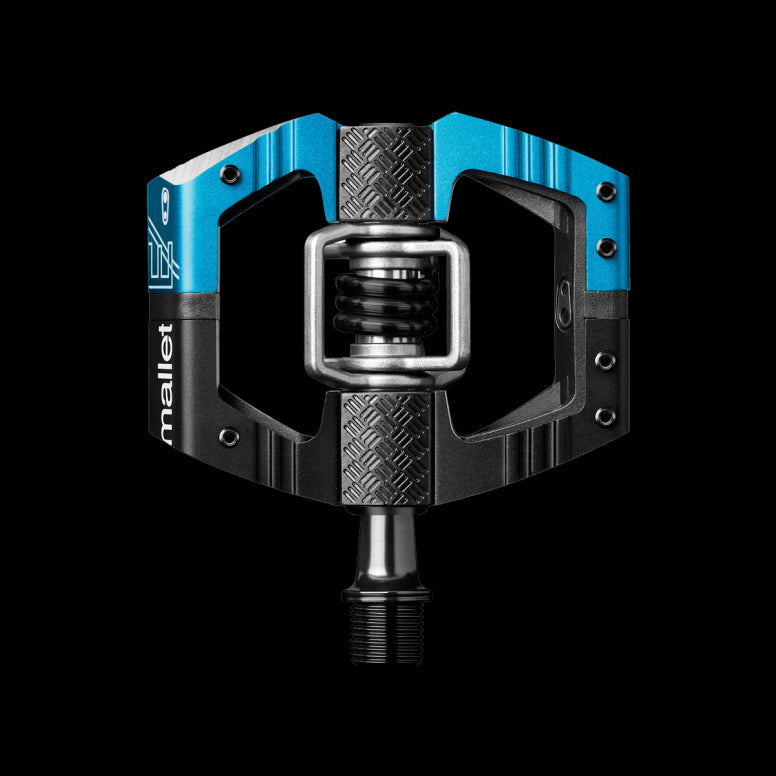

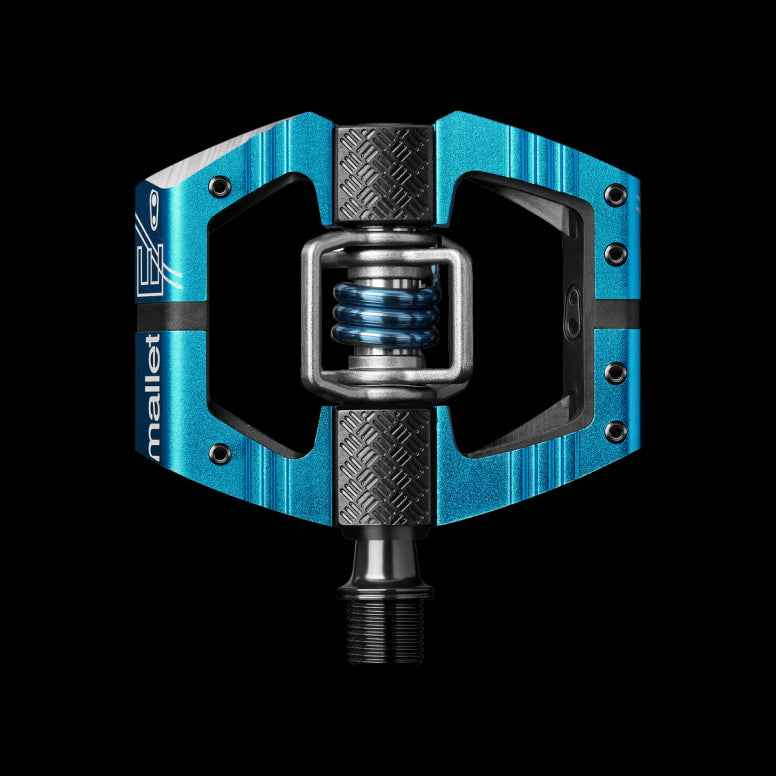

There are 2 different axle lengths available 52mm or 57mm (the 57mm pedal is only available in a half black/half blue colour option).  The 52mm will provide an engagement point and Q factor similar to other brands of pedals.  If you have been previously using the Mallet DH pedal you may benefit from using the longer axle version.  Riders who prefer a wider Q factor / have less crankarm / pedal clearance may also benefit from the longer axle pedals.

• Concave pedal platform for secure foothold.¬† Like it‚Äôs DH equivalent you get that flat pedal feel whilst running clipless.
• 49g lighter and 12% smaller pedal body than the crankbrothers Mallet DH pedal with a 52mm Q-Factor compared to 57mm on the DH equivalent.
• Ribbed body allows for better traction when unclipped
• Chamfered edges for reduction in rock strikes
• Excellent mud-shedding: the design is very open.
• 4-sided entry: clip in on all 4 sides of the pedal, by pushing forward or pulling backwards on the pedal.
• Increased float: 6¬∞ of side-to-side rotational play.¬† The float of the pedal allows for the rider to shift positions on the bike, while keeping their feet clipped into the pedal.¬† This allows for improved rider control and bike handling.
• Fit adjustment: crankbrothers premium cleats can be adjusted for either 15¬∞ or 20¬∞ release angle.¬† Zero-float cleats can be purchased separately (link to these).
• Customise the fit between your shoe/pedal interface by using integrated traction pads.¬† The pedals come with the 1mm tread pads fitted and include set of 2mm pads in the box.
• Outer enduro cartridge bearing is designed specifically for pedals.¬† Enduro use superior materials, grease and sealing on their bearings which are designed especially for use on a bike.
• Inner igus LL-glide bearing has been exclusively formulated for crankbrothers.¬† It performs in even the most adverse conditions out on the trails.¬†
• Double seal system combines a double lip internal seal and a new external seal to keep water and debris from entering the pedal.
• crankbrothers pedals are fully re-buildable for simple maintenance.¬† ¬†There is a consistency in parts across all pedal models, which allows for ease of servicing, this is easily done using the pedal refresh kit (CRB-16051).

Specification

• Weight (per pair): 419g
• Spindle: Forged scm 435 chromoly steel
• Body: 6061-T6 aluminium
• Wings: 17-4PH stainless
• Spring: 300 series stainless steel
• Inner bearing: Igus LL-glide bearing
• Outer bearing: Enduro cartridge bearing
• Pins: 12 pins per pedal
• Cleats: Premium brass cleats included
• Release angle: 15¬∞ or 20¬∞
• Warranty: 5 years
