The A 510 is a purposeful alloy rim for an aero-minded road build. Its 30mm profile and 20mm internal width were developed with Swiss Side input, giving you an aerodynamic starting point without committing to a carbon wheel.
Hidden nipples keep the inner rim edge clean, and the supplied DT alloy nipples need to be considered when planning the build and spoke length. This disc-specific rim can run tubes or compatible tubeless tyres with the appropriate tape and valves. It is a useful option for a race or training bike where serviceability and cost still matter.
Details

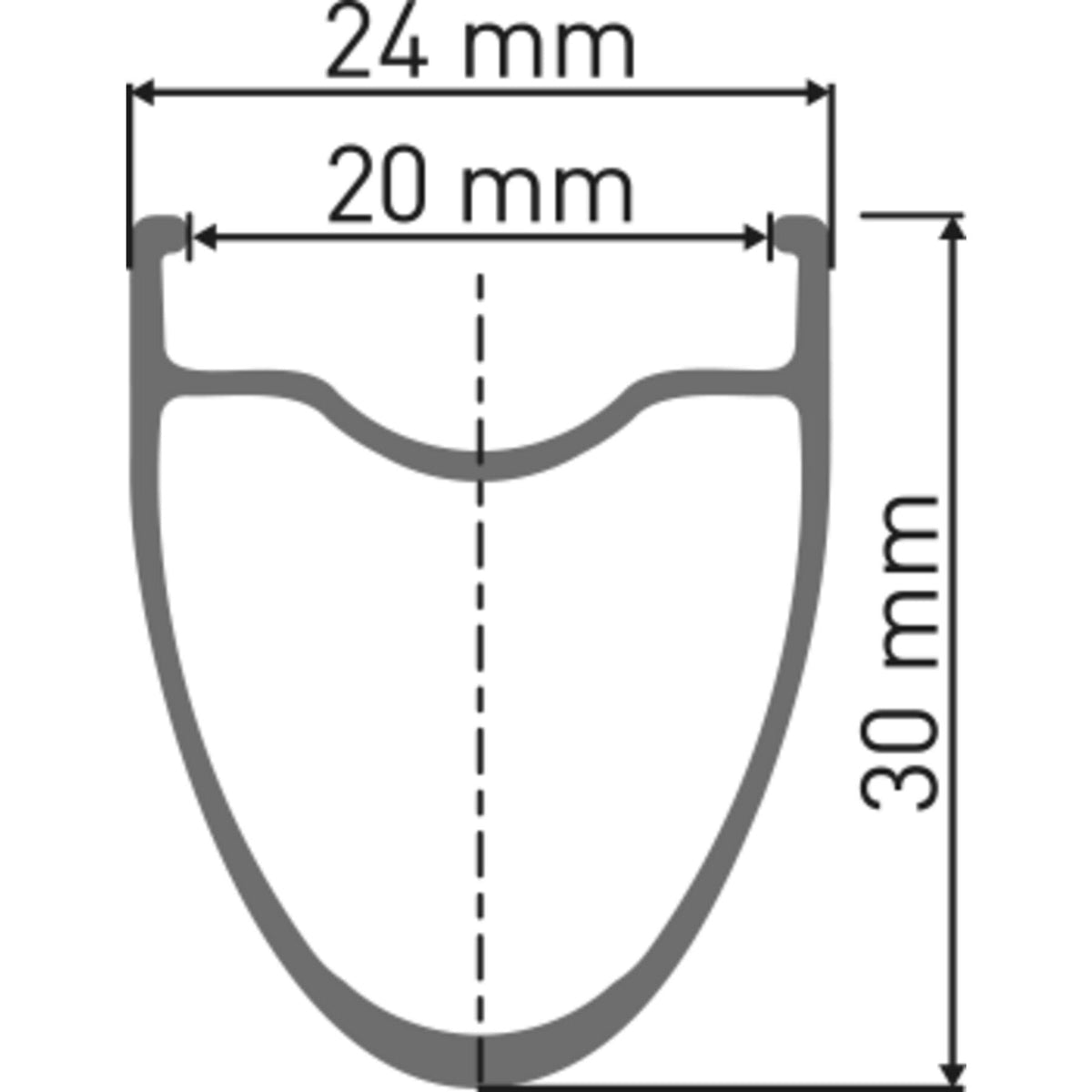

20mm internal width; 30mm rim depth
Hidden nipples supplied
Disc brake only; Presta valve
Supplied as a rim, not a complete wheel. Spokes and hub are chosen separately for the build.

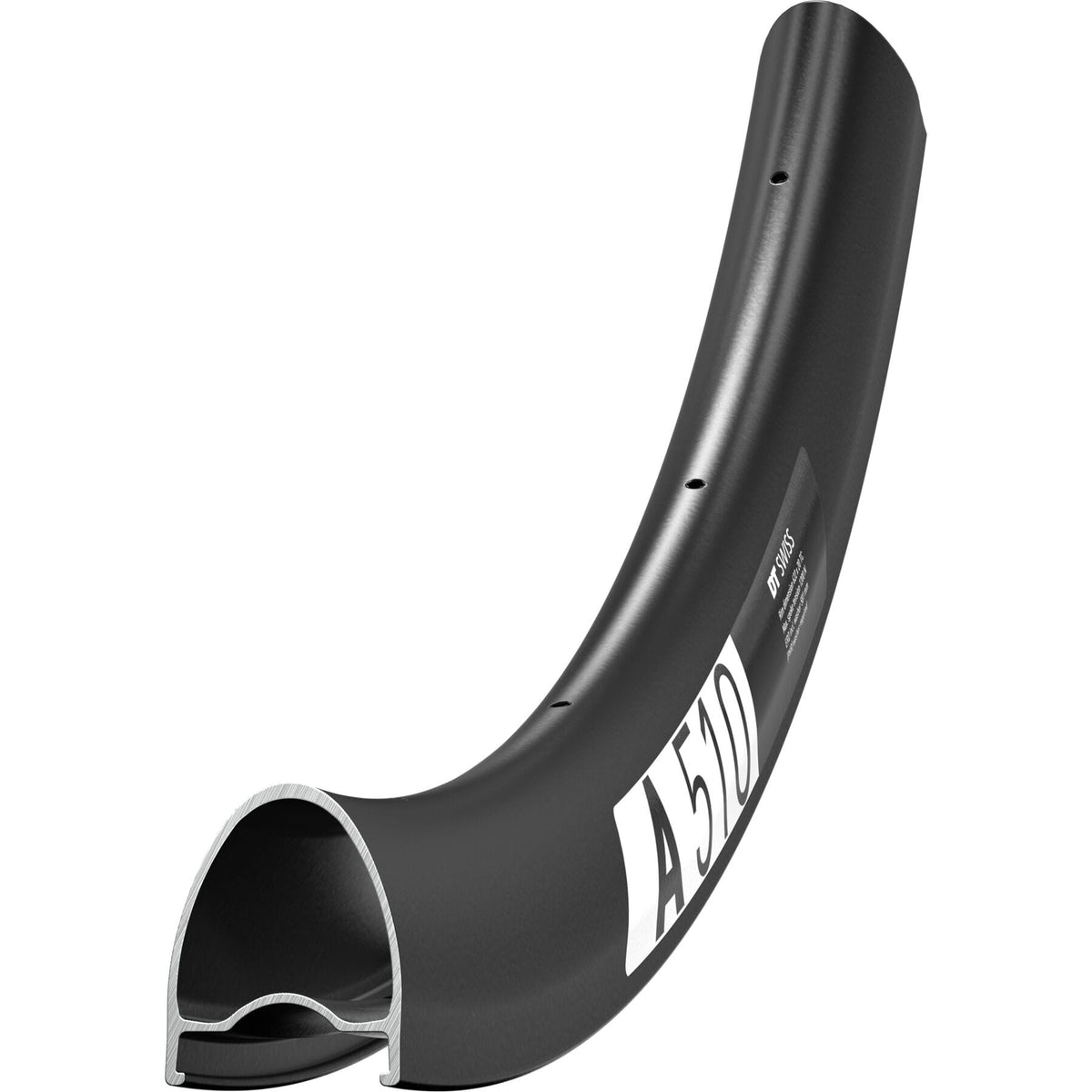

The 30mm profile brings Swiss Side development to an aluminium rim. It is designed around road tyre use, keeping the shape focused rather than adding depth simply for appearance.

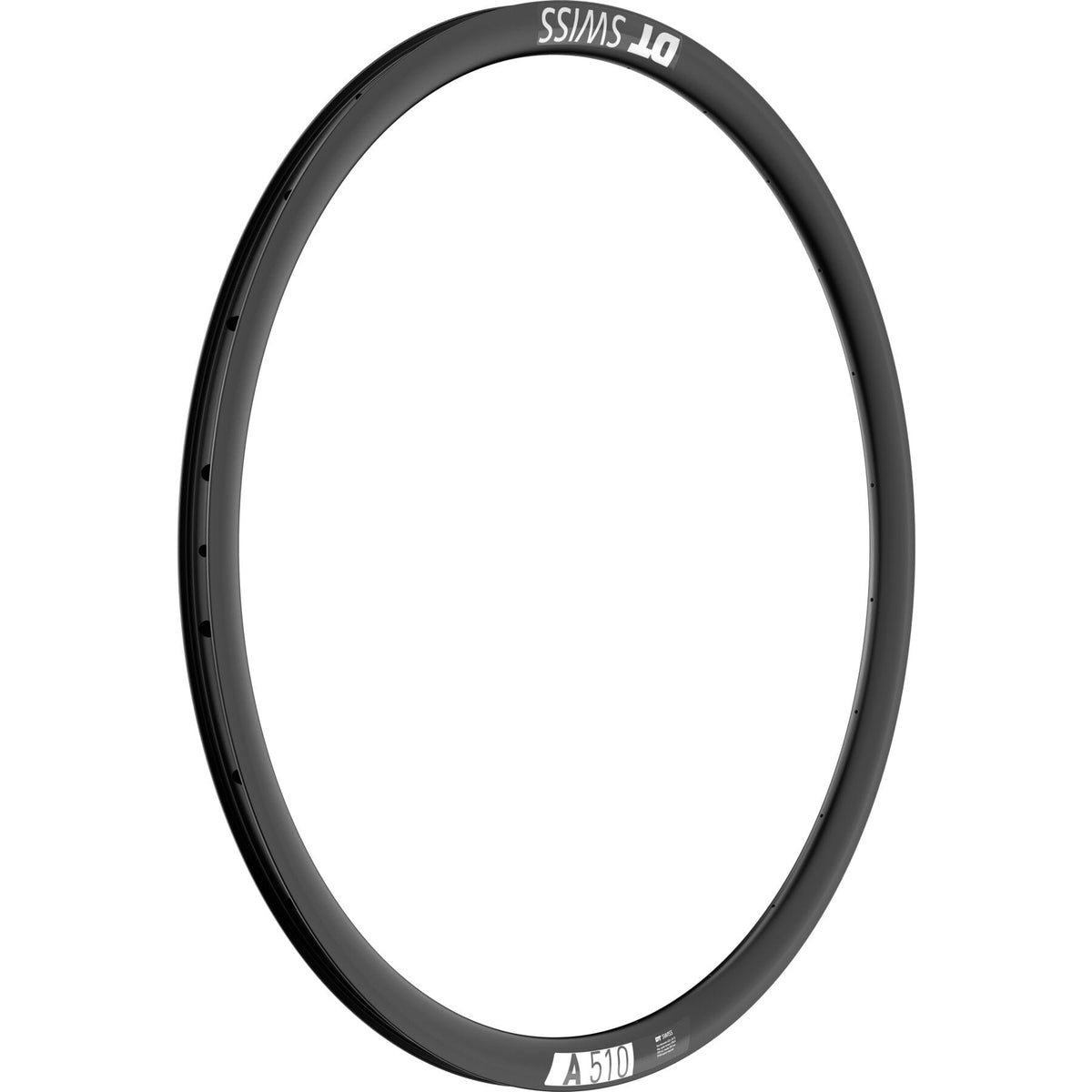

A Cleaner Inner Edge
Hidden nipples remove the exposed nipple shape from the inner edge of the rim. They are part of the A 510 build specification, so use the supplied system and the correct spoke-length calculation.
