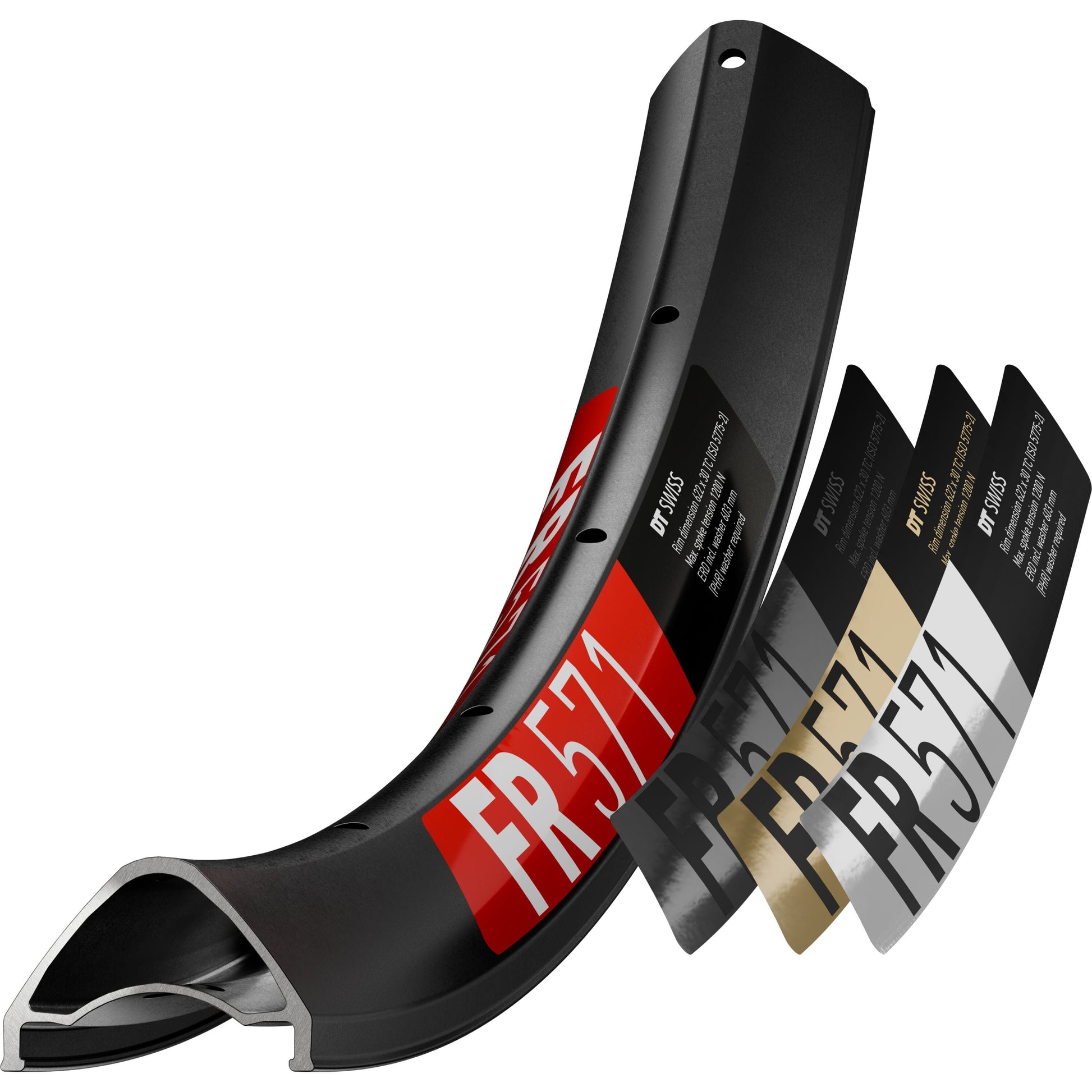

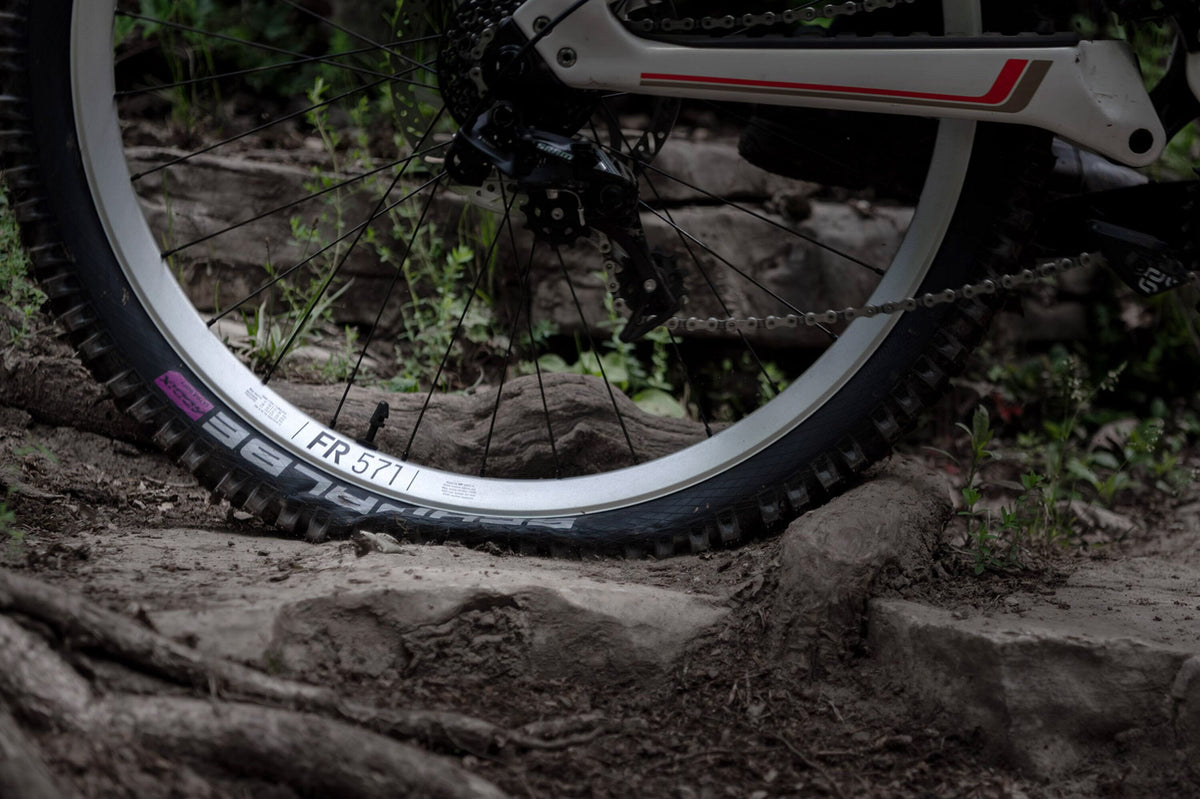

The FR 571 is the aluminium rim for a gravity wheel that will be used hard. A 30mm internal width supports the tyre, while its wider rim edges are shaped to spread an impact and reduce the chance of a pinch flat.
A welded hoop, PHR washers and brass Flat Hex nipples make this a considered choice for repeated downhill runs. The nipple head also helps protect the rim tape if a spoke breaks, an especially useful detail when finishing a run matters.
30mm internal width
Welded aluminium gravity construction
32-hole drilling in the supplied range
PHR washers and brass Flat Hex nipples included

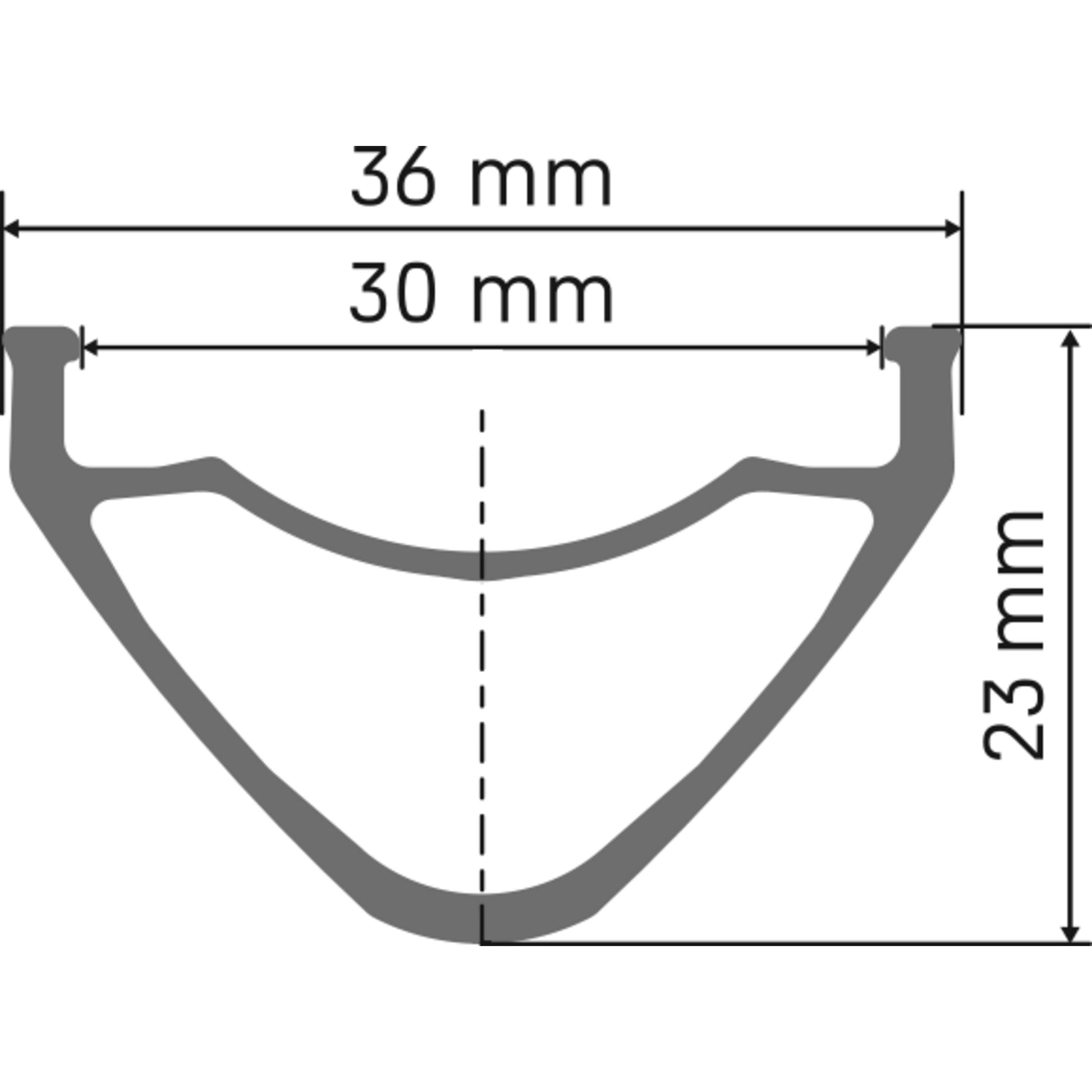

Rim specifications
30 mm internal width
36 mm external width
23 mm rim height
Welded aluminium construction
Hooked tubeless-compatible tyre interface; disc brake only
Presta valve drilling
Maximum system weight: 140 kg
ASTM category 5
Diameter
Holes
Colour
Rim weight
Reference ERD
27.5"
32
Black
650 g
561 mm
27.5"
32
Silver
650 g
561 mm
29"
32
Black
695 g
599 mm
29"
32
Silver
695 g
599 mm
Rim weights and nominal ERDs are DT Swiss published figures. Confirm the measurement convention and required washers when calculating spoke length. Choose the exact size, drilling and colour before planning your wheel.

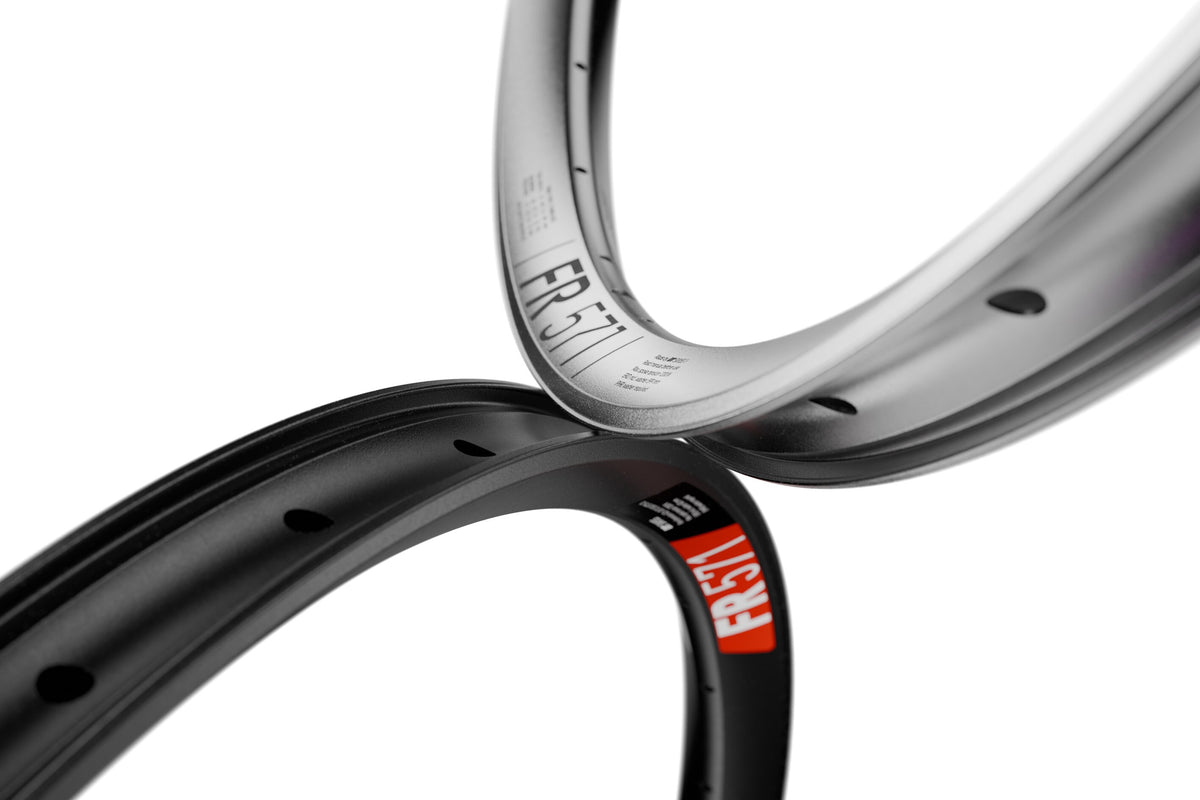

A tyre hitting a sharp edge can be pinched against the rim. The FR 571 gives that contact point more width, spreading the load to help resist pinch damage during hard impacts.

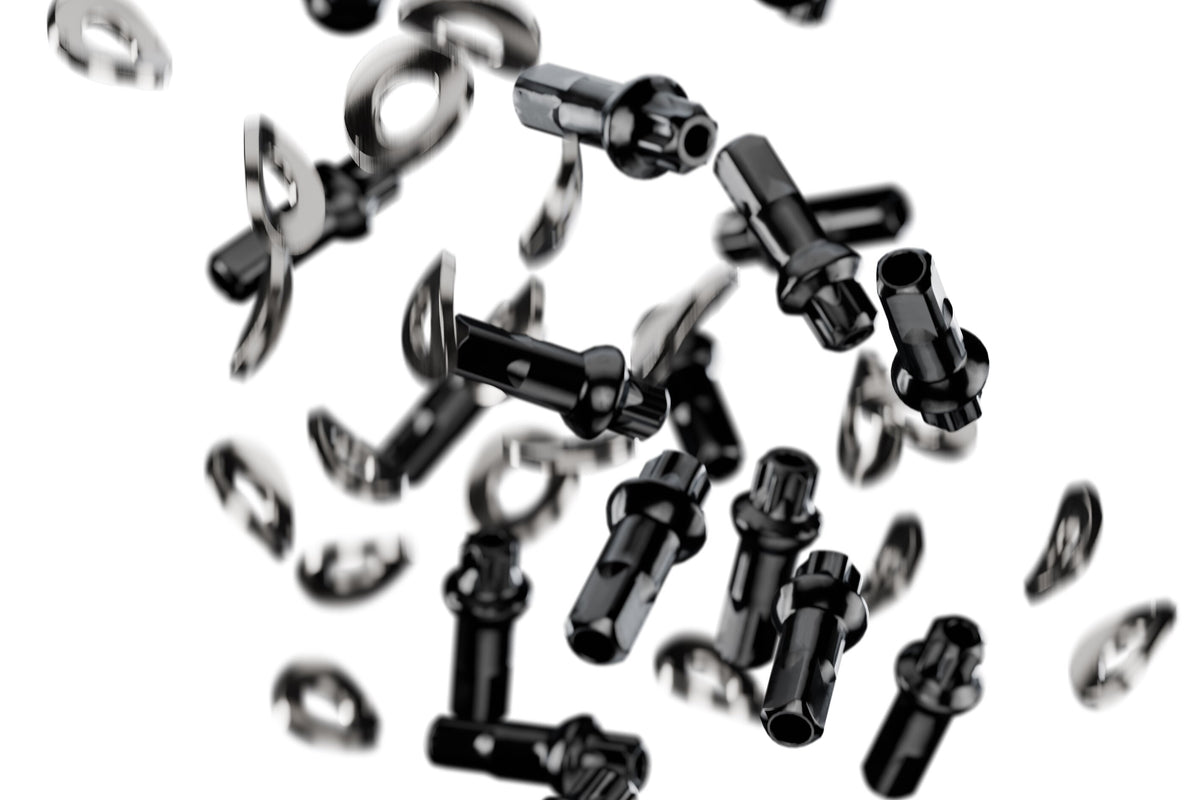

Hardware chosen for gravity riding
The included brass Flat Hex nipples have a low-profile head designed to reduce damage to the rim tape if a spoke breaks. PHR washers support the connection and spread the spoke load at the rim.
