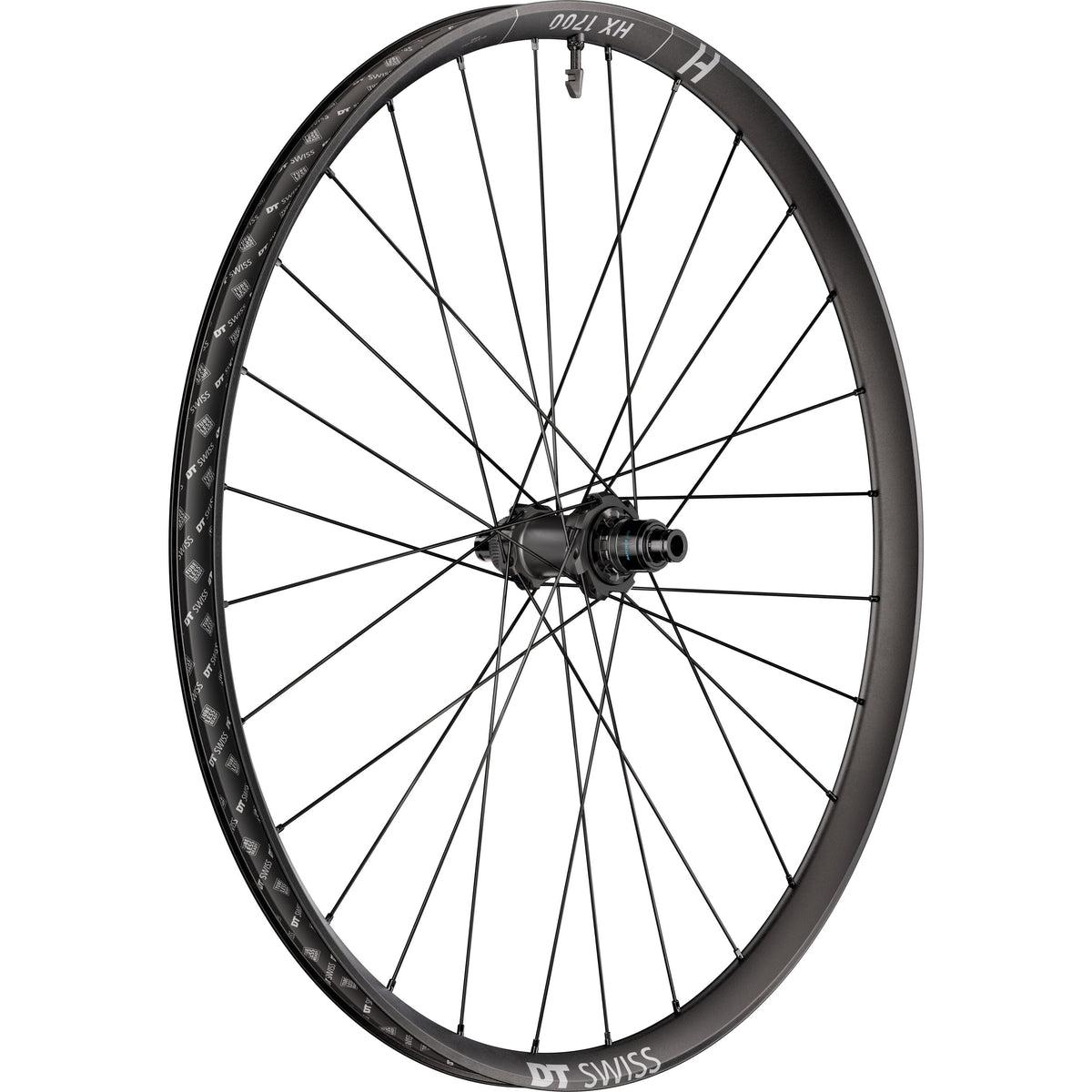

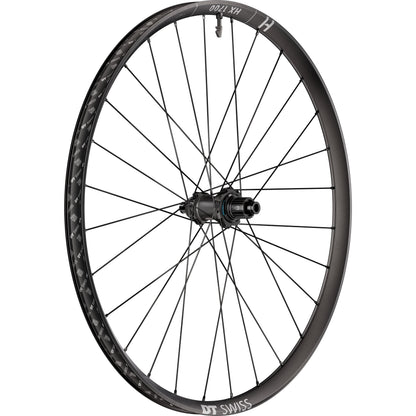

The current HX 1700 is an aluminium e-MTB wheel built around sustained higher loads. Its asymmetric 30mm internal-width rim is paired with reinforced Hybrid II spokes and a 350 Hybrid hub.
The system has a 150kg maximum system-weight limit, with the rim and spokes chosen to work together under motor-assisted riding loads. It is a considered wheel for an e-MTB that sees regular hard use.

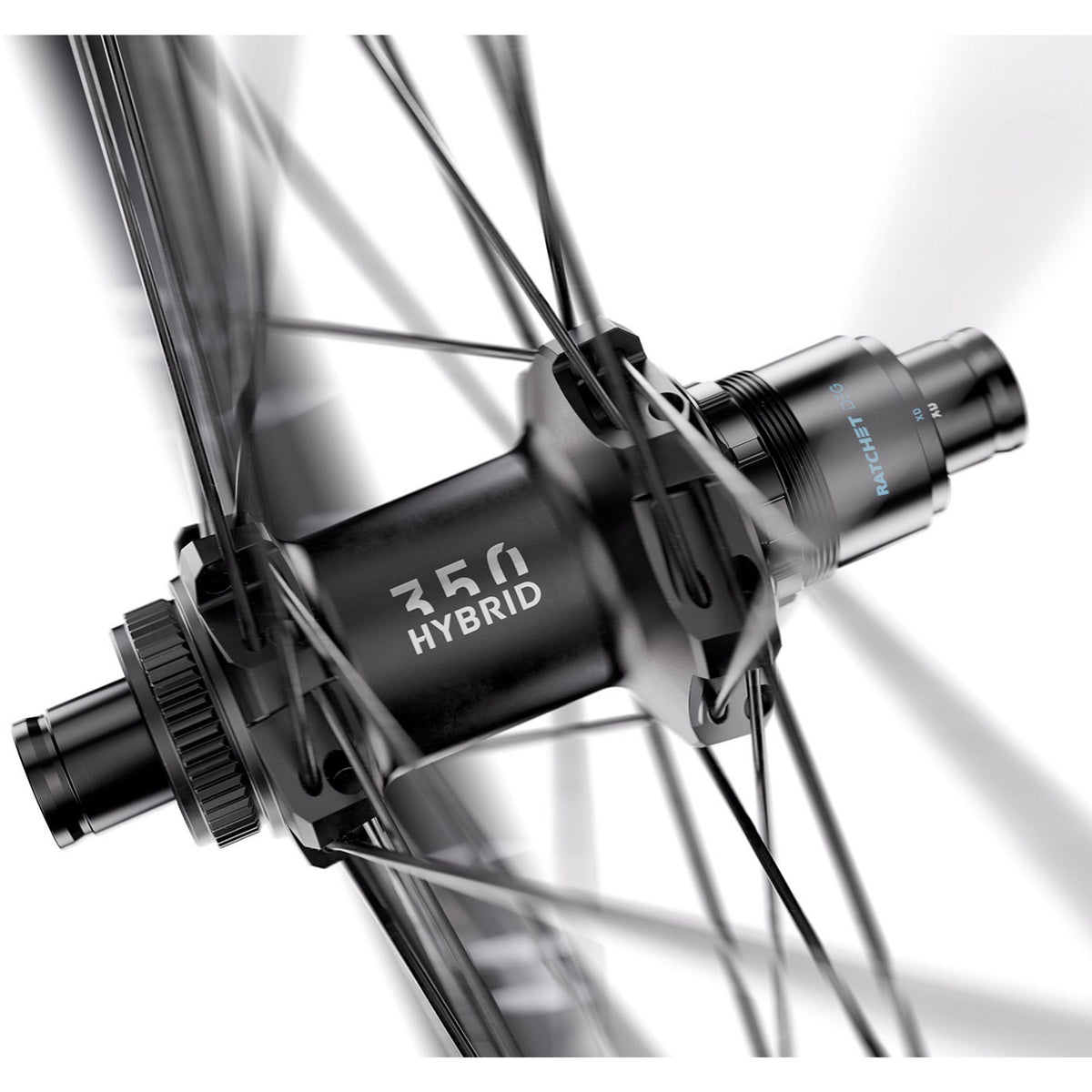

The rear hub uses a 60-tooth Hybrid DEG DF mechanism. Choose 0 or 10 degrees of free movement; this e-MTB version does not use the standard bike's 20-degree setting.
One rear wheel; not a wheelset
30mm internal rim width
Match wheel diameter, axle standard and rotor interface to the bike
Select the specified freehub for the cassette
Maximum system weight: 150kg, including bicycle, rider and equipment
The asymmetric aluminium rim combines a 30mm internal width with an offset spoke bed. It supports the tyre while helping balance spoke tension between the two sides of the wheel.

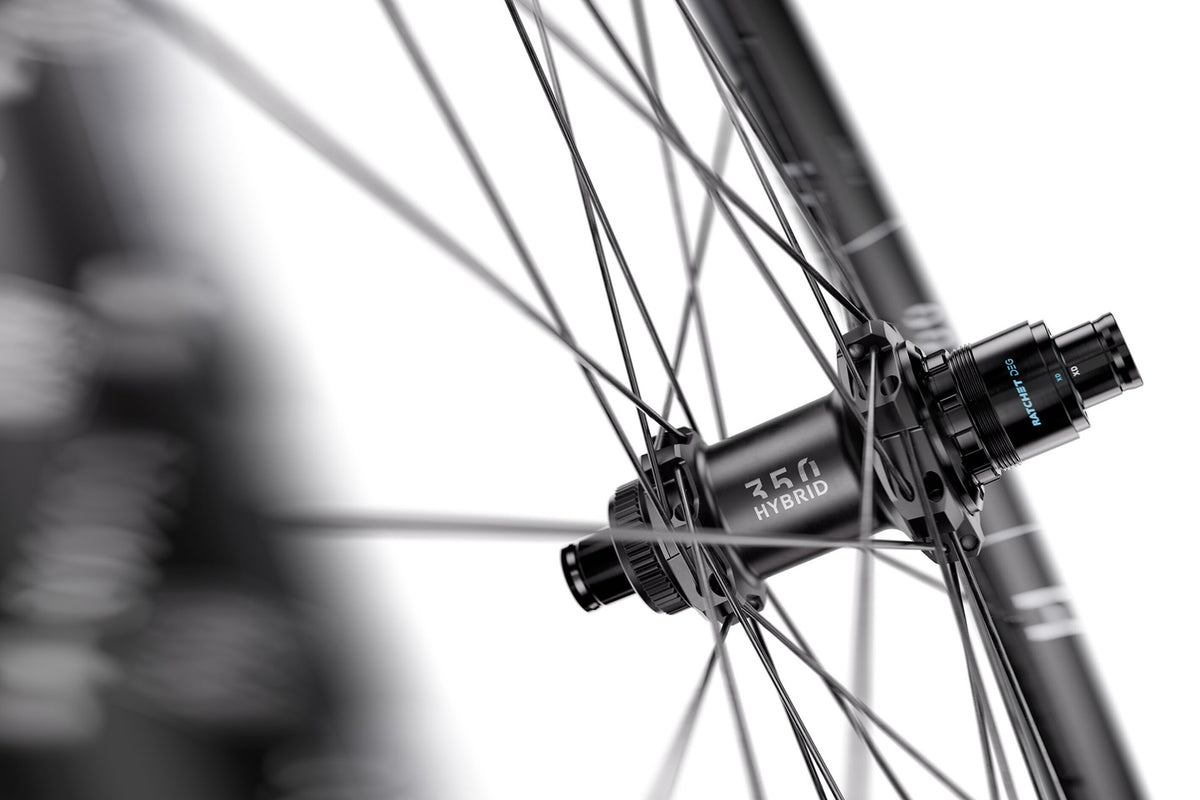

Tune the ride at the hub
The rear hub uses a 60-tooth Hybrid DEG DF mechanism. Choose 0 or 10 degrees of free movement; this e-MTB version does not use the standard bike's 20-degree setting.
