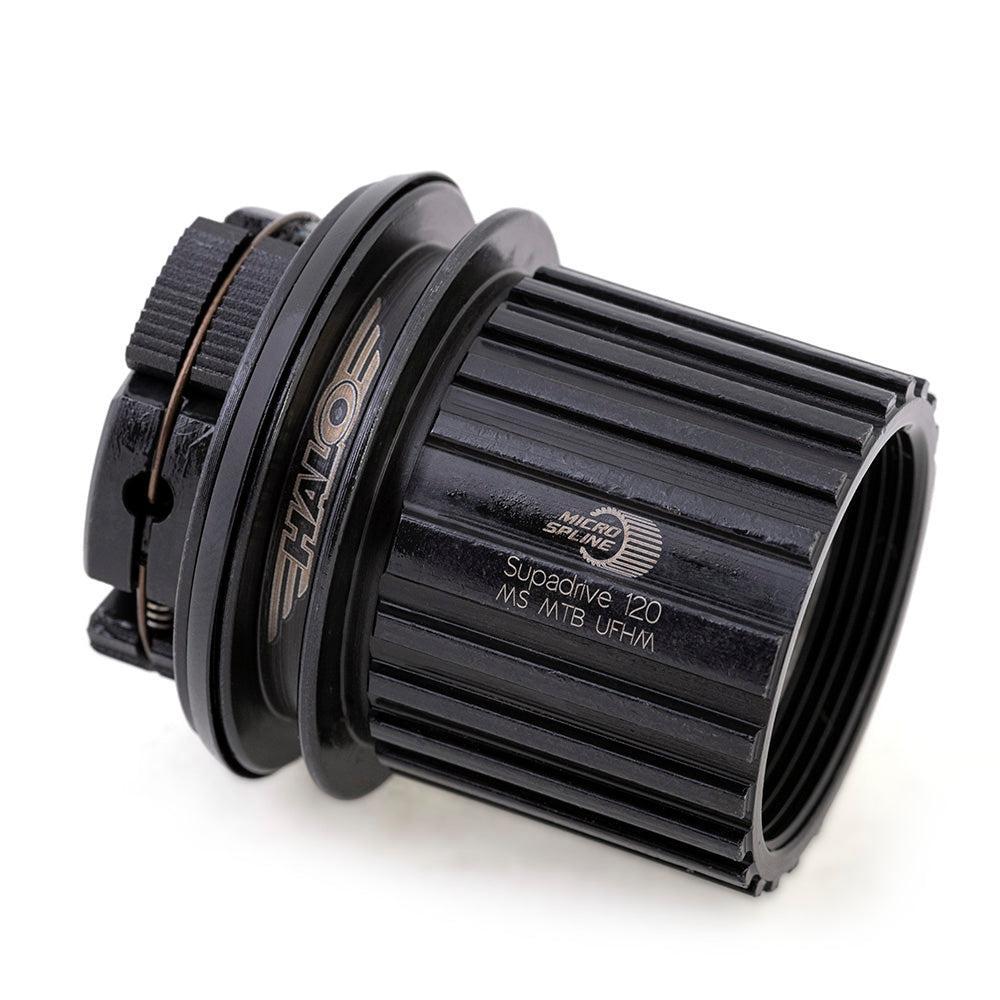

Halo Supadrive Freehub

Replacement freehubs designed to fit Halo MT series Supadrive hubs only:

• MT Supadrive (142mm)
• MT Supadrive Boost (148mm)
• MT Supadrive DH (150mm)

These freehubs fit with Mountain Bike (MTB) standard 10/11/12 speed cassettes and are currently available to suit cassette types:

• Shimano MTB HG (MTB 10/11/12 speed with 11T smallest sprocket)
• Shimano MicroSpline (MTB 11/12 speed with 10T smallest sprocket) Supplied with end cone
• SRAM XD (MTB 11/12 speed with 9T or 10T smallest sprocket)

The original MT series freehubs (red) used a lightweight 7075 alloy spline body with a Cr-Mo driver. The latest MT series freehubs (black) use a forged and CNC machined 1-piece Cr-Mo body, eliminating any cassette cog bite, also allowing larger bearings to be used.

Please note if you are changing freehub models you will need a different end cone (i.e if you are going from HG to XD). We have listed the compatable end cones with freehubs and widths below but you can also find these end cones in the related parts tab.

• HUHAZSVA2H - 12mm thru Shimano HG Cassette. 142, 148 and 157mm O.L.D.
• HUHAZSVA2X - 12mm thru SRAM XD Cassette. 142, 148 and 157mm O.L.D.
• HUHAZSVADH - 12mm thru Shimano HG Cassette. 135 and 150mm O.L.D.
• HUHAZSVADX - 12mm thru SRAM XD Cassette. 135 and 150mm O.L.D.
• HUHAZSVAQH - QR, Shimano HG Cassette. 135 or 141mm O.L.D.
• HUHAZSVAQX - QR, SRAM XD Cassette. 135 or 141mm O.L.D.
