Norco Range VLT CX C1 2026
Norco Range VLT CX C1 2026
Out of stock
SKU:NO-0283315125
files/Norco-Range-VLT-CX-C1-2026-Size-2-Neve-White-Raw-Black-BRINK.jpg
07:44 PM
Couldn't load pickup availability
Norco Range VLT CX C1 2026
With 170/160 mm of travel, Range VLT CX C1 is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor — it’s the anti-shuttle, enduro rig for people who live for the descents.
A low-weight, full-power VLT with the newest Bosch technology, made to charge the steeps all day.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for. The VPS HP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
Highlights
- A more powerful drive system that's lighter, quieter, and more natural feeling than ever before
- Balanced geometry for maximum control and handling
- VPS<sub>HP</sub> suspension platform - High pivot flow to eat up rough terrain with confidence
- Bombproof components – spec'd for the toughest trails
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
Specifications can change without notice. Please contact BRINK if you need to confirm a component before ordering.
Highlights
-
Frame material
Carbon
-
Wheelsize
29" / 27.5"
-
Front travel
170mm
-
Rear travel
160mm
-
Motor brand
Bosch
-
Max torque
100Nm
-
Peak power
750W
-
Battery capacity
800Wh
Specifications
-
Norco Range VLT CX C1 2026
Frame
Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork
Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offest, Fender Included
Shock
Fox Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj
Handlebar
Norco 6061 DB Alloy, 800mm, 25mm Rise
Stem
Norco Alloy, 40mm Length, 35mm Clamp
Headset
FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
Brakes
Shimano XT M8220 4-P, Metallic pads
Front rotor
Shimano RT-MT905, 203mm, 6-Bolt
Rear rotor
Shimano RT-MT905, 180mm, 6-Bolt
Shifter
Shimano Deore XT Di2 SW-M8250-IR, 12sp
Rear derailleur
Shimano Deore XT Di2 RD-M8250, SGS, 12sp
Crankset
Praxis HD Aluminum Bosch Cranks, 34T, 160mm
Bottom bracket
Bosch BES3 DU
Cassette
Shimano Deore XT CS-M8200-12, 10-51T, 12sp
Chain
Shimano Deore XT CN-M8100, 12sp
Seatpost
TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
Saddle
Fizik Terra Aidon X5
Front hub
Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt
Rear hub
Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
Spokes
Sapim D-Light (front), Sapim Race (rear)
Rims
Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29”-27.5 F/R
Front tyre
Continental Kryptotal-F, Enduro, Soft, 29” x 2.4”, Foldable
Rear tyre
Continental Kryptotal-R, Enduro, Soft, 27.5” x 2.4”, Foldable
Motor
Bosch Performance Line CX, 100 Nm / 750W
Battery
Bosh Power Tube 800 Wh
Big Travel. Full Power. No Limits
Charge the steeps all day on a bike that makes rough terrain feel natural - and the climbs just as fun as the descents. With 170/160 mm of travel, Range VLT CX is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor — it’s the anti-shuttle, enduro rig for people who live for the descents.
A lighter, quieter, and more natural-feeling full-power system
With the newest Gen 5 Bosch Performance Line CX System, the Range VLT CX comes out of the box with an impressive 85Nm of torque and 600W of peak power—and can be easily upgraded through the Bosch Flow app for 120Nm and 750W power with up to 600% pedal assist support for even more power and laps before dark. The new CX system is quieter and lighter than before and is synced through the app for complete personalization of your ride.
BALANCED GEOMETRY
Range VLT CX focuses on balance, encouraging riders to push their limits and trust in their bike’s abilities. With enduro-focused geometry, it has front-end confidence that meets exceptional directional control to shred the steeps with no hesitation. Size-specific rear centres give uncompromised kinematics across sizes, and tailored chainstay lengths for each frame size with a mixed wheel setup to ensure optimal weight balance and handling.

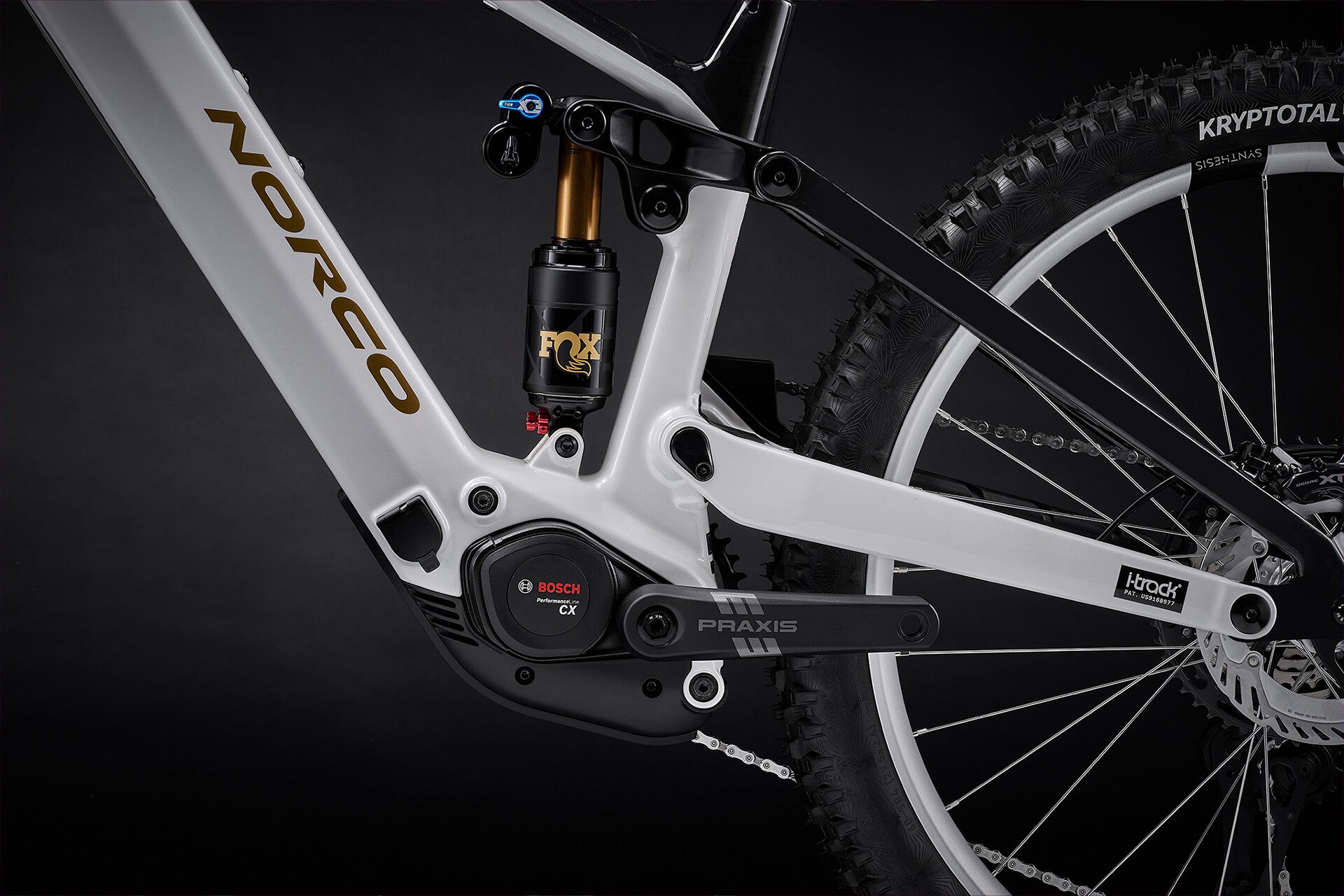

HIGH PIVOT FLOW
The innovative VPS HP suspension layout has an increased rearward axle path for stability at speed through rough terrain—and comes alive the faster you go. Go ahead, blur your vision, point it, and get a little loose because the dirt’s that good. High pivot smooths everything out and has your back so you can get wild. With an idler to handle chain growth, Range VLT CX has minimal pedal kickback and will surprise you with how good a long travel bike can feel charging uphill.
