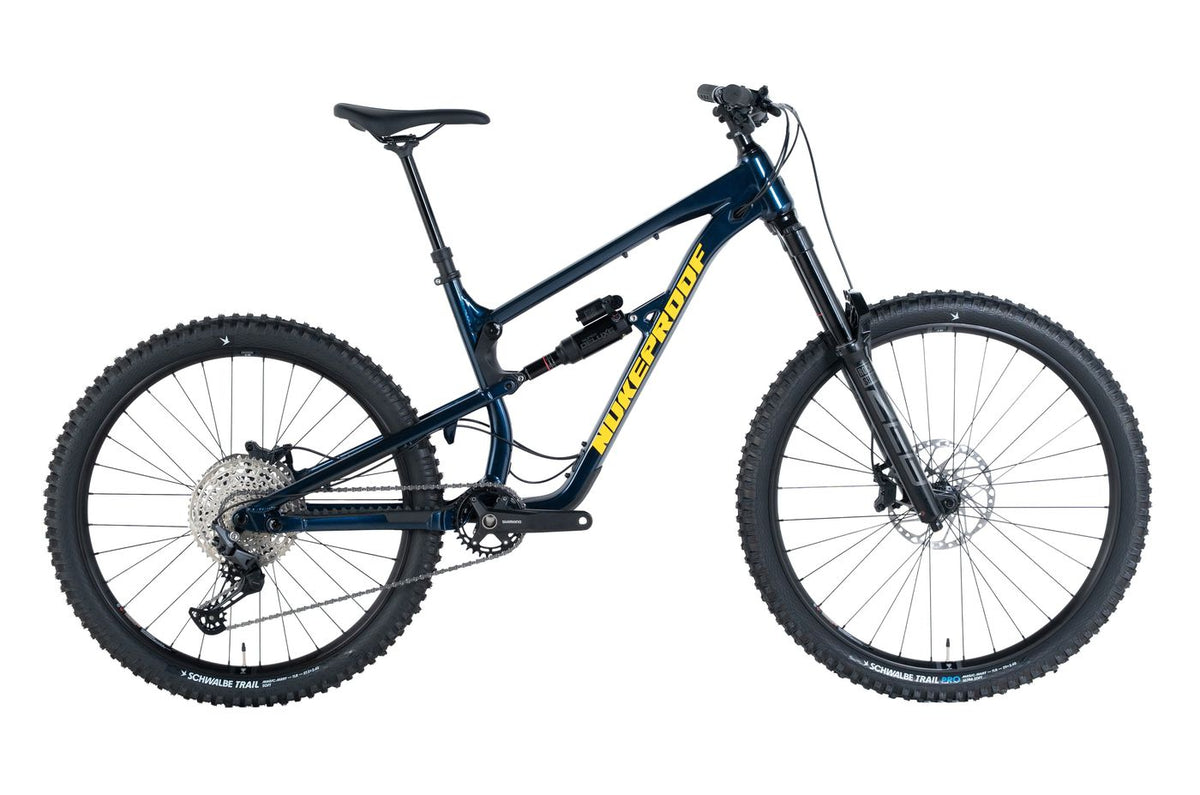

  • Nukeproof Mega Alloy LE - exact supplied main [556d3039b737]
1 1

Nukeproof

Nukeproof Mega Alloy LE

Nukeproof Mega Alloy LE

£2,499.00
£2,499.00
Sale Sold out
Size
Colour
Wheelsize

Low stock: 2 left

SBIMEANKP011

Loading locations...

The Mega Alloy LE builds an enduro bike around the fourth-generation aluminium Mega frame. It combines the frame's Horst-link suspension design and practical bottle and accessory space with a distinct Shimano and RockShox component package.

A ZEB Base fork and Super Deluxe Base shock are joined by Deore gearing, Deore M6220 four-piston brakes and 203mm rotors at both ends. The supplied wheel layout, handlebar dimensions and dropper travel change with frame size, so each option remains a complete, specific build.

Further specification

Detail Applies to Specification
Wheelset All sizes Shimano TC500 hubs with WTB ST i30 Tough TCS rims
Drivetrain All sizes Shimano Deore M6200, 10-51T, I-SPEC EV
View full details

Highlights

  • Frame material

    Aluminium

Specifications

  • Nukeproof Mega Alloy LE - 29"

    Frame

    Nukeproof Mega Alloy, Boost 148x12mm, 73mm BSA bottom bracket, tapered head tube

    Fork

    RockShox ZEB Base, 29-inch

    Shock

    RockShox Super Deluxe Base, 230x62.5mm

    Handlebar

    Nukeproof Electron, 31.8mm clamp, 800mm width, 35mm rise

    Stem

    Forged, 40mm extension, 31.8mm clamp

    Headset

    FSA No.57E, sealed

    Brakes

    Shimano Deore M6220 four-piston

    Front rotor

    Shimano RT64, 203mm, Centerlock

    Rear rotor

    Shimano RT64, 203mm, Centerlock

    Crankset

    Shimano MT520, 32T, 165mm

    Bottom bracket

    Shimano sealed

    Cassette

    10-51T

    Chain guide

    None supplied

    Seatpost

    X-Fusion Manic LC, 170mm travel; Shimano MT500 I-SPEC EV lever

    Front tyre

    Schwalbe Magic Mary Trail, Radial, Ultra Soft

    Rear tyre

    Schwalbe Magic Mary Trail, non-radial, Soft

  • Nukeproof Mega Alloy LE - Mullet

    Frame

    Nukeproof Mega Alloy, Boost 148x12mm, 73mm BSA bottom bracket, tapered head tube

    Fork

    RockShox ZEB Base, 29-inch

    Shock

    RockShox Super Deluxe Base, 230x62.5mm

    Handlebar

    Nukeproof Electron, 31.8mm clamp; S/M 780mm width, 25mm rise; L 800mm width, 25mm rise

    Stem

    Forged, 40mm extension, 31.8mm clamp

    Headset

    FSA No.57E, sealed

    Brakes

    Shimano Deore M6220 four-piston

    Front rotor

    Shimano RT64, 203mm, Centerlock

    Rear rotor

    Shimano RT64, 203mm, Centerlock

    Crankset

    Shimano MT520, 32T, 165mm

    Bottom bracket

    Shimano sealed

    Cassette

    10-51T

    Chain guide

    None supplied

    Seatpost

    X-Fusion Manic LC; S 125mm, M 150mm, L 170mm travel; Shimano MT500 I-SPEC EV lever

    Front tyre

    Schwalbe Magic Mary Trail, Radial, Ultra Soft

    Rear tyre

    Schwalbe Magic Mary Trail, non-radial, Soft

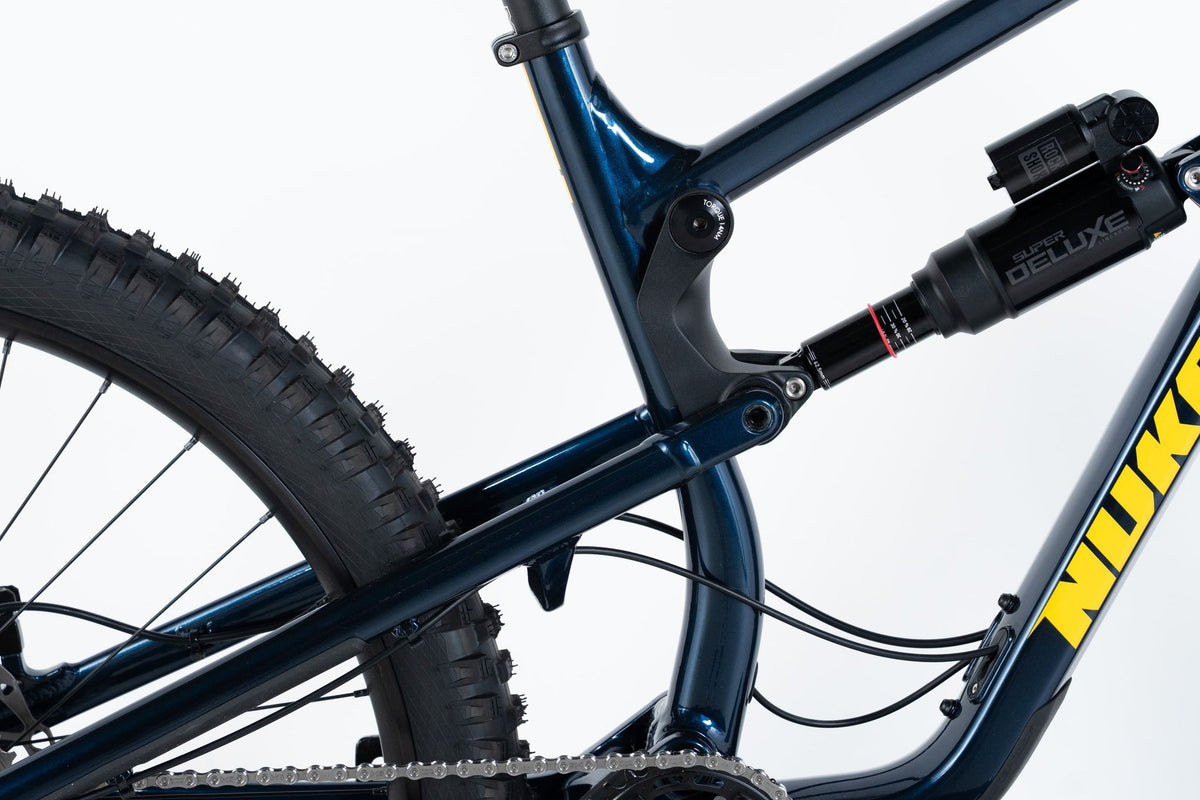

Nukeproof Mega Alloy LE - Support through the suspension travel [fd11245512dd]

Support through the suspension travel

The Horst-link suspension is designed to respond to smaller bumps early in the stroke, support the rider through corners and compressions, and build resistance towards the end of the travel. The Super Deluxe Base shock is the starting point for tuning this LE build to the rider.

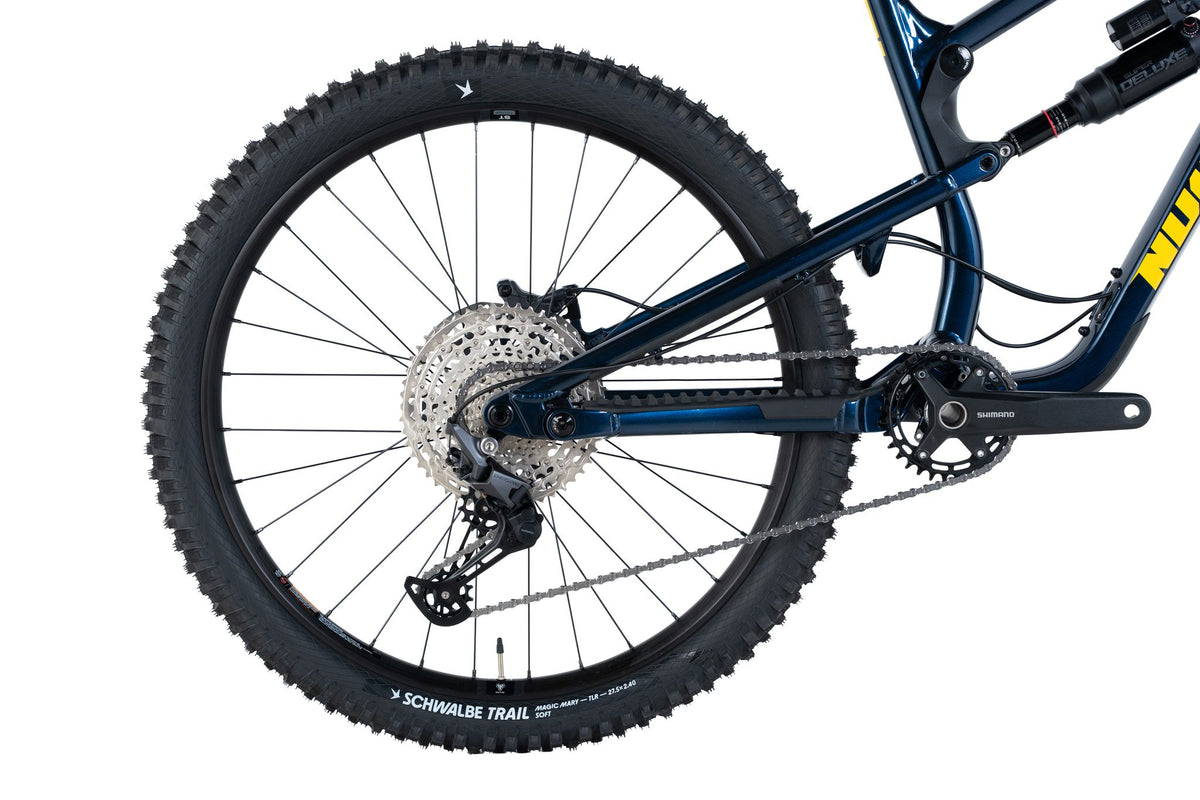

Nukeproof Mega Alloy LE - The LE drivetrain package [3fc6bec56c38]

The LE drivetrain package

The Shimano Deore drivetrain gives this LE build a wide spread of gears for climbs between descents. Cable-operated shifting keeps the controls and routine adjustment familiar.

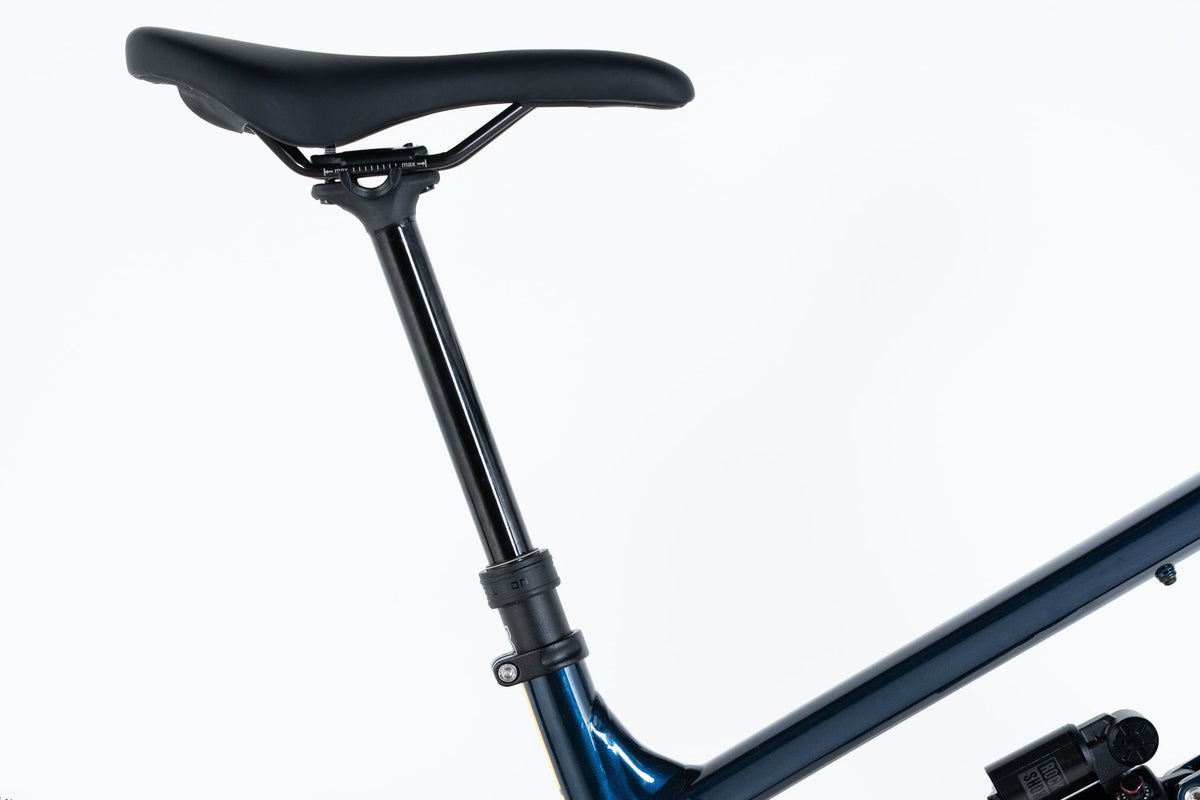

Nukeproof Mega Alloy LE - Space to move on the bike [59aaccd8277b]

Space to move on the bike

The dropper post lets you lower the saddle for steep sections and bring it back for pedalling. Post travel follows the frame size, so check the specification for the size you choose.
