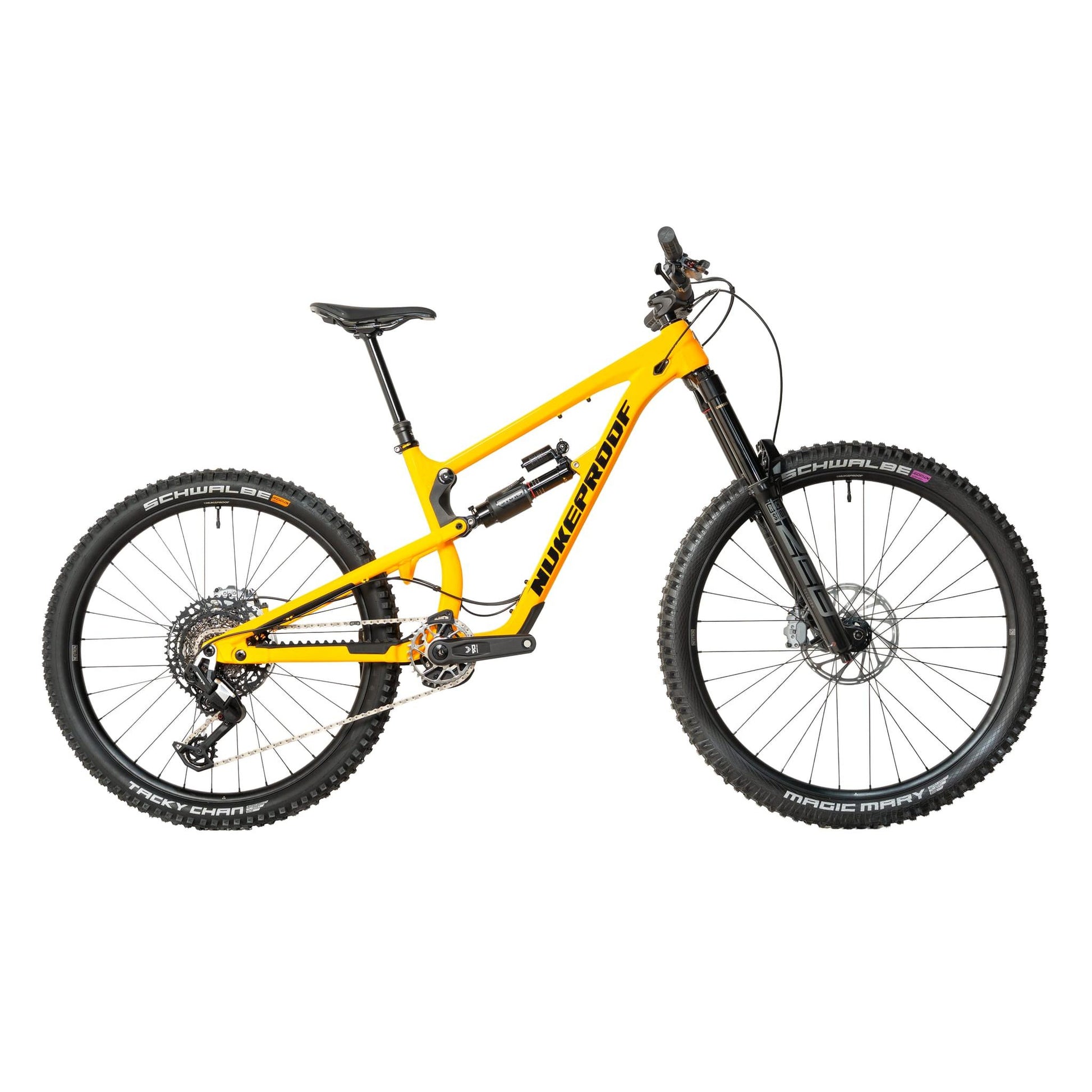

Nukeproof Mega Alloy Pro 2026
Nukeproof Mega Alloy Pro 2026
Special Order
SKU:SBIMEANKP006
files/Nukeproof-Mega-Alloy-Pro-2026-BRINK.jpg
10:19 AM
Couldn't load pickup availability
2026 Nukeproof Mega - The Aluminium Warrior
The Nukeproof Mega has over a decade of racing heritage, multiple Enduro World Series titles, and a reputation for being one of the most dependable long-travel enduro bikes on the market. The latest Mega Alloy Pro continues that legacy with updated suspension kinematics, refined geometry, and a tough, fully forged aluminium frameset built to handle aggressive riding day after day.
Alloy Frame, Built to Last
The Mega Alloy frame is constructed from T6061-T6 aluminium with hydroformed tubes and fully forged components. It’s engineered for strength, predictable handling and simple maintenance, with full rubber protection on the down tube, seatstays and chainstays. Tube-in-tube routing makes cable installation clean and straightforward.
Refined Suspension Kinematics
Using Nukeproof’s latest Horst-link design, the Mega delivers improved small-bump sensitivity, supportive mid-stroke control, and a progressive end-stroke for confidence on big hits. Anti-squat has been tuned for efficient pedalling, and the widened SAG range helps riders fine-tune setup to terrain.
Size-Specific Wheel Platforms
To ensure consistent handling across the size range, the Mega uses a split wheel setup:
- S, M, L — MX (297): 29” front / 27.5” rear
- XL & XXL — Full 29” front and rear
Smaller sizes benefit from the agility and clearance of a mullet layout, while larger sizes take advantage of full-29er stability and rollover.
Practical Enduro Details
A short seat tube with generous insertion depth supports long-travel droppers. The frame fits a 750 ml bottle inside the front triangle, uses SRAM UDH for easy drivetrain compatibility, and features durable MAX bearings for long-term reliability.
Who It’s For
The Mega Alloy Pro is built for riders who want a proven, confidence-inspiring enduro bike with race-ready performance and zero-nonsense durability. From weekend missions to EWS-style stages, it delivers the control, support and toughness the Mega platform is known for.
Highlights
-
Frame material
Aluminium
-
Wheelsize
S-M - Mullet | L-XXL - 29
-
Front travel
170mm
-
Rear travel
165mm
Specifications
-
2026 Nukeproof Mega Alloy Pro
Frame
Nukeproof Mega V4 290 Alloy, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection
Fork
RockShox Zeb Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset
Shock
RockShox Vivid Select+ Air, 230x62.5mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out
Handlebar
Nukeproof Neutron V2 25mm Rise, Width - S780mm, M780mm, L800mm
Stem
Nukeproof Horizon, 45mm, Black
Headset
Nukeproof
Brakes
SRAM Maven Bronze, Organic pads
Front rotor
SRAM
Rear rotor
SRAM
Shifter
Sram Eagle 90
Rear derailleur
Sram Eagle 90
Crankset
SRAM Eagle 90, 12-Speed, DUB, 165mm, 30T T-Type, 55mm CL
Bottom bracket
SRAM DUB
Cassette
SRAM CS1270 T-Type, 12-Speed, 10-52T
Chain
Sram Eagle 90
Seatpost
Tranz-X YS108 Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L:200mm drop; XL/XXL:230mm drop
Saddle
Nukeproof Horizon Enduro, Crn/Ti Rails
Front hub
Nukeproof Horizon V2 15x110mm Boost
Rear hub
Nukeproof Horizon V2 XD Freehub, 148x12mm Boost
Spokes
Nukeproof
Rims
Nukeproof Horizon V2
Rear rim
Nukeproof Horizon V2
Front tyre
Schwalbe Magic Mary Evo, Super Gravity 29x 2.4" Ultra Soft
Rear tyre
Schwalbe Tacky Chan Evo, Super Gravity 27.5x 2.4" Soft

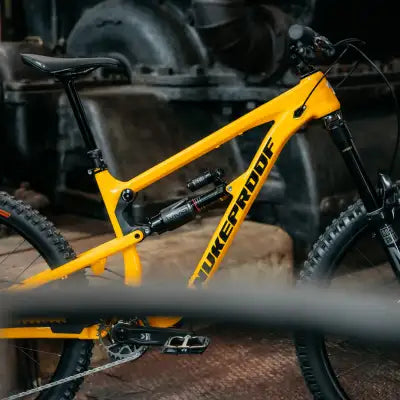

Aluminium Frame Construction
The Mega Alloy uses a 6061-T6 aluminium chassis with hydroformed tubes and fully forged parts for strength, stiffness, and long-term durability. The frame is designed for predictable handling, easy maintenance and consistent performance on rough terrain, with full rubber protection in key impact zones.

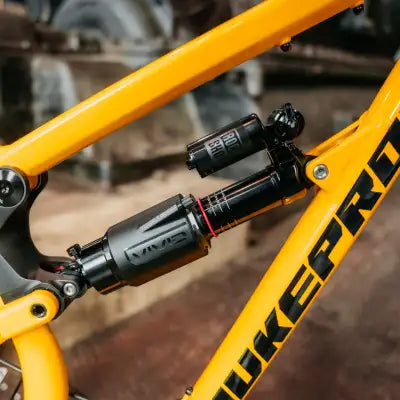

Optimised Geometry & Suspension Kinematics
Built around Nukeproof’s latest Horst link system, the Mega offers improved small-bump sensitivity, stronger mid-stroke support and a progressive end-stroke for control on big hits. Anti-squat is tuned for efficient pedalling, while size-specific seat tube angles maintain a centred climbing position across all sizes.

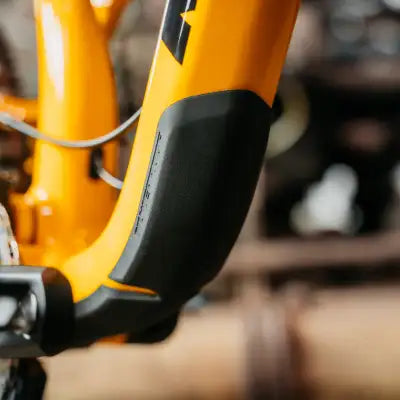

Design Features
Practical details include room for a 750 ml bottle, an accessory mount under the top tube, and tyre clearance up to 2.6”. MAX bearings and durable hardware ensure reliability in all conditions, while 3D rubber protection keeps the frame quiet and protected. Tube-in-tube routing simplifies setup and maintenance.
