Nukeproof

Nukeproof Mega Carbon Pro 2026

Nukeproof Mega Carbon Pro 2026

£4,999.00
£4,999.00
Sale Sold out
Size
Colour
Wheelsize

3 in stock

SBIMECNKP001

Loading locations...

Nukeproof Mega Carbon Pro

The Nukeproof Mega Carbon has earned its reputation through over a decade of refinement and race-winning performance. Built around a full UD T700/800 carbon fibre chassis, the fourth-generation Mega delivers the speed, support, and composure expected from a modern long-travel enduro bike - with improved kinematics, size-specific wheel setups, and practical design features that make it both fast and easy to live with.

Carbon Frame Engineering

The Mega Carbon frame uses a blend of T700/T800 fibres to tune stiffness, compliance and strength across the chassis. The carbon layup allows Nukeproof to reduce weight while improving tracking and suspension response. Internally piped routing, 3D rubber protection, and MAX bearings ensure durability and clean, simple maintenance.

Updated, Refined Kinematics

With Nukeproof’s Horst-link suspension system, the Mega Carbon offers increased small-bump sensitivity, stable mid-stroke support, and a progressive end-stroke for confident big-hit control. Anti-squat is tuned for efficient pedalling without compromising grip or active feel on technical climbs.

Size-Specific Wheel Platforms

To keep handling consistent across the size range, the Mega uses two wheel configurations:

  • S, M, L - 297 MX (29" front / 27.5" rear)
  • XL, XXL - Full 29" front and rear

This ensures smaller sizes remain agile while larger sizes gain maximum stability and rollover.

Practical Enduro Details

Tube-in-tube cable routing simplifies setup and servicing, SRAM UDH compatibility offers broad drivetrain support, and a 750 ml bottle fits within the front triangle. Short seat tubes with deep insertion depth allow long-travel droppers across all sizes, and size-specific seat angles position riders efficiently for climbing.

Who Is It For?

The Mega Carbon Pro is built for riders who want a highly refined, fully modern enduro platform that’s ready for technical stages, alpine terrain, and fast, rough descents. Balanced, predictable, and impressively composed - it’s a race-capable bike with everyday usability baked in.

Further specification

Detail Applies to Specification
Wheelset XL-290, XXL-290 Nukeproof Horizon V2. F: 29", 15x110mm Boost, R:29", XD Freehub, 148x12mm Boost
Wheelset S-297, M-297, L-297 Nukeproof Horizon V2. F: 29", 15x110mm Boost, R:27.5", XD Freehub, 148x12mm Boost
Grips M-297 Nukeproof Neutron Single Lock On, Diameter - S/M: 29.6mm, L/XL/XXL: 31.8mm
Pedals M-297 Not included **
Bike Weight M-297 15.7kg/34.5lbs (Tubeless)
View full details

Highlights

  • Frame material

    Carbon

  • Front travel

    170mm

Specifications

  • Nukeproof Mega Carbon Pro 2026 - 29"

    Frame

    Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection

    Fork

    RockShox Zeb Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset

    Shock

    RockShox Vivid Select+ Air, 230x62.5mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out

    Handlebar

    Nukeproof Horizon V2 25mm Rise, Width - S/M780mm, L800mm, XL800mm, XXL800mm

    Stem

    Nukeproof Horizon, 45mm, Black

    Brakes

    SRAM Maven Bronze, Sintered pads

    Rear derailleur

    SRAM Transmission GX Rear Derailleur

    Crankset

    SRAM GX Eagle, 12-Speed, DUB, 165mm, 30T T-Type, 55mm CL

    Cassette

    SRAM GX CS1275 T-Type, 12-Speed, 10-52T

    Seatpost

    Tranz-X YS108 Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L:200mm drop; XL/XXL:230mm drop

    Saddle

    Nukeproof Horizon Enduro, Crn/Ti Rails

    Front tyre

    Schwalbe Magic Mary Evo, Super Gravity, TLE, 62-622 / 29x 2.4" Ultra Soft

    Rear tyre

    Schwalbe Tacky Chan Evo, Super Gravity, TLE, 62-622 / 29x 2.4" Soft

  • Nukeproof Mega Carbon Pro 2026 - Mullet

    Frame

    Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection

    Fork

    RockShox Zeb Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset

    Shock

    RockShox Vivid Select+ Air, 230x62.5mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out

    Handlebar

    Nukeproof Horizon V2 25mm Rise, Width - S/M780mm, L800mm, XL800mm, XXL800mm

    Stem

    Nukeproof Horizon, 45mm, Black

    Headset

    M-297: Nukeproof, 44-56 IITS

    Brakes

    SRAM Maven Bronze, Sintered pads

    Front rotor

    M-297: SRAM Centerline 2.0 200mm Rounded

    Rear rotor

    M-297: SRAM Centerline 2.0 200mm Rounded

    Shifter

    M-297: SRAM AXS POD Right Bridge MMX

    Rear derailleur

    SRAM Transmission GX Rear Derailleur

    Crankset

    SRAM GX Eagle, 12-Speed, DUB, 165mm, 32T T-Type, 55mm CL

    Cassette

    SRAM GX CS1275 T-Type, 12-Speed, 10-52T

    Chain

    M-297: SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock, 116 Links

    Chain guide

    M-297: Nukeproof guide with Bash, 28-36T, ISCG-05, 55mm CL, Black

    Seatpost

    Tranz-X YS108 Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L:200mm drop; XL/XXL:230mm drop

    Saddle

    Nukeproof Horizon Enduro, Crn/Ti Rails

    Front tyre

    Schwalbe Magic Mary Evo, Super Gravity, TLE, 62-622 / 29x 2.4" Ultra Soft

    Rear tyre

    Schwalbe Tacky Chan Evo, Super Gravity, TLE, 62-584 / 27.5x 2.4" Soft

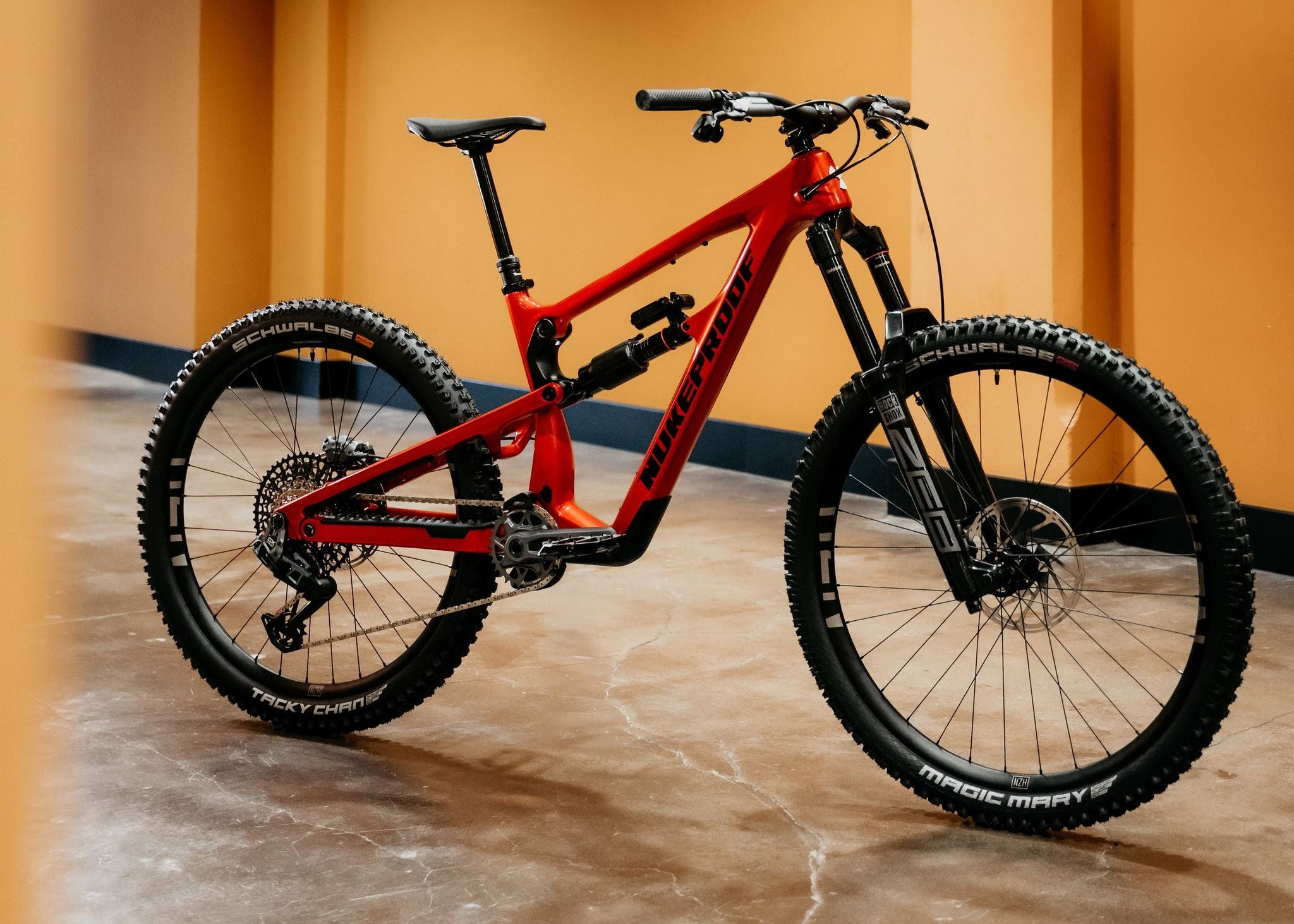

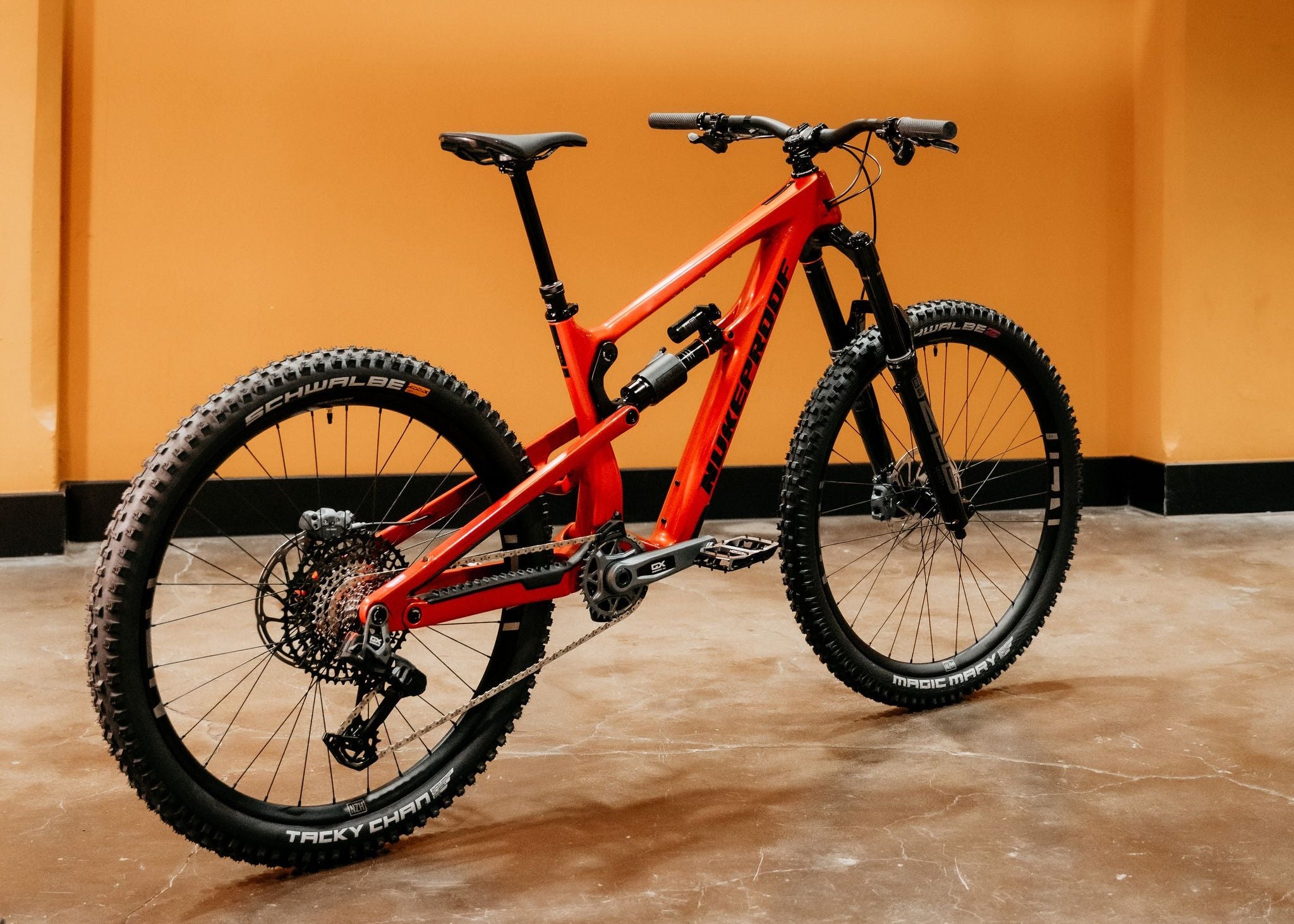

Red mountain bike on a concrete floor with a yellow wall background

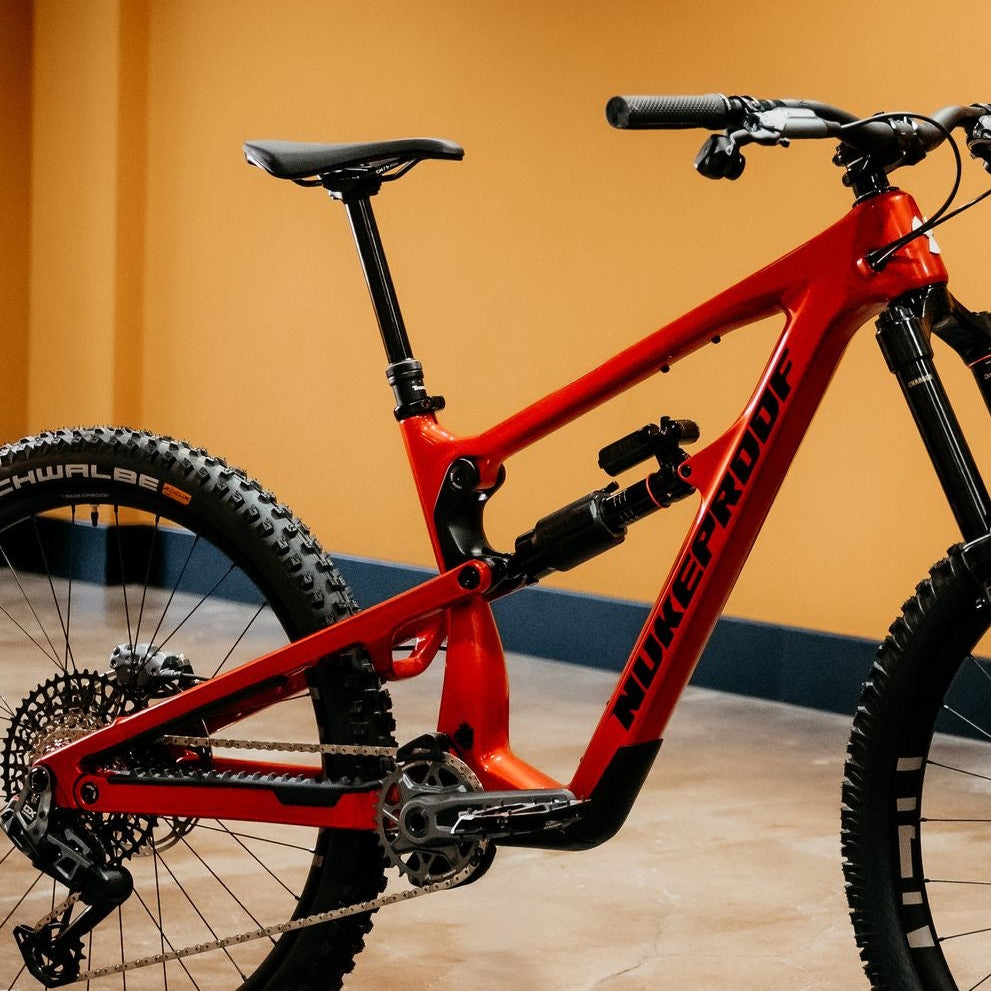

A carbon chassis for long enduro days

The fourth-generation Mega uses a full carbon chassis for its demanding enduro role. Short seat tubes and room for a full-size bottle keep long-travel dropper fit and everyday riding in the picture.

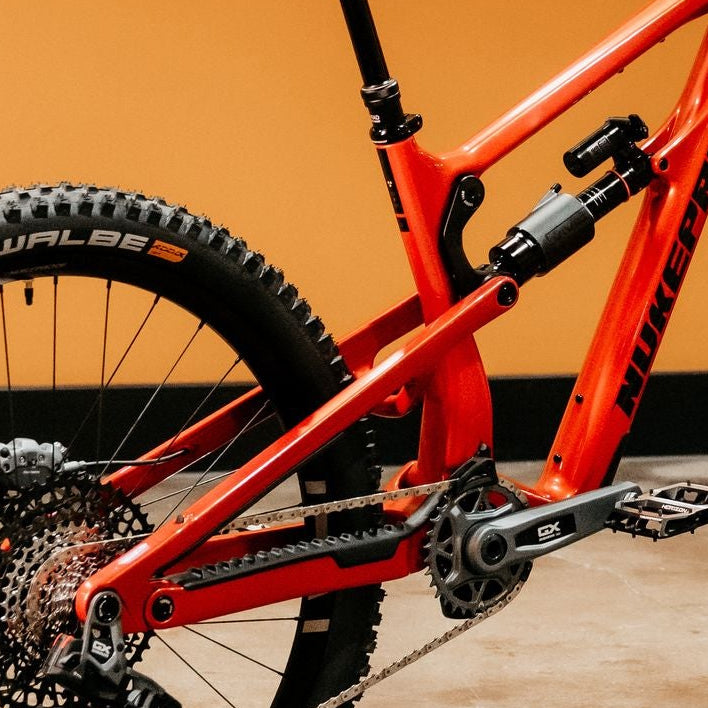

Support when the trail loads up

The Horst-link suspension is designed to stay sensitive early in the stroke and supportive through corners and compressions. The Vivid Select+ shock lets you tune the response to the rider and terrain.

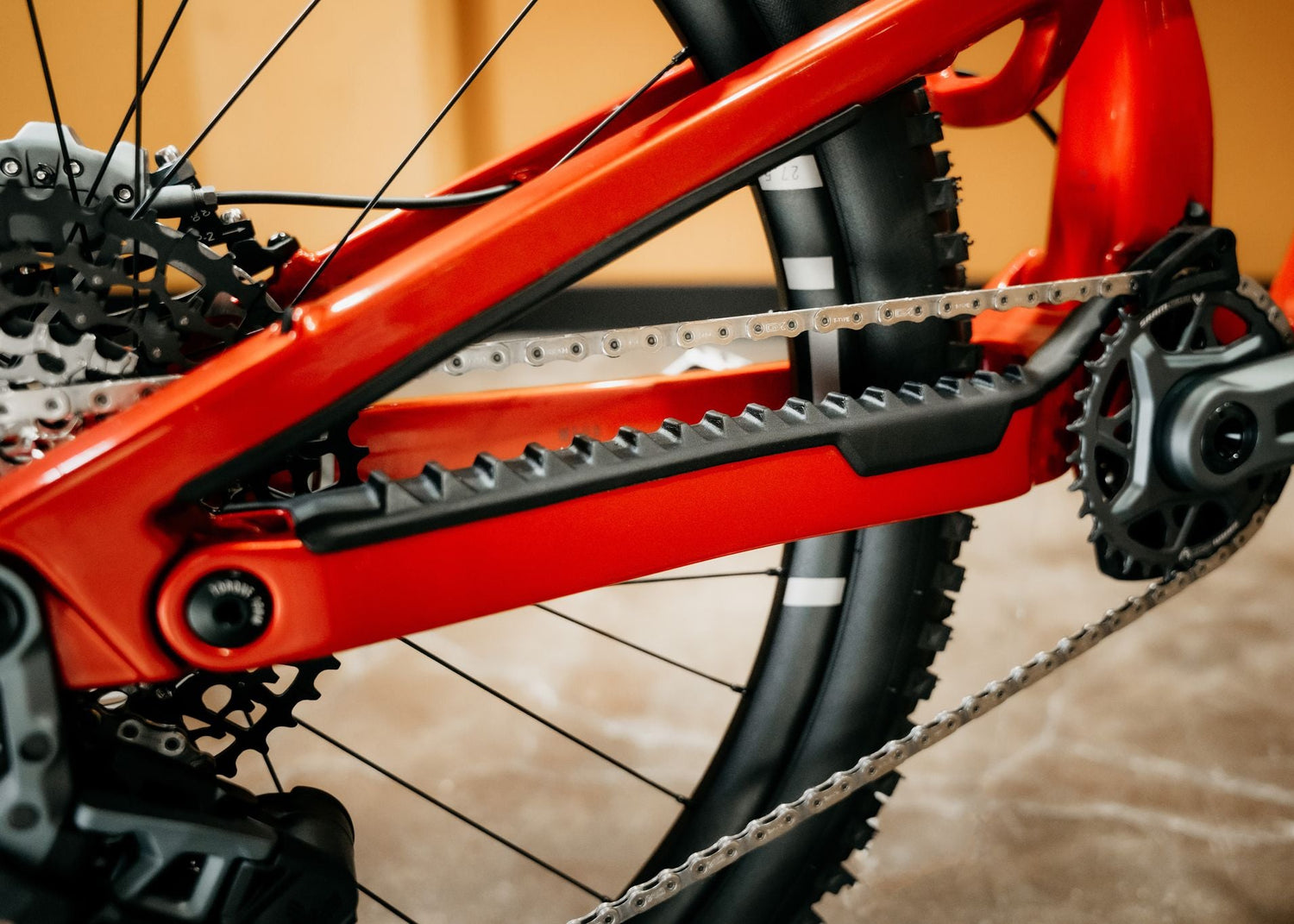

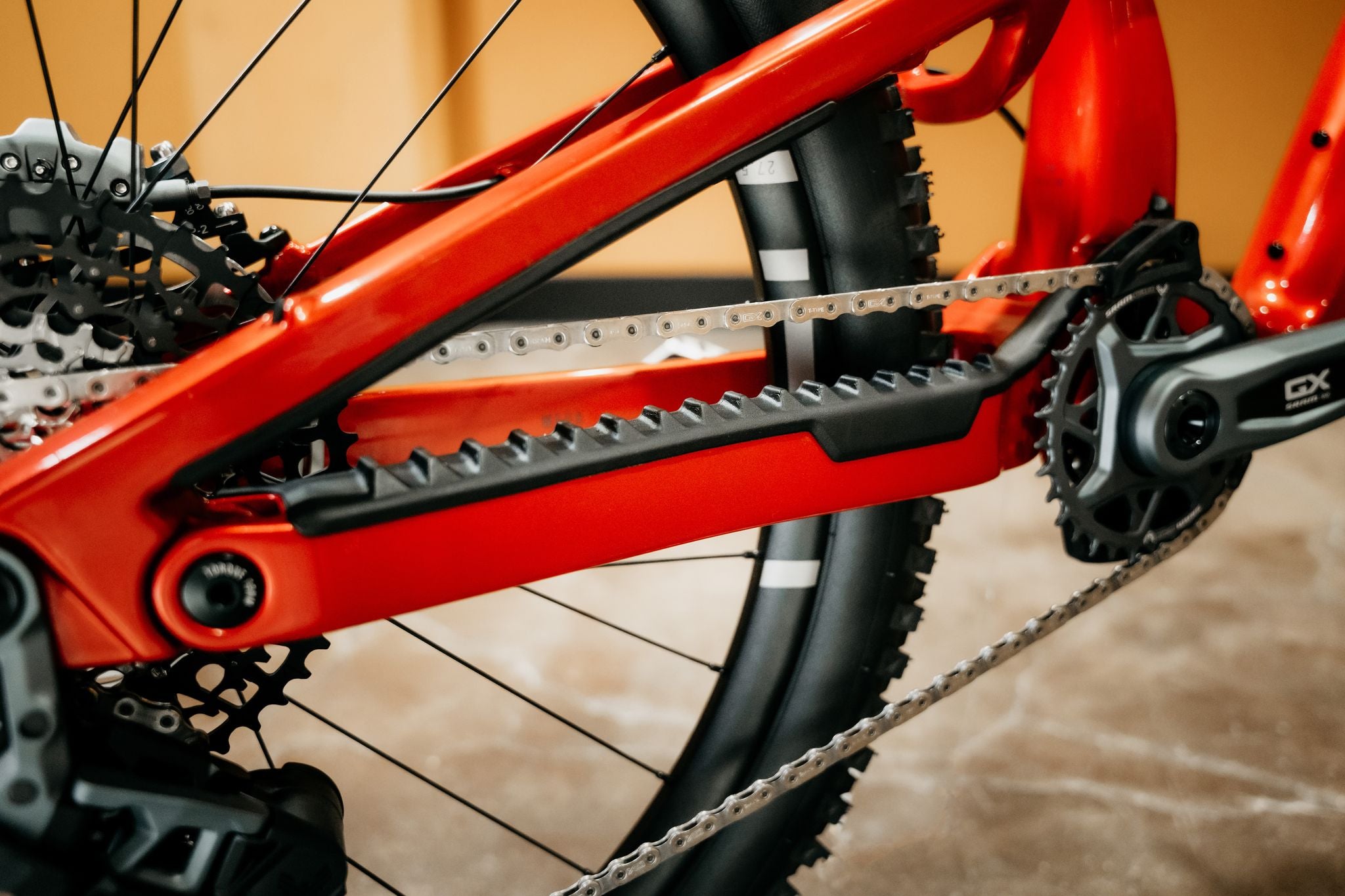

Protection where the chain moves

Moulded chainstay protection helps keep chain noise and knocks away from the frame. It is a practical detail for the repeated hard riding that the Mega is built around.

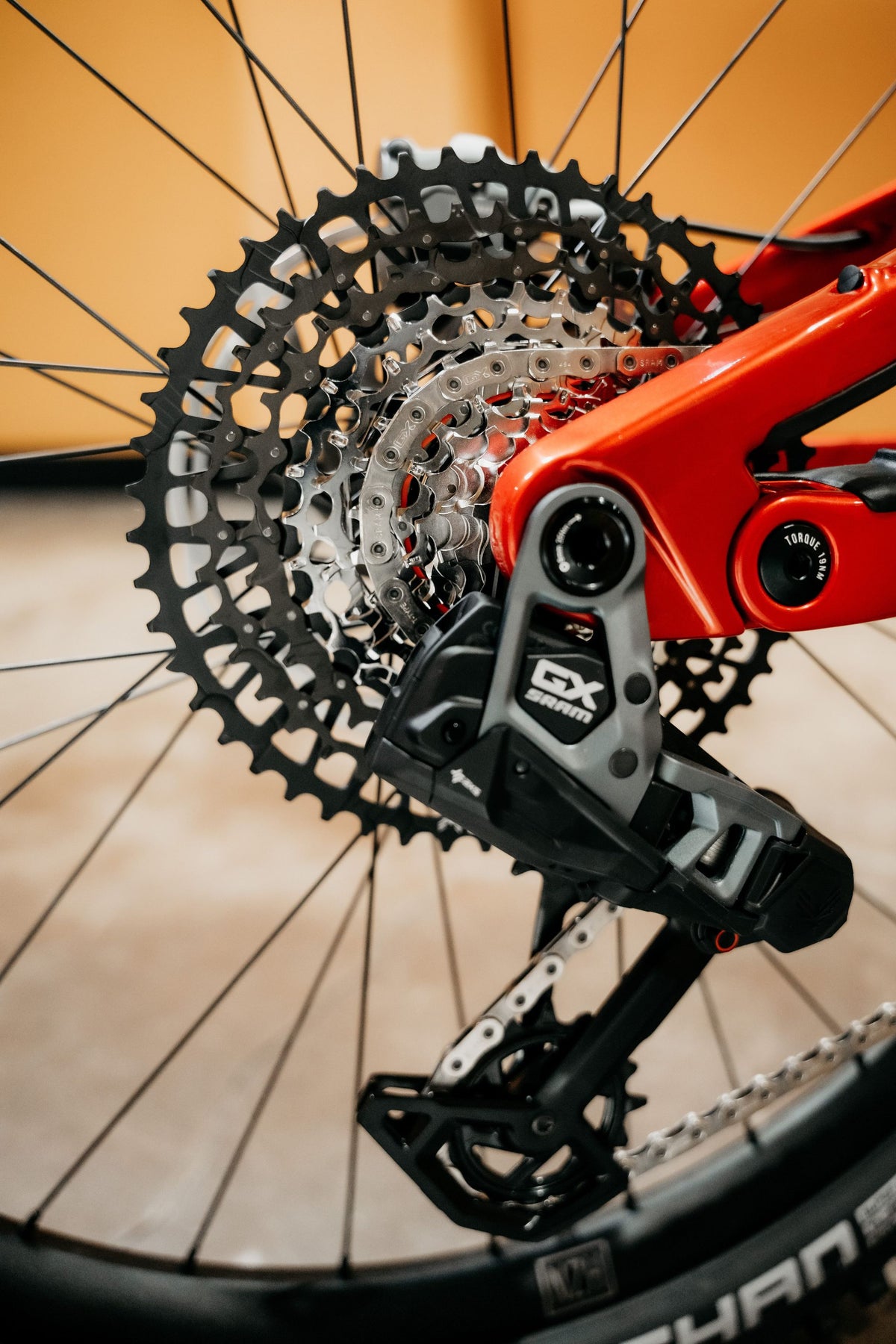

Nukeproof Mega Carbon Pro 2026 - Wireless shifting for the whole ride [3a8f4eb72b2b]

Wireless shifting for the whole ride

GX Transmission combines wireless shifting with a wide-range 10-52T cassette. It keeps the climbs manageable before the next descent.
