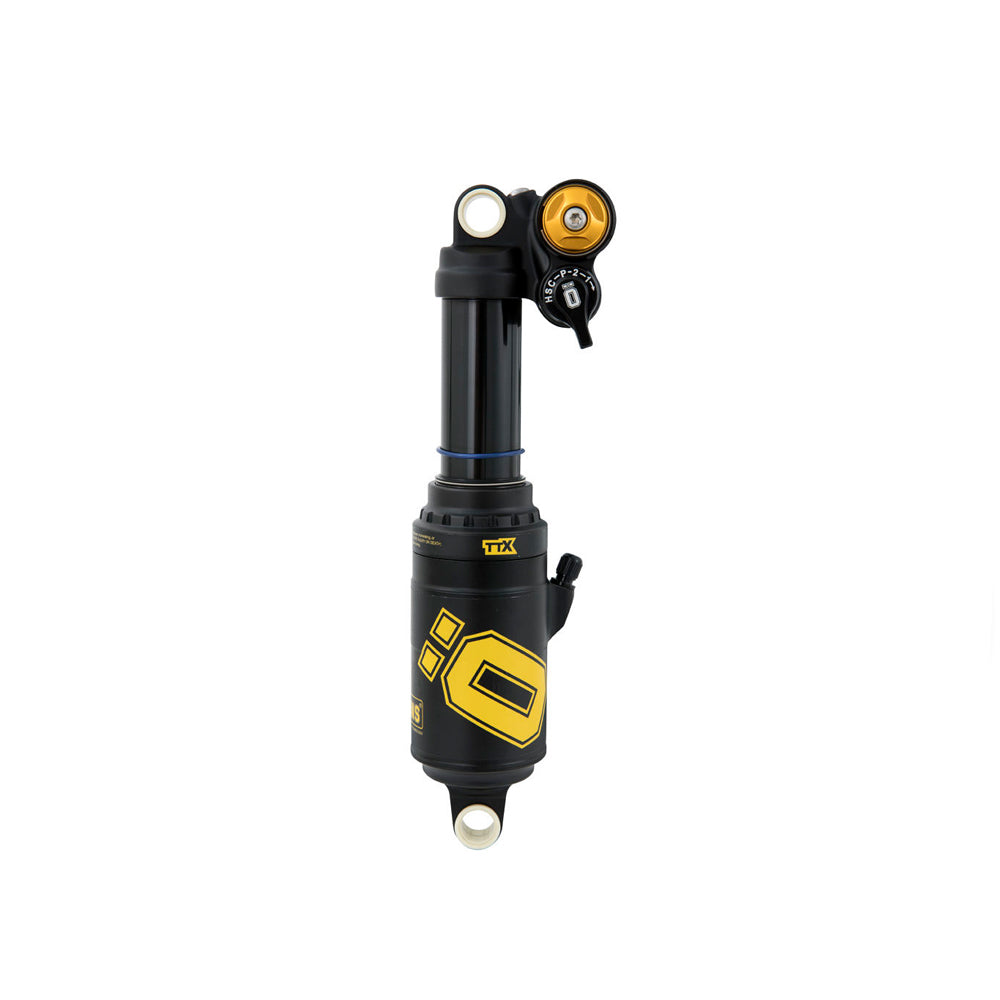

Öhlins TTX1Air Rear Shock – Lightweight Precision for Trail and eMTB
The Öhlins TTX2Air is a high-performance, air-sprung rear shock engineered for trail bikes and e-MTBs with more progressive suspension kinematics( Use the TTX Air1 for more linear bikes. I.e under 22% progression). Offering the same trail-smoothing performance as the double-can TTX2Air, the TTX1Air features a slimmer, single-can design for a more compact and lightweight package.
Ideal for riders seeking advanced damping in a reduced form factor, the TTX1Air delivers class-leading sensitivity, all-conditions control, and a broad spectrum of tuning possibilities. Its refined construction makes it 60–80 grams lighter than the TTX2Air, while a newly introduced slim-fit end-eye expands compatibility across a wide range of modern frame designs.
This shock is designed to inspire confidence across demanding terrain, offering a supple, plush ride that enhances comfort and preserves momentum through technical sections. Its precise traction and damping control enable riders to push harder and stay in sync with the bike, whether climbing, descending, or navigating rough trails.
With increased maximum air pressure capacity, the TTX1Air is also built to accommodate a wider range of rider weights and the additional loads presented by electric mountain bikes.

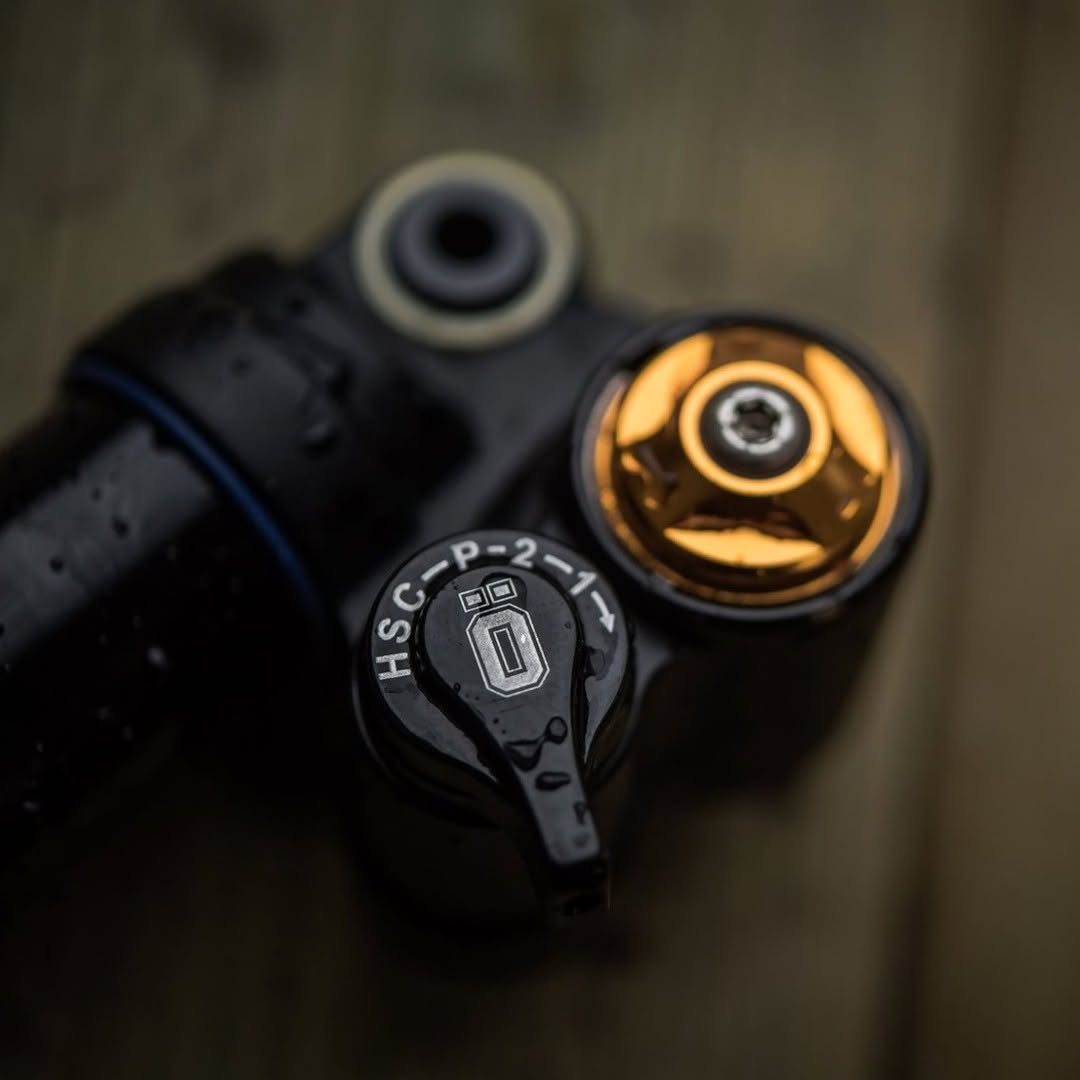

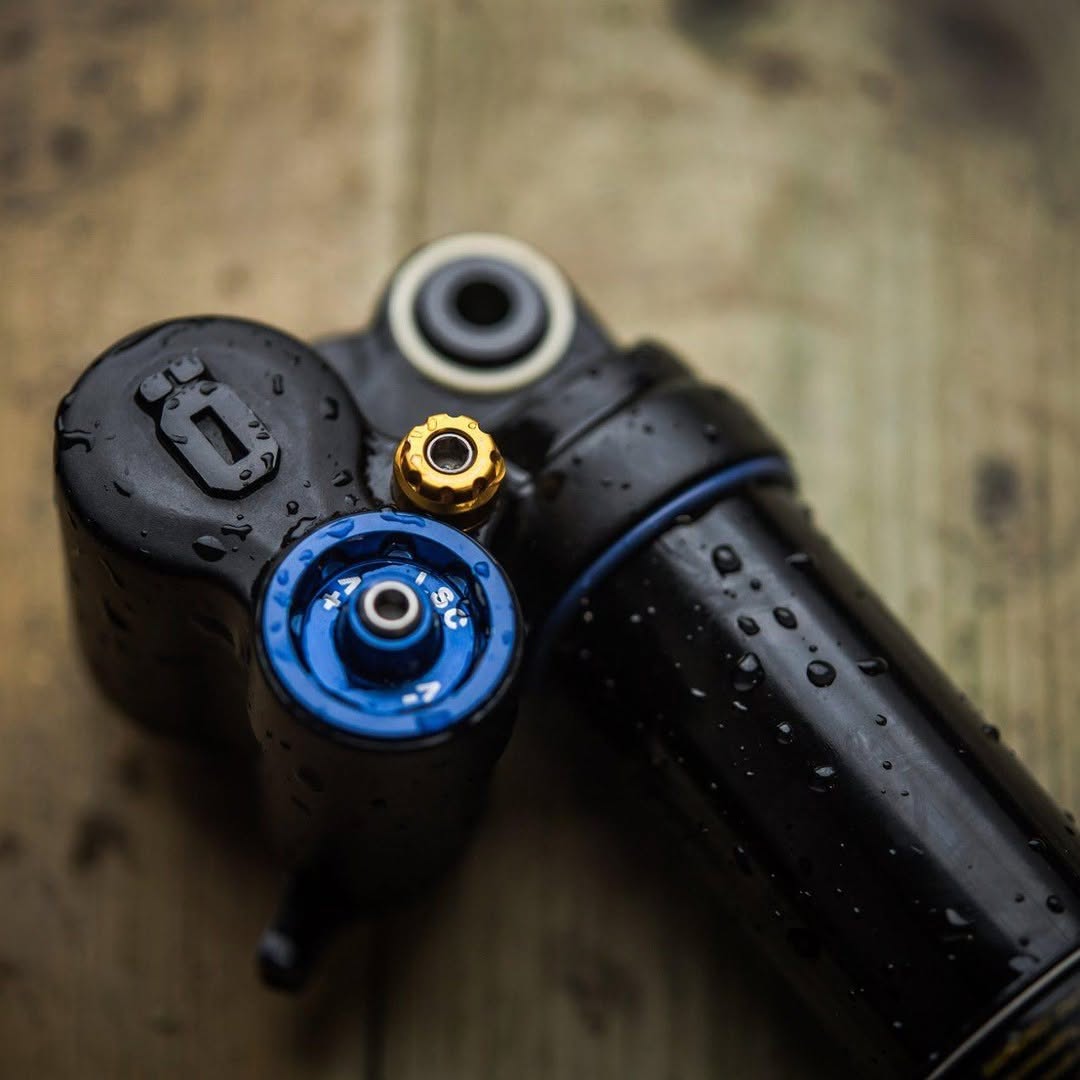

Internally, the shock features Öhlins' race-proven twin-tube TTX damping system, allowing bi-directional oil flow for consistent compression and rebound control. This enables a broad tuning range, making it easy to fine-tune the ride using clearly defined click adjustments. The integration of a low-friction air spring further contributes to the shock’s smooth, predictable performance.
Durability is also a key highlight. The metric system architecture increases bushing overlap for enhanced robustness and better side-load management. Öhlins' proprietary wiper seals and lubrication technology minimize friction and extend performance consistency between service intervals.
As with all TTX-equipped suspension, the TTX1Air provides access to an extensive tuning library developed through race experience, allowing riders to tailor their setup precisely to their bike, weight, and riding style.
