The OneUp Carbon E-Bar combines a little extra comfort at the hands with a tidier route for compatible e-bike control wires. Its oval carbon profile is designed to flex vertically over rough ground while keeping steering direct, making sense on an e-bike that gets ridden hard and often.

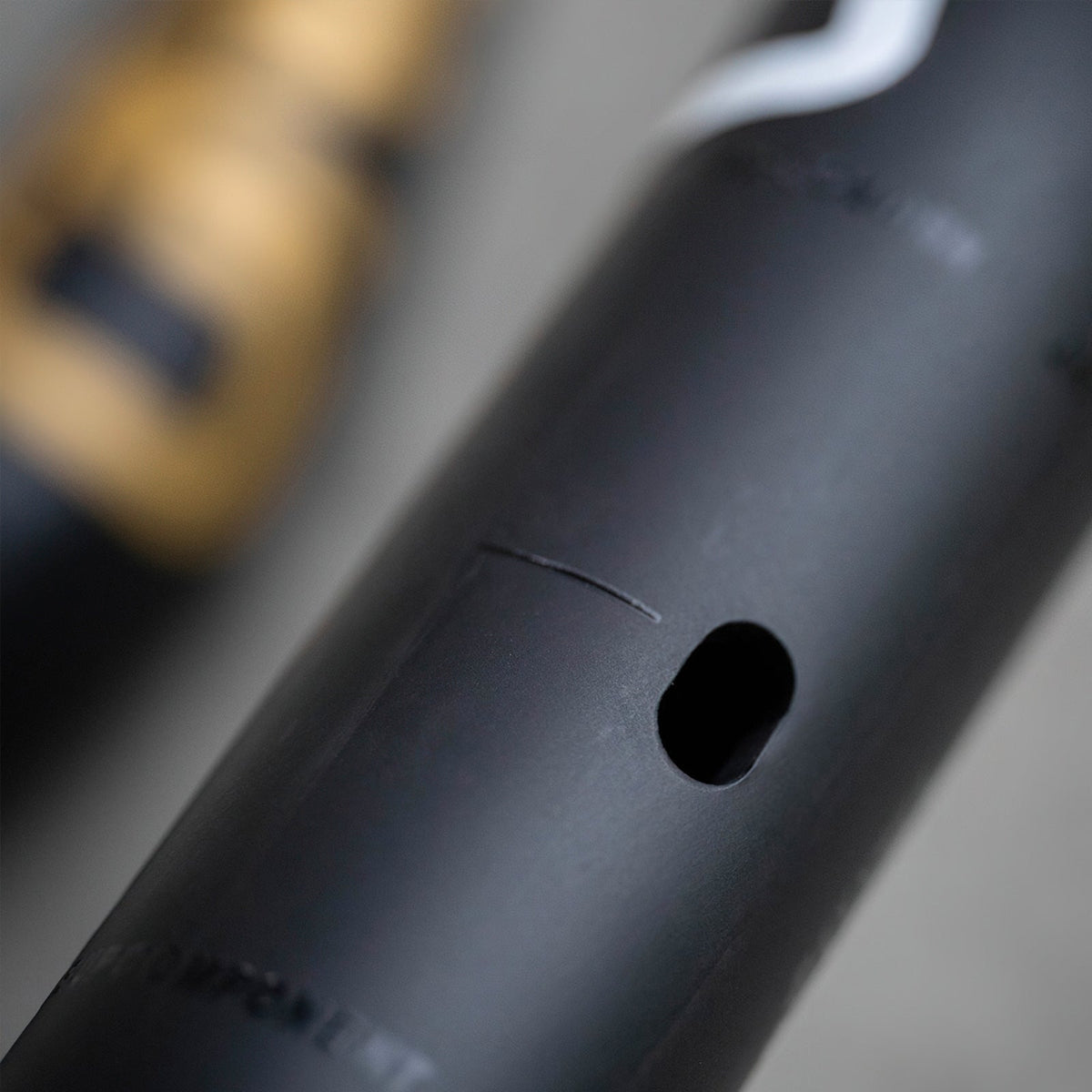

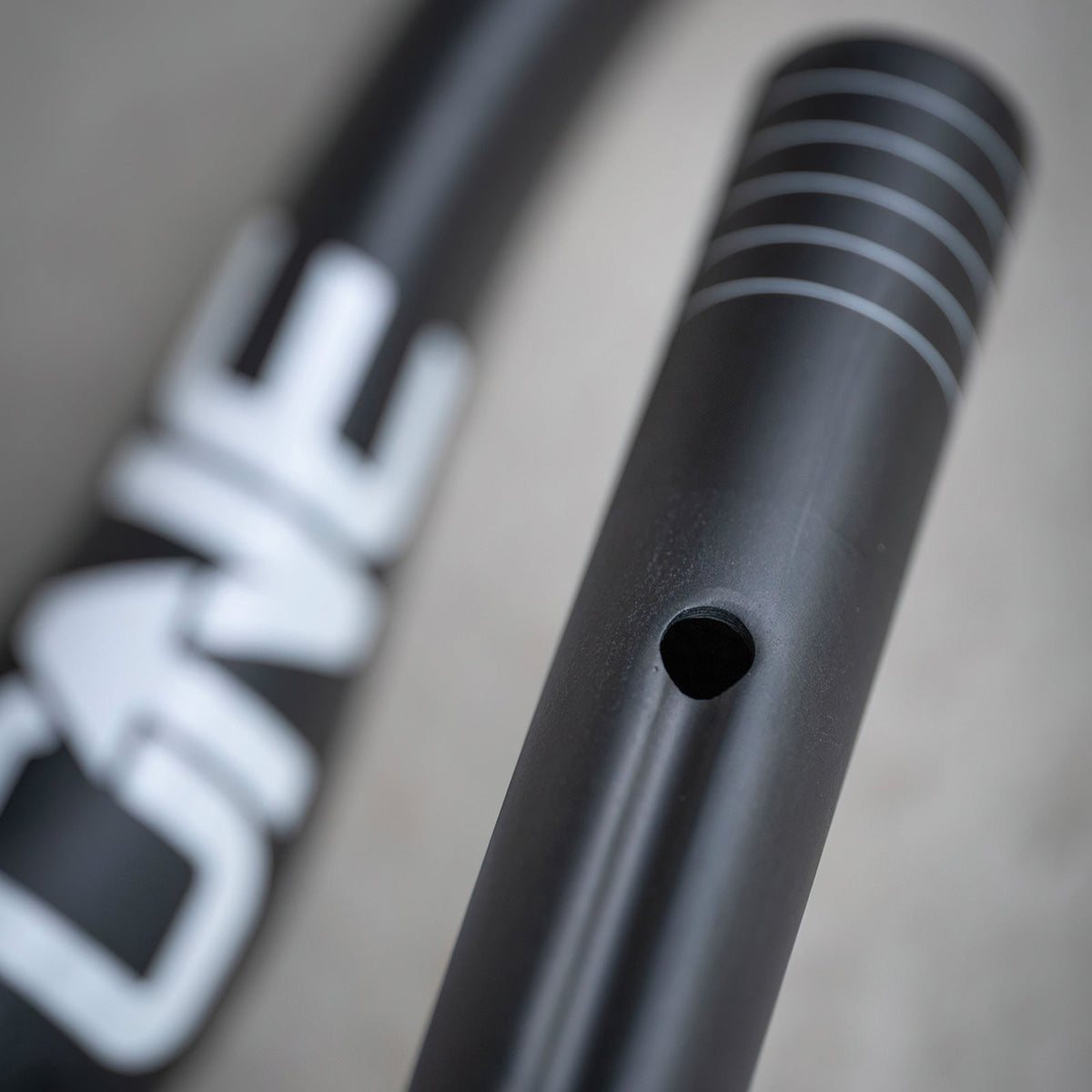

Integrated ports let compatible wiring pass through the bar instead of wrapping around the cockpit. Check the cable and connector fit before planning an internal route: OneUp specifically states that Specialized wiring is too large for these ports. The bar can still be used with that wiring routed externally.
Fit the bar to your bike

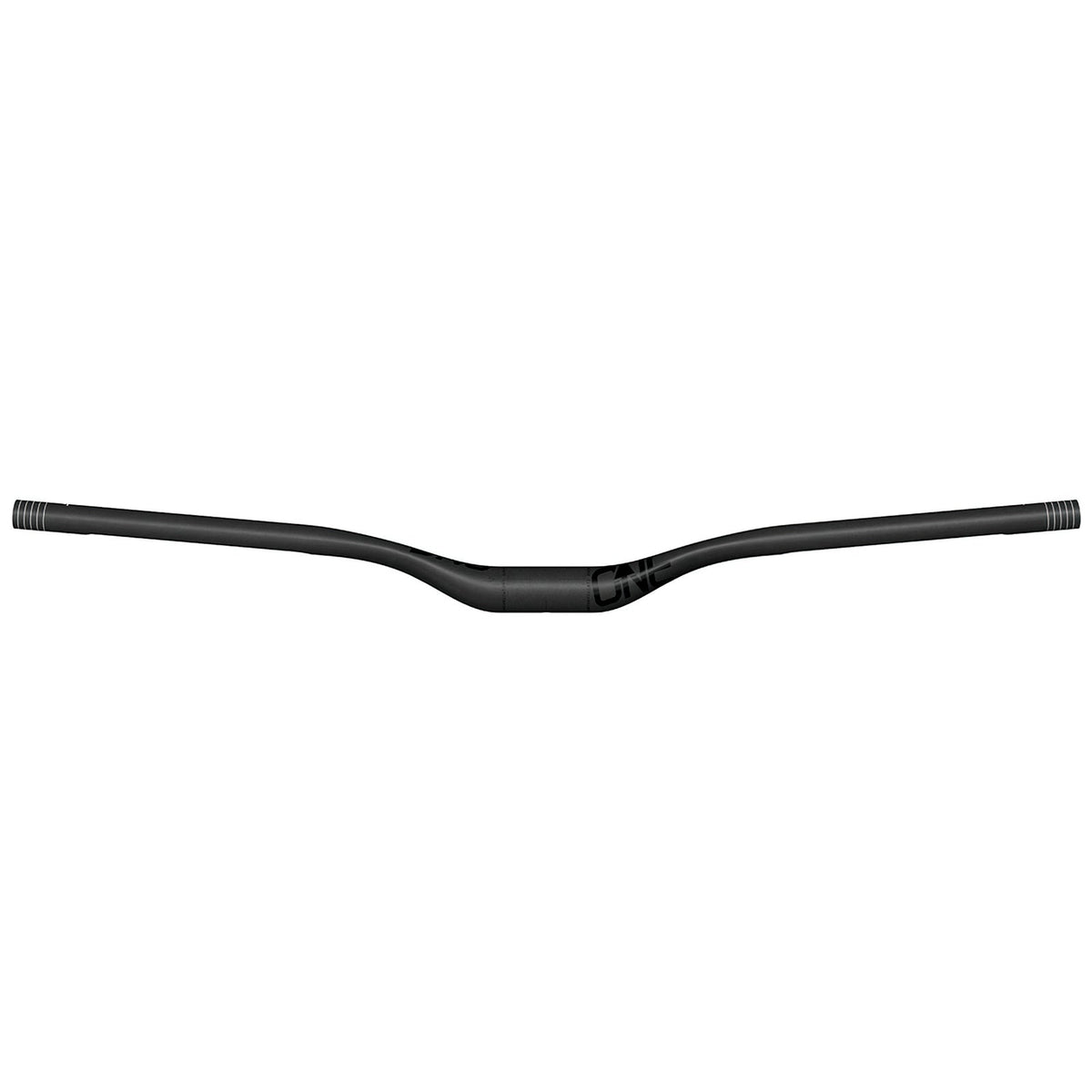

800mm width, 35mm rise and 35mm clamp diameter.
8° backsweep and 5° upsweep.
Do not cut below 750mm; follow the markings on your supplied bar and current OneUp fitting instructions. Maximum stem clamp width: 60mm.
Maximum clamp torque: 6Nm at the stem and 5Nm at the controls.
Not compatible with grips that have only an outer clamp, or with bar-end extensions.
Decal kits are sold separately.
Specifications
Material
Carbon fibre
Width (mm)
800
Rise (mm)
35
Clamp diameter (mm)
35
Backsweep (degrees)
8
Upsweep (degrees)
5
Maximum stem clamp width (mm)
60
Maximum clamp torque (Nm)
stem: 6; controls: 5
Box contents
Carbon E-Bar
Sold separately
Decal kit
Routing limit
OneUp states Specialized wiring is too large for the ports; external routing remains possible.

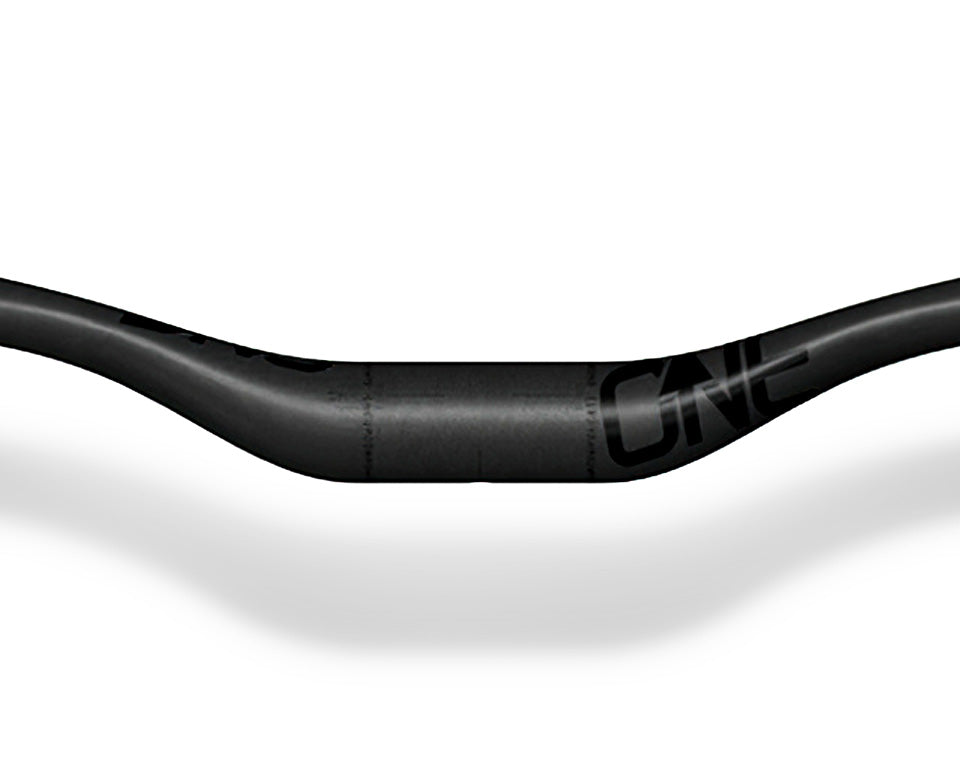

An oval carbon section allows vertical movement while maintaining steering stiffness. It helps take the sharpness out of repeated trail impacts, without changing the 35mm stem standard.

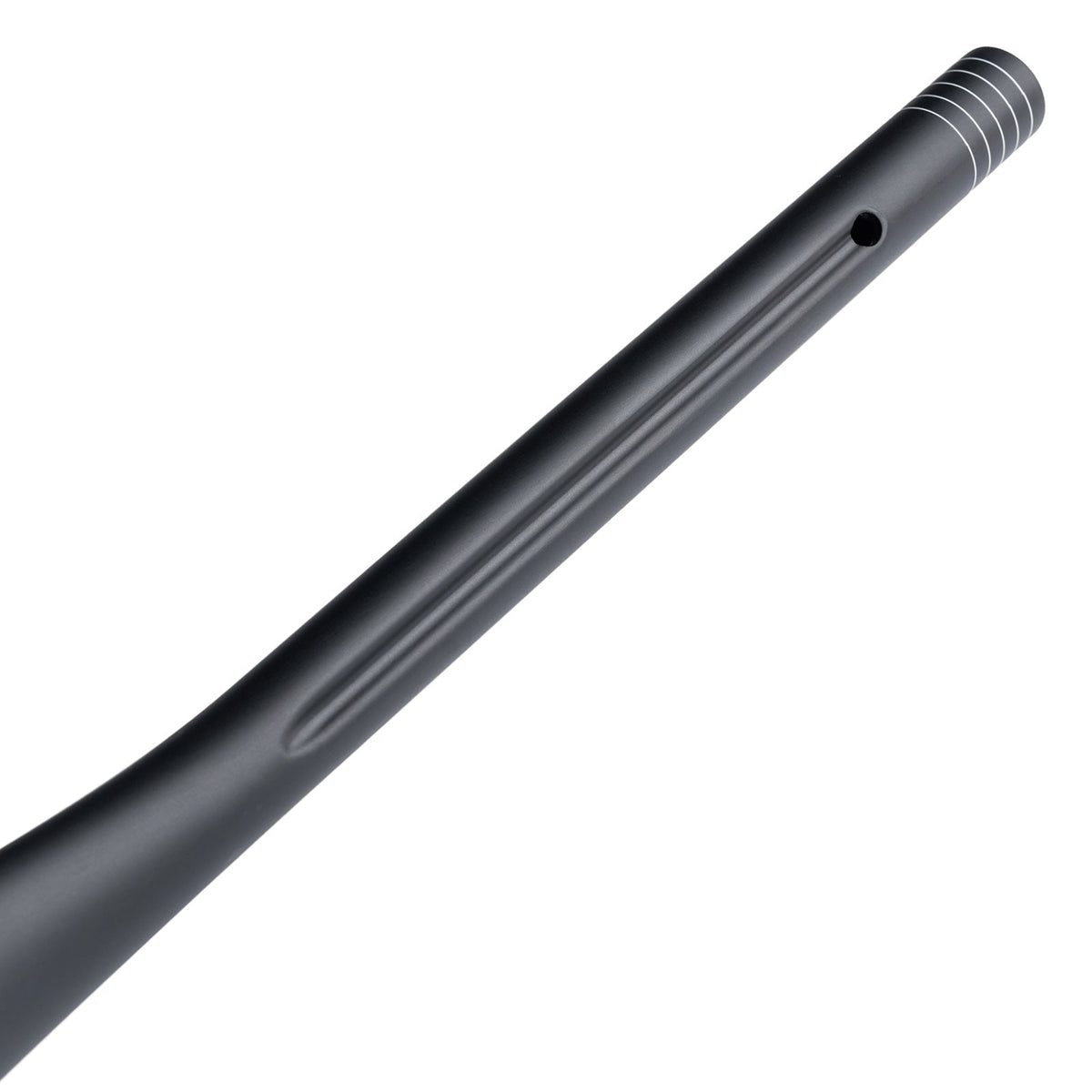

Make room for the control wires
Integrated wire ports give compatible e-bike controls a route through the bar. Check the wiring first: oversized connectors and Specialized wiring cannot be assumed to fit, and may need an external route.
