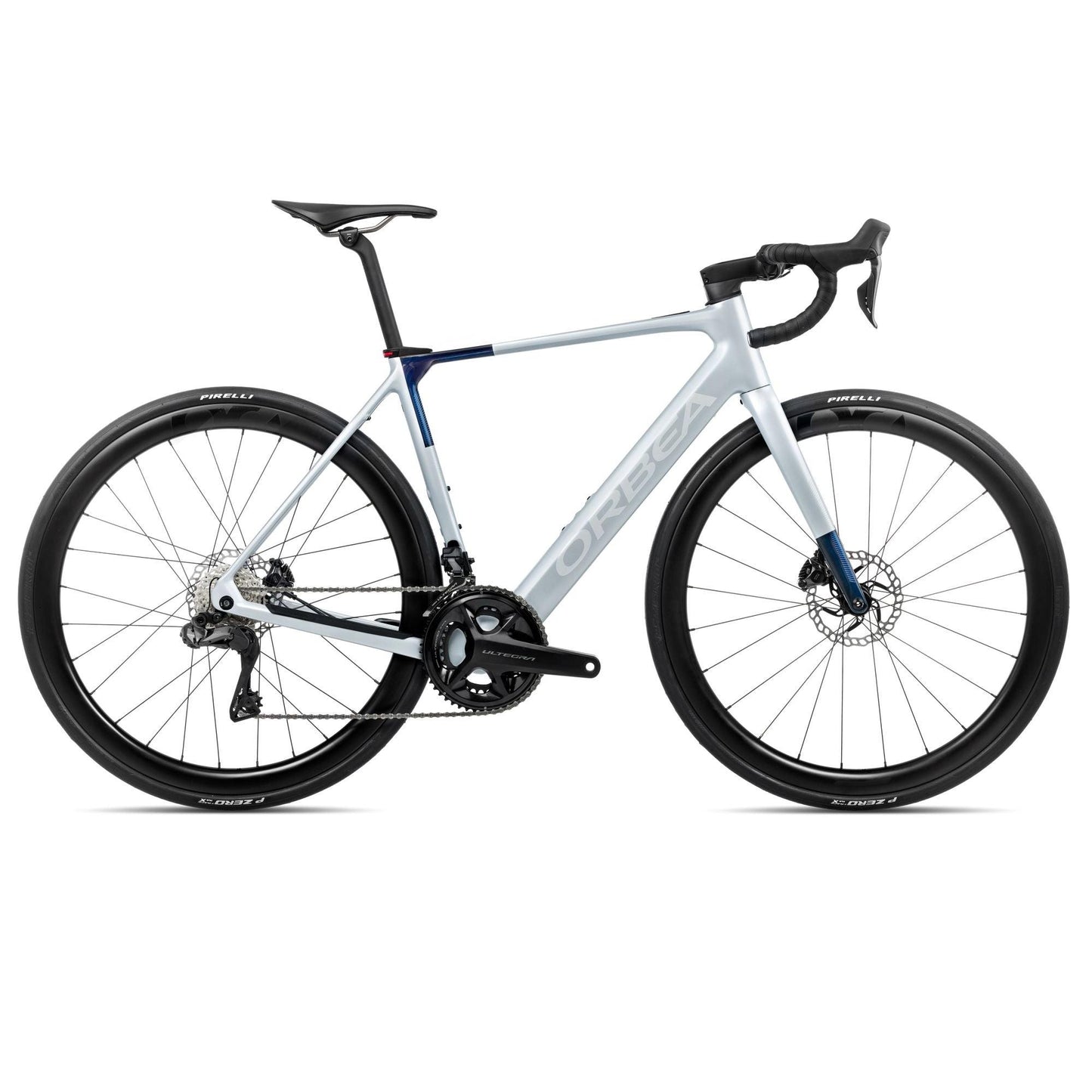

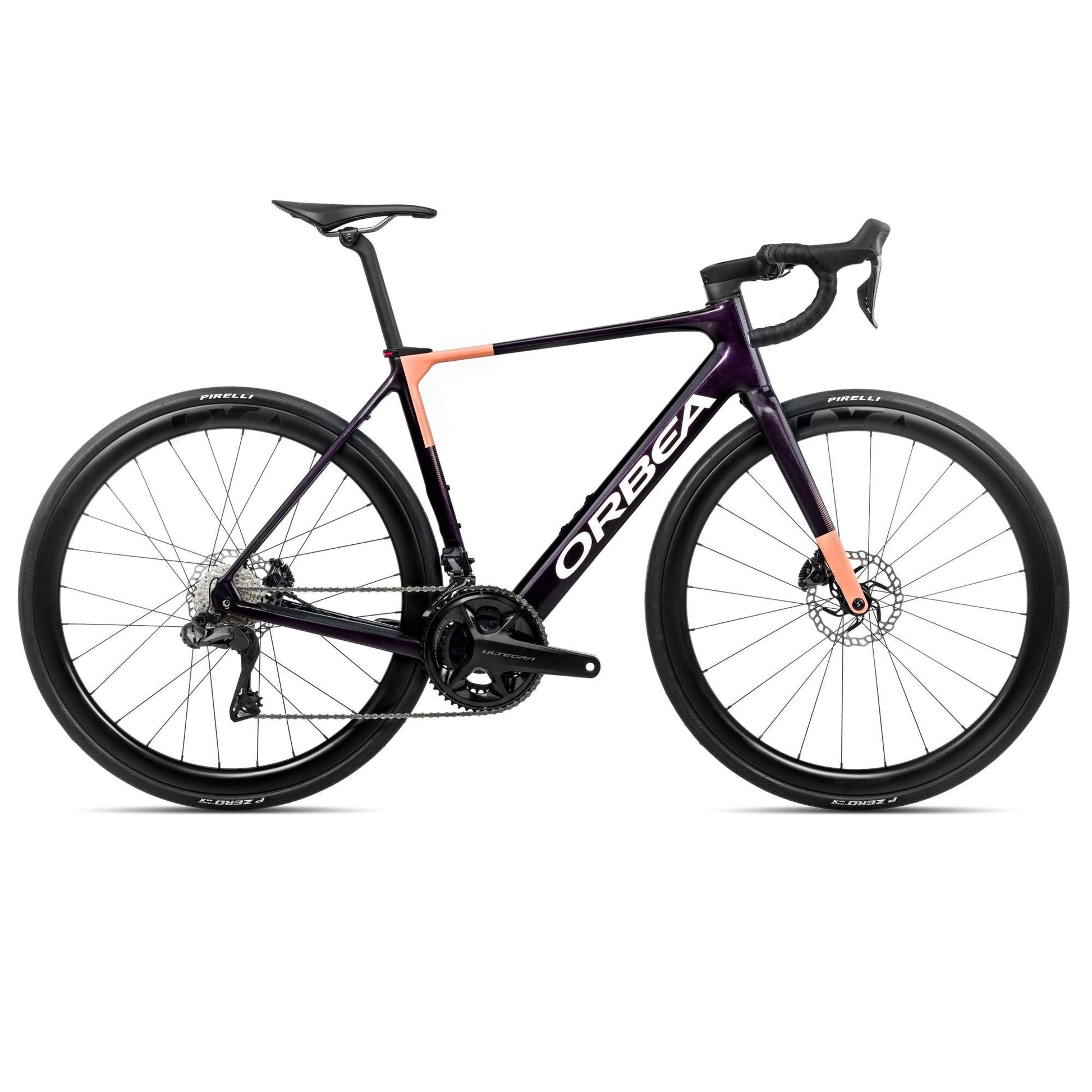

Orbea Gain M20i 2026
Orbea Gain M20i 2026
Special Order
SKU:T38602GM
files/Orbea-Gain-M20i-2026-BRINK-2.jpg
12:16 AM
Couldn't load pickup availability
2026 Orbea Gain M20i: Electronic Precision with a Balanced Performance Focus
The Gain M20i hits a sweet spot in the range, combining Ultegra Di2 electronic shifting with the same carbon frame, carbon wheels and Mahle X20 system as the flagship model. It delivers much of the M10i’s ride quality and refinement at a more accessible level.
On the road, the M20i feels smooth, efficient and confidence-inspiring. The carbon wheels add snap under acceleration, while the electronic drivetrain keeps shifting effortless even when fatigued or climbing under assistance.
Who is it for?
Riders who want electronic shifting and a lightweight carbon wheelset, prioritising performance and ride quality over absolute top-end components.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
-
Front travel
0mm
-
Rear travel
0mm
-
Motor brand
Mahle
-
Max torque
50Nm
-
Peak power
275W
-
Battery capacity
350Wh
Specifications
-
2026 Orbea Gain M20i
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Handlebar
OC Road Performance RP11-R Carbon, Rise 15, Reach 70, Drop 125
Stem
OC Road Performance RP10, -8º
Headset
FSA 1-1/2" Integrated Aluminium Cup
Brakes
Shimano R8170 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano ST-8170
Rear derailleur
Shimano Ultegra Di2 R8150
Crankset
Shimano Ultegra R8100 34x50t
Cassette
Shimano Ultegra R8100 11-30t 12-Speed
Chain
Shimano M8100
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Vento Antares R3 Kium Rail 140mm
Front hub
OEM
Rear hub
Male
Rims
Carbon 42, Tubeless, 21c
Rear rim
Carbon 42, Tubeless, 21c
Front tyre
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Rear tyre
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Motor
Mahle motor hub X20, ALC
Battery
Mahle iX350 36V 353Wh
Mahle X20 Motor
One of the lightest, most compact e-bike drive system on the market. 50Nm of nearly silent, frictionless assistance gives more than enough power for even the toughest climbs.
OMR Carbon
OMR frames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios.
350Wh Downtube
You can pretty much forget about the battery capacity unless you plan on climbing more than 4000m.
Integrated Lighting
Gain is safer and more functional with head and tail lamps that announce your presence day and night. The built-in light sensor automatically switches Gain´s inbuilt lights on and off.
