Orbea Gain M30 2026
Orbea Gain M30 2026
Special Order
SKU:T38402GM
files/Orbea-Gain-M30-2026-BRINK-2.jpg
12:16 AM
Couldn't load pickup availability

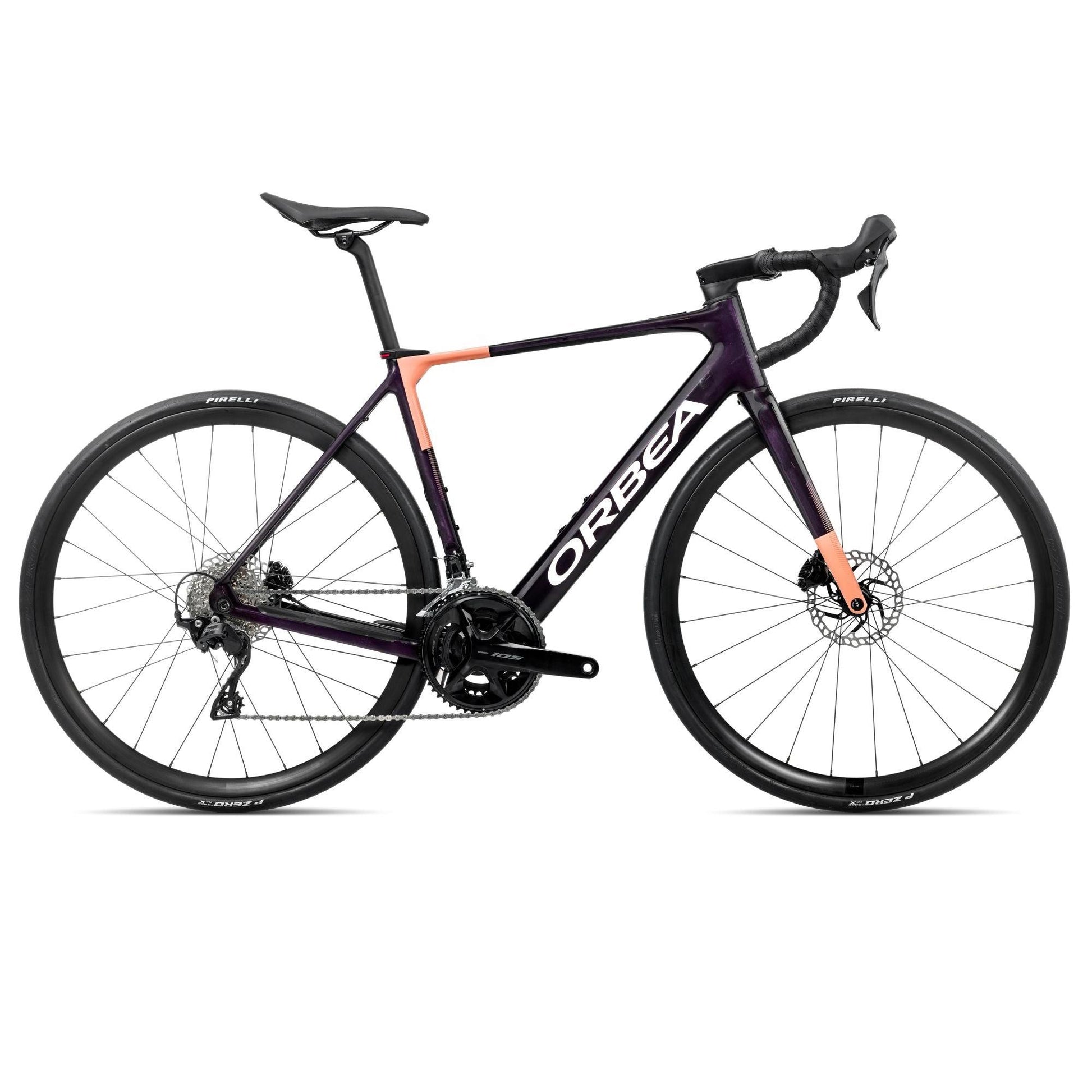

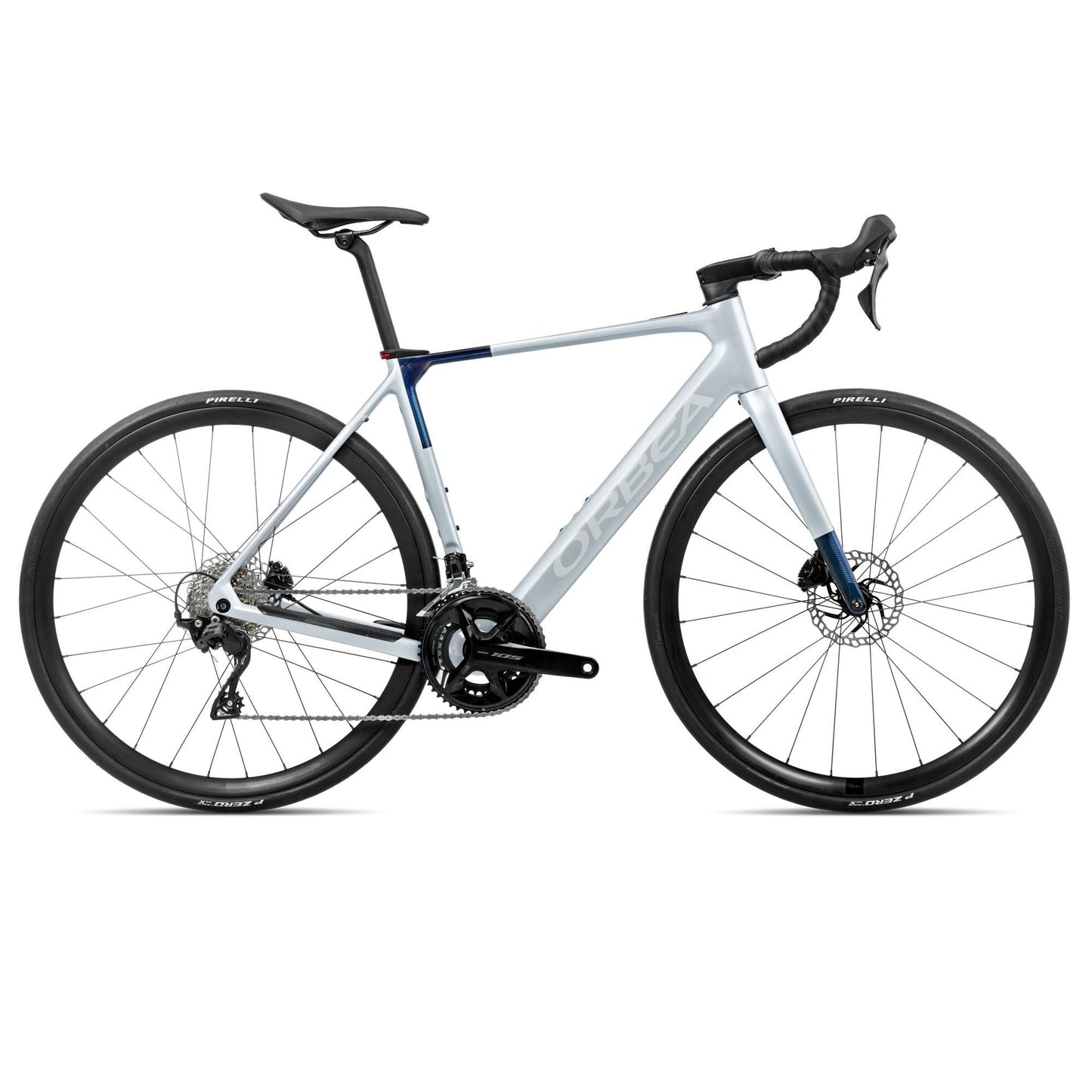

2026 Orbea Gain M30: Mechanical Simplicity with the Full Gain Ride Feel
The Gain M30 delivers the same lightweight carbon frame and Mahle X20 system in a straightforward, mechanical build. Shimano 105 provides crisp, reliable shifting without the complexity of electronics, while alloy tubeless wheels keep the bike practical and robust.
On the road, the M30 still feels unmistakably like a Gain. Smooth power delivery, balanced handling and a clean, uncluttered ride experience make it an excellent all-rounder for riders who value simplicity.
Who is it for?
Riders who prefer mechanical shifting and lower running complexity, but still want the refined ride quality and subtle assistance that define the Gain platform.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
-
Front travel
0mm
-
Rear travel
0mm
-
Motor brand
Mahle
-
Max torque
50Nm
-
Peak power
275W
-
Battery capacity
350Wh
Specifications
-
2026 Orbea Gain M30
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Handlebar
OC Road Performance RP21 Alu SL, Reach 80, Drop 125
Stem
OC Road Performance RP10, -8º
Headset
FSA 1-1/2" Integrated Aluminium Cup
Brakes
Shimano R7170 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano R7120
Rear derailleur
Shimano 105 R7100
Crankset
Shimano 105 R7100 34x50t
Cassette
Shimano 105 R7100 11-34t 12-Speed
Chain
Shimano M6100
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Aliante R5
Front hub
OEM
Rear hub
Male
Rims
Alloy, Tubeless, 700c, 21c
Rear rim
Alloy, Tubeless, 700c, 21c
Front tyre
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Rear tyre
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Motor
Mahle motor hub X20, ALC
Battery
Mahle iX350 36V 353Wh
Mahle X20 Motor
One of the lightest, most compact e-bike drive system on the market. 50Nm of nearly silent, frictionless assistance gives more than enough power for even the toughest climbs.
OMR Carbon
OMR frames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios.
350Wh Downtube
You can pretty much forget about the battery capacity unless you plan on climbing more than 4000m.
Integrated Lighting
Gain is safer and more functional with head and tail lamps that announce your presence day and night. The built-in light sensor automatically switches Gain´s inbuilt lights on and off.
