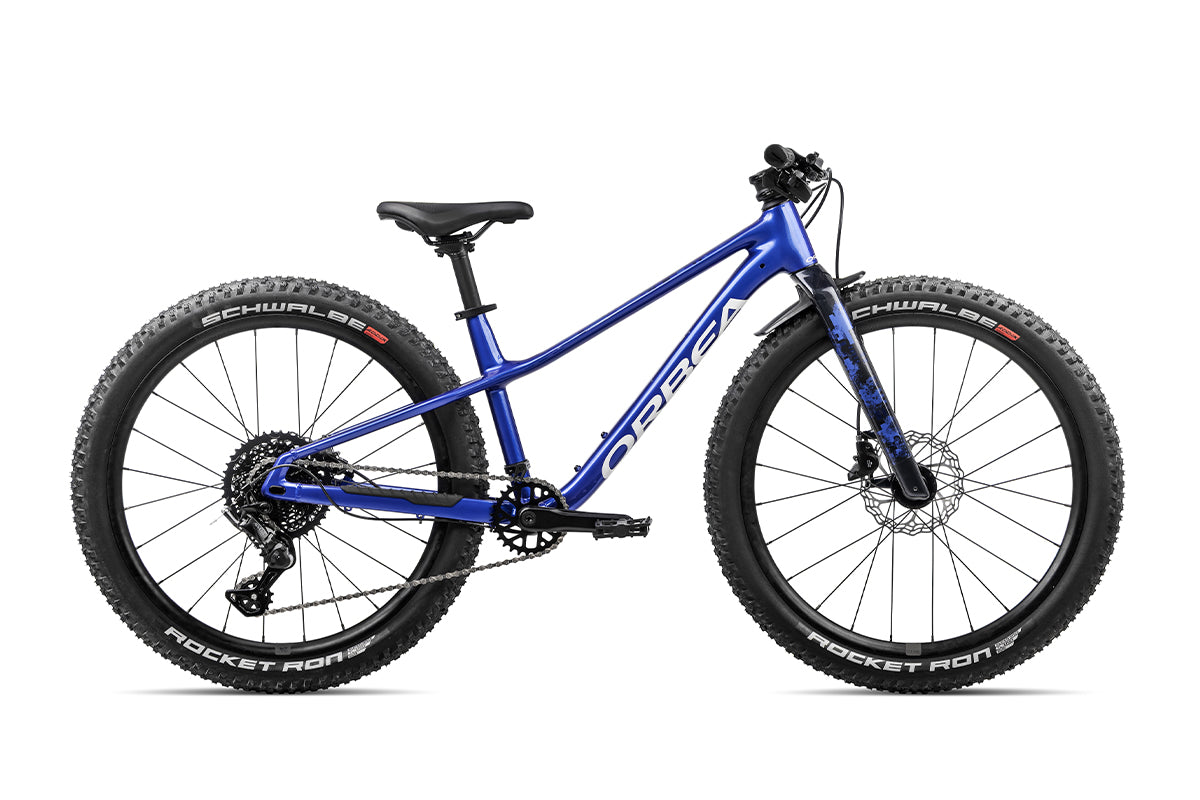

Orbea Kimu 24 H10 2027
Orbea Kimu 24 H10 2027
Low stock: 1 left
SKU: U00824J3
Barcode: 8434446118425
files/Orbea_Kimu_24_H10_Blue_1.jpg
06:23 AM
Couldn't load pickup availability
Orbea Kimu 24 H10 Kids Bike
The Orbea Kimu 24 H10 is a performance-focused rigid option in the 24 inch Development range, built for riders aged 7 to 10 who are ready for bigger adventures and faster progression. With a carbon fork, premium drivetrain and high performance tyres, it delivers confident handling, smooth shifting and excellent stability on mixed terrain. Every detail is tailored to growing riders, keeping weight low, control intuitive and durability high as skills rapidly improve.
Key Features
- Orbea Kimu 24 frame with lightweight Kimu carbon fork
- Alloy crankset, 28t, 140mm
- MTB alloy handlebar, 620mm width, with custom stem and +15mm spacer
- Microshift M6195 9 speed shifter
- Shimano MT410 hydraulic disc brakes
- KMC eGlide chain and Microshift 11-42t cassette
- Alloy 24c wheels, 24H
- Schwalbe Rocket Ron Performance 24x2.35 folding tyres
- SP 0.2 carbon seatpost, 27.2mm, zero setback
- SD 0.4 saddle
- VP 229 pedals with reflectors
- Orbea custom fork mudguard
The rigid carbon fork and carbon seatpost suit riders who value a direct feel and a bike with no suspension to set up. The 28-tooth chainring and 11-42 cassette offer a low climbing gear, while the stem can extend from 40mm to 55mm as reach changes.
Orbea suggests a rider height of 121-138cm. Check saddle height and control reach with the rider; the age range is a guide, not a substitute for fit.
Additional specifications
- Pedals
- VP-229 Black with reflectors
- Mudguard
- Orbea Custom, fork
Size and standard fit
| Size | Rider height guide | Crank | Stem | Handlebar width |
|---|---|---|---|---|
| 24 | 121-138cm | 140mm | 40mm | 620mm |
Orbea's height bands are a guide. Check saddle height, standover and control reach with the rider; age alone does not determine fit.
Geometry
Manufacturer geometry for this Kimu wheel size and build. Measurements are in mm except angles.
| Measurement | 24in wheels |
|---|---|
| Seat tube | 320 |
| Effective top tube | 498 |
| Head tube | 100 |
| Chainstay | 380 |
| Bottom bracket drop | 45 |
| Bottom bracket height | 267 |
| Wheelbase | 957 |
| Head angle | 67° |
| Seat angle | 74.5° |
| Standover | 568 |
| Reach | 370 |
| Stack | 461 |
| Maximum saddle-rail height above BB | 570 |
| Minimum saddle-rail height above BB | 390 |
Highlights
-
Frame material
Aluminium
-
Wheelsize
24in
-
Front travel
Rigid
Specifications
-
Orbea Kimu 24 H10 2027
Frame
Orbea Kimu 24
Fork
Orbea Kimu Carbon
Handlebar
Alloy MTB handlebar, 620mm width
Stem
Custom alloy MTB stem, 40mm, extendible to 55mm
Headset
1"-1/2 Semi-Integrated
Brakes
Shimano MT410 Hydraulic Disc
Shifter
Microshift M6195 9S
Rear derailleur
Microshift ADVENT M6195M-B
Crankset
Alloy, 28t, 140mm
Cassette
Microshift 11-42t 9-Speed
Chain
KMC eGlide
Seatpost
SP 0.2 Carbon, 27.2mm, Setback 0
Saddle
SD 0.4 234x138mm
Rims
Alloy, 24c, 24H; front
Rear rim
Alloy, 24c, 24H; rear
Front tyre
Schwalbe Rocket Ron Performance folding, 24x2.35
Rear tyre
Schwalbe Rocket Ron Performance folding, 24x2.35
Carbon where it makes a difference
The rigid carbon fork and carbon seatpost keep the H10 focused on low weight and direct handling. There is no suspension setup to manage, making this a straightforward bike for longer rides and developing skills.
A fit that can grow
The Kimu stem starts at 40mm and can extend to 55mm with its spacer. That gives you a useful adjustment as reach changes, without fitting a different stem.
A useful gear for the climb
The 28-tooth chainring and 11-42 cassette give the 24 H10 a low climbing gear without a front derailleur. Nine rear gears keep the shift pattern simple when attention needs to stay on the trail.
