Orbea Kimu 24 H10 TR 2027
Orbea Kimu 24 H10 TR 2027
Low stock: 1 left
SKU: U00924J3
Barcode: 8434446118487

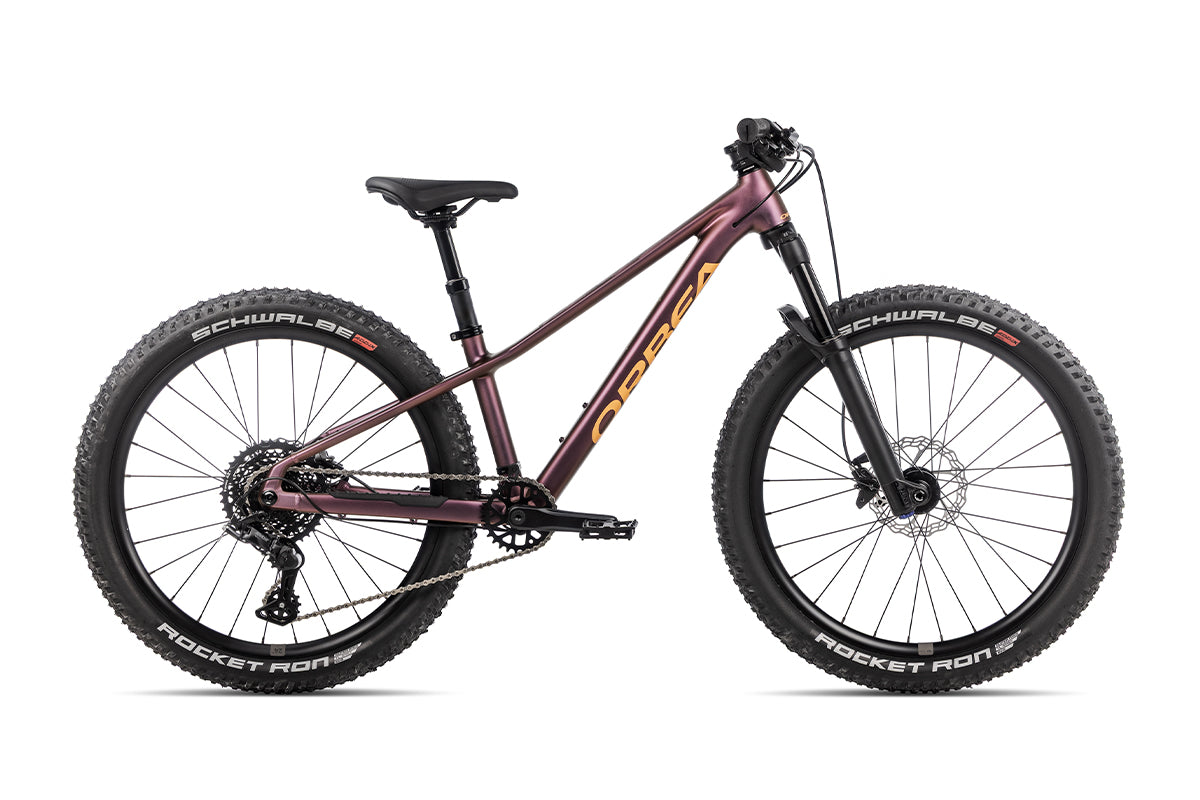

files/Orbea_Kimu_24_H10_TR_Sunset_1.jpg
03:38 PM
Couldn't load pickup availability

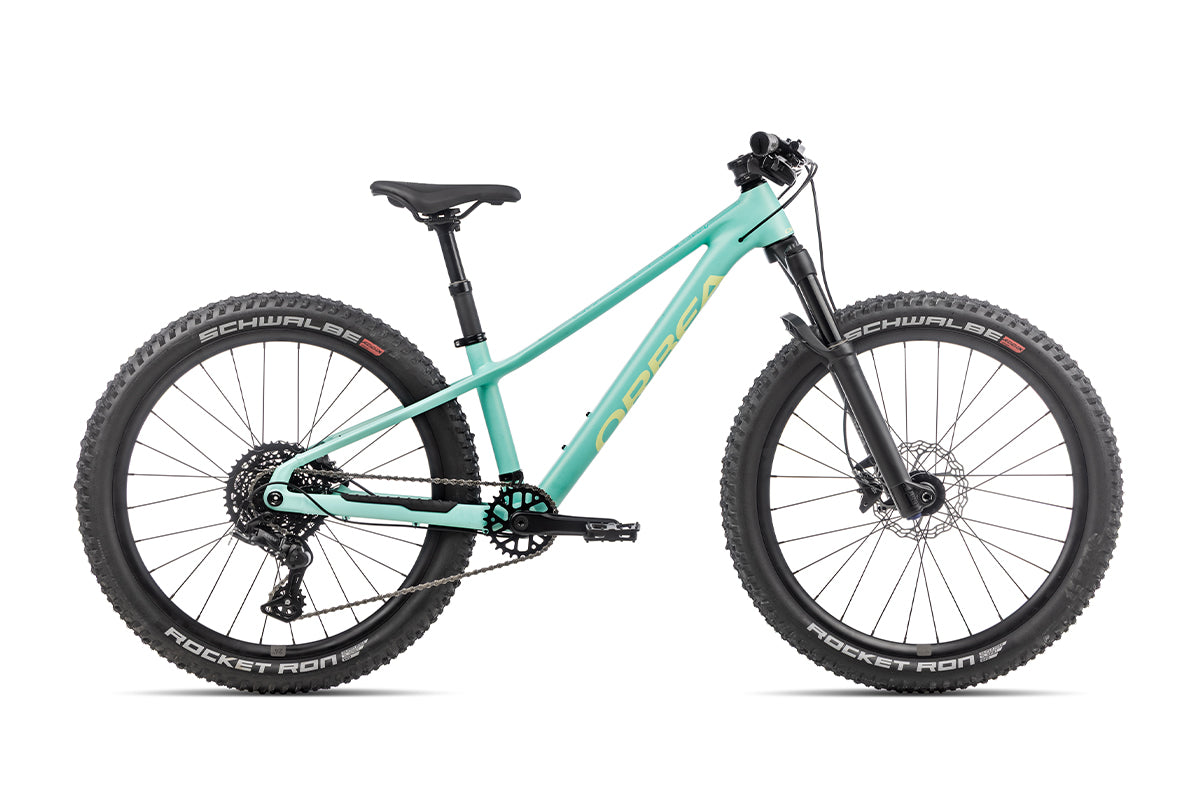

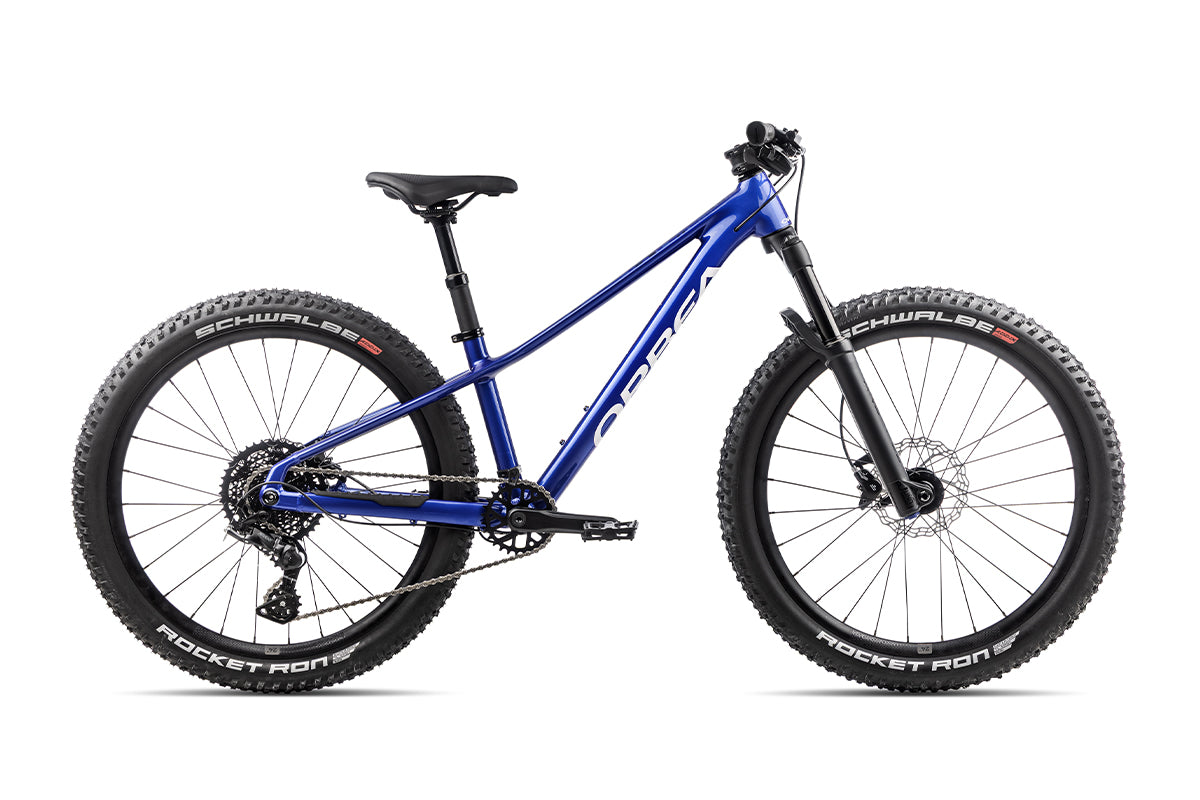

Orbea Kimu 24 H10 TR
The Orbea Kimu 24 H10 TR has been designed to blur the line between a kids' bike and a trail-ready mountain bike. The Kimu range encourages progression, helping riders develop skills, explore further and ride with more control on varied terrain. The aluminium frame and balanced geometry keep the bike manageable for smaller riders.
The TR build brings a 100mm Manitou Machete Junit Sport air fork and a low-load OC MC22 dropper. The fork can be set up around a young rider, while the dropper is easier for a lighter rider to compress, giving them space to move on descents.
A nine-speed Microshift drivetrain combines a 28-tooth chainring with an 11-42 cassette. Shimano MT410 hydraulic brakes and Schwalbe Rocket Ron Evo 24x2.35 Super Race tyres complete the trail-focused build. The 140mm cranks, 620mm bar and extendible 40mm stem are proportioned for the rider.
Orbea suggests 121-138cm rider height. Check the fit on the actual bike, especially saddle height and comfortable reach to the brakes.
Additional specifications
- Pedals
- VP-229 Black with reflectors
- Dropper remote
- Shimano SL-MT500
Size and standard fit
| Size | Rider height guide | Crank | Stem | Handlebar width |
|---|---|---|---|---|
| 24 | 121-138cm | 140mm | 40mm | 620mm |
Orbea's height bands are a guide. Check saddle height, standover and control reach with the rider; age alone does not determine fit.
Geometry
Manufacturer geometry for this Kimu wheel size and build. Measurements are in mm except angles.
| Measurement | 24in TR wheels |
|---|---|
| Seat tube | 295 |
| Effective top tube | 499 |
| Head tube | 90 |
| Chainstay | 380 |
| Bottom bracket drop | 35 |
| Bottom bracket height | 278 |
| Wheelbase | 990 |
| Head angle | 67° |
| Seat angle | 75° |
| Standover | 624 |
| Reach | 360 |
| Stack | 520 |
| Fork length | 455 |
Highlights
-
Frame material
Aluminium
-
Wheelsize
24in
-
Front travel
100mm
Specifications
-
Orbea Kimu 24 H10 TR 2027
Frame
Orbea Kimu 24 TR
Fork
Manitou Machete Junit Sport 100mm QR15x110 Boost
Handlebar
Alloy MTB handlebar, 620mm width
Stem
Custom alloy MTB stem, 40mm, extendible to 55mm
Headset
FSA 1-1/8 - 1-1/2" Integrated
Brakes
Shimano MT410 Hydraulic Disc
Shifter
Microshift M6195 9S
Rear derailleur
Microshift ADVENT M6195M-B
Crankset
Alloy, 28t, 140mm
Cassette
Microshift 11-42t 9-Speed
Chain
KMC eGlide
Seatpost
OC Mountain Control MC22, 31.6mm, low-load dropper
Saddle
SD 0.4 234x138mm
Rims
Alloy, 24c, 28H; front
Rear rim
Alloy, 24c, 28H; rear
Front tyre
Schwalbe Rocket Ron Evo, 24x2.35 Super Race TLE
Rear tyre
Schwalbe Rocket Ron Evo, 24x2.35 Super Race TLE
Suspension sized for the trail
The Manitou Machete Junit Sport gives the TR 100mm of air-sprung travel. It can be set up around a young rider, helping the front wheel follow rough ground as their riding moves onto proper singletrack.
A dropper they can use
The OC MC22 uses lower operating pressure so a lighter rider can push the saddle down. Moving it out of the way gives more space to move around the bike on descents.
A useful gear for the climb
The 28-tooth chainring and 11-42 cassette give the 24 H10 a low climbing gear without a front derailleur. Nine rear gears keep the shift pattern simple when attention needs to stay on the trail.
A fit that can grow
The Kimu stem starts at 40mm and can extend to 55mm with its spacer. That gives you a useful adjustment as reach changes, without fitting a different stem.
