Orbea

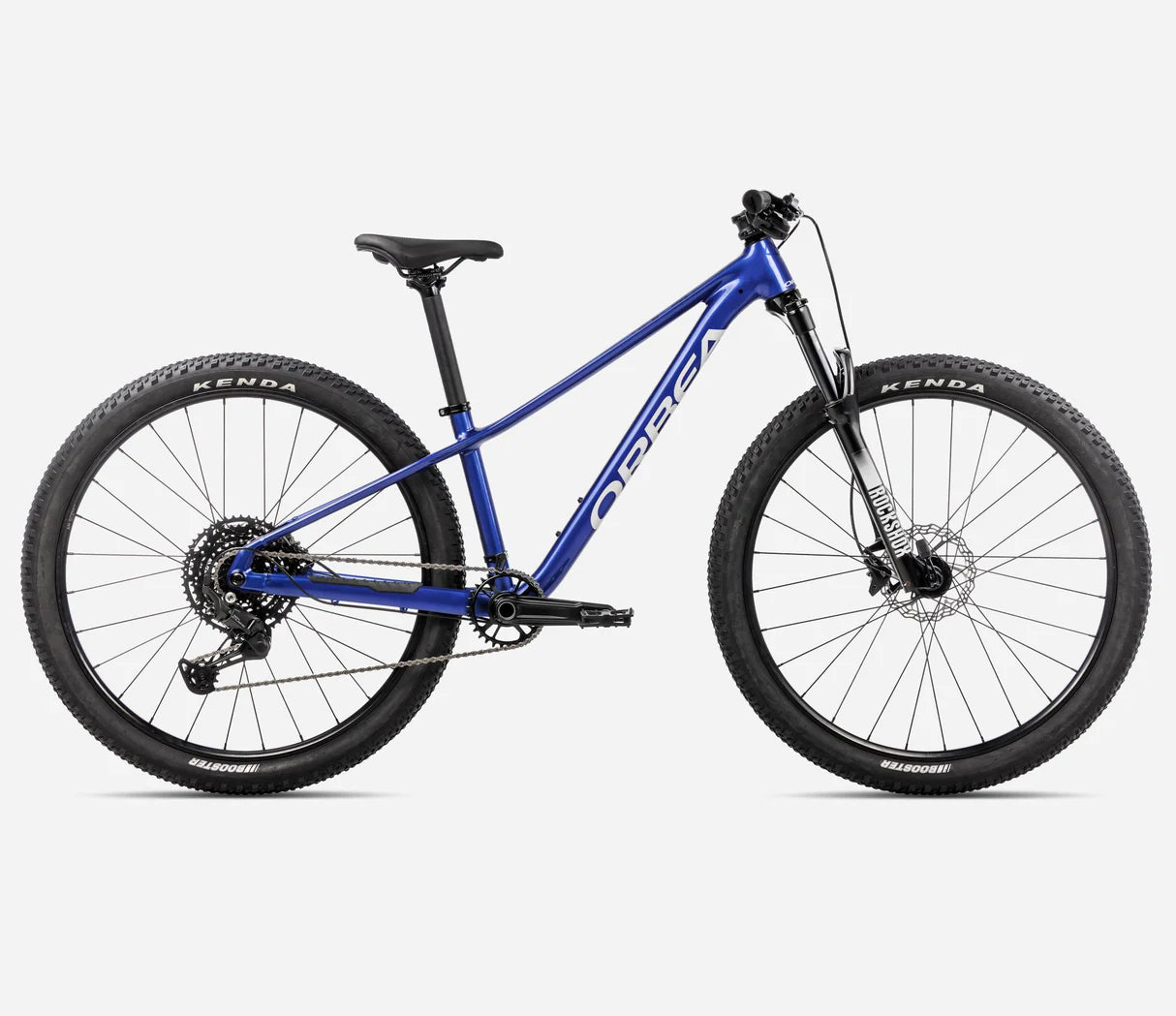

Orbea Kimu 27 H20 2027

Orbea Kimu 27 H20 2027

Regular price $1,003.00
Regular price Sale price $1,003.00
Sale Sold out
Size
Colour

Out of stock

SKU: U01127J3

Barcode: 8434446118449

Loading locations...

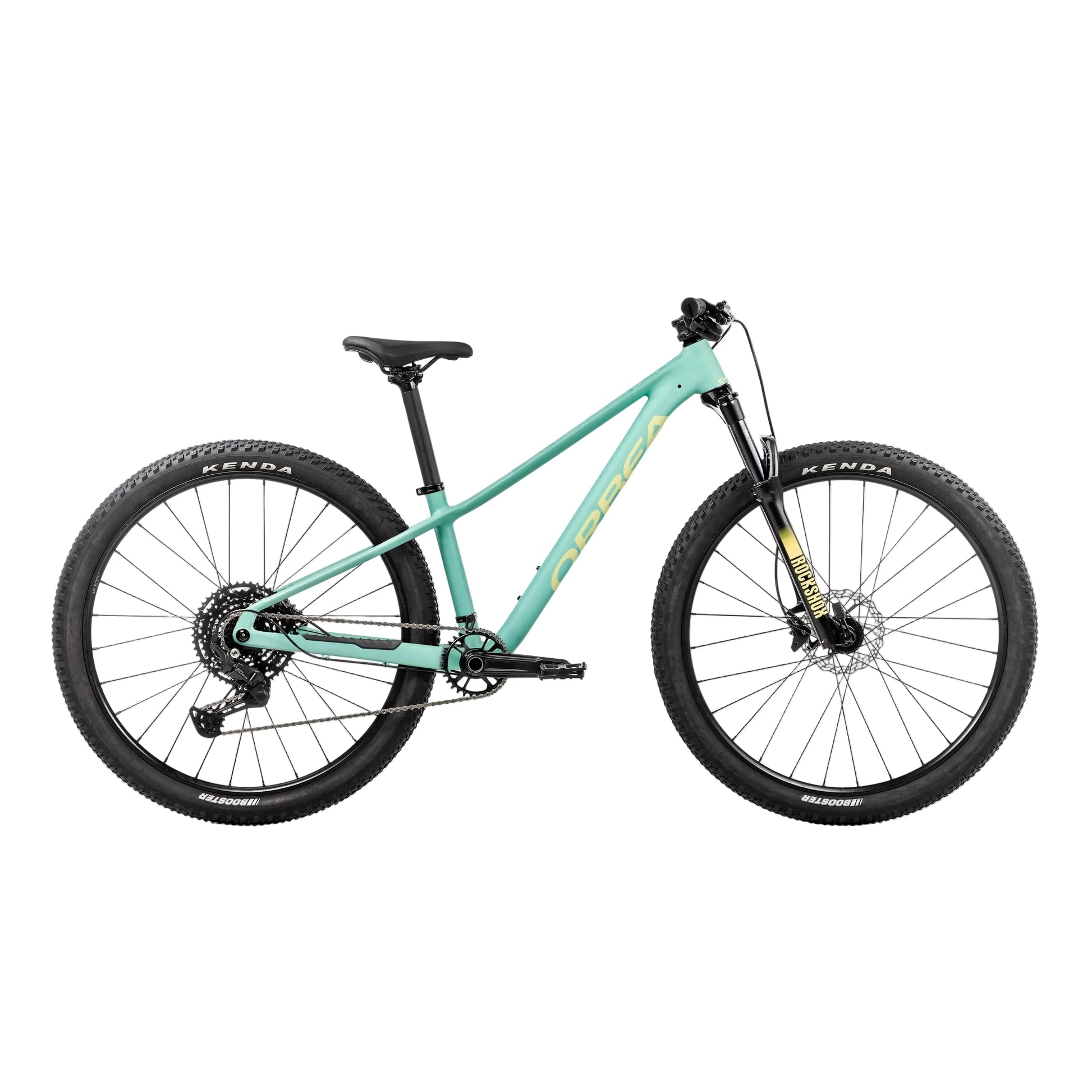

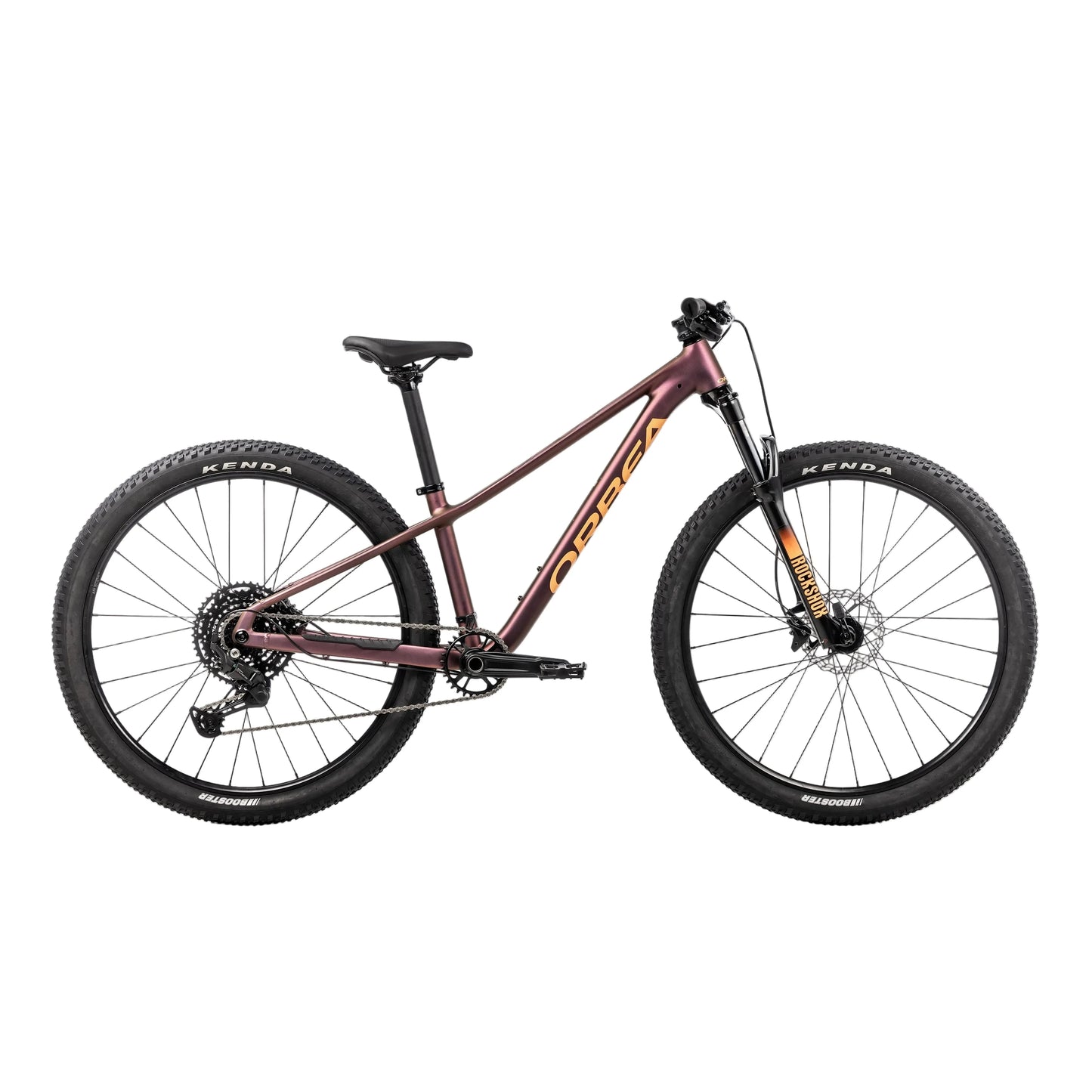

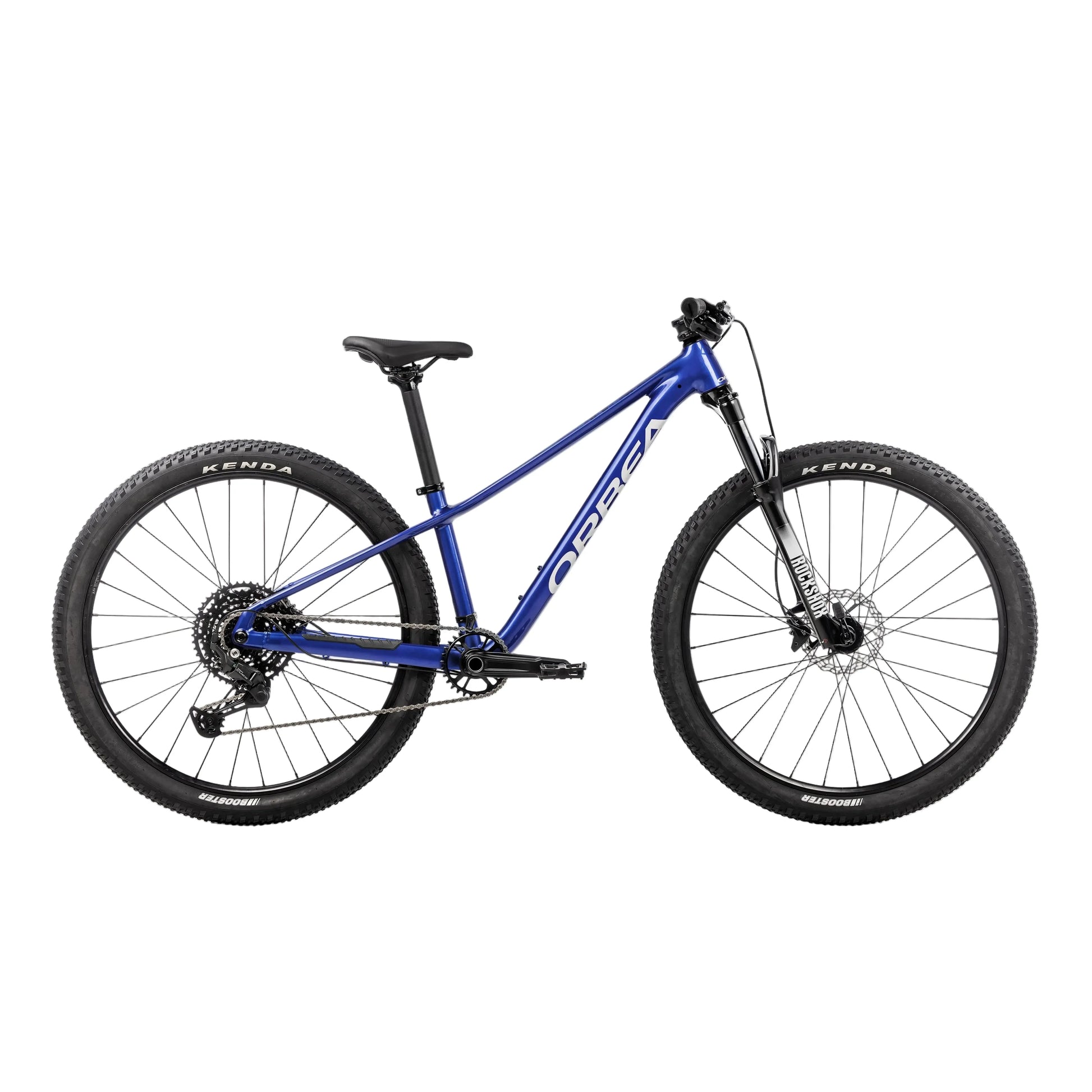

The Kimu 27 from Orbea is a 27.5in-wheel trail bike designed to grow with your child. Available in three colours, featuring two sets of frame protection graphics so they can customise it to their liking!

This bike features an air suspension fork that can be adjusted to their weight and Shimano MT410 hydraulic disc brakes for controlled braking on everyday rides and trails.

Orbea suggests ages 9-12 and rider heights of 135-149cm. Check the fit with the rider.

The H20 uses a 110mm RockShox Judy Silver TK air fork, a fixed alloy seatpost and Shimano CUES ten-speed gearing. A 30-tooth chainring and 11-48 cassette give a useful climbing range, while the short-reach shifter helps smaller hands operate the controls.

The 155mm cranks, 680mm bar and stem that extends from 40mm to 55mm are important details for a growing rider. This is a bike to fit now and adjust within its range, rather than buying an oversized adult frame.

Additional specifications

Pedals
VP-229 Black with reflectors

Size and standard fit

Size Rider height guide Crank Stem Handlebar width
27 135-149cm 155mm 40mm 680mm

Orbea's height bands are a guide. Check saddle height, standover and control reach with the rider; age alone does not determine fit.

Geometry

Manufacturer geometry for this Kimu wheel size and build. Measurements are in mm except angles.

Measurement 27.5in wheels
Seat tube 330
Effective top tube 543
Head tube 90
Chainstay 420
Bottom bracket drop 45
Bottom bracket height 303
Wheelbase 1088
Seat angle 75.5°
Standover 683
Reach 390
Stack 582
Fork length 514
View full details
  • Frame material

    Aluminium

  • Wheelsize

    27.5in

  • Front travel

    110mm

  • Orbea Kimu 27 H20 2027

    Frame

    Orbea Kimu 27,5

    Fork

    RockShox Judy Silver TK 110 15x110 Boost

    Handlebar

    Alloy MTB handlebar, 680mm width

    Stem

    Custom alloy MTB stem, 40mm, extendible to 55mm

    Headset

    FSA 1-1/8 - 1-1/2" Integrated

    Brakes

    Shimano MT410 Hydraulic Disc

    Shifter

    Shimano Cues SL-U6050 S-Reach

    Rear derailleur

    Shimano Cues U6000 GS Shadow

    Crankset

    Alloy, 30t, 155mm

    Cassette

    Shimano CS-LG300 11-48t 10-Speed

    Chain

    KMC eGlide

    Seatpost

    Alloy, 31.6mm, Setback 0

    Saddle

    SD 0.4 234x138mm

    Rims

    WH 2.1, Alloy, 27.5", 28H; front

    Rear rim

    WH 2.1, Alloy, 27.5", 28H; rear

    Front tyre

    Kenda Booster 2.40" 30TPI

    Rear tyre

    Kenda Booster 2.40" 30TPI

Orbea Kimu 27 H20 2027 - Suspension set for the rider

Suspension set for the rider

The RockShox Judy Silver TK air fork provides 110mm of travel. Adjusting the air pressure lets you set its support for the rider, helping the front wheel follow roots and rough ground without relying on a one-size spring setting.

Orbea Kimu 27 H20 2027 - A useful range for longer rides

A useful range for longer rides

Shimano CUES ten-speed gearing pairs a 30-tooth chainring with an 11-48 cassette. There is one shifter to manage and a low gear for climbs, with a fixed seatpost keeping the H20 build straightforward.
