Orbea
Orbea Oiz H30 2026
Orbea Oiz H30 2026
Special Order
SKU:T22103KX
files/Orbea-Oiz-H30-2026-BRINK.jpg
09:42 PM
Couldn't load pickup availability
2026 Orbea Oiz H30 – Fast XC Platform, Friendly Price
The Oiz H30 is your ticket into Orbea’s modern 120 mm XC race platform without jumping straight into carbon money. With the same race-ready layout, remote lockout and efficient suspension philosophy as the top bikes, it gives you a seriously capable XC/trail machine that’s ready for marathons, big days and first race numbers.
Hydroformed Alloy Frame, Race Geometry
The hydroformed Oiz aluminium frame uses Orbea’s high-polish finish, alloy link and the same UFO rear triangle layout as the carbon models. You get Boost spacing, internal routing, I-Line shock cable integration and a low, aggressive front end designed for climbing traction and precise handling on technical race courses.
120 mm Suspension with Remote Lockout
A RockShox Reba 120 mm fork and Fox Float SL Performance shock give the H30 a controlled, supportive feel on rough climbs and descents. Both are tied into a remote lockout, so you can firm things up for sprints and fireroads, then open the suspension the moment the singletrack turns rough again.
Shimano Deore 12-Speed Drivetrain
Shimano Deore 12-speed shifting keeps things simple and reliable, with a wide-range 11–51T cassette and 32T chainring for steep UK climbs and long race days. A forged alloy crank keeps cost sensible without sacrificing durability.
Alloy Wheels and Rekon Rubber
26 mm tubeless-ready rims are laced to dependable OEM hubs and wrapped in Maxxis Rekon 2.4" tyres for predictable grip and comfort. It’s a solid, no-nonsense wheel package that suits training, marathons and everyday XC riding.
Who Is the Oiz H30 For?
Riders who want a genuinely fast, modern XC/short-travel trail bike on a sensible budget. The H30 delivers the Oiz ride feel – efficient, sharp and surprisingly capable – in a package that’s ready to race, commute or cover long miles straight out of the box.
Highlights
-
Frame material
Aluminium
-
Wheelsize
29"
-
Front travel
120mm
-
Rear travel
120mm
Specifications
-
2026 Orbea Oiz H30
Frame
Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shoc
Fork
RockShox Reba Motion Control 120 DebonAir+ RL 3-Position 15X110 Boost
Shock
Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm
Handlebar
Alloy, 35mm, Rise 12mm, 780mm
Stem
Alloy 3D forged, 35mm interface, -7º
Headset
Alloy 1-1/2”, Black Oxidated Bearing
Brakes
Shimano MT201 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano Deore M6100
Rear derailleur
Shimano Deore M6100 SGS Shadow Plus
Crankset
Forged alloy, 32t
Cassette
Sun Race 11-51t 12-Speed
Chain
KMC X12
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fortune QF-3091
Front hub
OEM
Rear hub
OEM
Spokes
OEM
Rims
Alloy, 26c, 28H, TLR
Rear rim
Alloy, 26c, 28H, TLR
Front tyre
Maxxis Rekon 2.4” 60 TPI Rigid EXO/TR
Rear tyre
Maxxis Rekon 2.4” 60 TPI Rigid EXO/TR

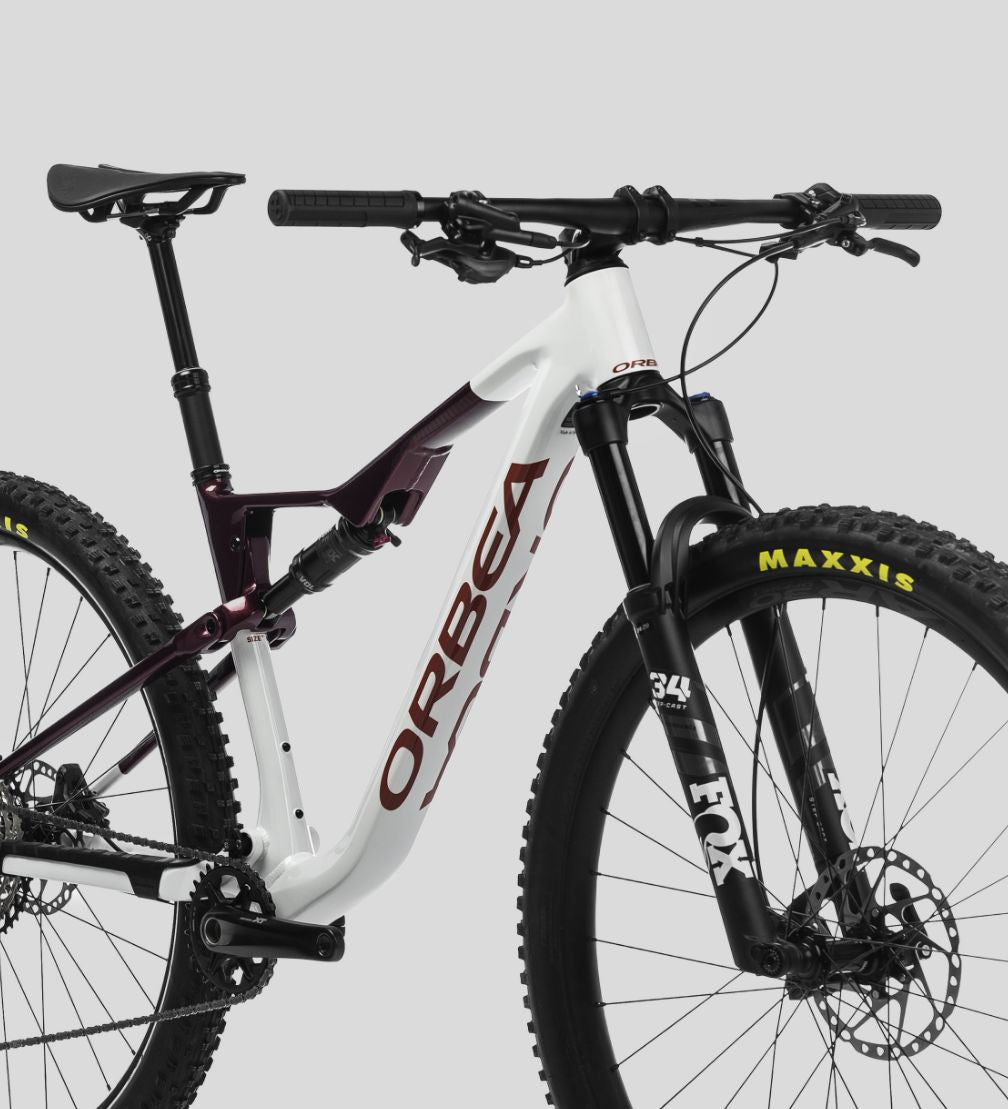

Race Ready Geometry
A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.

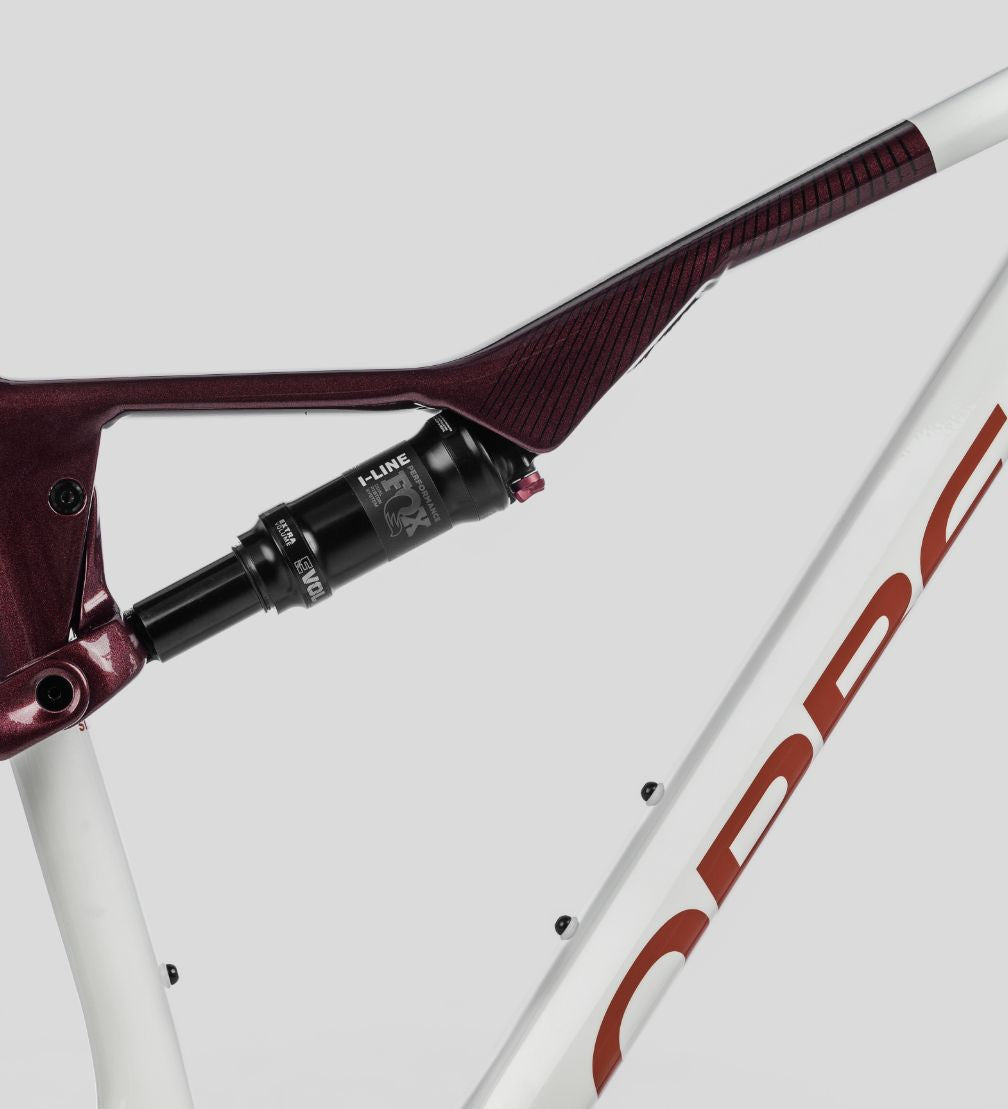

Efficient Suspension
Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.

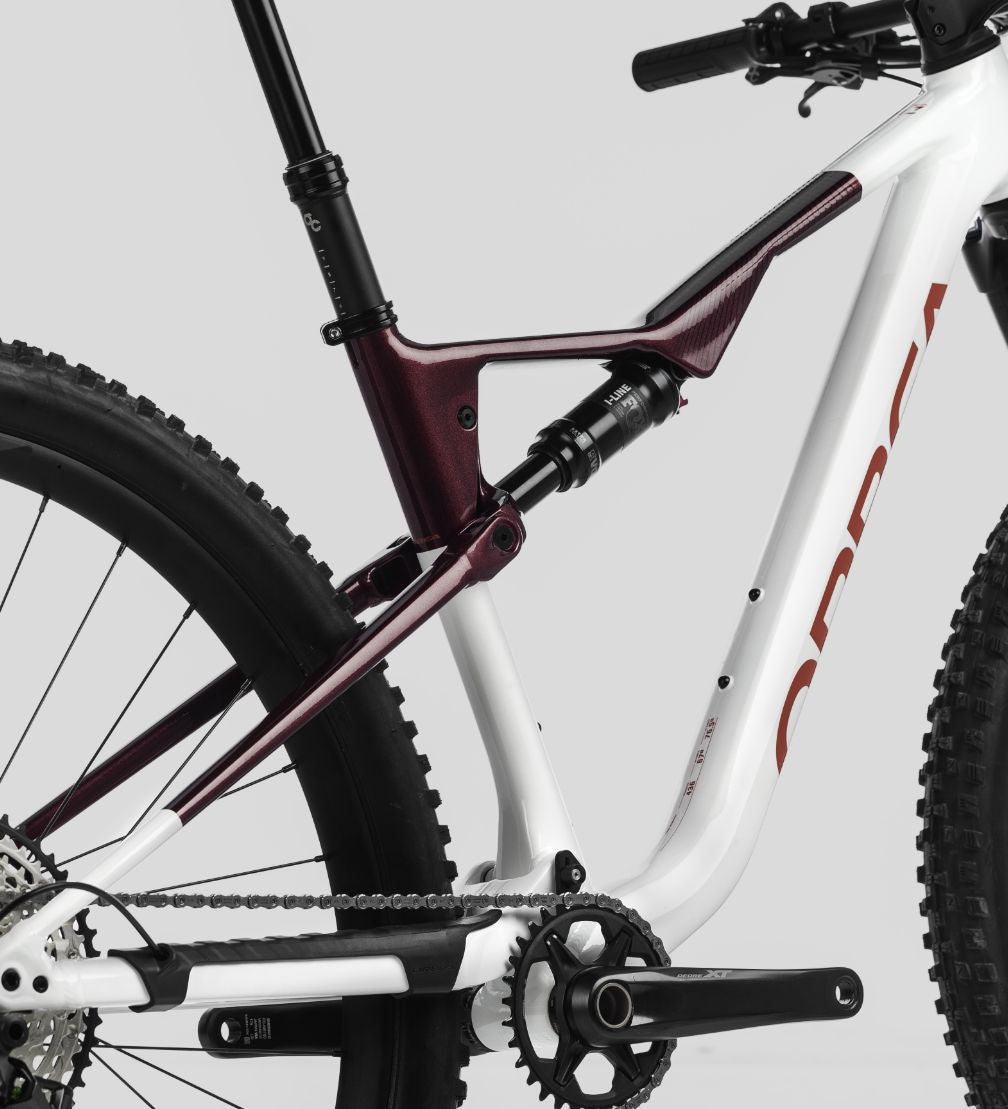

Tuned Rigidity
For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.

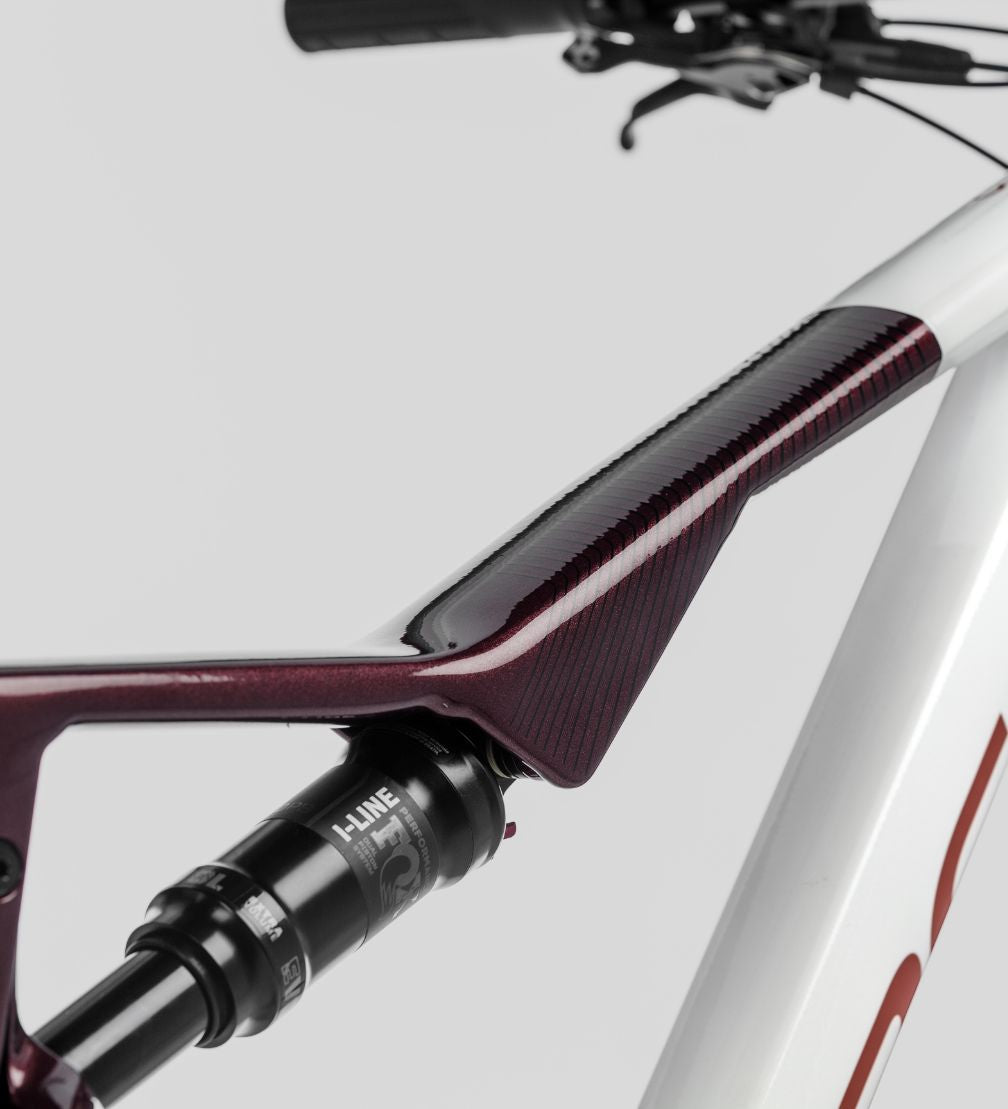

Direct Shock Lockout Routing
Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.

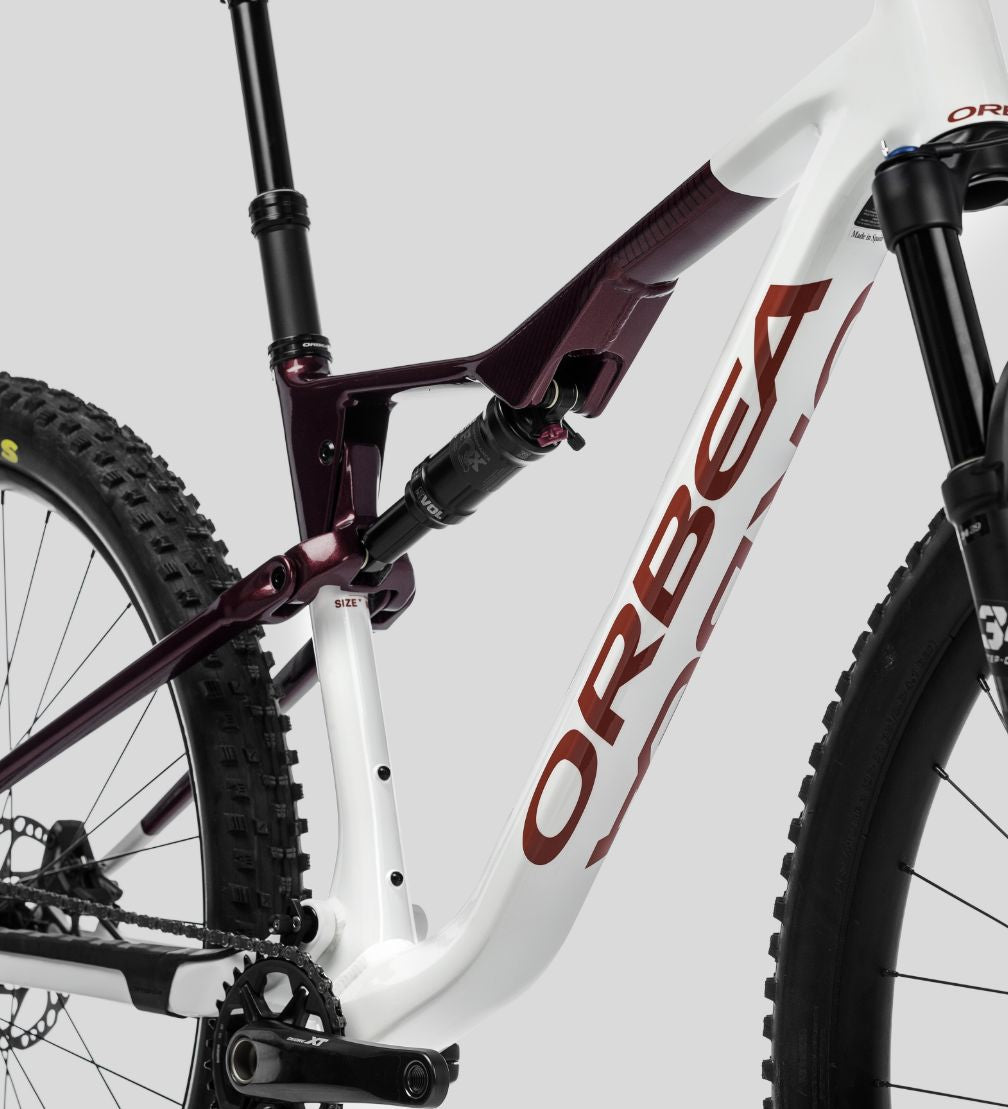

High Polish Alloy
Our high polished alloy is simply the best aluminium frame you can buy, with the bonus of that carbon-look.
