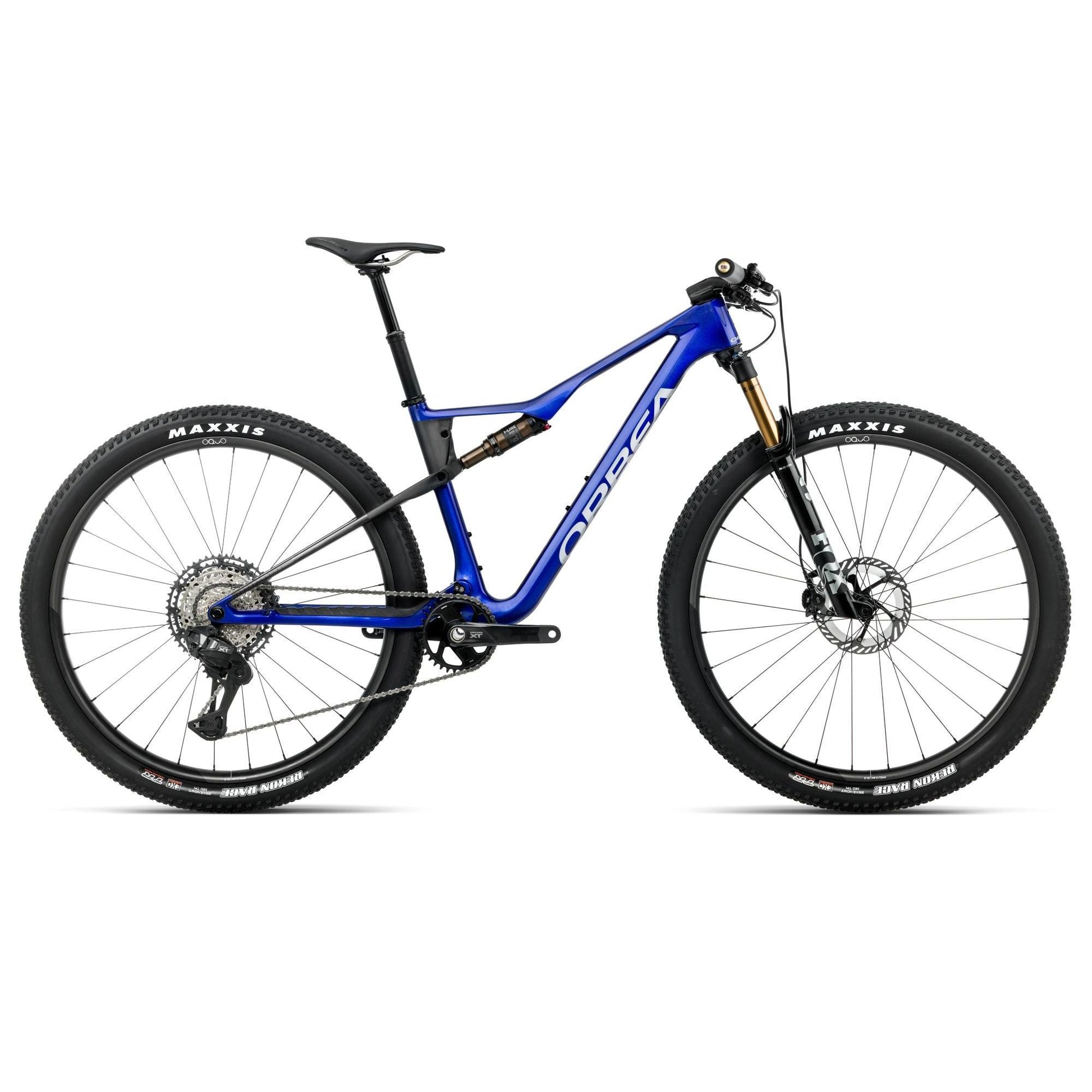

2026 Orbea Oiz M-PRO – OMX Frame with XT and Integrated Cockpit
The Oiz M-PRO is the entry into Orbea’s top-tier OMX frame series, combining the lightest chassis with Shimano XT and an integrated carbon cockpit. It’s a serious race bike aimed at riders chasing every possible advantage.

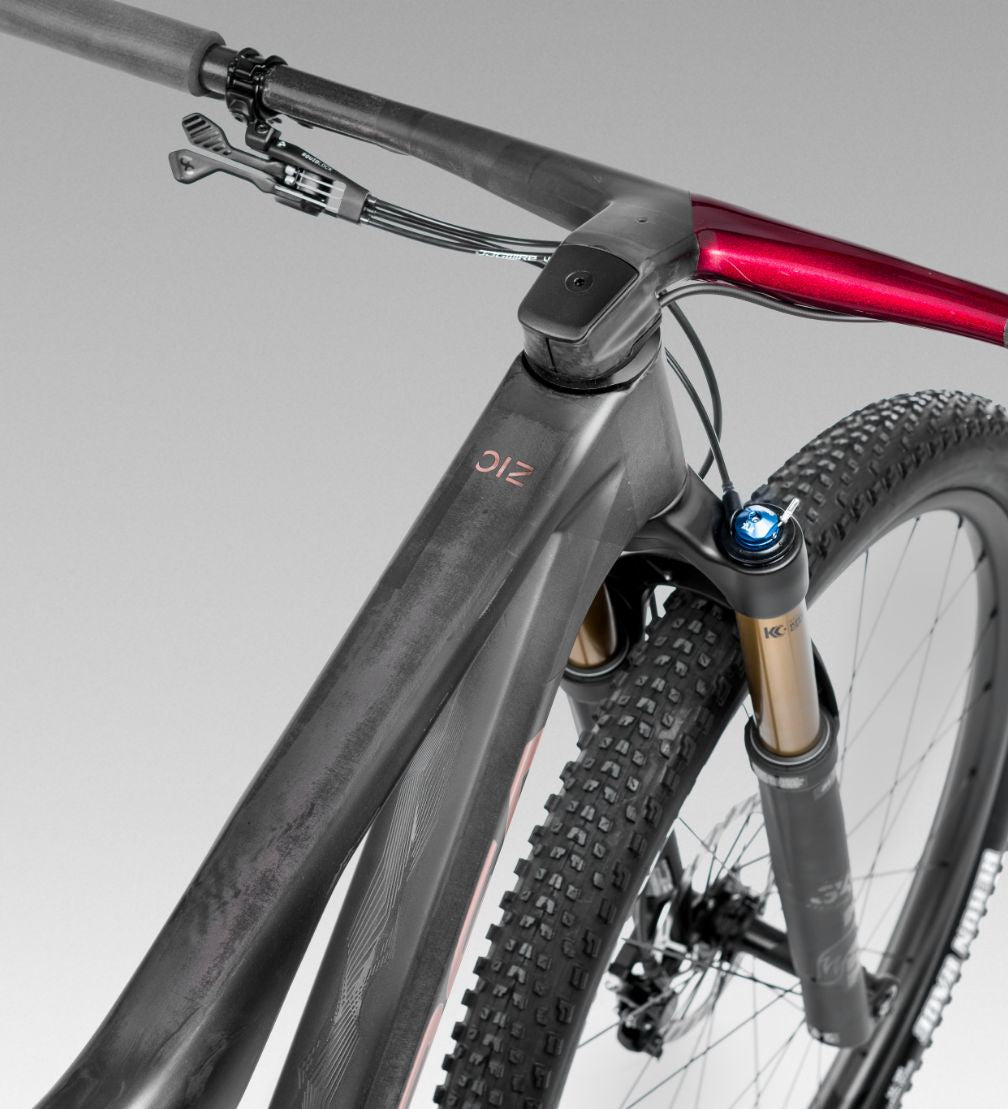

Ultra-Light OMX Carbon Chassis
OMX is Orbea’s lightest, stiffest Oiz frame, designed for World Cup-level racing. You get the same 120 mm travel layout, UFO stays and I-Line shock routing, but with reduced frame weight and razor-sharp responsiveness under power.
Integrated MP10 Carbon Cockpit
The one-piece OC MP10 carbon bar-stem keeps weight low and front-end stiffness high, while tidying cables for a clean race setup. It’s paired with the DP-MP10 dropper for a fully integrated feel from bar to post.
XT Drivetrain and Oquo Wheels
Shimano XT 12-speed drivetrain and brakes deliver proven race performance, while Oquo MP30TEAM wheels on Rekon Race rubber keep the M-PRO light and fast. It’s a package built to go straight to the start line.
Who Is the Oiz M-PRO For?
Riders who want the OMX frame and integrated cockpit but prefer a full Shimano build at a sensible upper-tier price. Ideal for serious racers and marathon riders who value reliability as much as raw speed.
Highlights
-
Frame material
Carbon
-
Wheelsize
29"
-
Front travel
120mm
-
Rear travel
120mm
Specifications
-
2026 Orbea Oiz M-PRO
Frame
Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork
Fox 34 Float SL Factory 120, Grip SL, Remote-Adj Push to Lock, QR15x110, Kashima
Shock
Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
Handlebar
OC Mountain Performance MP10 Carbon, Cockpit, Width 760
Stem
OC Mountain Performance MP10 Carbon, Cockpit, Width 760
Headset
Alloy 1-1/2”, Black Oxidated Bearing
Brakes
Shimano XT Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano XT M8250
Rear derailleur
Shimano XT M8250 SGS
Crankset
Shimano XT M8200 34t
Bottom bracket
Shimano
Cassette
Shimano CS-M8200 10-51t 12-Speed
Chain
Shimano M8100
Seatpost
OC Mountain Performance DP-MP10, 31.6mm, Dropper
Saddle
Selle Italia SLR Boost Elite Fill, Rail Ø7 mm
Front hub
Oquo Mountain Performance MP30TEAM
Rear hub
Oquo Mountain Performance MP30TEAM
Spokes
Oquo
Rims
Oquo Mountain Performance MP30TEAM
Rear rim
Oquo Mountain Performance MP30TEAM
Front tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR
Rear tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR

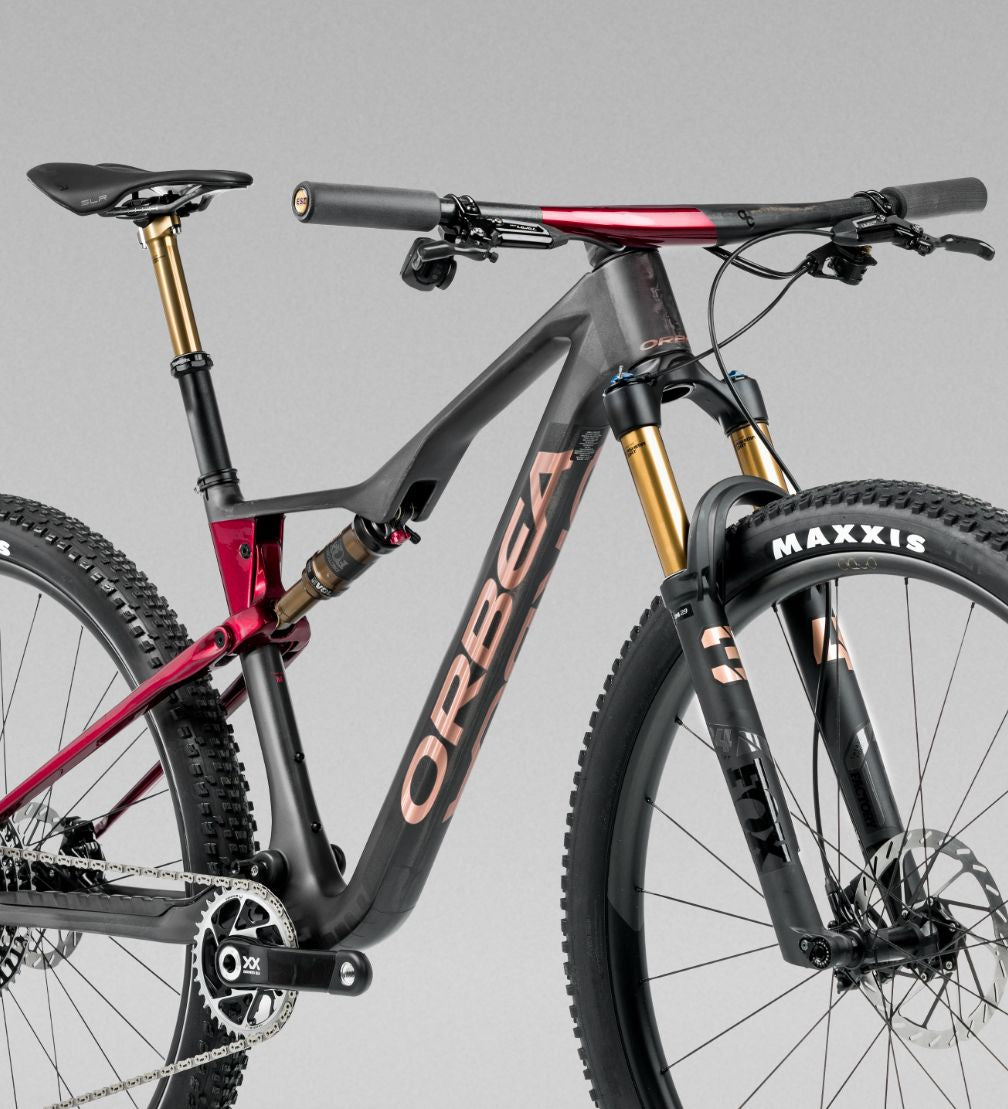

Race Ready Geometry
A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.

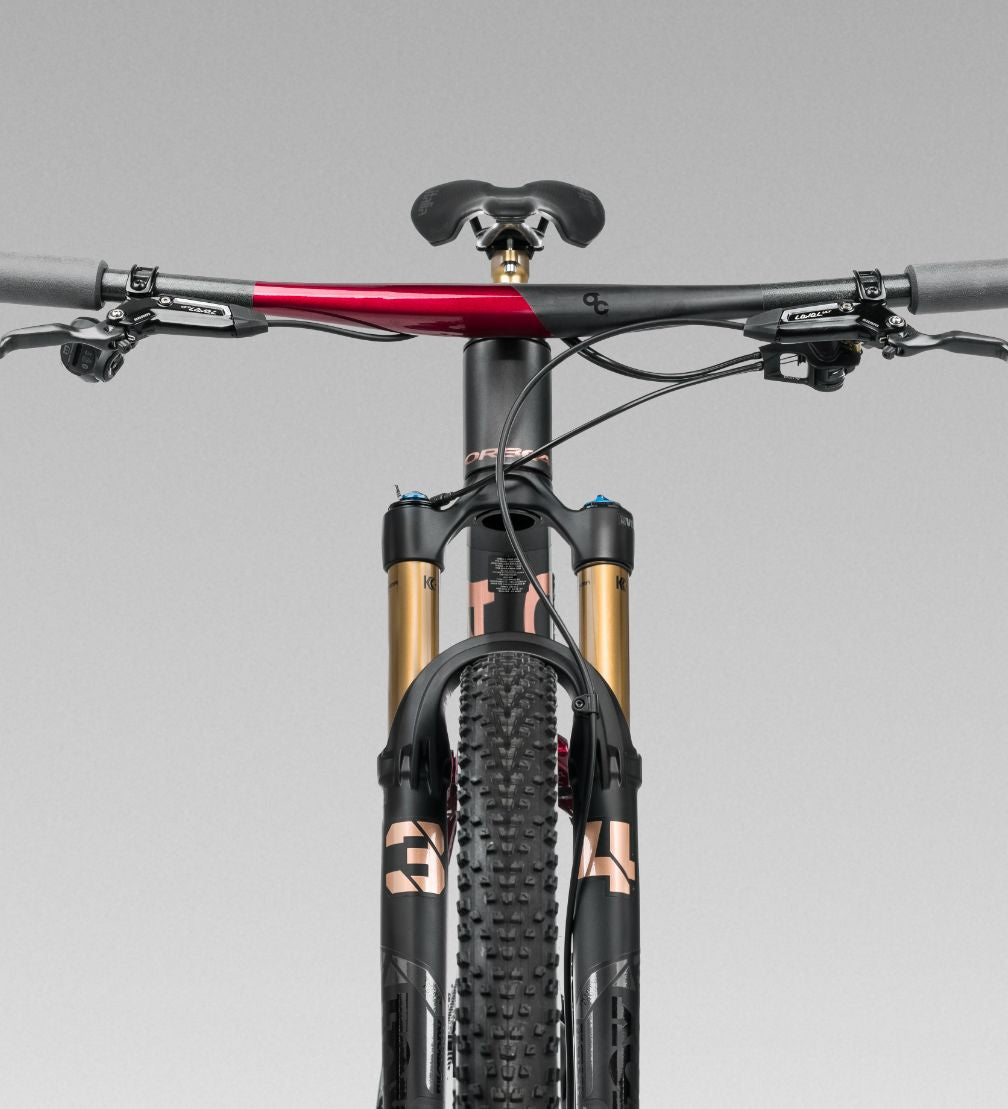

Efficient Suspension
Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.
Tuned Rigidity
For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.

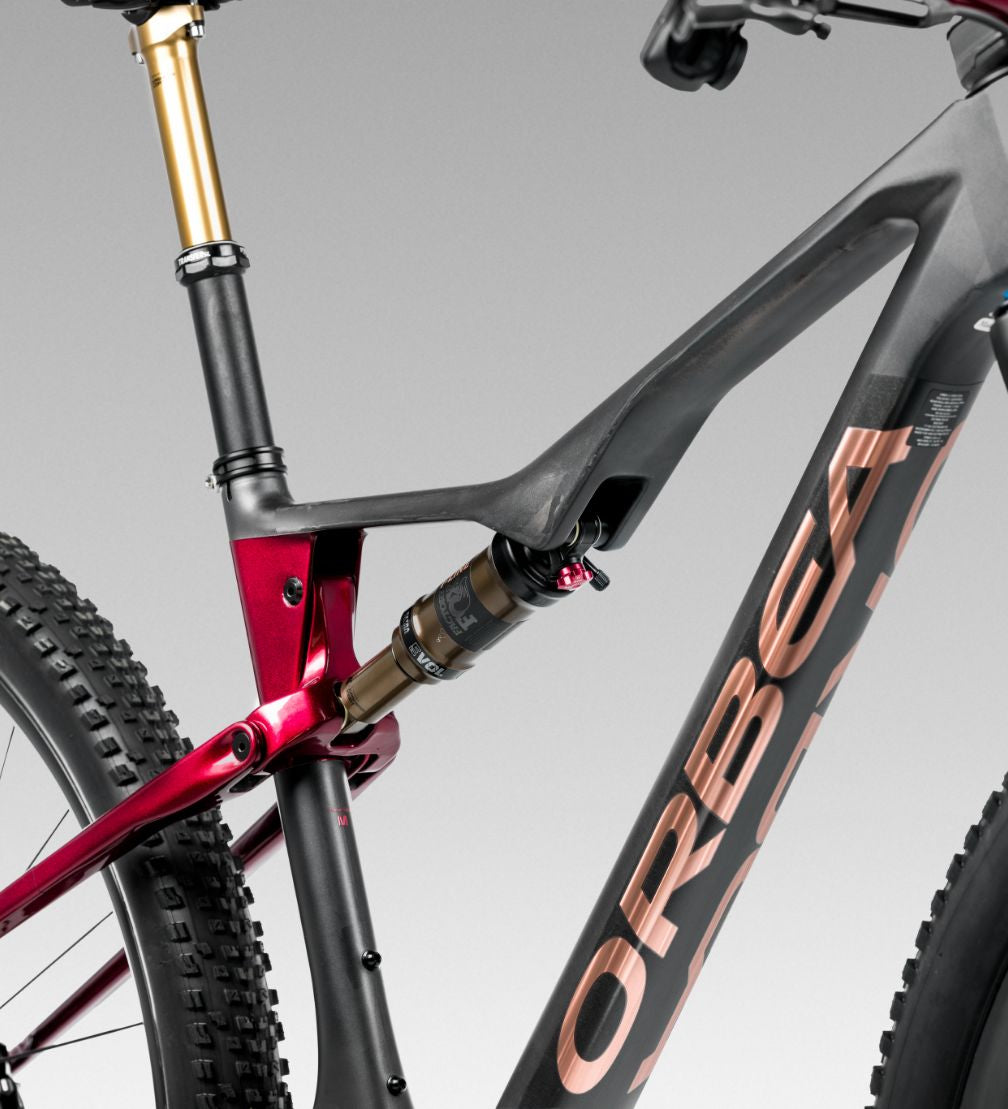

Direct Shock Lockout Routing
Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.
OMR Carbon
Our second level carbon which offers all the rigidity and strength of OMX for those who don’t need the ultimate in light weight.
OC Squidlock Remote
In terms of efficiency, less is more. We found a way to streamline the already sleek and discreet Squidlock by reducing it to just two levers: one for suspension and one for the seatpost dropper.
