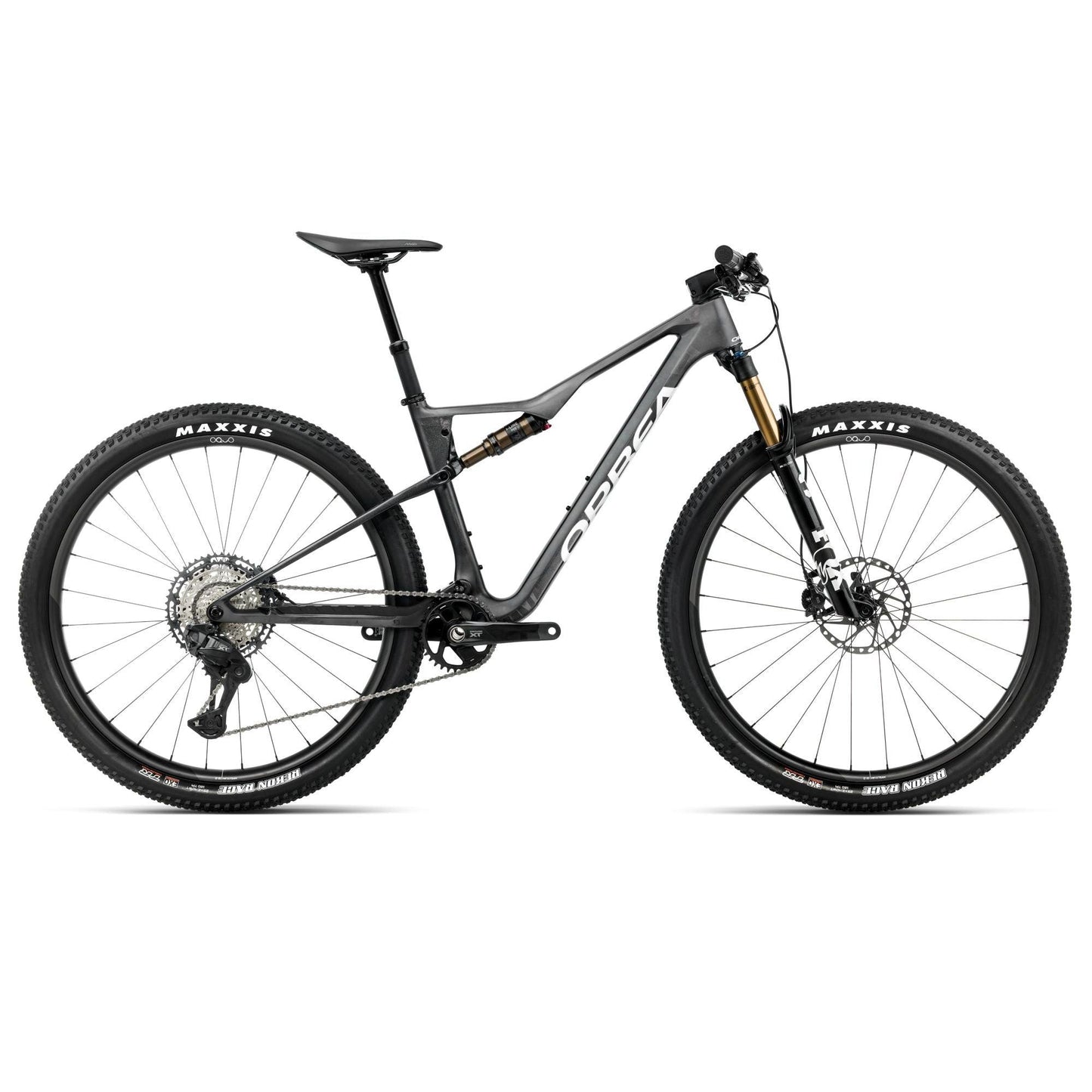

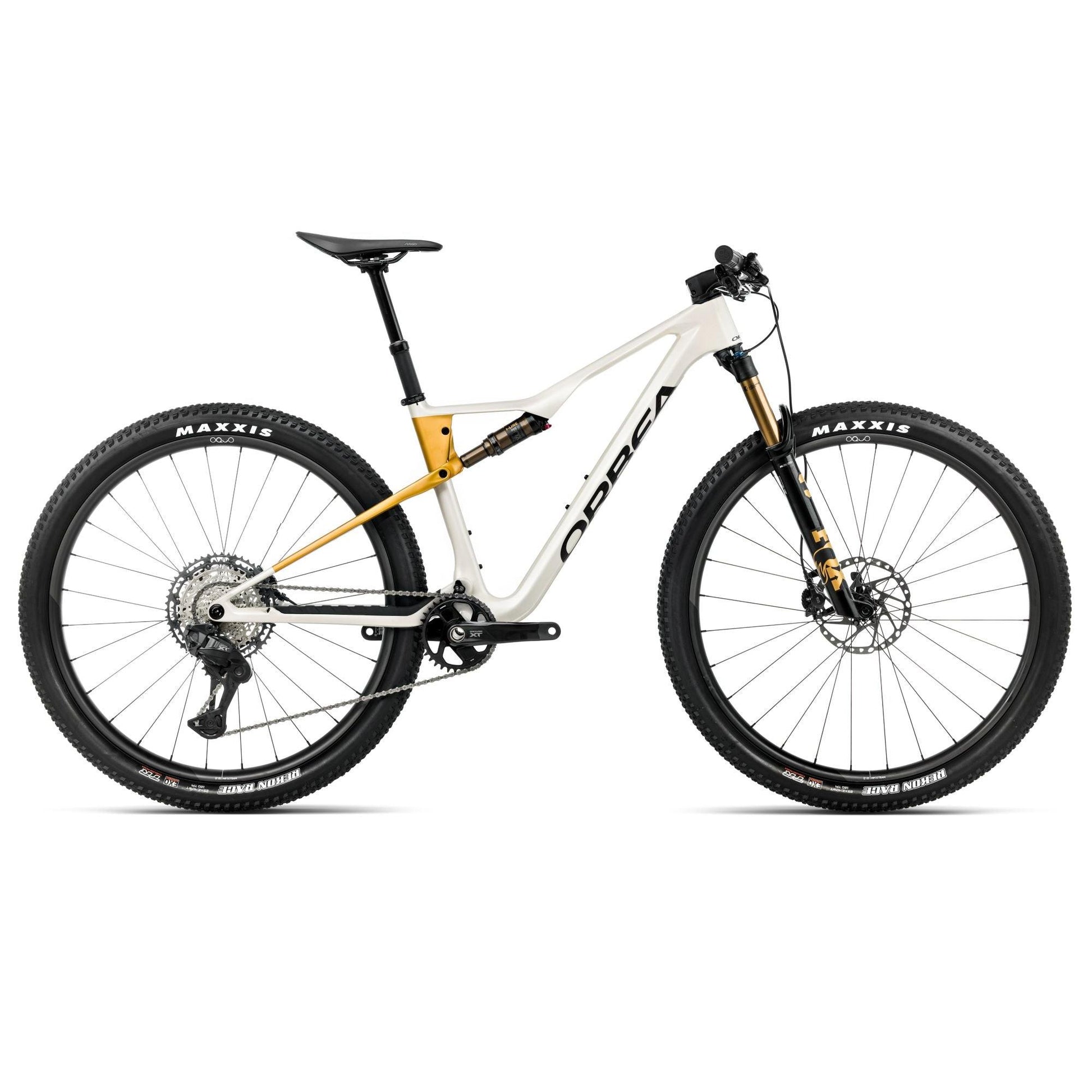

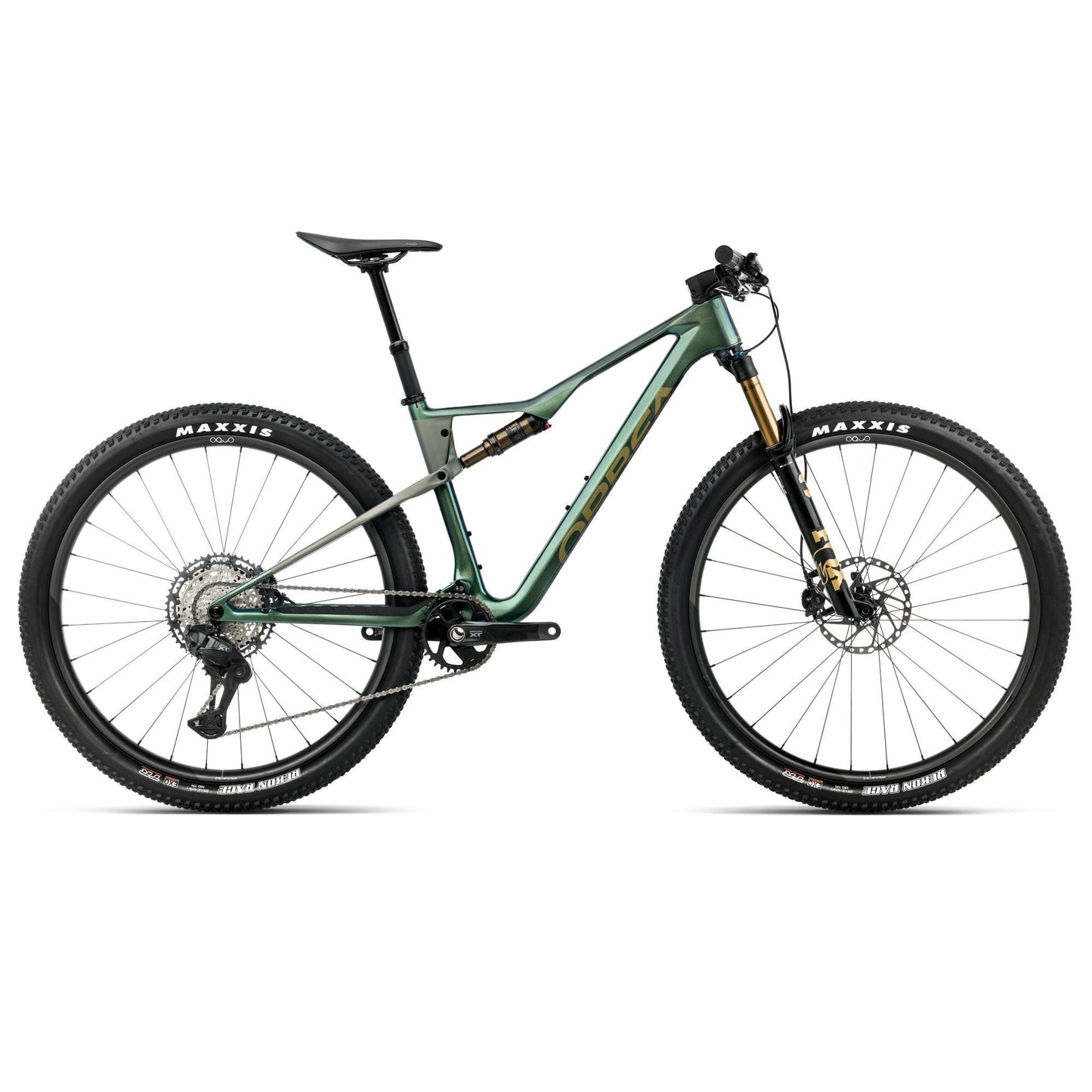

Orbea Oiz M10 2026
Orbea Oiz M10 2026
Special Order
SKU:T22603KR
files/Orbea-Oiz-M10-2026-BRINK.jpg
09:42 PM
Couldn't load pickup availability
2026 Orbea Oiz M10 – OMR Carbon, XT and Oquo Race Wheels
The Oiz M10 leans into Shimano’s top-tier mechanical kit and a full Oquo wheelset, giving you a highly polished race package straight from the shop floor.
OMR Frame with Fox Factory-Level Suspension
The OMR carbon chassis is paired with a Fox 34 Float SL Factory fork and Float SL Factory shock, both in Kashima. With 120 mm travel and remote adjust, you get that classic Fox small-bump feel plus on-the-fly control for climbs and sprints.
Full Shimano XT 12-Speed Drivetrain
XT Di2-ready 12-speed components (shifter, derailleur, crank and 10–51T cassette) provide crisp, positive shifting and a race-worthy gear range. XT brakes complete the package with predictable power and easy serviceability.
Oquo MP30TEAM Wheels
Oquo MP30TEAM wheels strike an ideal balance between low weight and durability, helping the M10 spin up quickly and hold speed. Rekon Race tyres in 2.4" WT spec keep rolling resistance low without sacrificing cornering grip.
Who Is the Oiz M10 For?
XC riders and racers who want a full Shimano build and quality carbon wheels without stepping into OMX money. It’s a do-it-all race bike that’s ready for everything from local leagues to stage races.
Highlights
-
Frame material
Carbon
-
Wheelsize
29"
-
Front travel
120mm
-
Rear travel
120mm
Specifications
-
2026 Orbea Oiz M10
Frame
Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork
Fox 34 Float SL Factory 120, Grip SL, Remote-Adj Push to Lock, QR15x110, Kashima
Shock
Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
Handlebar
OC Mountain Performance MP10 Carbon, Width 760
Stem
OC Mountain Performance MP21, -6º
Headset
Alloy 1-1/2”, Black Oxidated Bearing
Brakes
Shimano XT Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano XT M8250
Rear derailleur
Shimano XT M8250 SGS
Crankset
Shimano XT M8200 34t
Bottom bracket
Shimano
Cassette
Shimano CS-M8200 10-51t 12-Speed
Chain
Shimano M8100
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Vento Argo X5 Alluminium 140mm
Front hub
Oquo Mountain Performance MP30TEAM
Rear hub
Oquo Mountain Performance MP30TEAM
Spokes
Oquo
Rims
Oquo Mountain Performance MP30TEAM
Rear rim
Oquo Mountain Performance MP30TEAM
Front tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR
Rear tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR
Race Ready Geometry
A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.
Efficient Suspension
Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.
Tuned Rigidity
For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.
Direct Shock Lockout Routing
Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.
OMR Carbon
Our second level carbon which offers all the rigidity and strength of OMX for those who don’t need the ultimate in light weight.
OC Squidlock Remote
In terms of efficiency, less is more. We found a way to streamline the already sleek and discreet Squidlock by reducing it to just two levers: one for suspension and one for the seatpost dropper.
