Orbea Oiz M30 2026
Orbea Oiz M30 2026
Special Order
SKU:T22403KR
files/Orbea-Oiz-M30-2026-BRINK.jpg
09:43 PM
Couldn't load pickup availability

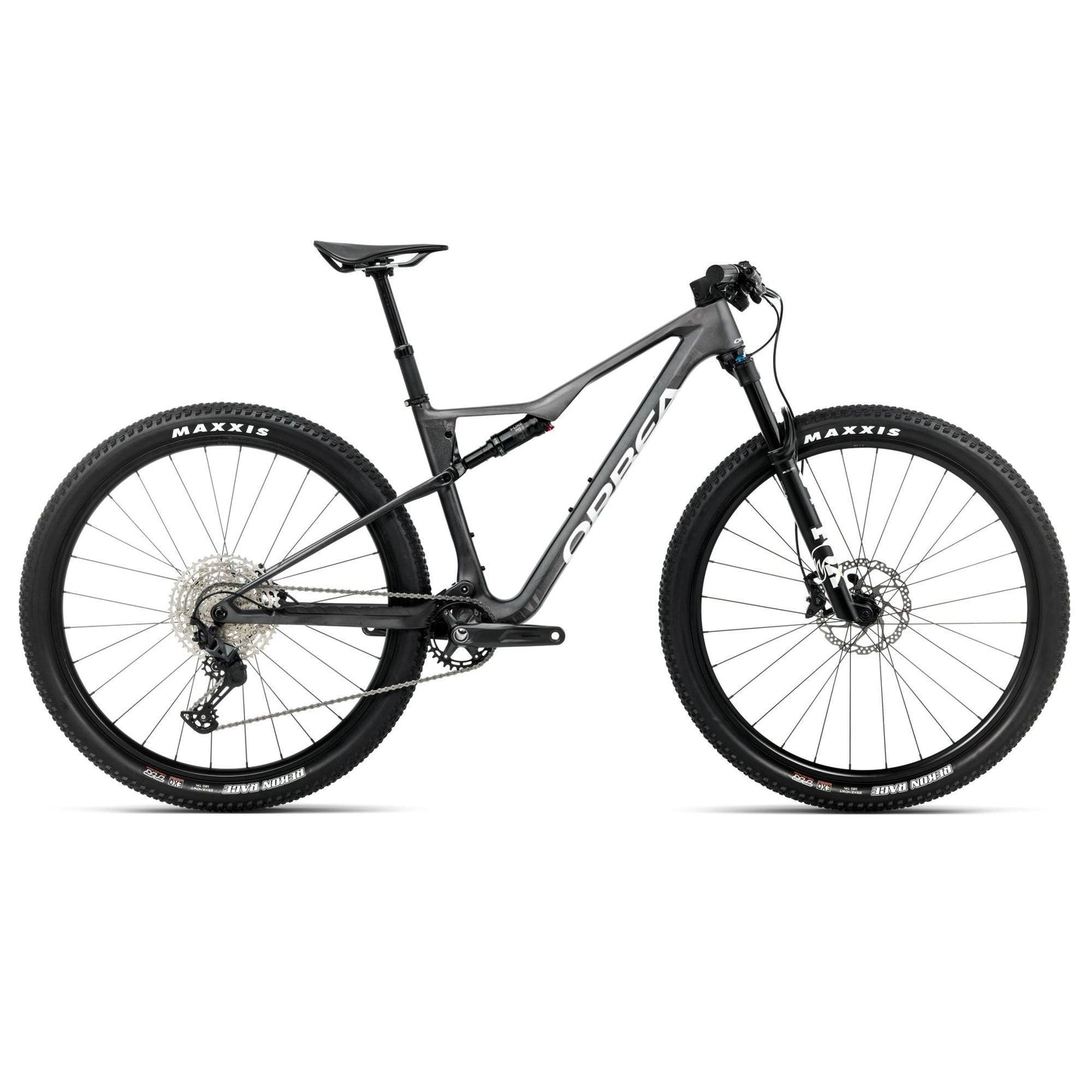

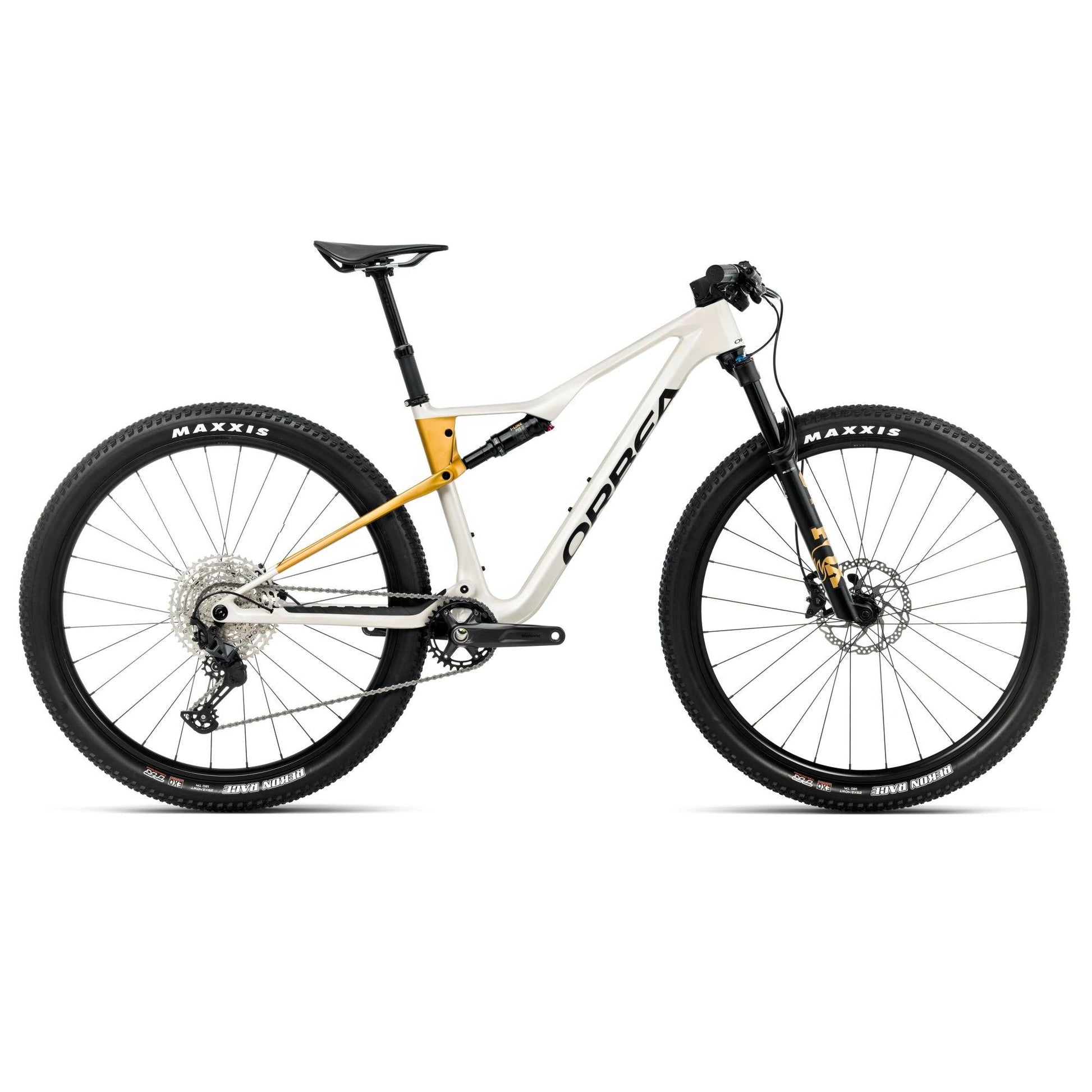

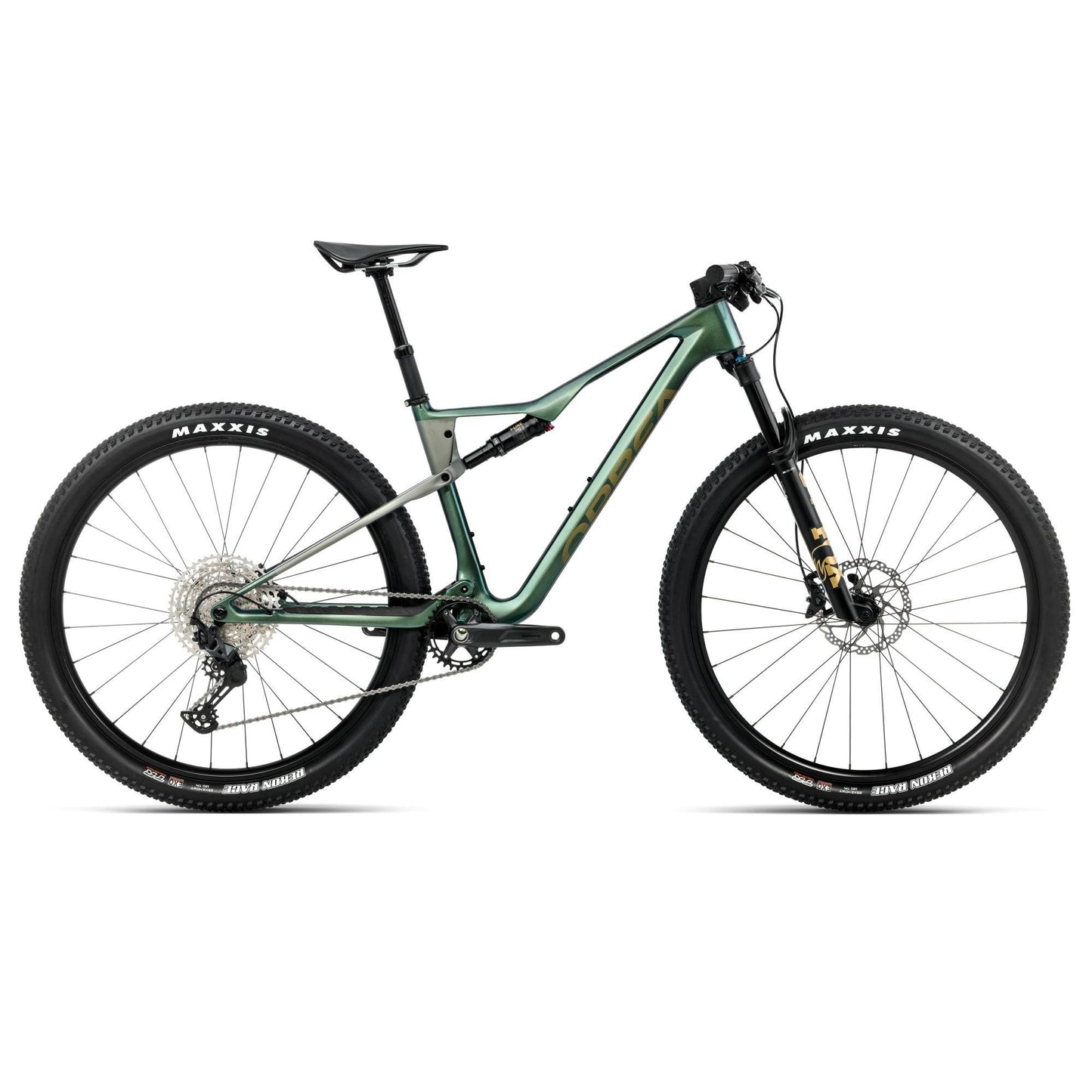

2026 Orbea Oiz M30 – Carbon OMR Chassis, Everyday XC Weapon
The Oiz M30 is the entry point into Orbea’s carbon OMR range – light, efficient and ready for everything from local XC loops to big stage races. It keeps the focus on performance where it matters: frame, suspension and tyres.
OMR Carbon Frame with Fiberlink
The OMR chassis drops weight and adds stiffness over the alloy bikes, using Orbea’s Fiberlink rocker and advanced carbon layup. You still get the same UFO rear triangle, I-Line shock routing and modern race geometry, but with sharper acceleration and a more responsive feel under power.
Fox 34 SL Performance Suspension Package
Fox’s 34 Float SL Performance fork and Float SL Performance shock supply 120 mm of controlled travel at both ends. Remote lockout keeps the bike poised for sprints and fire-road drags, yet opens instantly for rougher descents and rooty climbs.
Shimano 12-Speed with SLX Rear Mech
A Deore shifter and SLX rear derailleur drive a 10–51T cassette, pairing solid value with dependable race-day performance. The MT511 crank and 32T ring keep things simple, stiff and easy to live with.
Maxxis Rekon Race Tyres for Speed
Rekon Race 2.4" WT tyres in 120 TPI Exo spec give the M30 a fast, grippy rolling feel ideal for UK XC and marathon terrain. Mounted on 26 mm tubeless-ready rims, they’re ready to be run tubeless from day one.
Who Is the Oiz M30 For?
Riders stepping into a carbon XC race bike who still want sensible, durable kit. The M30 is perfect for club racing, marathons and anyone who wants a light, efficient Oiz without chasing electronic shifting or ultra-boutique parts.
Highlights
-
Frame material
Carbon
-
Wheelsize
29"
-
Front travel
120mm
-
Rear travel
120mm
Specifications
-
2026 Orbea Oiz M30
Frame
Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork
Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110
Shock
Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm
Handlebar
OC Mountain Performance MP30, Width 760
Stem
OC Mountain Performance MP21, -6º
Headset
Alloy 1-1/2”, Black Oxidated Bearing
Brakes
Shimano M6100 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano Deore M6100
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Crankset
Shimano MT511 32t
Bottom bracket
Shimano
Cassette
Shimano CS-M6100 10-51t 12-Speed
Chain
Shimano M6100
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Selle Italia Model X Greentech
Front hub
OEM
Rear hub
OEM
Spokes
OEM
Rims
Alloy, 26c, 28H, TLR
Rear rim
Alloy, 26c, 28H, TLR
Front tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR
Rear tyre
Maxxis Rekon Race 2.40” WT 120 TPI Exo TLR
Race Ready Geometry
A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.
Efficient Suspension
Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.
Tuned Rigidity
For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.
Direct Shock Lockout Routing
Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.
OMR Carbon
Our second level carbon which offers all the rigidity and strength of OMX for those who don’t need the ultimate in light weight.
OC Squidlock Remote
In terms of efficiency, less is more. We found a way to streamline the already sleek and discreet Squidlock by reducing it to just two levers: one for suspension and one for the seatpost dropper.
