Orbea Orca M20i LTD PWR 2026
Orbea Orca M20i LTD PWR 2026
Special Order
SKU:T11447A7
files/Orbea-Orca-M20i-LTD-PWR-2026-BRINK.jpg
03:10 AM
Couldn't load pickup availability

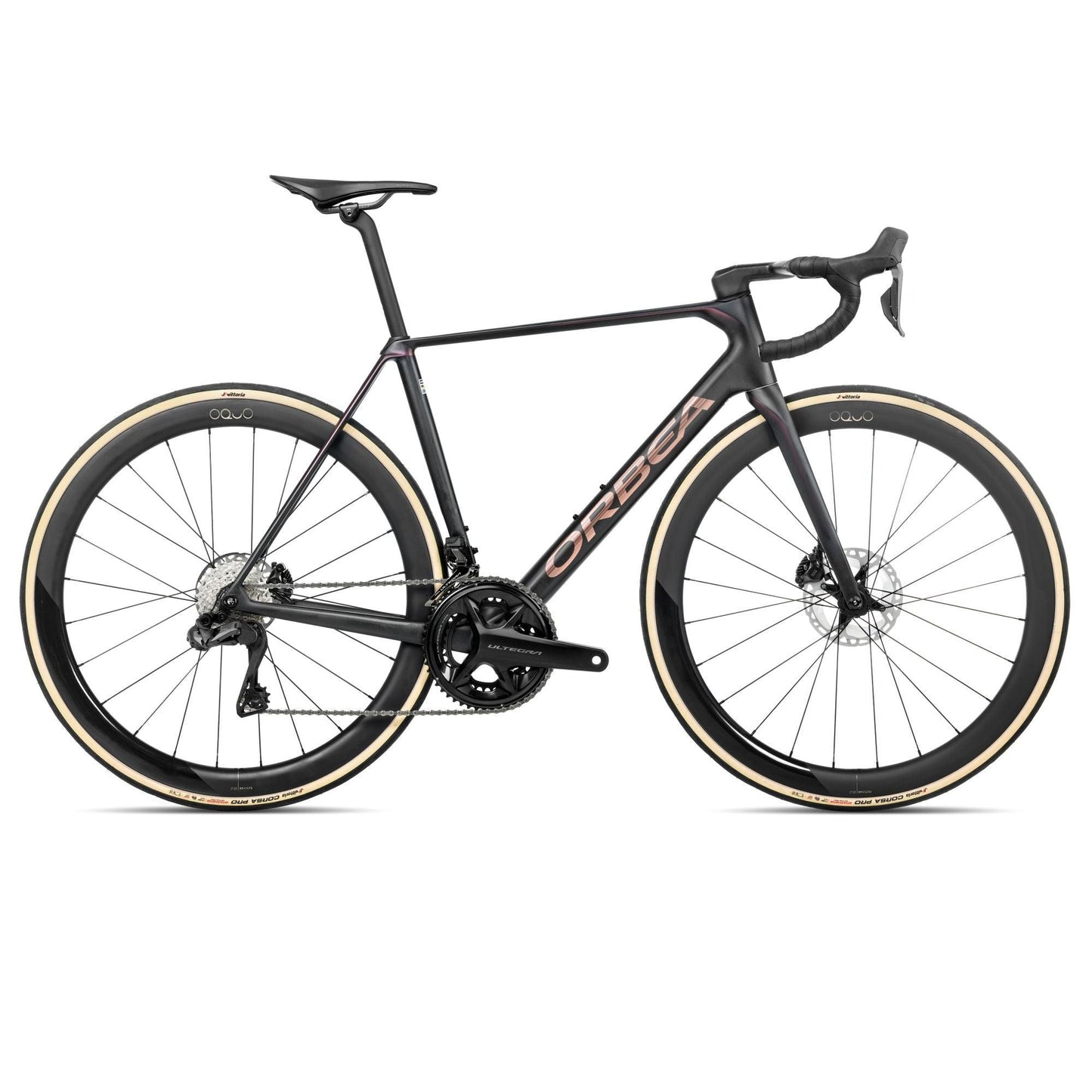

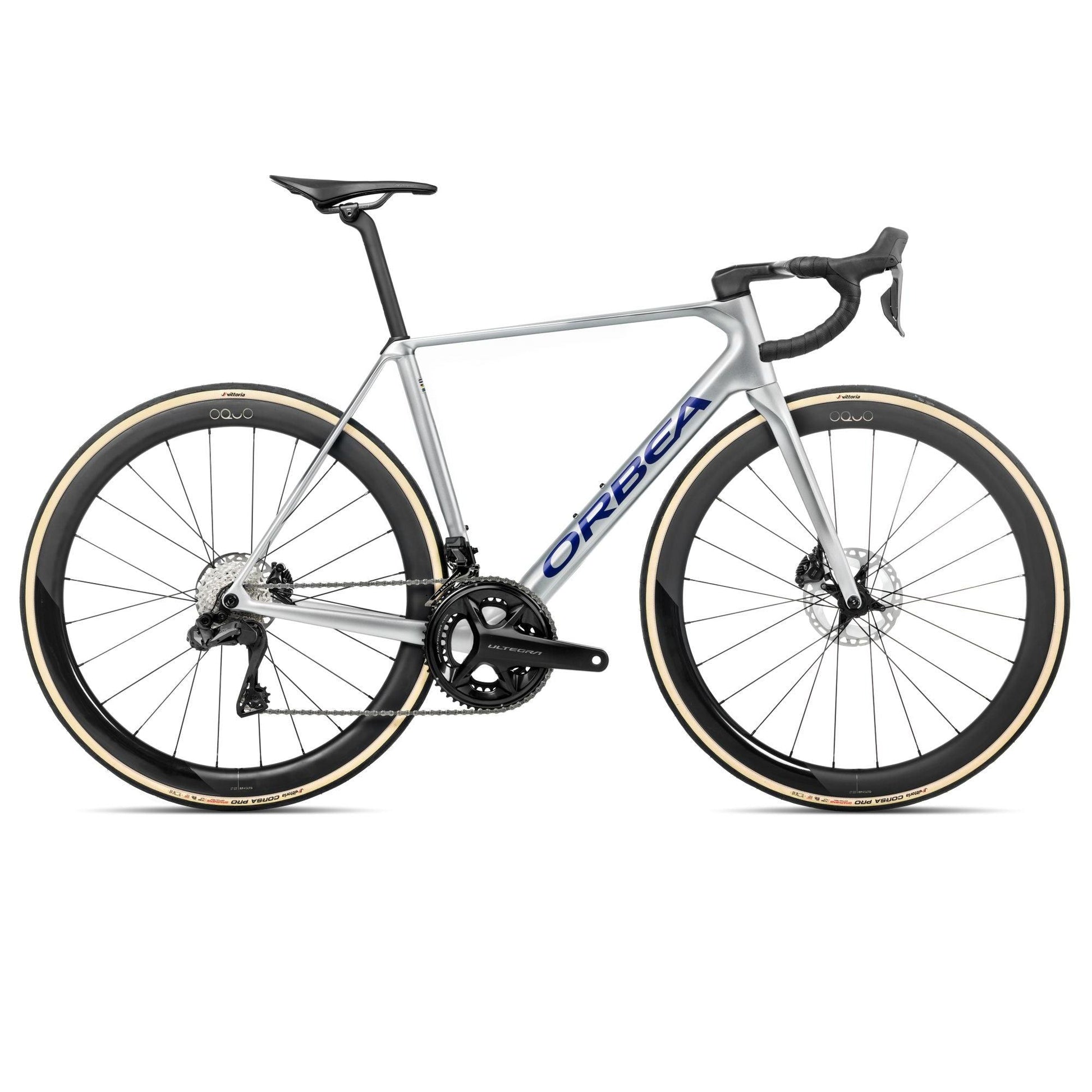

2026 Orbea Orca M20i LTD PWR
The Orca M20i LTD PWR pairs the ultra-light OMX chassis with Shimano Ultegra Di2, an integrated power meter and deep-section Oquo wheels. It’s a serious race machine for riders who demand top-tier performance and precise training tools.
Flagship OMX Carbon Race Frame
Orbea’s OMX construction keeps weight extremely low while maintaining stiffness and precise handling. It’s designed for riders chasing marginal gains on climbs and sprint finishes.
Ultegra Di2 with Integrated Power
Shimano Ultegra Di2 shifting is race-proven at the highest level, while the R8100 power-meter crankset lets you train and race by the numbers. The 52/36 chainrings and 11–30 cassette suit fast, rolling terrain and competitive events.
Oquo RP45LTD & Vittoria Corsa Pro Tyres
RP45LTD wheels and Vittoria Corsa Pro tubeless-ready tyres provide an aero, supple and grippy interface with the road, ideal for long races and fast group rides.
Who Is the Orca M20i LTD PWR For?
Performance-driven riders and racers who want a light, aero and data-rich platform capable of tackling everything from crits to gran fondos.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
-
Front travel
0mm
-
Rear travel
0mm
Specifications
-
2026 Orbea Orca M20i LTD PWR
Frame
Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Fork
Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Handlebar
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Stem
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Headset
FSA 1-1/2" Integrated Aluminium Cup
Brakes
Shimano R8170 Hydraulic Disc
Front rotor
Shimano
Rear rotor
Shimano
Shifter
Shimano ST-8170
Rear derailleur
Shimano Ultegra Di2 R8150
Crankset
Shimano Ultegra R8100 36x52T w/left side 4iiii Power Meter
Bottom bracket
Shimano
Cassette
Shimano Ultegra R8100 11-30t 12-Speed
Chain
Shimano M8100
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Vento Antares R1 Carbon Rail 140mm
Front hub
Oquo Road Performance RP45LTD
Rear hub
Oquo Road Performance RP45LTD
Spokes
Oquo
Rims
Oquo Road Performance RP45LTD
Rear rim
Oquo Road Performance RP45LTD
Front tyre
Vittoria Corsa Pro 29-622 TLR wide rim G2.0 OEM HP
Rear tyre
Vittoria Corsa Pro 29-622 TLR wide rim G2.0 OEM HP

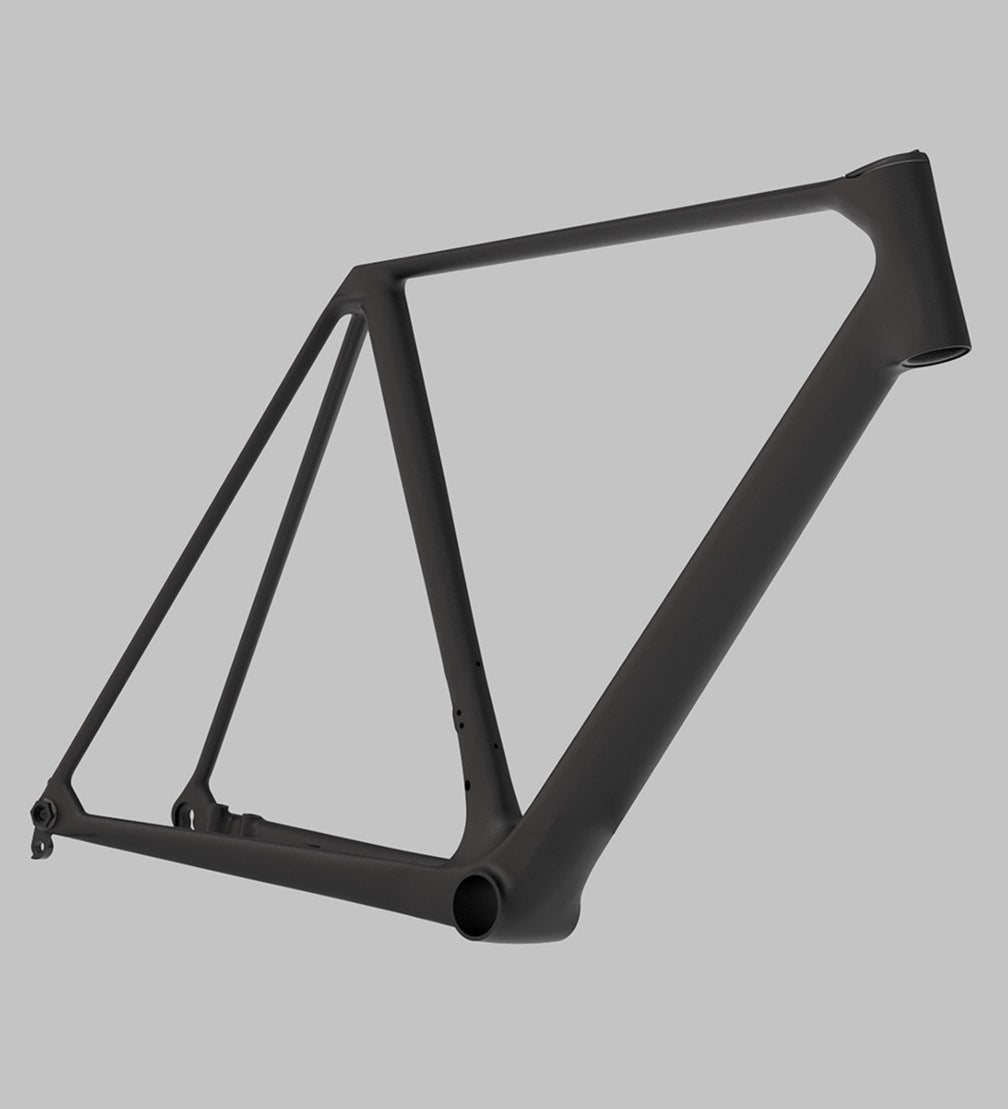

Size Tuned Stiffness
We alter the carbon layup for each frame size to ensure every Orca feels the same. It is a lot more work, but these are the small details you notice when you ride.
Powerspline
The lower spine of the frame handles the large majority of torsional and lateral loads.

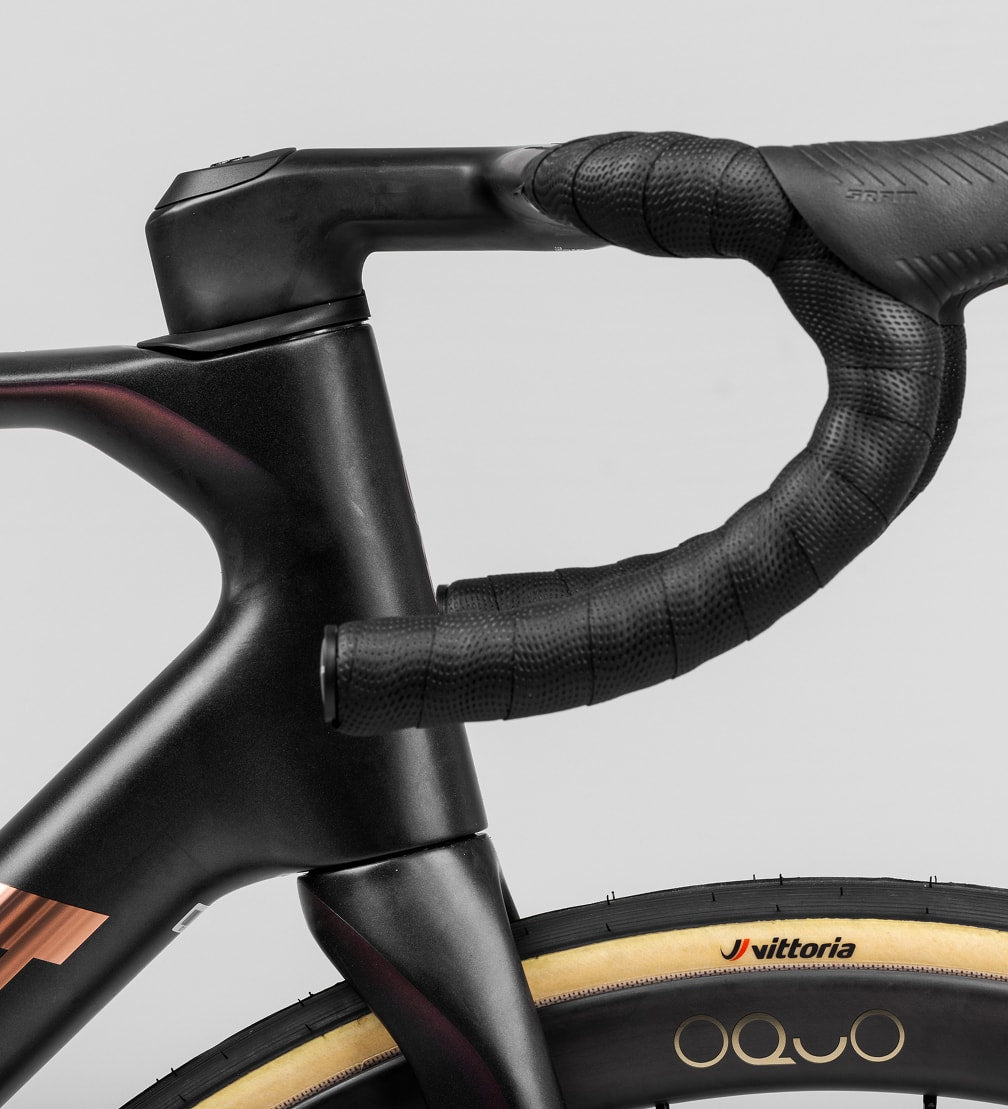

ICR Plus
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
32mm Tyre Clearance
Modern road riders have discovered the advantages of bigger tires on rougher surfaces.
OMX Carbon
Our top-level OMX frame has fewer pieces of carbon, meaning fewer overlaps and less weight. It takes much more effort to lay out the carbon, but the result is a saving of almost 300g with no change in the rigidity.
