2026 Orbea Wild H20 - Gravity Performance, Maximum Value
The Wild H20 is the most accessible entry point into Orbea’s legendary Wild platform - bringing the same aggressive geometry, 170 mm suspension layout, and Bosch full-power drive system into a rugged hydroformed aluminium frame. It’s built for riders who want a truly capable e-MTB without stretching the budget.
Hydroformed Alloy Frame, Same Wild DNA
Orbea’s aluminium construction mirrors the stiffness, strength, and handling of the carbon Wild. The Concentric Boost pivot ensures braking doesn’t interfere with suspension performance, giving the H20 consistent traction on steep, rough, and unpredictable terrain.
170 mm of Gravity-Tuned Travel
With a RockShox ZEB Base 170 mm fork and a Fox Float X Performance shock, the H20 is more than ready for technical enduro trails and bike-park laps. The suspension is tuned for stability and support, keeping the bike composed when ridden hard.
Bosch Performance Line CX + 750 Wh
Full power, full range. Bosch’s renowned CX motor and the large 750 Wh Powertube battery give the Wild H20 the torque, climbing ability, and endurance expected from a top-tier e-enduro platform.
Reliable & Robust Build Kit
The H20 balances value and performance with a Shimano Deore/SLX drivetrain, MT420 brakes, a proper dropper post, and dependable Race Face AR wheels wrapped in Maxxis’ proven Assegai / Minion combo. It’s a setup designed for real-world durability, not just showroom gloss.
Highlights
-
Frame material
Carbon
-
Wheelsize
29" or Mullet
-
Front travel
170mm
-
Rear travel
170mm
-
Motor brand
Bosch
-
Max torque
100Nm
-
Peak power
750W
-
Battery capacity
750Whr
Specifications
-
2026 Orbea Wild H20
Frame
Orbea Wild Hydro Concentric Boost 12x148
Fork
RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific 15X110 Boost
Shock
Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Headset
Alloy 1-1/2", Black Oxidated Bearing
Brakes
Shimano MT420 Hydraulic Disc
Front rotor
Galfer Wave Rotor 203mm
Rear rotor
Galfer Wave Rotor 203mm
Shifter
Shimano Deore M6100 I-Spec EV
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Crankset
e*thirteen Helix Core
Cassette
Shimano CS-M7100 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Selle Royal Vivo Sport Men 145 x 269mm
Front hub
OEM
Rear hub
OEM
Spokes
DT Swiss
Rims
Race Face AR 30c
Rear rim
Race Face AR 30c
Front tyre
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Rear tyre
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Motor
Bosch Performance Line CX BDU3843
Battery
Bosch Powertube 750Wh Horizontal BBP3770

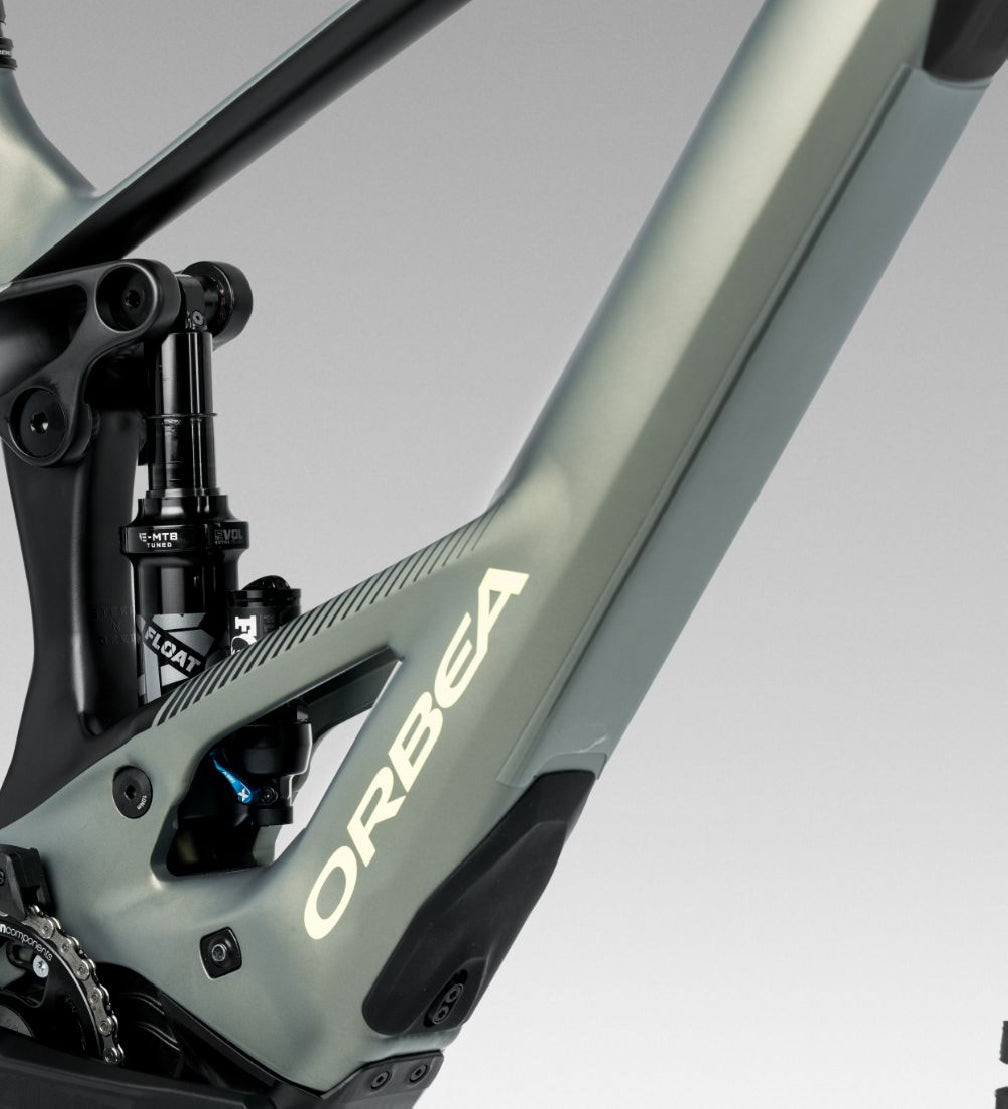

Modular Battery System
Wild comes with the 600Wh as standard. This lighter battery offers the ultimate in handling. For those looking for longer rides the 750Wh battery, and the 250Wh range extender are options via MyO.

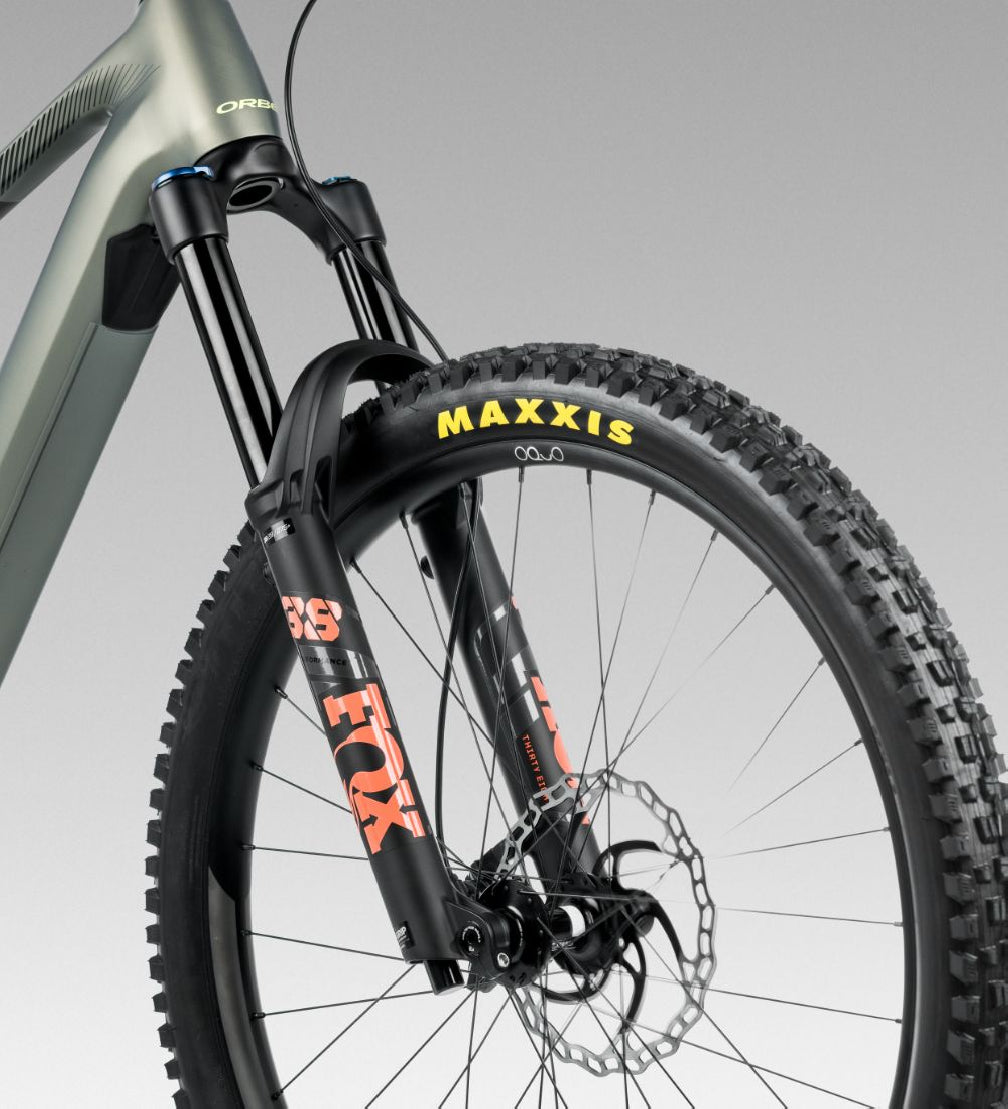

38mm Forks
Full power eBikes need stiffer, more burly forks. Wild counts on the benchmark Fox 38 or the Rockshox Zeb, depending on spec.

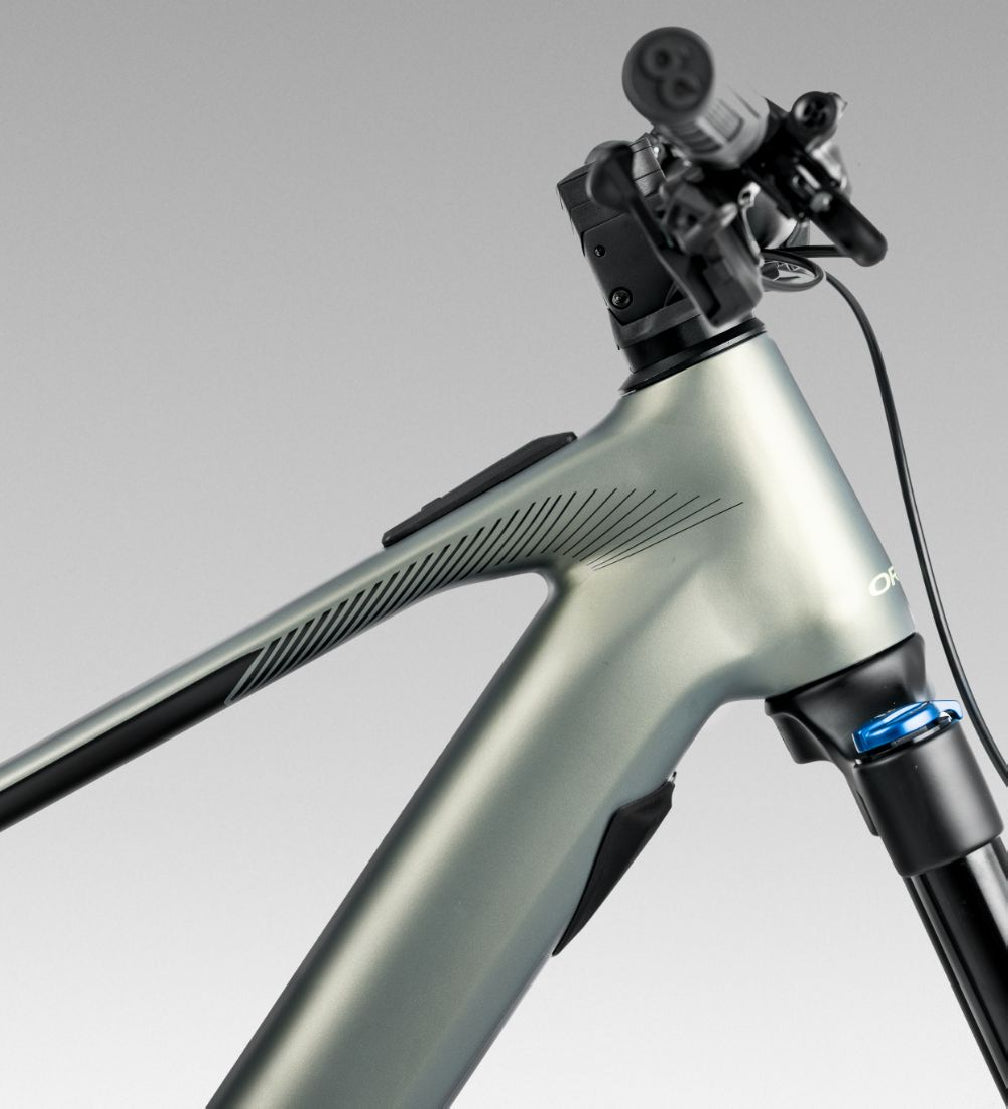

High Polish Alloy
Using aluminum technologies as advanced as our carbon manufacturing ensures our aluminum bikes are never second-best. Including all of Wild's great features on an alloy frame was complicated, but we don't compromise on our alloy frames.

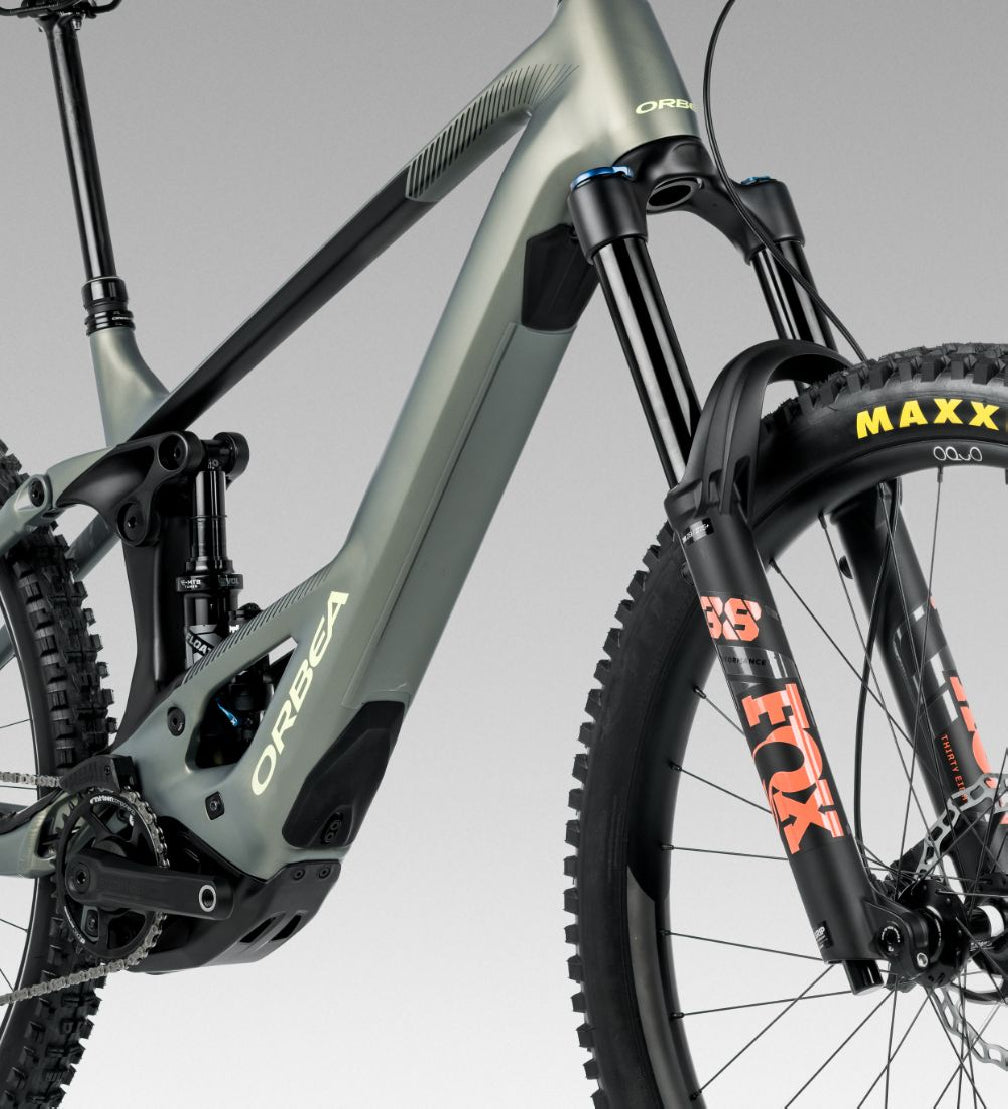

170mm Gravity Tuned Suspension
Wild offers 170mm of travel front and back, with custom-tuned Fox Float X or Float X2 shocks and the 38 fork.

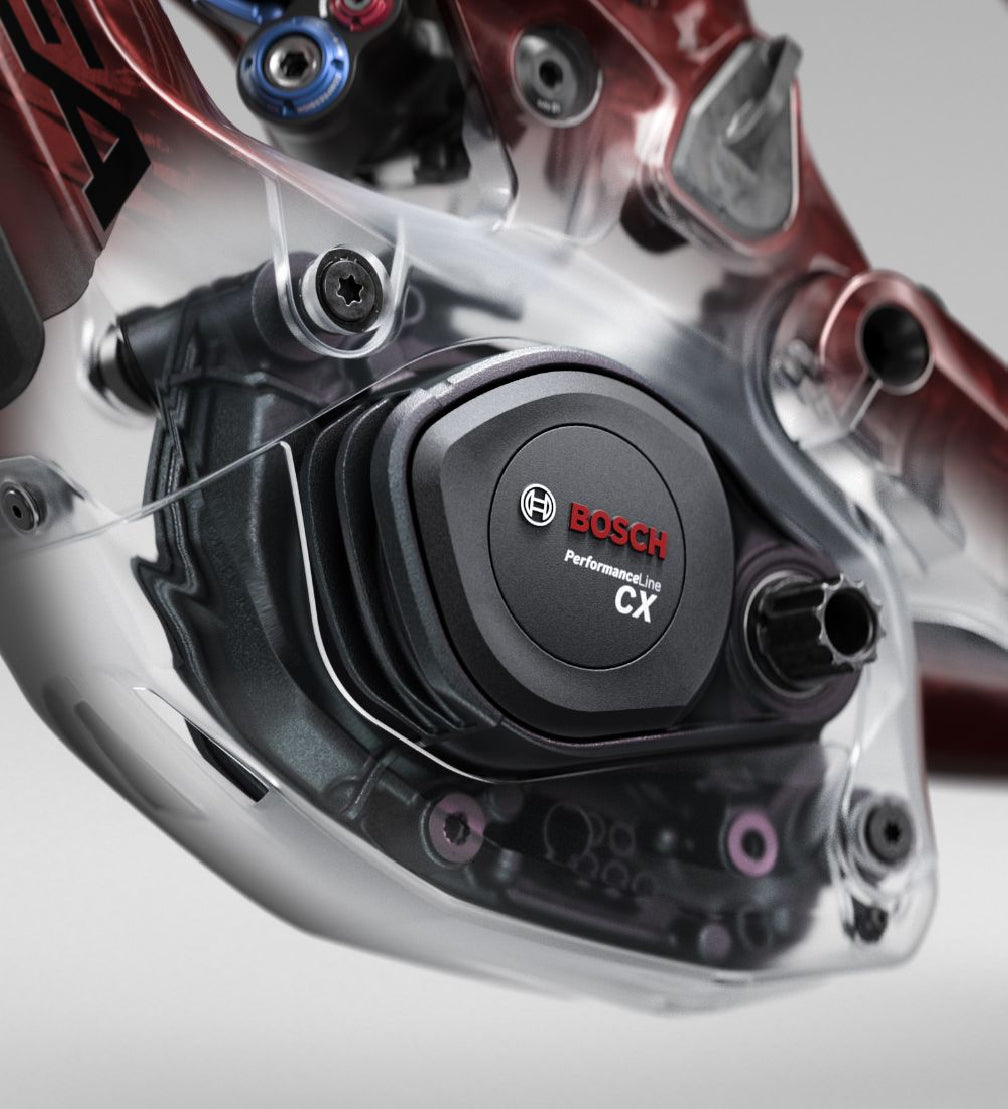

Bosch Gen 5 CX Performance Motor
BOSCH's 100 Nm motor needs no introduction, with endless power and controlled responses. The updated motor gives more precise control, is quieter and lighter, and offers less pedal resistance.
