2026 Orbea Wild M-LTD - The Flagship Wild
Maximum Performance, Minimum Compromise
The Wild M-LTD is Orbea’s ultimate e-enduro platform: the lightest build, the strongest components and the most efficient power-to-control ratio. With full Fox Factory suspension, XTR drivetrain, Oquo’s top-tier wheels and a carbon crankset, this is a truly elite e-MTB for riders who demand the best.
Advanced OMR Carbon Construction
The stiff, lightweight OMR frame maximises accuracy when cornering and stability at speed. Every tube is shaped for strength and responsiveness, while the Concentric Boost pivot keeps the suspension working independently of pedalling and braking forces.
A Lighter 600Whr Battery for More Dynamic Handling
Unique to the M-LTD, the 600 Wh battery reduces overall weight while improving agility and balance. Perfect for riders who prioritise handling and performance, with optional range-extender solutions for bigger days.
Fox Factory Suspension, Front & Rear
Fox 38 Factory + Float X2 Factory deliver unmatched control and sensitivity. Whether you’re charging rock gardens or threading tight technical lines, the M-LTD stays composed, supple and incredibly predictable.
XTR Drivetrain & Braking
Shimano’s flagship XTR system ensures the fastest shifting and best braking feel available. The power transfer is crisp, the modulation is incredible, and the durability is proven under elite-level loads.
Who Is It For?
You
Highlights
-
Frame material
Carbon
-
Wheelsize
29" or Mullet
-
Front travel
170mm
-
Rear travel
170mm
-
Motor brand
Bosch
-
Max torque
100Nm
-
Peak power
750W
-
Battery capacity
600Whr
Specifications
-
2026 Orbea Wild M-LTD
Frame
Orbea Wild OMR Concentric Boost 12x148
Fork
Fox 38 Float Factory 170, Grip X2, QR15x110, Kashima
Shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem
OC Mountain Control MC11 Alu SL, 0º
Headset
Alloy 1-1/2", Black Oxidated Bearing
Brakes
Shimano XTR Hydraulic Disc
Front rotor
Galfer Wave Rotor 203mm
Rear rotor
Galfer Wave Rotor 203mm
Shifter
Shimano XTR M9250
Rear derailleur
Shimano XTR M9260 12s
Crankset
e*thirteen Helix Race Carbon
Cassette
Shimano CS-M9200 10-51t 12-Speed
Chain
Shimano CN-9100
Chain guide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Terra Aidon X1 145mm
Front hub
Oquo Mountain Control
Rear hub
Oquo Mountain Control
Spokes
Oquo
Rims
Oquo Mountain Control MC32LTD POWER
Rear rim
Oquo Mountain Control MC32LTD POWER
Front tyre
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Rear tyre
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Motor
Bosch Performance Line CX BDU3843
Battery
Bosch Powertube 600Wh Horizontal BBP3860

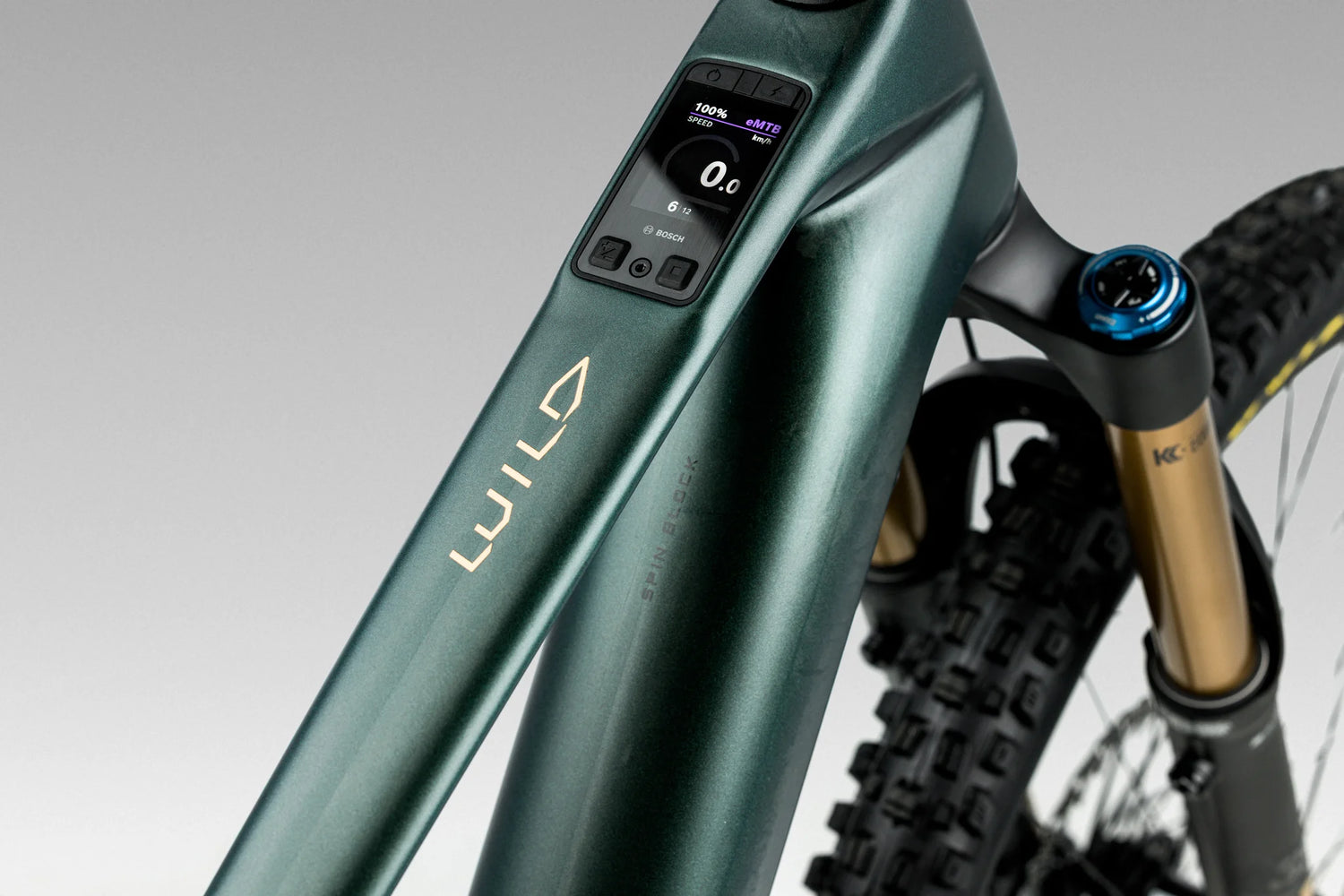

New Integrated Display
The new Kiox 400C display is seamlessly integrated into the frame, protected from bumps and impacts. It features a USB-C charging port, customizable display layouts, and built-in navigation capabilities.

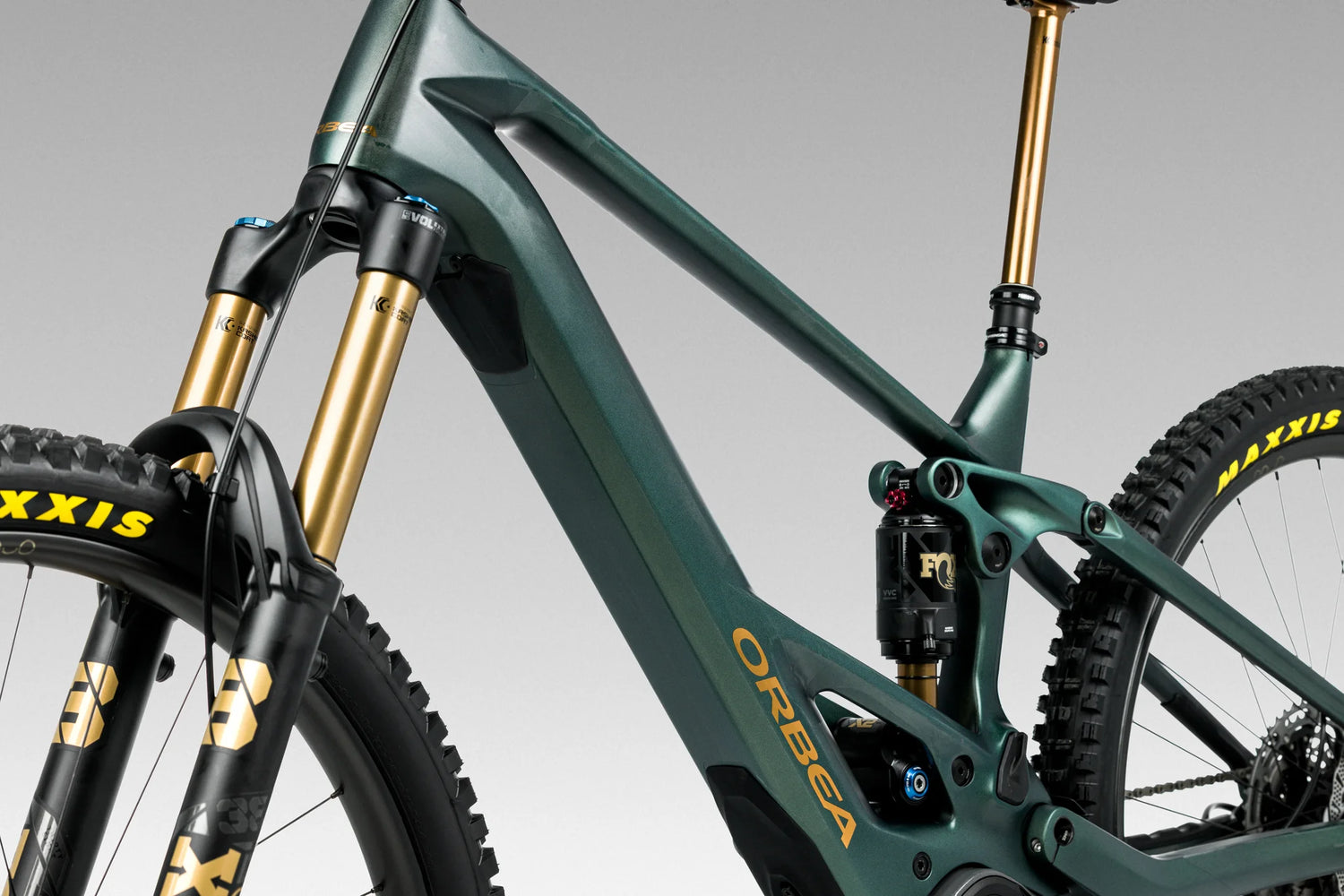

170mm of Gravity Tuned Suspension
Wild offers 170mm of travel front and back, with custom-tuned Fox Float X or Float X2 shocks and a 38mm stanchion fork.
Modular Battery System
Wild comes with the 600Wh as standard. This lighter battery offers the ultimate in handling. For those looking for longer rides the 750Wh battery, and the 250Wh range extender are options via MyO.

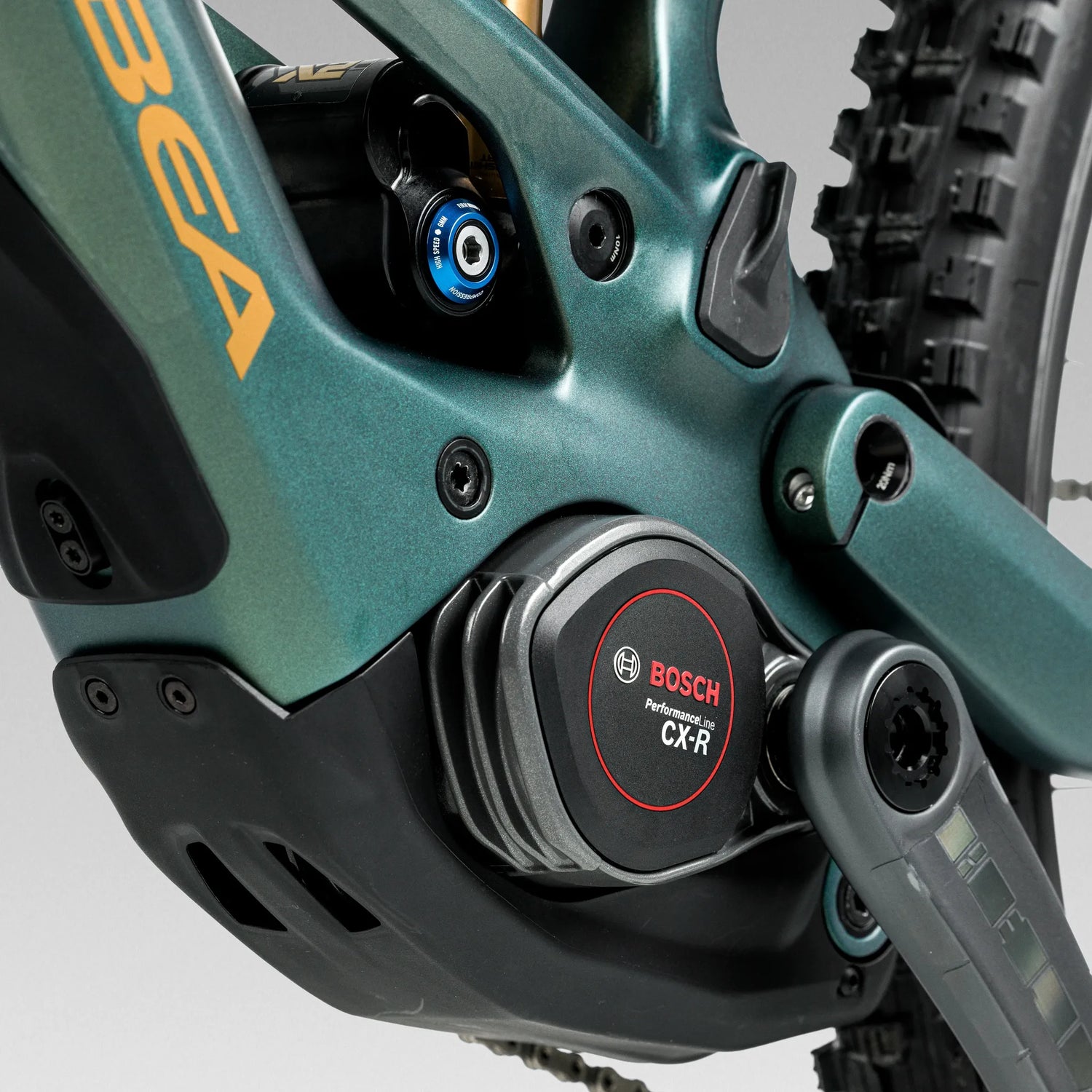

BOSCH Gen 5 CX Performance Motor
BOSCH's 100 Nm motor needs no introduction, with endless power and controlled responses. The updated motor gives more precise control, is quieter and lighter, and offers less pedal resistance.

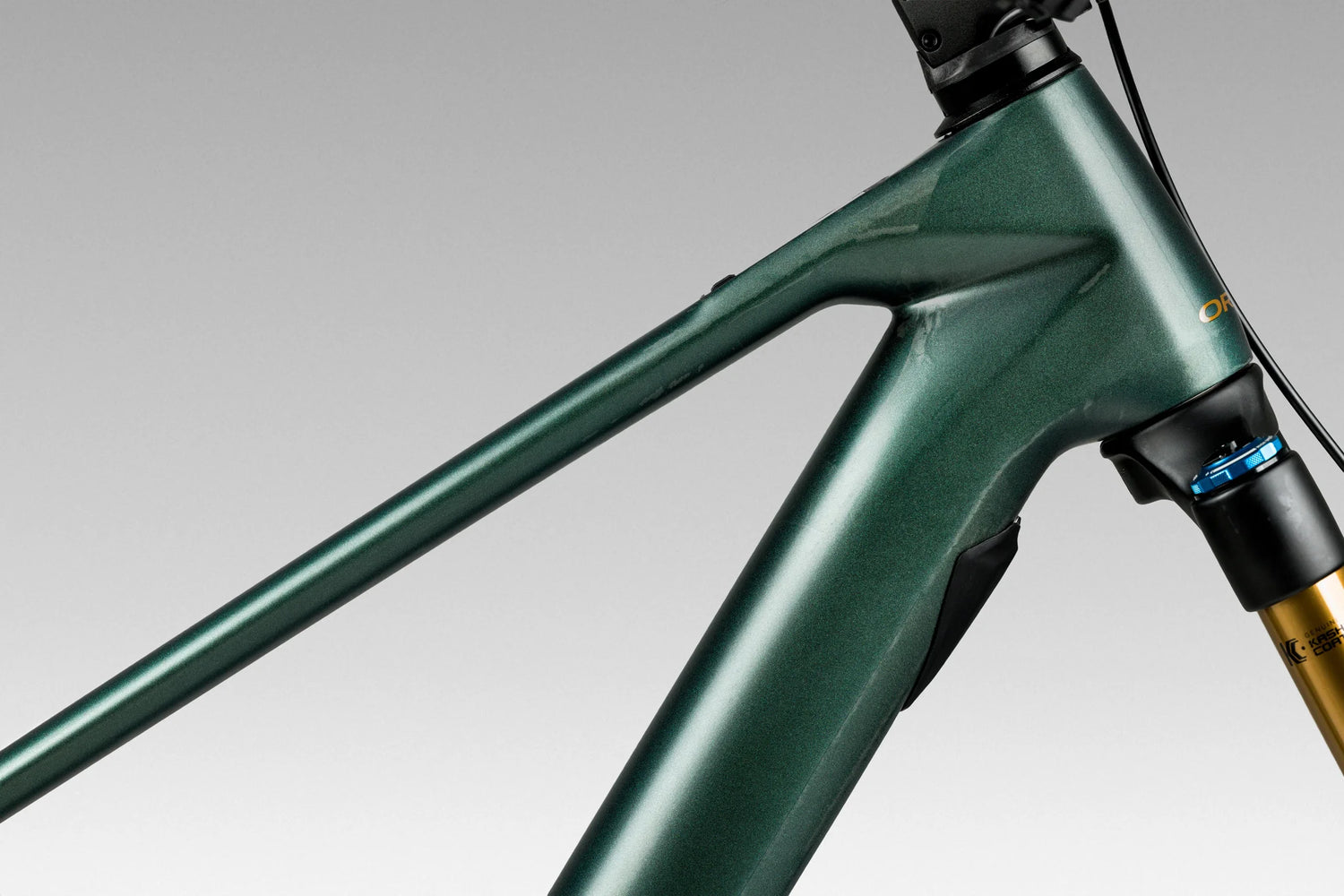

OMR Carbon Frame
High modulus, high-strength fibres, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity.
