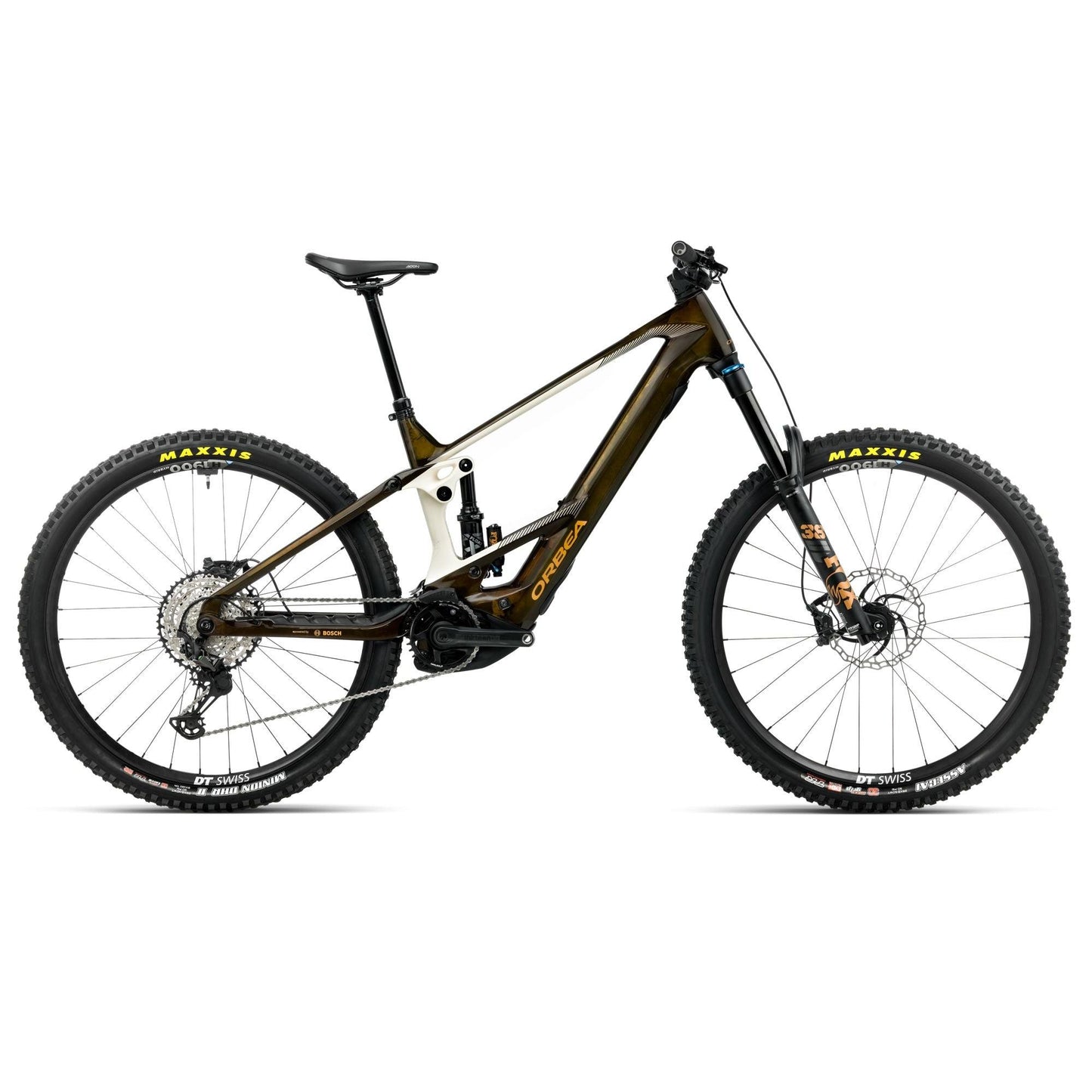

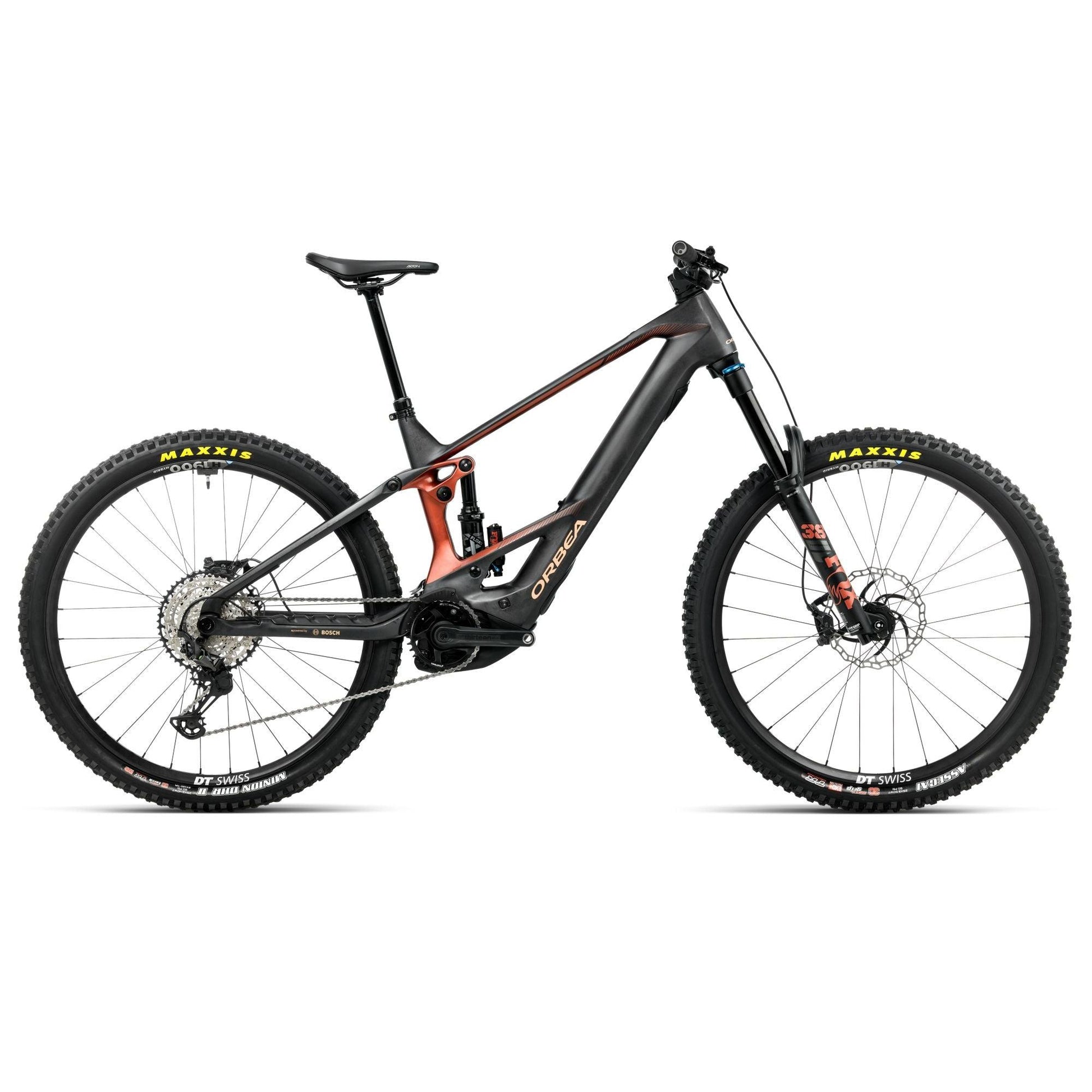

2026 Orbea Wild M10 - A Big-Mountain E-MTB with Upgraded Control
The Wild M10 takes Orbea’s race-tested OMR frame and Bosch CX drive system and lifts the performance with upgraded suspension, wheels and drivetrain. It’s a planted, powerful enduro e-bike that encourages you to push harder on every descent.
Precision Carbon Chassis
Built around Orbea’s OMR carbon structure, the Wild M10 combines stiffness where needed with tuned compliance for traction and comfort. The Concentric Boost linkage ensures smooth suspension behaviour even under heavy pedalling or braking loads.
Premium Suspension Performance
A Fox 38 Performance fork and Float X shock give the M10 a major step up in mid-stroke support and damping consistency. The 170/160 mm package tracks the terrain exceptionally well, offering stability at speed and excellent control in steep or rough sections.
Upgraded Drivetrain & Wheels
Shimano XT shifting delivers crisp, reliable gearing under load, while DT Swiss H1900 wheels provide strength and responsiveness on aggressive trails. Paired with Maxxis enduro tyres and Galfer rotors, the M10 is built to take repeated hard hits.
Who Is It For?
Riders who want a tough, capable carbon Wild with noticeable upgrades in suspension, braking and drivetrain performance — ideal for demanding trail centres, alpine terrain and big-day missions.
Highlights
-
Frame material
Carbon
-
Wheelsize
29" or Mullet
-
Front travel
170mm
-
Rear travel
170mm
-
Motor brand
Bosch
-
Max torque
100Nm
-
Peak power
750W
-
Battery capacity
750Whr
Specifications
-
2026 Orbea Wild M10
Frame
Orbea Wild OMR Concentric Boost 12x148
Fork
Fox 38 Float Performance 170 Grip 3-Pos QR15x110
Shock
Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Handlebar
OC Mountain Control MC20 Alu SL, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Headset
Alloy 1-1/2", Black Oxidated Bearing
Brakes
Shimano XT Hydraulic Disc
Front rotor
Galfer Wave Rotor 203mm
Rear rotor
Galfer Wave Rotor 203mm
Shifter
Shimano SLX M7100 I-Spec EV
Rear derailleur
Shimano XT M8100 SGS Shadow Plus
Crankset
e*thirteen Helix Core
Cassette
Shimano CS-M7100 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Aidon 208x145mm manganese rail
Front hub
DT Swiss H-1900 110x15mm Boost
Rear hub
DT Swiss H-1900 148x12mm Boost
Spokes
DT Swiss
Rims
DT Swiss H-1900 Spline 30c TLR
Rear rim
DT Swiss H-1900 Spline 30c TLR
Front tyre
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Rear tyre
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Motor
Bosch Performance Line CX BDU3843
Battery
Bosch Powertube 750Wh Horizontal BBP3770
New Integrated Display
The new Kiox 400C display is seamlessly integrated into the frame, protected from bumps and impacts. It features a USB-C charging port, customizable display layouts, and built-in navigation capabilities.
170mm of Gravity Tuned Suspension
Wild offers 170mm of travel front and back, with custom-tuned Fox Float X or Float X2 shocks and a 38mm stanchion fork.
Modular Battery System
Wild comes with the 600Wh as standard. This lighter battery offers the ultimate in handling. For those looking for longer rides the 750Wh battery, and the 250Wh range extender are options via MyO.
BOSCH Gen 5 CX Performance Motor
BOSCH's 100 Nm motor needs no introduction, with endless power and controlled responses. The updated motor gives more precise control, is quieter and lighter, and offers less pedal resistance.
OMR Carbon Frame
High modulus, high-strength fibres, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity.
