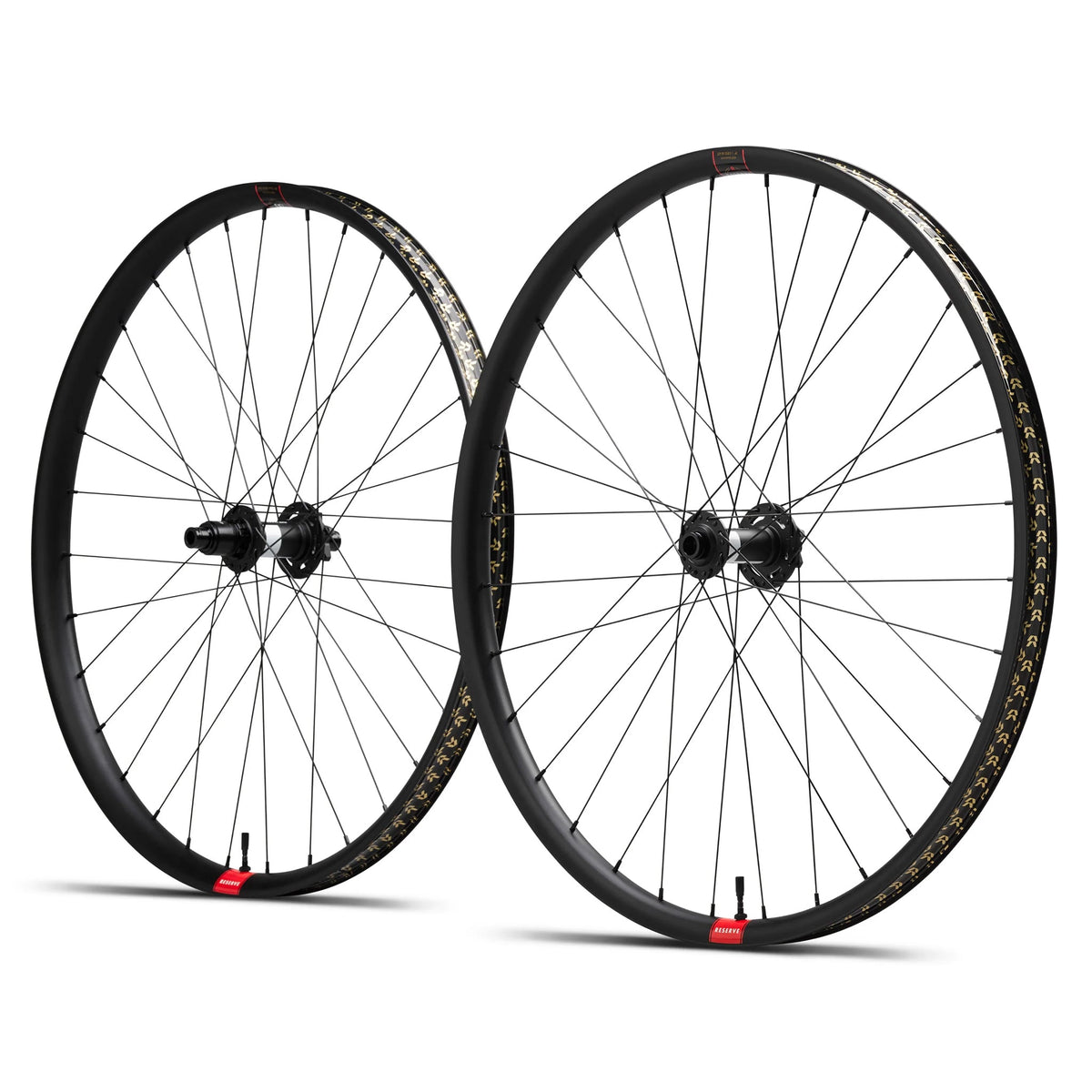

The Reserve 30|HD AL DH brings Reserve's aluminium rims to a dedicated downhill wheelset. It suits riders building a park or downhill bike who want a complete DT Swiss 350 wheelset at a lower price than the carbon range.
The 30mm internal rim width and 32-spoke construction are paired with downhill hubs: 20 x 110mm front and 12 x 157mm rear. Both builds use an XD cassette driver and 6-bolt rotor fittings. Choose a 29-inch pair or MX, with a 29-inch front and 27.5-inch rear.
Rim tape is fitted, and a pair of Fillmore valves is supplied for tubeless setup. Match the axle standards and wheel sizes to your bike before ordering.
Specifications
Material
Aluminium
Internal width
30mm
Wheel size
29 front / 29 rear, or 29 front / 27.5 rear (MX)
Hubs
DT Swiss 350
Axles
20 x 110mm front / 12 x 157mm rear
Driver
SRAM XD
Disc fitting
6-bolt
Spokes
32 per wheel
In the box
Wheelset with fitted 34mm rim tape; two 50mm Fillmore valves supplied uninstalled
Maximum pressure
50psi / 3.4bar, or the tyre manufacturer's lower limit

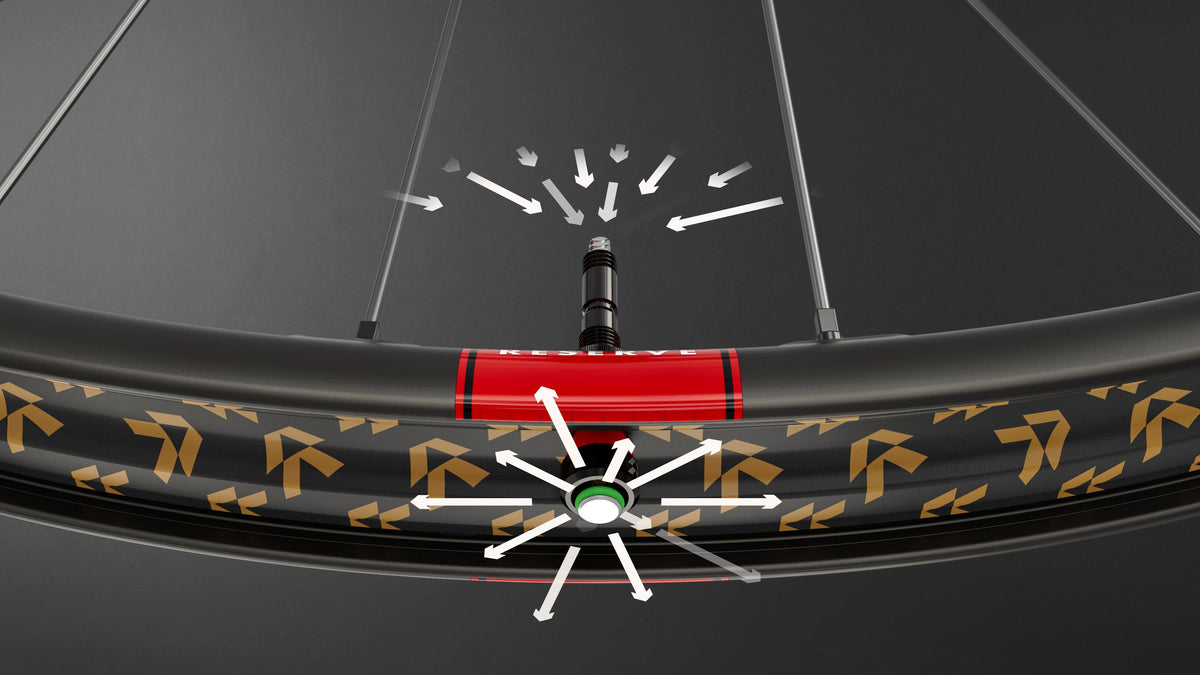

The supplied Fillmore valves provide a high-flow route into the tyre, helping with the initial rush of air needed for tubeless setup. The coreless design removes the conventional valve core from the airflow path.

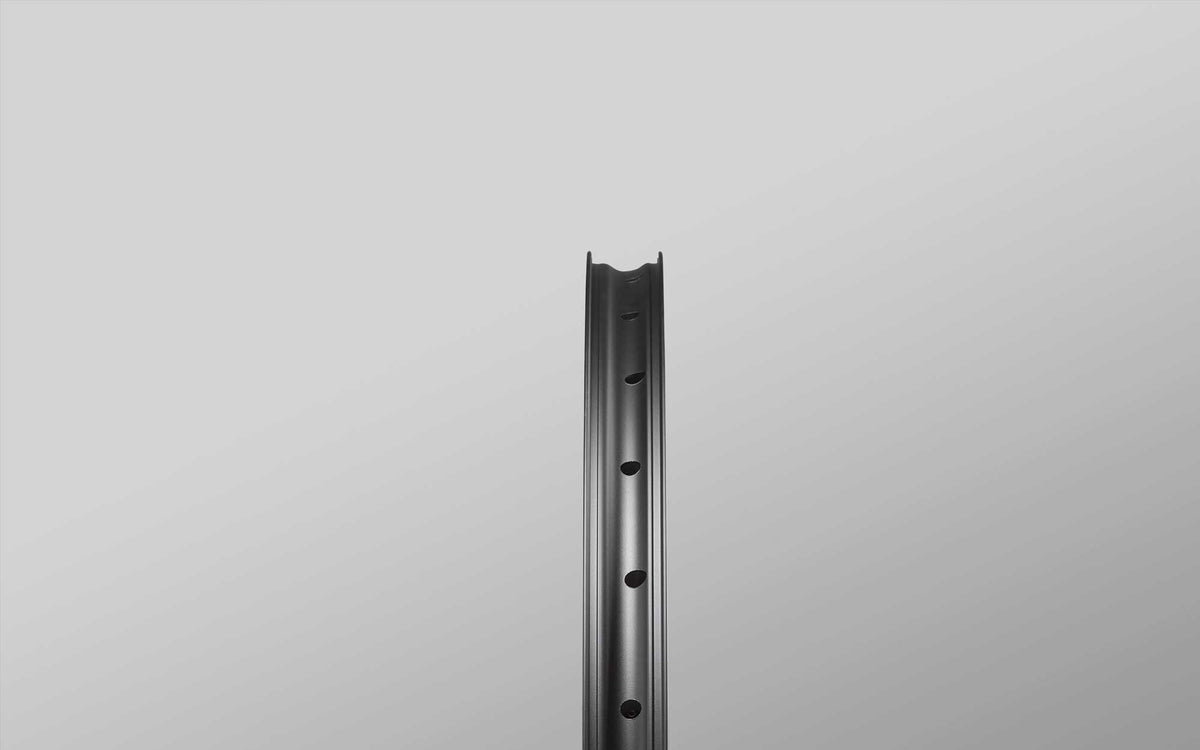

More balanced spoke tension
The spoke holes sit off-centre in the aluminium rim bed. That asymmetric layout improves the spoke angles and helps balance tension between the two sides.
