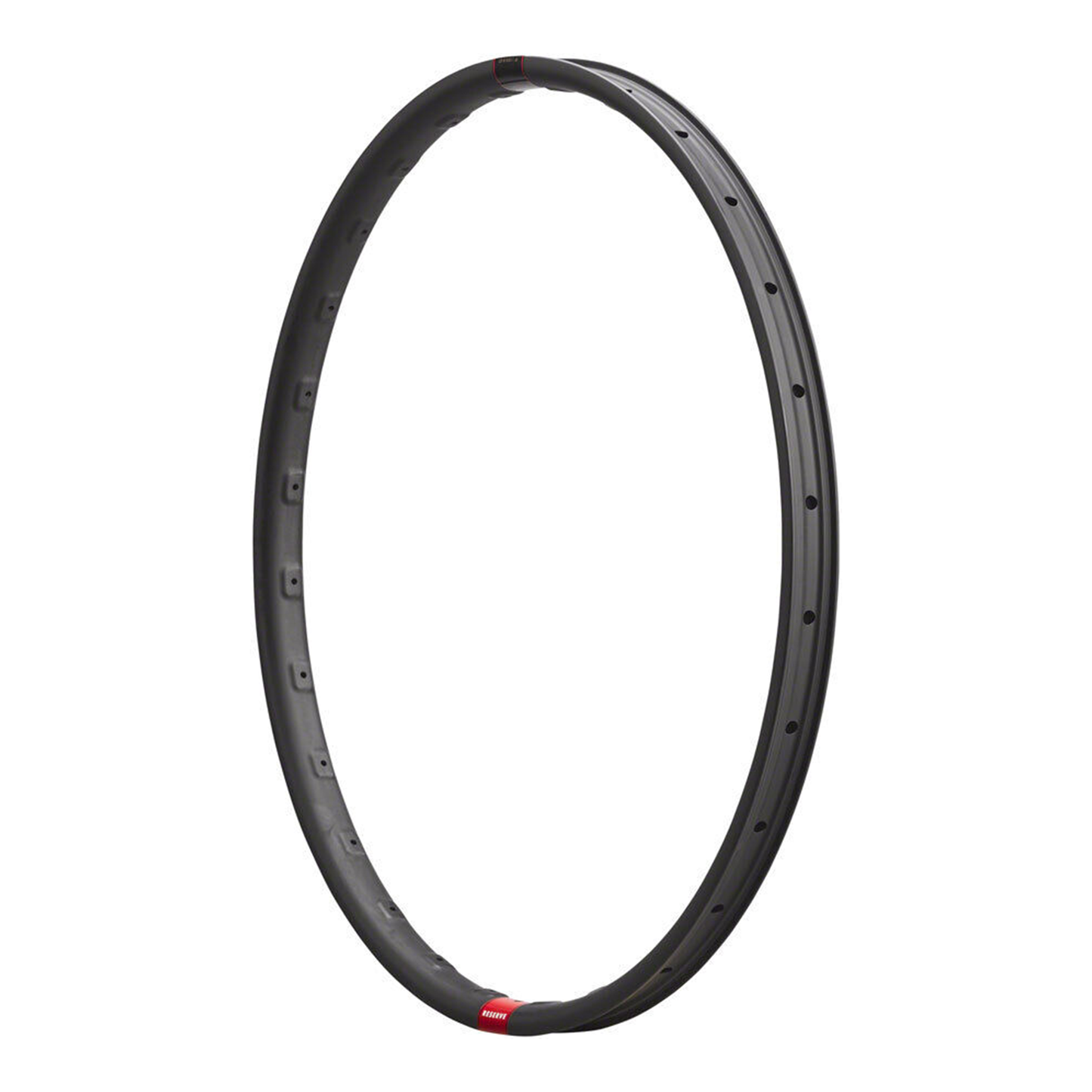

The Reserve 30|SL is a carbon rim for a light, responsive trail wheel. Its 30mm internal width gives modern trail tyres a supportive platform, while the low 19mm profile keeps the design focused on everyday trail riding.
Raised reinforcement around each spoke hole strengthens the point where the nipple loads the rim without adding material everywhere. The shaped rim bed helps tubeless tyres seat, and the asymmetric layout helps balance spoke tension between the two sides of the wheel.
This is the 29-inch, 28-hole rim, supplied individually. Hubs, spokes and wheel-building labour are separate.
Specifications
Material
Carbon
Diameter
29 inches
Spoke holes
28
Internal width
30mm
Rim depth
19mm
Manufacturer rim weight
449g
Recommended tyre width
2.3-2.6 inches
Intended use
Trail riding
Maximum pressure
50psi / 3.4bar, or the tyre manufacturer's lower limit
Raised reinforcements surround the spoke holes, adding strength at a highly loaded area. Reserve concentrates the extra carbon where it is needed rather than adding weight around the entire rim.
A rim bed shaped for tubeless
The profile helps the tyre move past the bead bump and into its seated position. That takes some of the struggle out of fitting a fresh tubeless tyre.
