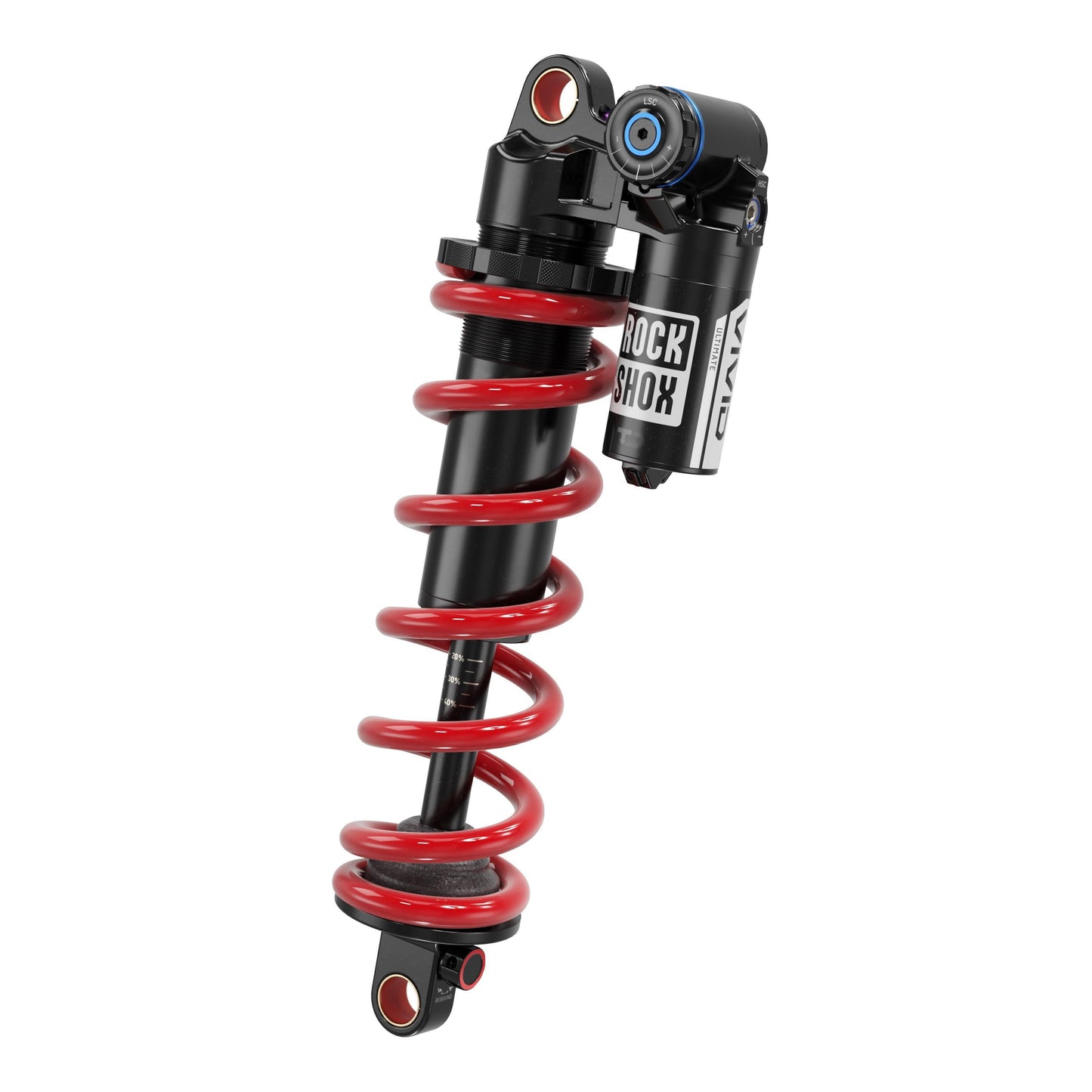

RockShox Vivid Coil Ultimate DH RC2 C1 Trunnion Shock

The world’s best gravity racers need it. The roughest tracks demand it. Vivid Coil Ultimate DH is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2 position-sensitive damper. Independent High and Low Speed Compression adjustments provide unreal sensitivity off-thetop, support and control in the mid-stroke, and Adjustable Hydraulic Bottom Out to cushion the harshest landings. It’s the unmistakable feel of coil, evolved with premium technology to give you worldclass suspension performance.

FEATURES

• TouchDown RC2 damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
• NEW TouchDown RC2 damper features Rebound adjustment, independent High and Low Speed Compression adjustment, without the Threshold Lever.
• Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
• Compatible with new Electric Red Coil Springs
• Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel.
• Maxima plush damping fluid reduces friction and silences damper noise.
• 20 clicks of rebound adjustment offer a wide range of tunability and accommodate more rider types.
• The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
• 8x30 Bearing Adapter compatible

SPECIFICATIONS
Eye to eye / Stroke 225x70(TR), 225x72.5(TR), 225x75(TR), 250x70, 250x72.5, 250x75
Damper Type RC2 Adj. Hydraulic Bottom Out
Rebound tune R55
Compression tune C30
Shaft Eyelet Standard
Body Eyelet Trunnion
E-Bike Approved E-bike Approved
Weight Based On 250x75, with 250lb spring, standard/standard
Weight (g) 948
