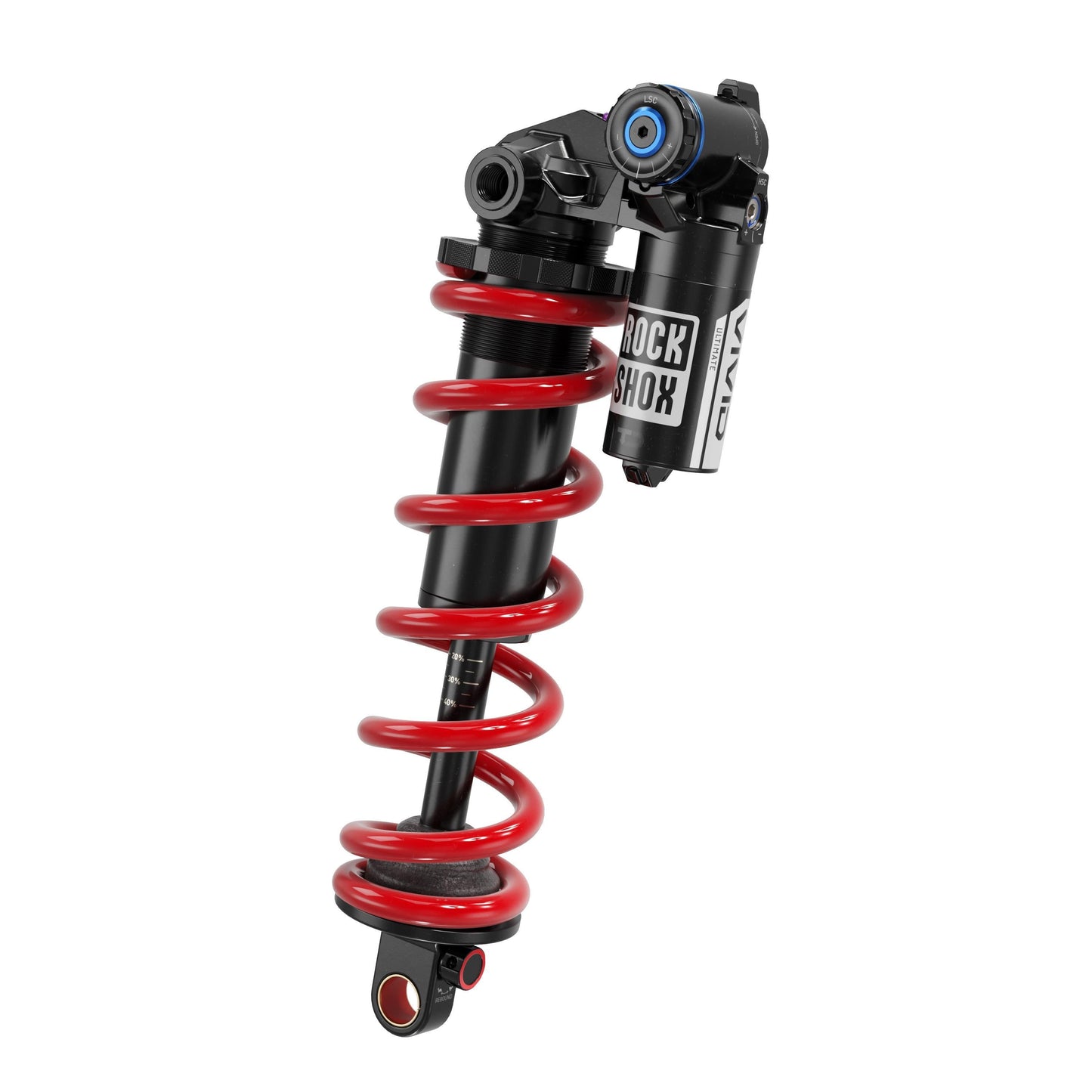

RockShox Vivid Coil Ultimate RC2T C1 Trunnion Shock

The world’s best gravity racers need it. The roughest tracks demand it. Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T positionsensitive damper. External, independent High and Low Speed Compression adjustments provide unreal sensitivity off-the-top, support and control in the mid-stroke, and Adjustable Hydraulic Bottom Out to cushion the harshest landings. It’s the unmistakable feel of coil, evolved with premium technology to give you world-class suspension performance.

FEATURES

• TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
• NEW TouchDown RC2T damper features Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency.
• Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
• Compatible with new Electric Red Coil Springs
• Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel.
• Maxima plush damping fluid reduces friction and silences damper noise.
• 20 clicks of rebound adjustment offer a wide range of tunability and accommodate more rider types.
• The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
• 8x30 Bearing Adapter compatible

SPECIFICATIONS
Eye to eye / Stroke 165x45(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 230x65
Damper Type RC2T Adj. Hydraulic Bottom Out
Rebound tune R55, R25(RSSVC8455019)
Compression tune C30, C26(RSSVC8455019)
Lockout force X2
Shaft Eyelet Standard
Body Eyelet Trunnion
E-Bike Approved E-bike Approved
Weight Based On 230x65, with 350lb spring, standard/standard
Weight (g) 902
RSSVC8455019 - C1 TRANSITION RELAY/PATROL 2022+
RSSVC8455021 - C1 CANYONSTRIVELTD 2022+
