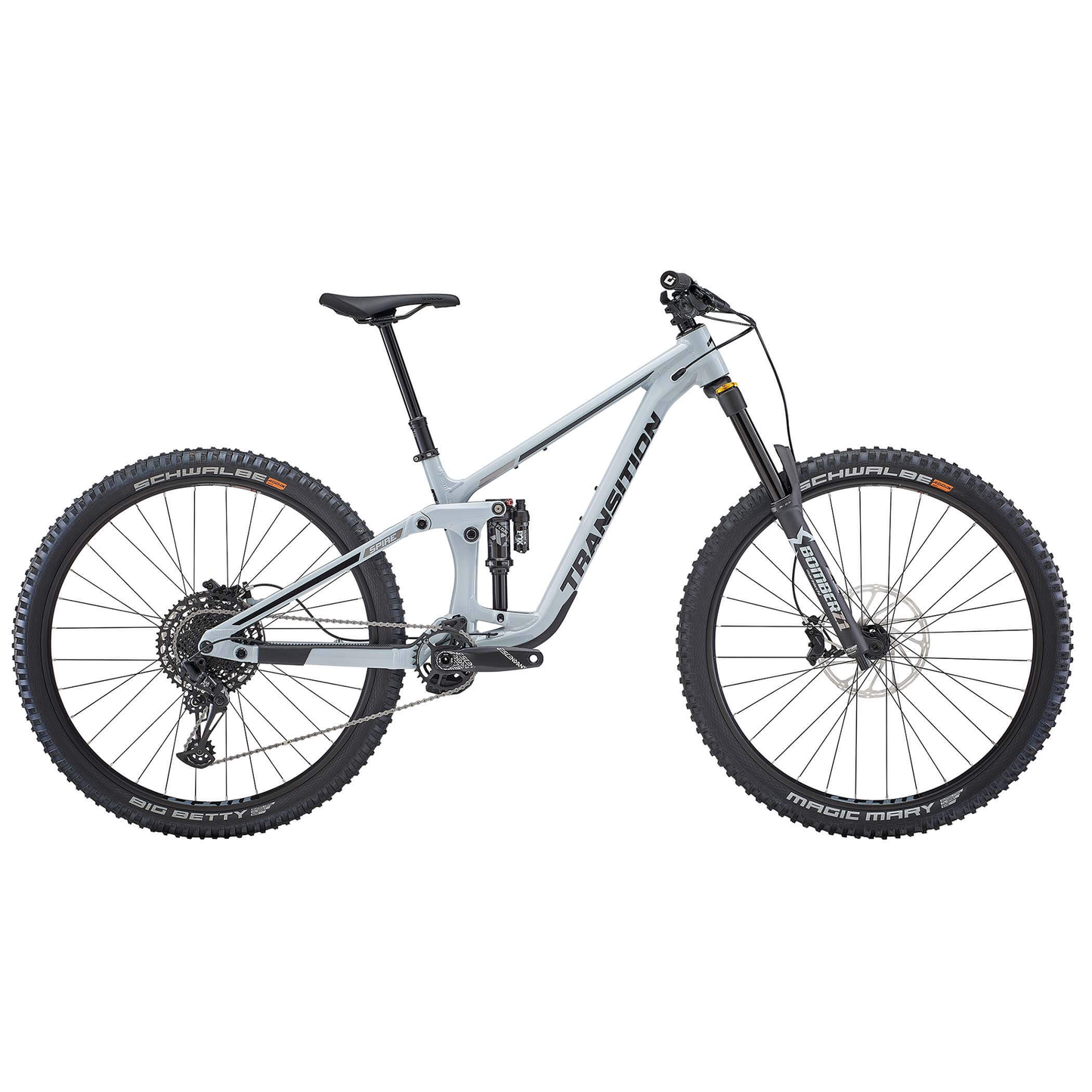

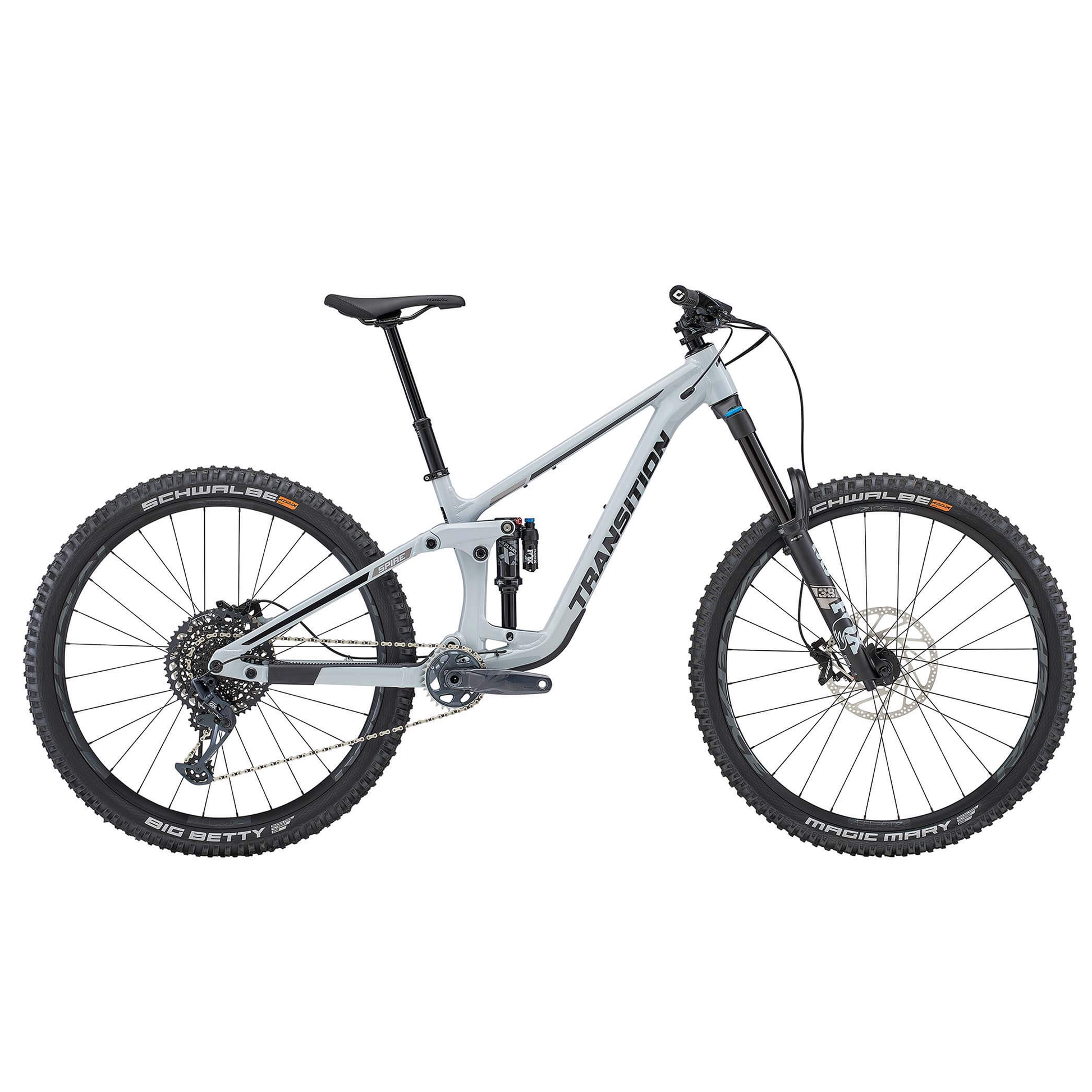

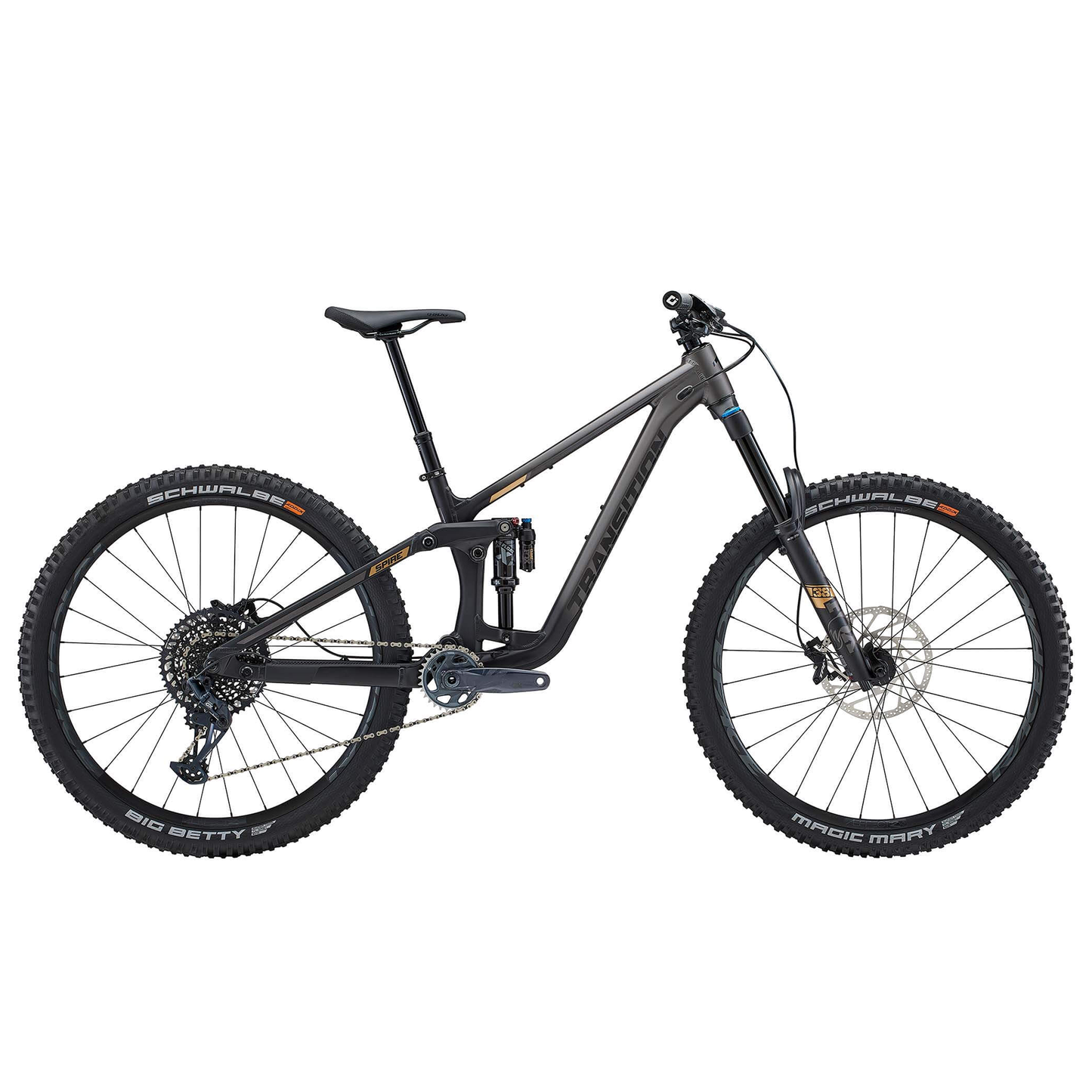

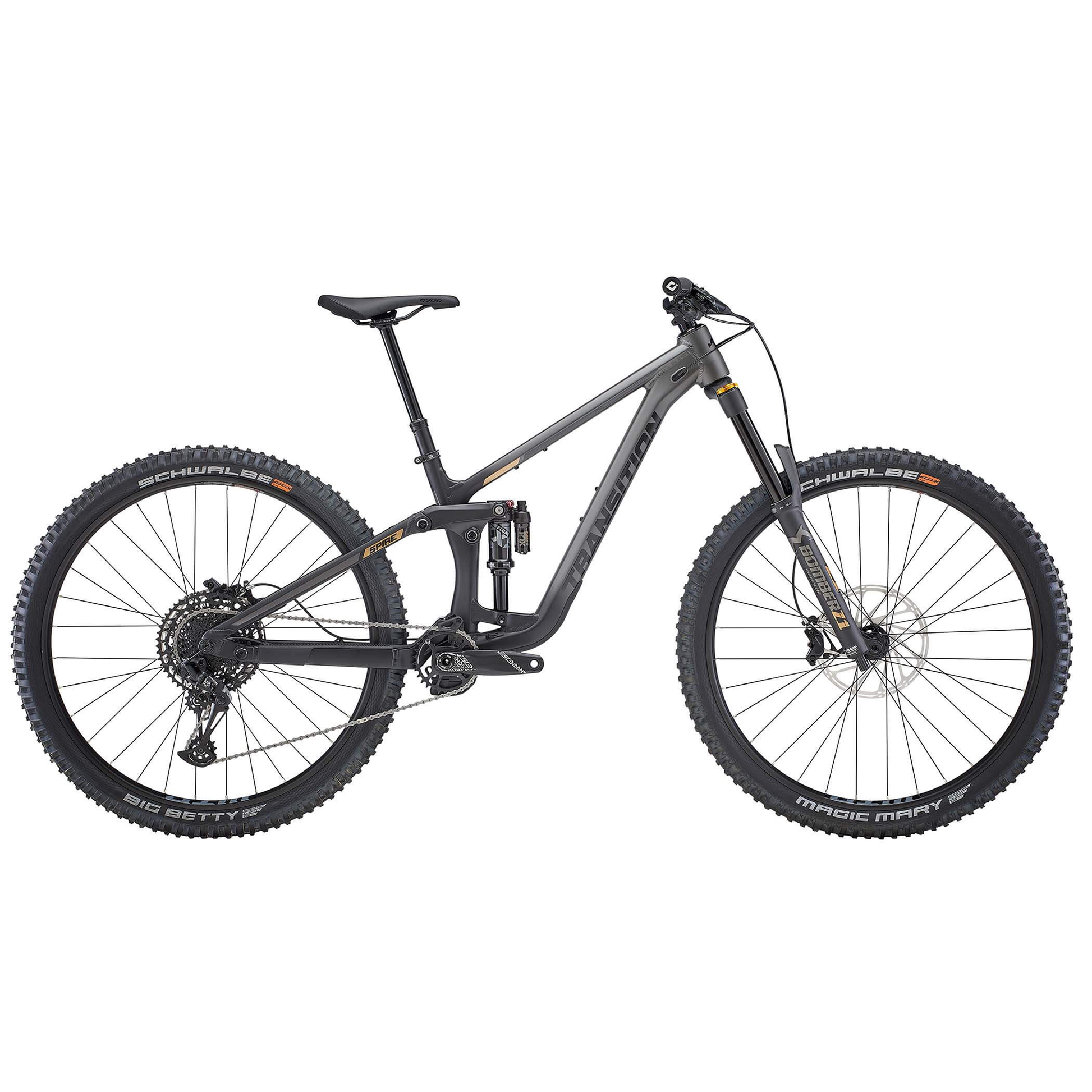

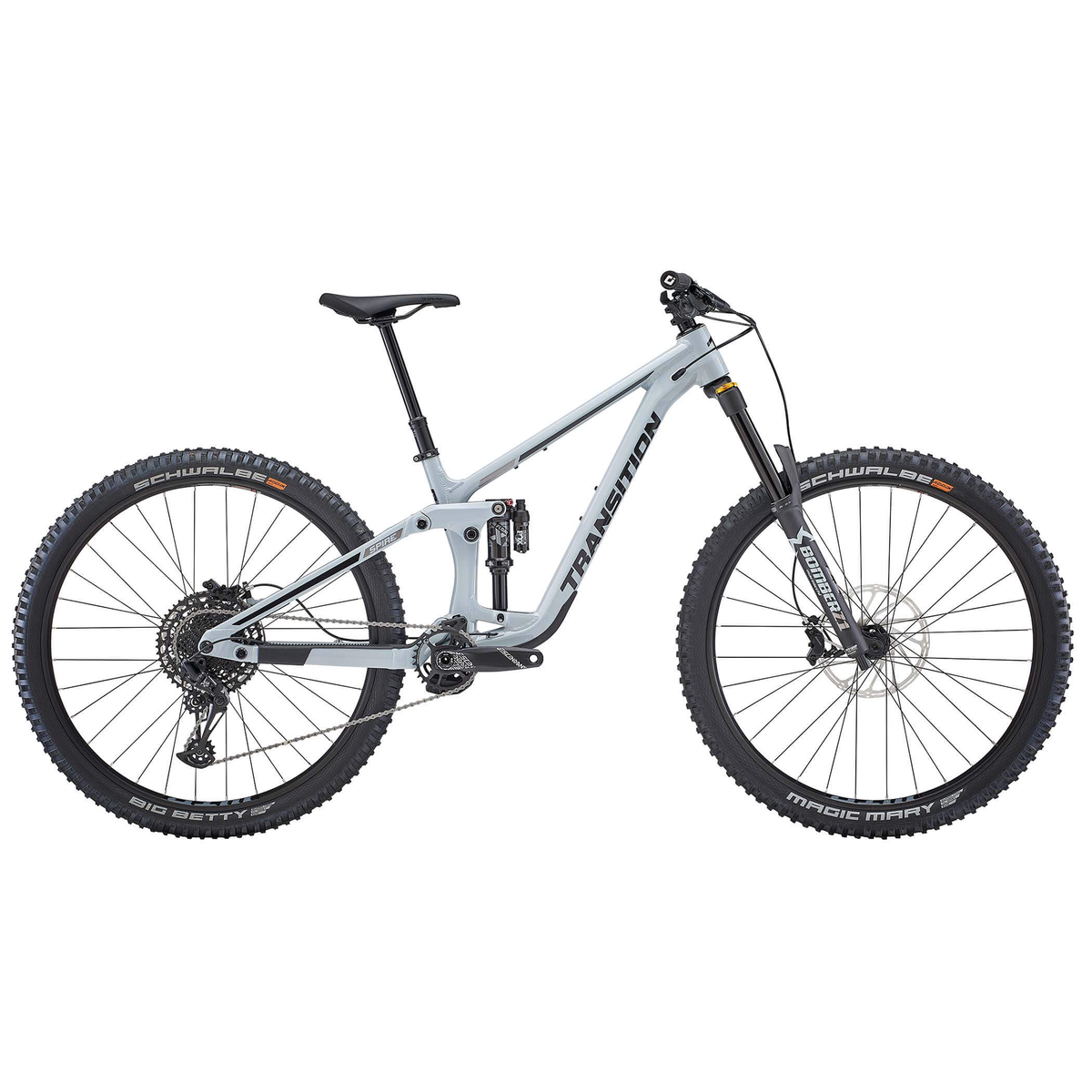

Transition Spire Alloy 2023
Transition Spire Alloy 2023
1 in stock
SKU:01.23.11.4612
The Nimble Bruiser
Take on the biggest terrain without the penalty, Long travel doesn't have to mean single purpose.
The Spire blends DH bike capability with mid-travel efficiency in such a way it's almost two bikes in one. A delicately tuned pedalling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind-bending ride. Happily climb up to your favourite challenging descent, then cruise on over to you local flow trail and you'll be rewarded on both ends of the spectrum. Don't be fooled though, while it's no on-trick-pony, the Spire lives to push you limits. Get in-Spired.
Specifications | |
---|---|
Frame | Spire Alloy 170mm |
Wheel Size | 29" |
Rear Shock | Fox Float X Performance Elite (205x65mm) |
Fork | Fox Float 38 Performance Elite |
Headset | FSA NO.55R/57 |
Stem | ANVL Swage (40mm) |
Handlebar | ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) XXL(800x40) |
Grips | ODI Elite Flow |
Saddle | SDG Bel Air 3 |
Seatpost | OneUp Dropper Post |
Brakes | TRP DH-R EVO |
Rotors | TRP R1 2.3 (223/203mm) |
Shifter | SRAM GX Eagle |
Derailleur | SRAM GX Eagle |
Cassette | SRAM XG 1275 (10-52t) |
Chain | SRAM GX Eagle |
Crank | SRAM GX Eagle DUB (30T/165mm) |
Chainguide | OneUp Bash Guide |
Rims | RaceFace Aeffect R |
Spokes | RaceFace 2.0/1.7/2.0 |
Hubs | RaceFace Trace 28H |
Tyre/Front | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) |
Tyre/Rear | Schwalbe Big Betty, Super Trail, Soft (29x2.4) |
Included | Tubeless Valves & Sealant |
Weight | TBD |
Frame Features
-
Lifetime Warranty
At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike. -
Frame Material
The Spire carbon uses premium Japanese Toray fibre using a unique latex coated EPS moulding process to create tighter edge radius control using less material. The Spire alloy features a frame made from tough and dependable heat treated 6061 aluminium to strike the right balance of strength, durability and ride quality. -
Pivot Technology
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions. -
Frame Protection
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area. -
Geo Adjust Chip
Change the attitude of the bike with a simple flip of a chip. Our high and low settings give you two very usable geo settings to suite your riding style. Our high setting is comparable to most other companies low setting so there is a high shred warning in effect. -
Size Specific Chainstays
The Spire has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes. -
Enduro Max Bearings
We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads. -
Gear Accessory Mount
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack. -
Dual Crown Fork Compatible
Both the carbon and alloy frame options are fully dual crown compatible for those wanting to dip their toes into the DH world. -
Tyre Clearance
Ample clearance for mud and tyres up to 2.6" width. -
Press-in Headset
Our ZS56/ZS56 press in headset gives you the freedom to use reach adjust and angle adjust headset for maximum adjustability. Adjustable headsets are not supplied with Spire framesets or complete bikes. -
Water Bottle Compatibility
We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.
Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.
Small High | Low | Medium High | Low | Large High | Low | Extra Large High | Low | XX Large High | Low |
|
---|---|---|---|---|---|
A. Reach | 430 | 425 mm | 460 | 455 mm | 485 | 480 mm | 510 | 505 mm | 535 | 530 mm |
B. Stack | 619 | 624 mm | 619 | 624 mm | 628 | 633 mm | 637 | 642 mm | 646 | 651 mm |
C. Effective Tt Length | 547 | 550 mm | 577 | 580 mm | 605 | 608 mm | 633 | 636 mm | 661 | 664 mm |
D. Seat Tube Length | 360 mm | 390 mm | 430 mm | 460 mm | 490 mm |
E. Effective St Angle | 79.6° | 79.1° mm | 78.8° | 78.3° | 78.1° | 77.6° | 77.5° | 77° | 77.2° | 76.7° |
Saddle Height For Effective St Angle | 600 mm | 660 mm | 720 mm | 780 mm | 820 mm |
Actual St Angle | 70.5° | 70° | 70.5° | 70° | 70.5° | 70° | 70.5° | 70° | 70.5° | 70° |
Seat Tube Offset At Bb | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
F. Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
G. Head Tube Angle | 63° | 62.5° | 63° | 62.5° | 63° | 62.5° | 63° | 62.5° | 63° | 62.5° |
H. Chainstay Length | 446 | 448 mm | 446 | 448 mm | 446 | 448 mm | 452 | 454 mm | 452 | 454 mm |
I. Wheelbase | 1227 | 1229 mm | 1257 | 1259 mm | 1287 | 1289 mm | 1322 | 1324 mm | 1352 | 1354 mm |
J. Bottom Bracket Drop | 25 | 32 mm | 25 | 32 mm | 25 | 32 mm | 25 | 32 mm | 25 | 32 mm |
K. Estimated Bb Height | 350 | 343 mm | 350 | 343 mm | 350 | 343 mm | 350 | 343 mm | 350 | 343 mm |
L. Stand Over Height | 685 | 680 mm | 700 | 695 mm | 715 | 710 mm | 730 | 725 mm | 745 | 740 mm |
M. Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
Giddy Up Suspension Design
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.
With nearly 23% progression and the most current evolution of our GiddyUp suspension kinematic, the Spire has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.
The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Spire has 170mm of rear wheel travel when used with the supplied 205mm x 65mm stroke shock. It is also possible to install a shorter, 205mm x 60mm stroke shock to decrease the rear wheel travel to 160mm if you are after a shorter travel experience.
A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
