Unno BURN Factory

Every now and then a brand comes along that just flippin knocks your riding socks off, with epic styling, perfect ride characteristics, awesome features and a deep racing heritage and Unno is the pinnacle of one of those brands!

Cesar Rojo's company Cero is a carbon design house that make and design high end components for some of the world biggest brands from KTM, Sram, Huskvana to Mondraker, Felt and many others.

Unno caught our eye as an ideal Brink brand way back in 2015 and we are now finally able to bring you the worlds finest mountain bikes from the foothills of Barcelona!

The BURN Factory

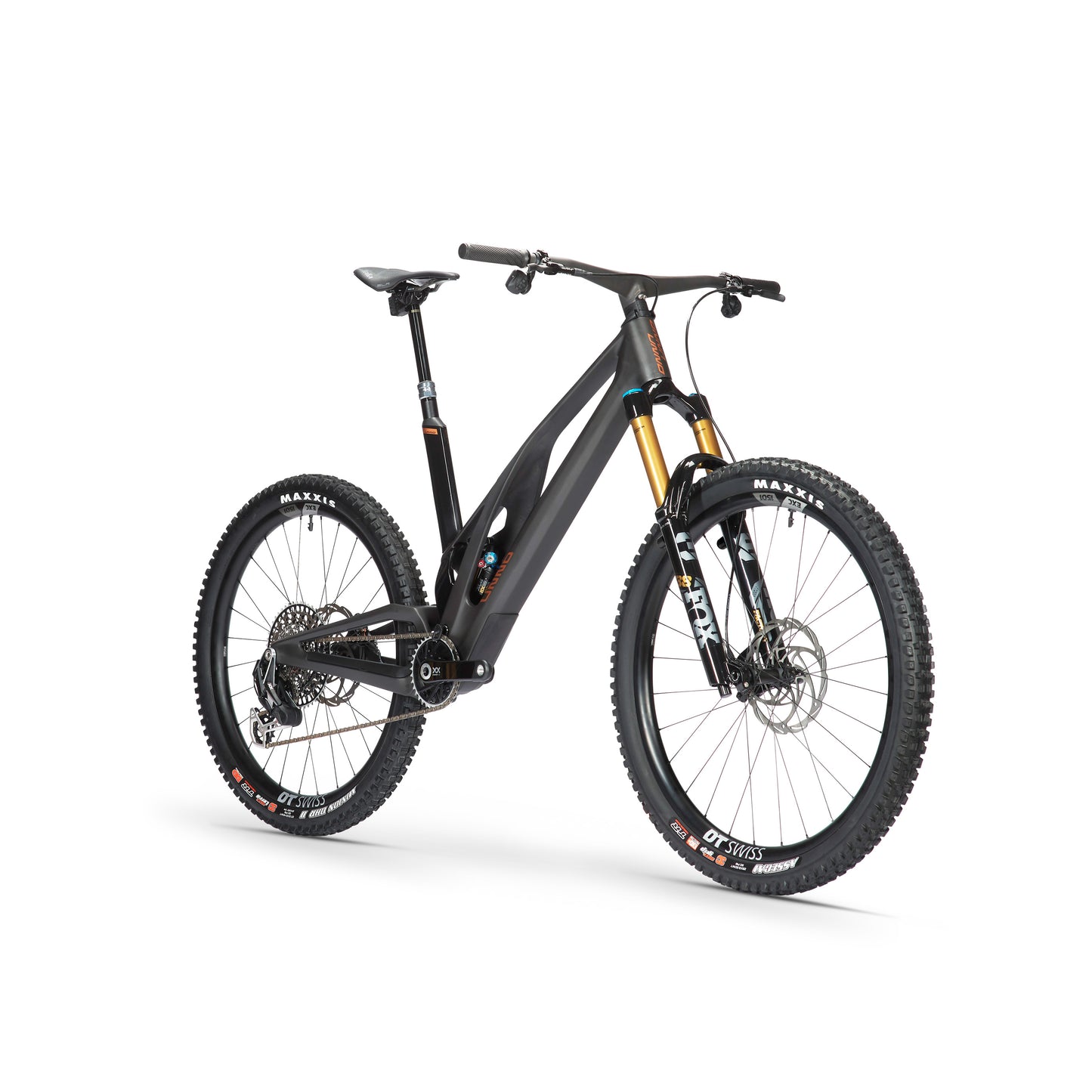

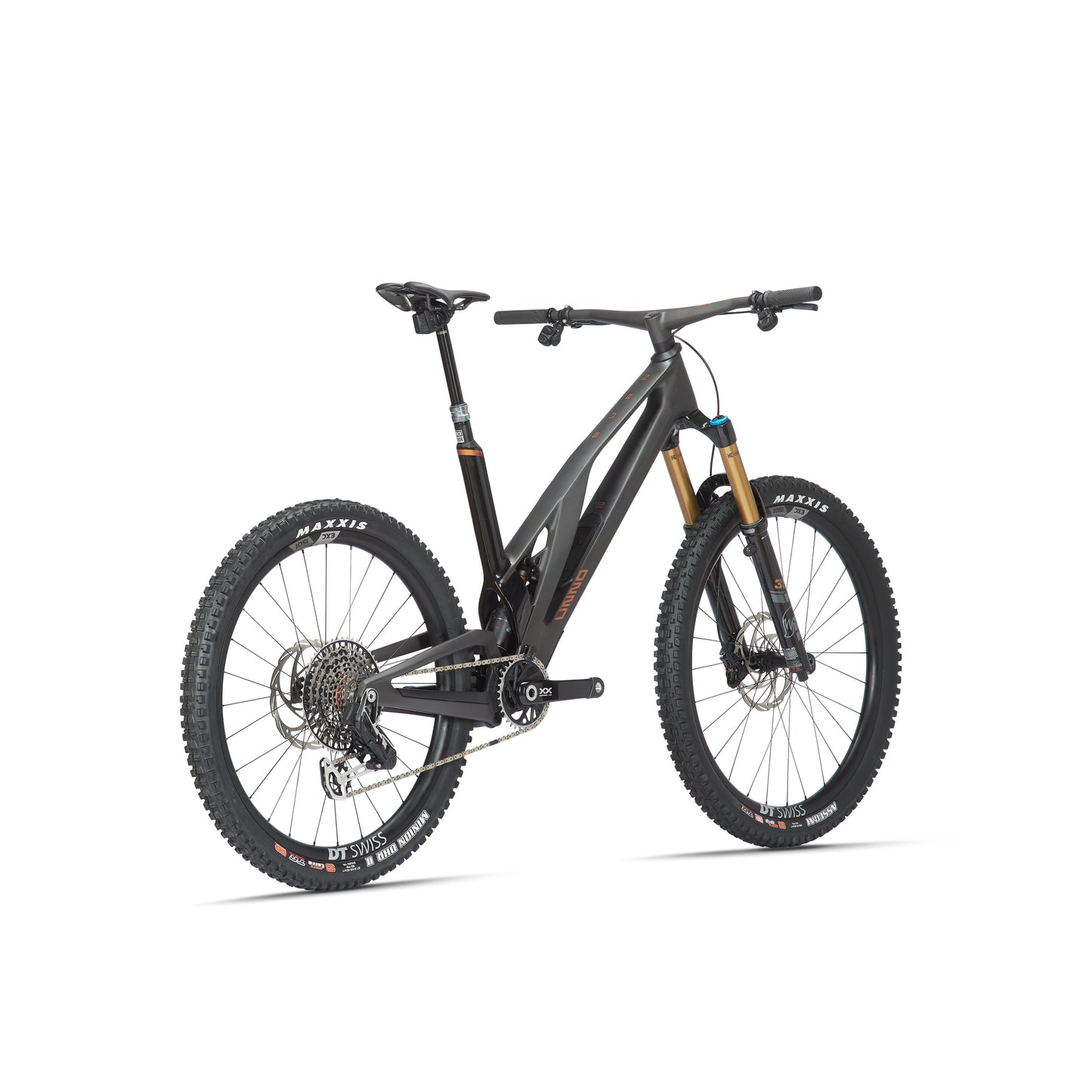

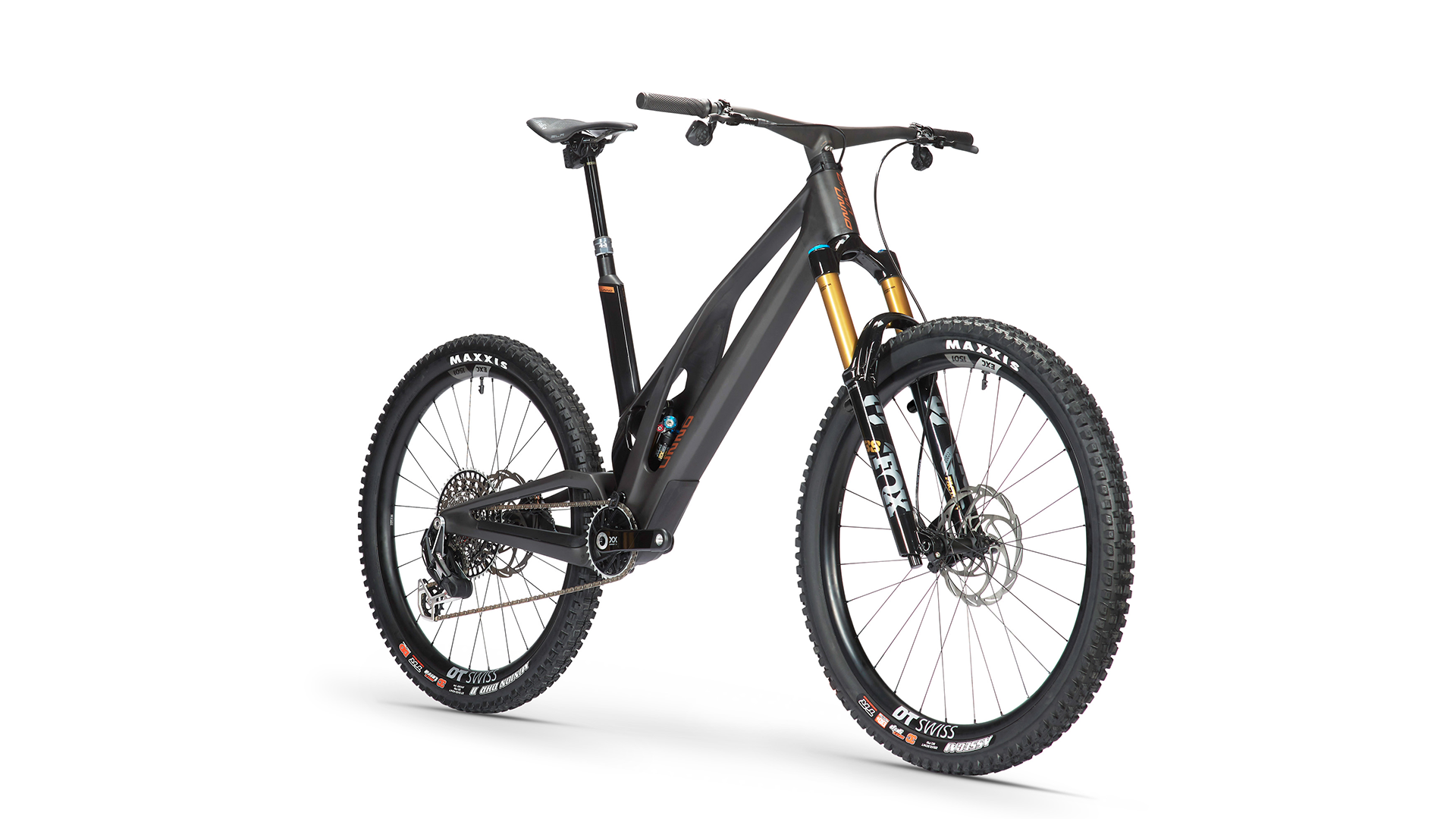

​The Unno BURN Factory is the pinnacle of Unno's enduro mountain bike lineup, meticulously designed for riders seeking top-tier performance and exclusivity.

This model features a carbon fibre monocoque frame with 160mm of rear travel, utilising a virtual pivot suspension system for optimal responsiveness.

It incorporates integrated components such as a chain guide, seat tube clamp, and frame storage, all while supporting a maximum tire width of 2.6 inches.

Emphasising sustainability, the frame includes Oceanworks recycled plastic parts and recycled rubber protectors.

Frame & Suspension

• Frame: Carbon fibre monocoque, 160mm rear travel, virtual pivot suspension, motor protector, Boost 12x148 axle, internal cable routing, recycled materials.

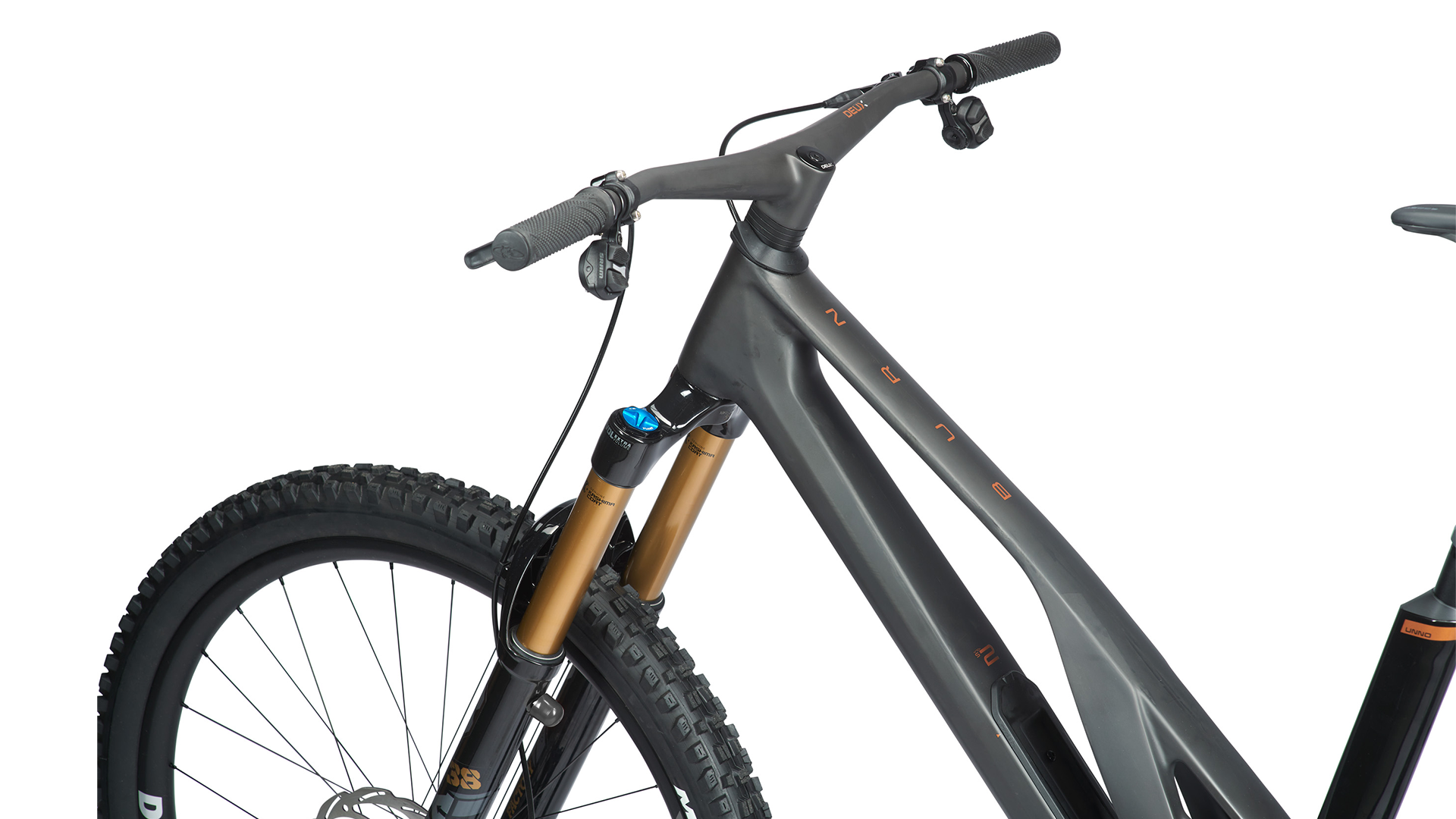

• Fork: Fox 38 Factory (170mm travel, Kashima coating, Grip 2 damper, adjustable HSC, LSC, HSR, LSR).

• Shock: Fox Float X2 Factory (230x65mm, Kashima coating, VVC Rebound, adjustable HSC, LSC, HSR, LSR).

Drivetrain

• Derailleur: SRAM XX AXS (12-speed, wireless, T-Type, 450g).

• Controller: SRAM AXS Pod Ultimate (wireless, 12-speed, concave design).

• Cassette: SRAM XX T-Type XS-1297 (12-speed, 520% range, 10-52T, 385g).

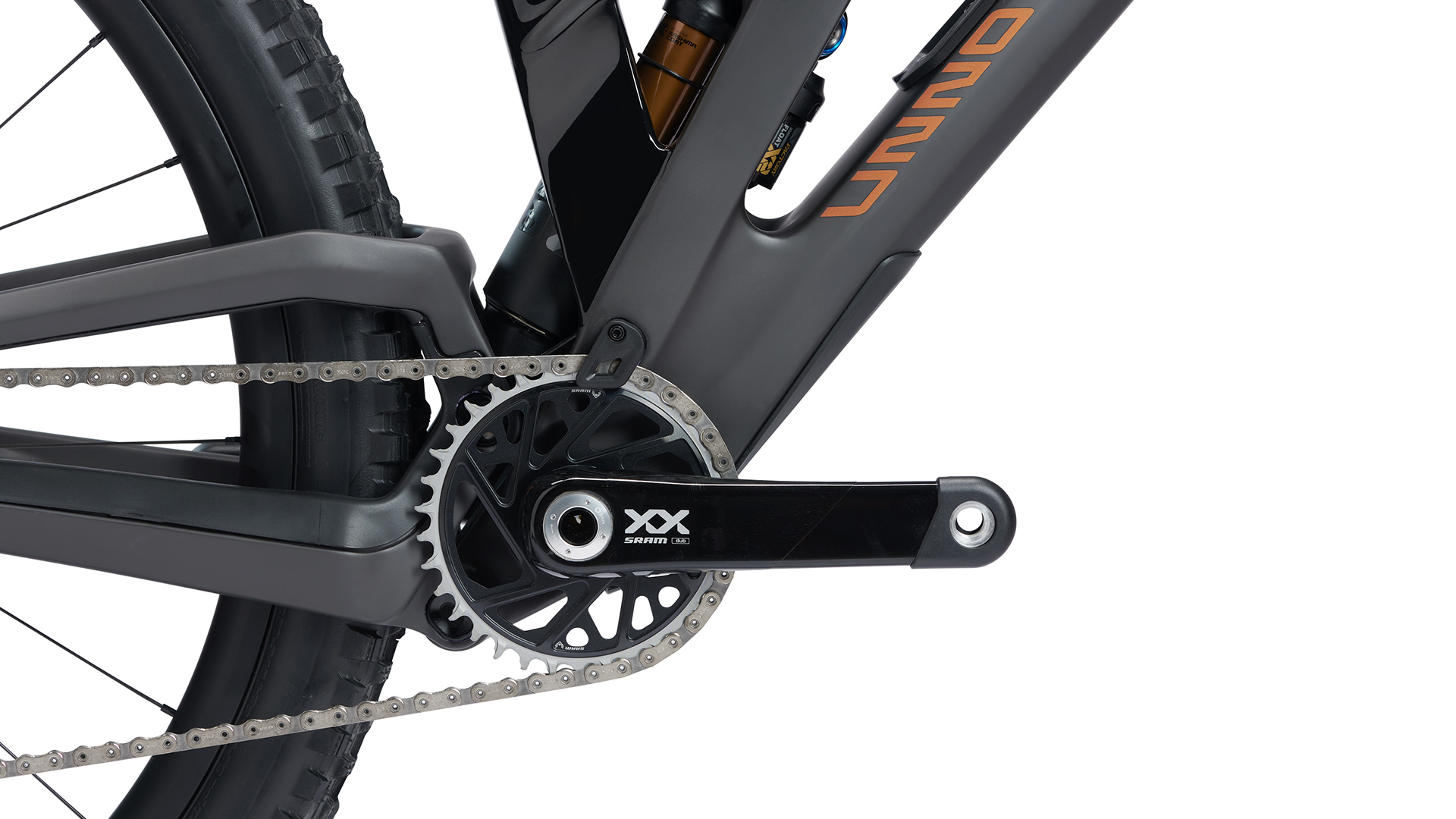

• Crankset: SRAM XX (12-speed, carbon, 170mm).

• Chain: SRAM XX (12-speed, flat top, hollow pin).

Wheels & Tires

• Wheels: DT Swiss HXC1501 Spline (Carbon, Mullet: 29" front, 27.5" rear, DT 240 hub, 30mm inner width).

• Front Tire: Continental Kryptotal-F Enduro (29x2.40, foldable).

• Rear Tire: Continental Kryptotal-R Enduro (27.5x2.40, foldable).

Brakeset

• Brakes: Formula Cura 4 (4-piston calipers, sintered pads).

• Rotors: Formula Monolitic (203mm front & rear, 2.35mm thick).

Cockpit & Seat

• Handlebar/Stem: DEUX Enduro Integrated (800mm width, 40mm length, 20mm rise).

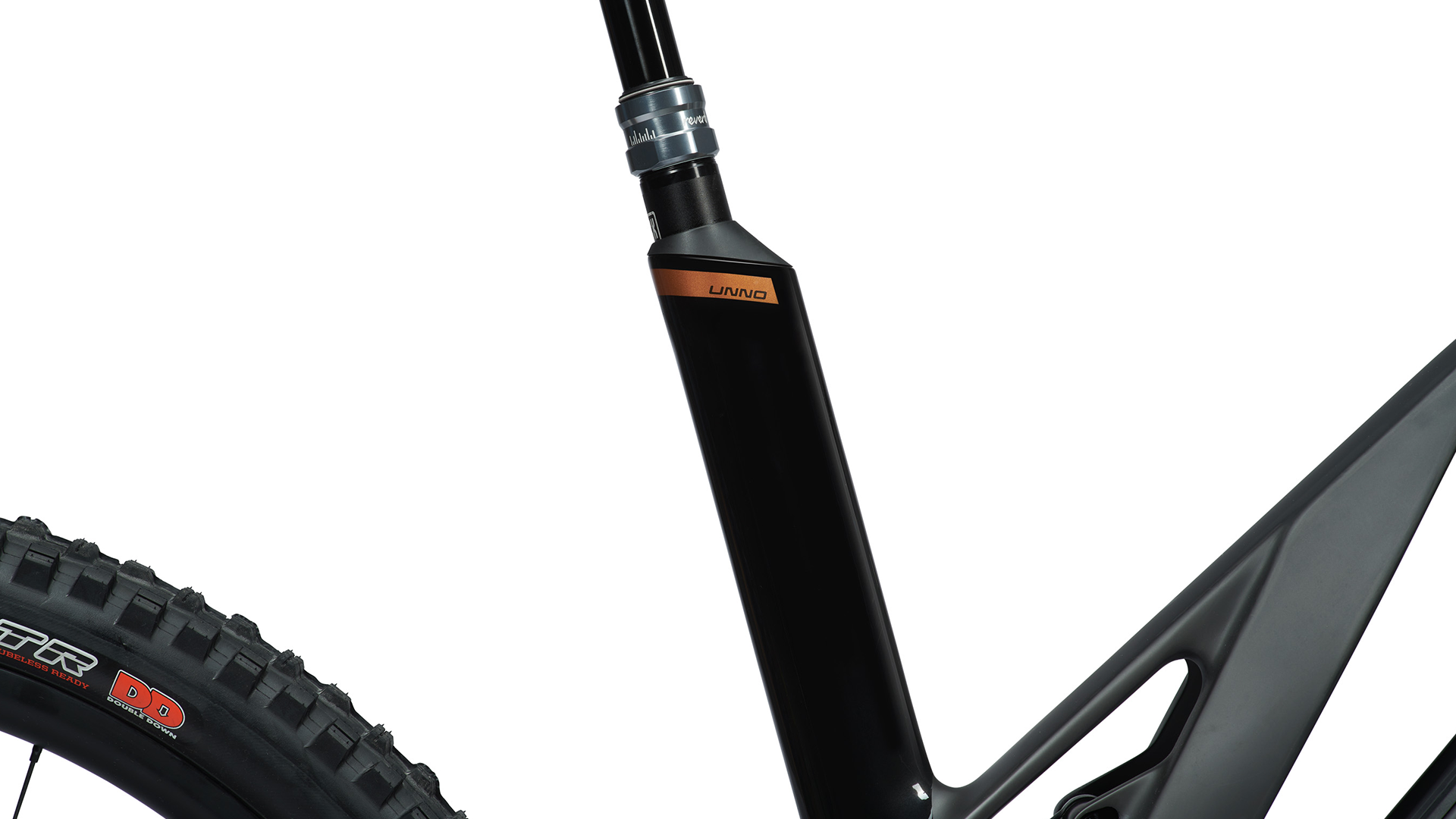

• Dropper Post: RockShox Reverb AXS (electronic, 125mm for S1, 150mm for S2, 175mm for S3).

• Saddle: Selle Italia SLR Boost Kit Carbon.
