Unno DASH Elite

Every now and then a brand comes along that just flippin knocks your riding socks off, with epic styling, perfect ride characteristics, awesome features and a deep racing heritage and Unno is the pinnacle of one of those brands!

Cesar Rojo's company Cero is a carbon design house that make and design high end components for some of the world biggest brands from KTM, Sram, Huskvana to Mondraker, Felt and many others.

Unno caught our eye as an ideal Brink brand way back in 2015 and we are now finally able to bring you the worlds finest mountain bikes from the foothills of Barcelona!

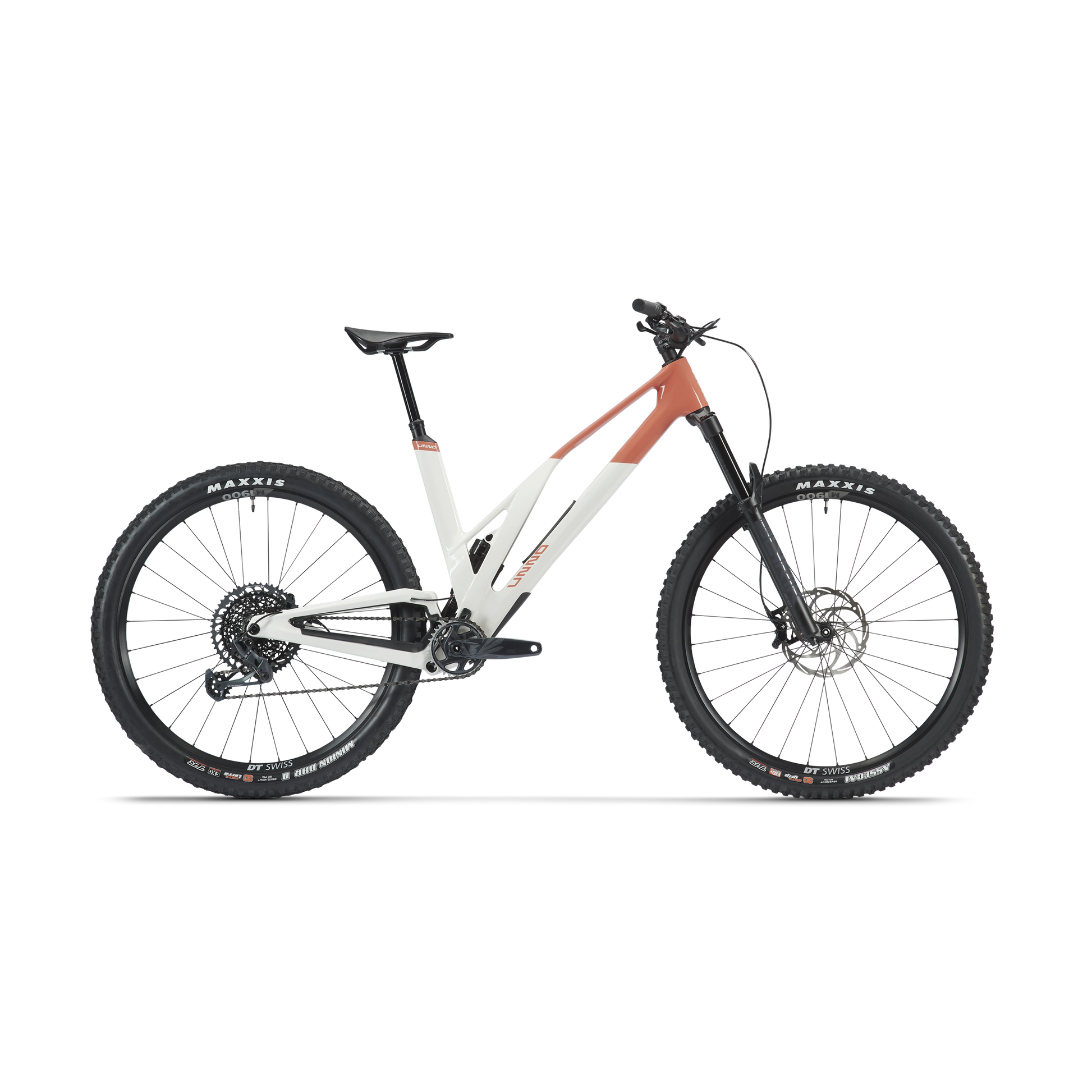

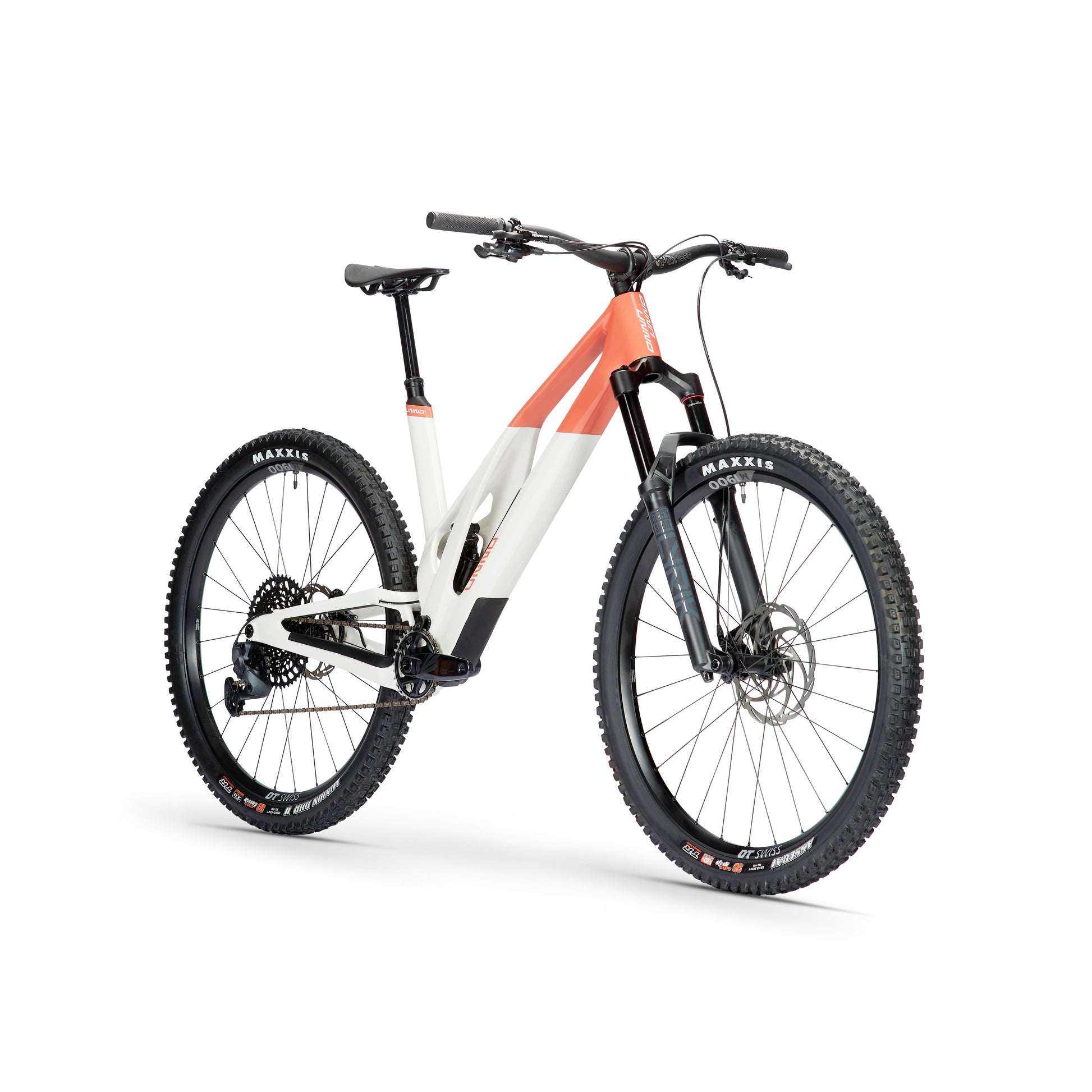

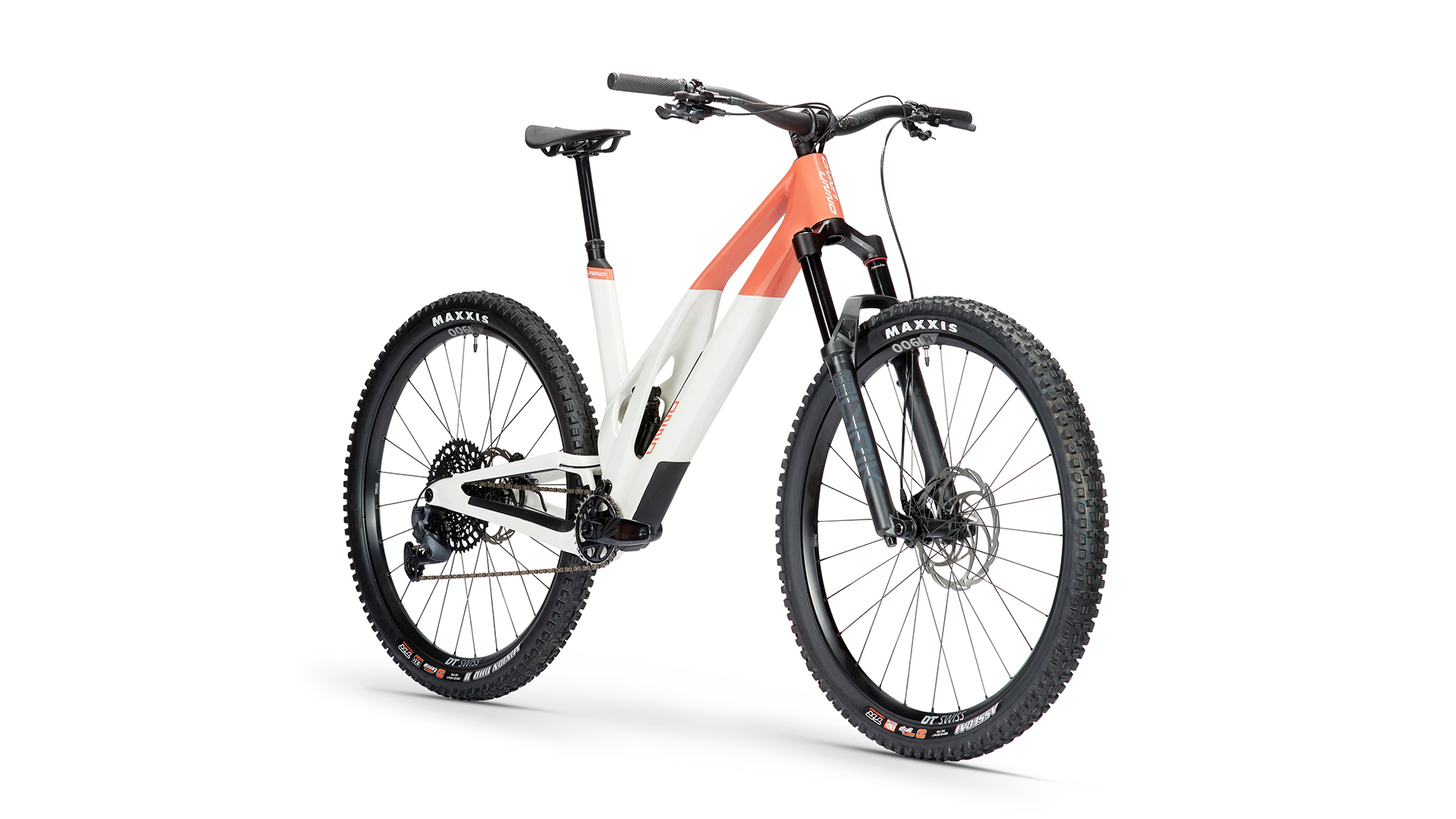

The DASH Elite

​The Unno DASH Elite is a high-performance trail bike designed for riders seeking a blend of agility and durability.

Its carbon fibre monocoque frame offers 140mm of rear travel and features a virtual pivot suspension system, integrated chain guide, and seat tube clamp.

The frame also includes internal storage, EnduroMAX Bearings, internal cable routing, and supports a maximum tire width of 2.6".

Notably, it incorporates Oceanworks recycled plastic parts and recycled rubber protectors, emphasizing environmental responsibility.

Frame

• Material: Carbon fibre monocoque

• Suspension: 140mm rear travel, virtual pivot system

• Features: Integrated chain guide & seat tube clamp, downtube protector, internal cable routing, Boost 12x148 axle

• Sustainability: Oceanworks recycled plastic, recycled rubber protectors

• Max Tire Width: 2.6”

Suspension

• Fork: RockShox Lyrik Select (150mm travel, DebonAir, Boost 15x110mm axle)

• Shock: RockShox Superdeluxe Select (230x57.5mm, DebonAir)

Drivetrain

• Derailleur: SRAM GX Eagle (12-speed, mechanical)

• Cassette: SRAM GX XG 1275 (12-speed, 10-50T, 500% range)

• Crankset: SRAM GX Eagle (Alloy, Lunar, 12-speed, 32T chainring)

• Trigger: SRAM GX Eagle (12-speed, mechanical)

• Chain: SRAM GX Eagle (120 links, solid pin)

Wheels & Tires

• Wheels: DT Swiss M1900 Spline (29", DT 370 hub, 30mm inner width)

• Front Tire: Continental Kryptotal-F Trail (29x2.40, trail endurance)

• Rear Tire: Continental Kryptotal-R Trail (29x2.40, trail endurance)

Brakeset

• Brakes: Formula Cura 4 (4-piston calipers, sintered pads)

• Rotors: Formula Monolitic (203mm front, 180mm rear, 2.35mm thick)

Cockpit & Seat

• Dropper Post: OneUp V3 (120mm for S1, 150mm for S2, 180mm for S3)

• Handlebar & Stem: E*Thirteen Base (Alloy, 35mm)

• Saddle: Selle Italia SLR Boost
