Unno

Unno HORN Factory SL

Unno HORN Factory SL

Regular price £10,295.00
Regular price Sale price £10,295.00
Sale Sold out
Taxes included.
Size
Colour

Low stock: 2 left

SKU:HO02S1CAEU03

Loading locations...

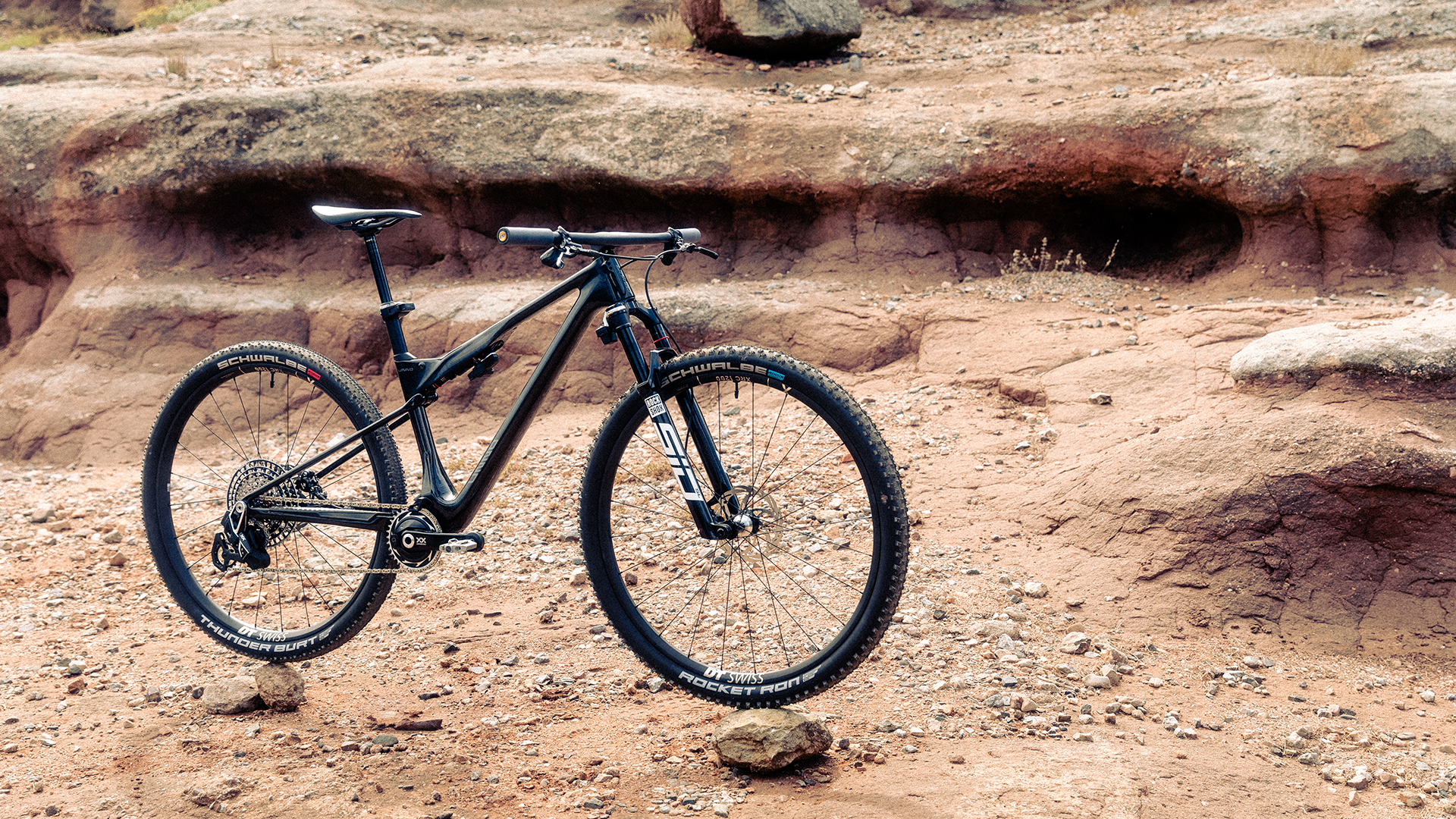

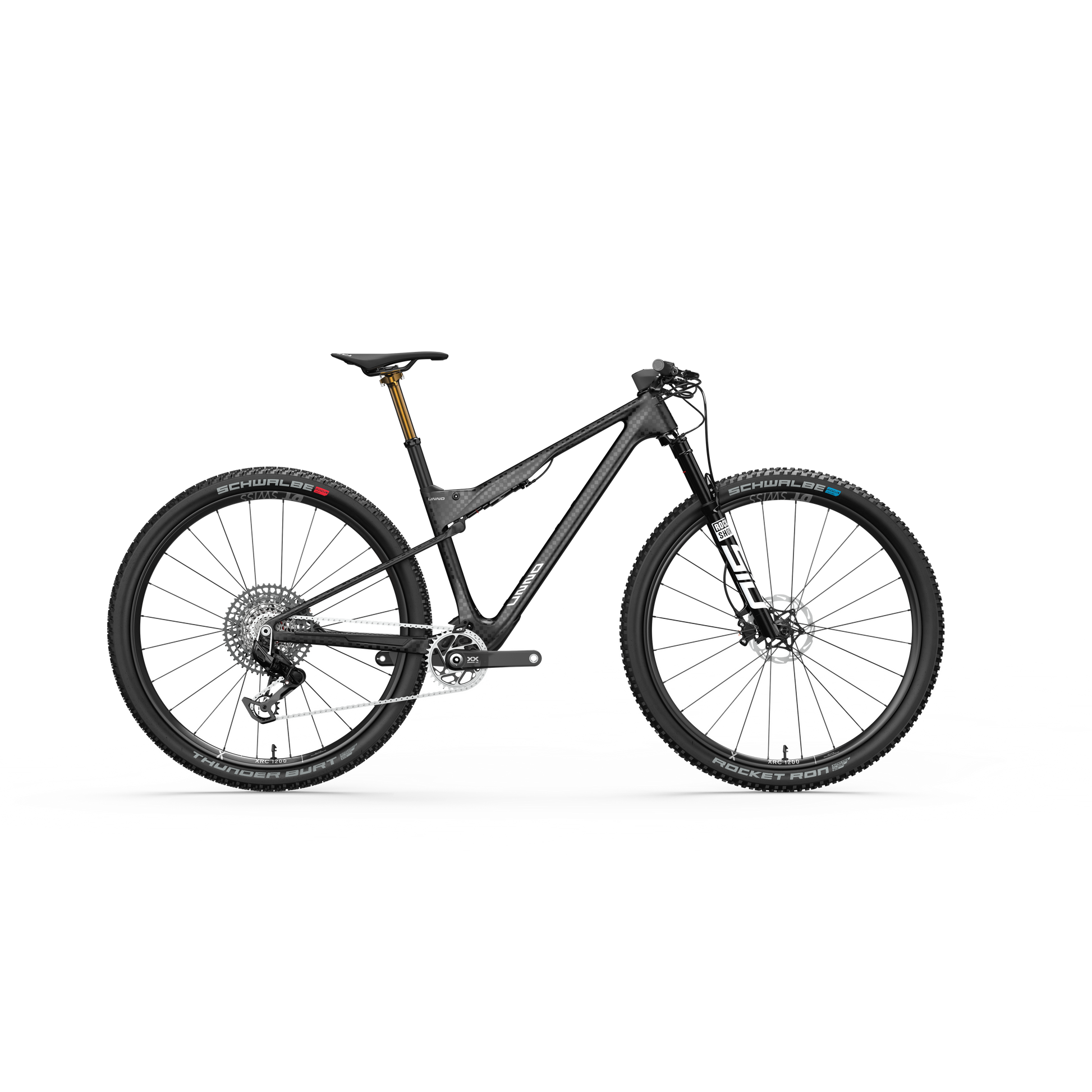

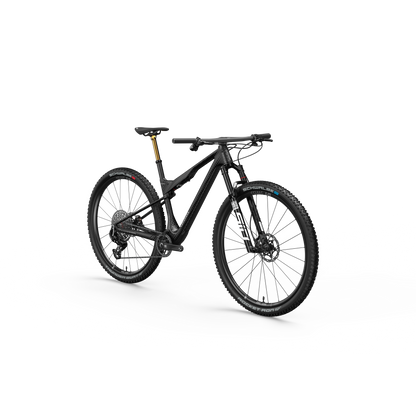

UNNO HORN FACTORY

Elite XC Performance. Pure Carbon Efficiency.

The UNNO HORN FACTORY is a no-compromise cross-country race weapon—crafted with UNNO’s signature carbon frame and a world-class spec built for serious speed. Engineered in Barcelona and shaped by a race-focused mindset, the FACTORY model delivers the ideal balance of low weight, efficient travel, and pinpoint control.

Featuring 110mm of front and rear suspension, a full SRAM XX SL T-Type AXS drivetrain, carbon DT Swiss wheels, and a premium FOX dropper post, this bike is born for the podium. Fast, refined, and aggressive, the FACTORY version is built for elite riders who want every possible edge.


Specifications

The frame is the UNNO HORN, built using T800 and T1100 carbon fiber and offering 110mm of travel through the brand’s proprietary XC suspension platform. It features an aggressive race-oriented geometry, threaded bottom bracket, internal cable routing, integrated rear fender, chain guide, and seat clamp. The rear spacing is 12x148mm Boost and is UDH compatible.

The headset is an ACROS Block-Lock system with 135° steering limit, paired with CANE CREEK spacers.

The fork is a RockShox SID SL Ultimate with 110mm of travel, and the rear shock is a RockShox SID Luxe Ultimate sized 190x37.5mm. Lockout is managed via a RockShox TwistLoc Ultimate remote with a 3-position setup.

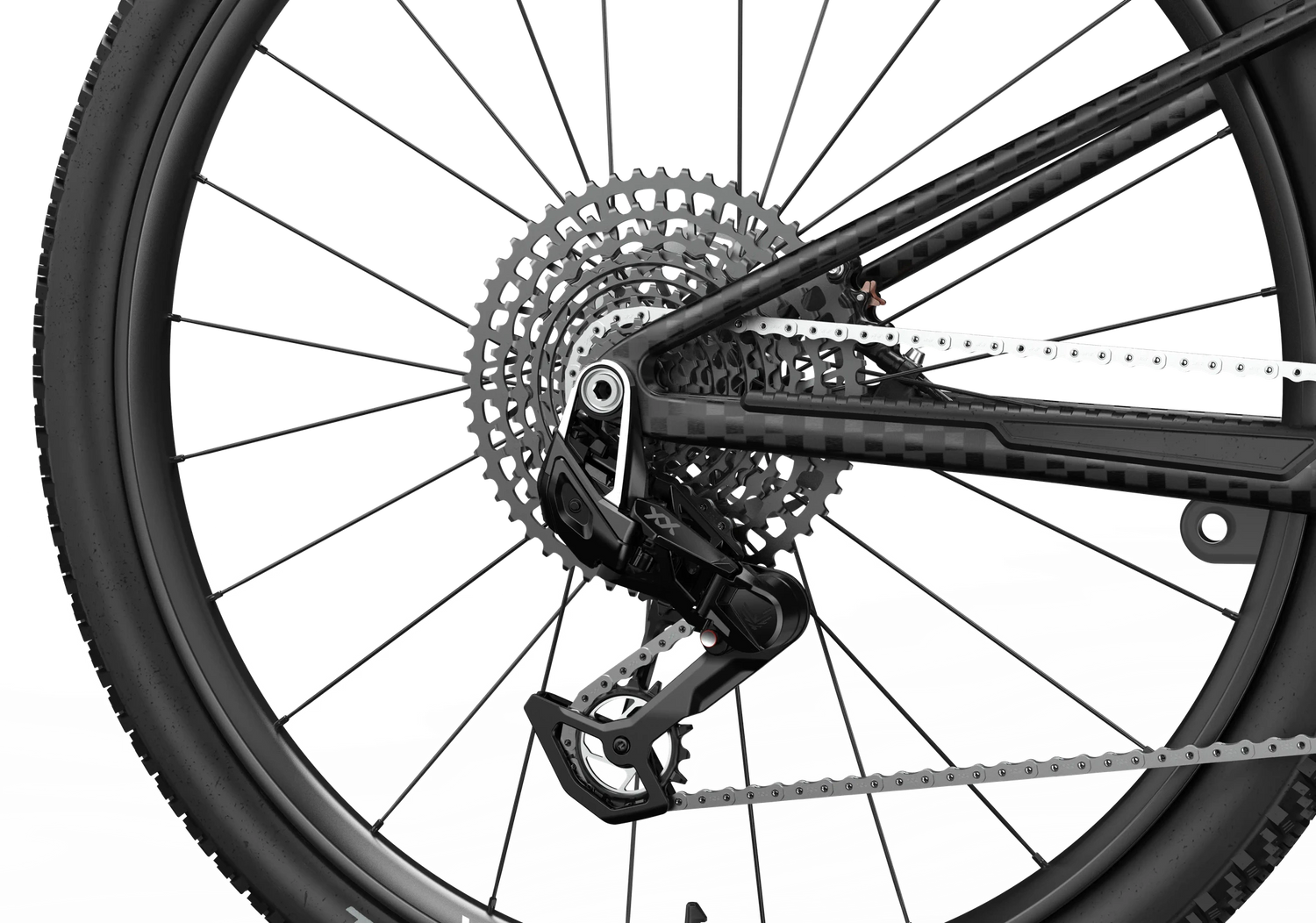

The drivetrain features a full SRAM XX SL Eagle AXS T-Type 12-speed system. The crankset is the SRAM XX SL with spider power meter, Q174 spacing, and 170mm arms. The cassette is the XS-1299 10-52T, and it runs a 12-speed flat-top XX SL chain (118 links). Shifting is controlled via the SRAM AXS Pod with discrete clamp. The chainring is a SRAM 34T.

The wheelset is DT Swiss XRC 1200, 29” with Center Lock hubs, delivering top-end stiffness and lightweight performance. Tyres are Schwalbe Racing Series Evo TLE, with a Rocket Ron 29x2.25" on the front and a Thunder Burt 29x2.25" on the rear, both with Super Ground casings.

Braking is provided by Formula Cura X brakes, equipped with 160mm Formula rotors front and rear.

The cockpit features a DEUX XC integrated carbon handlebar and stem combo, measuring 760mm wide with a 60mm stem. The dropper post is a FOX Transfer SL Factory Series with Kashima coating, sized at 31.6mm diameter and offering 125mm of travel. The saddle is a Fizik Vento Antares 00, engineered for lightweight racing support.

View full details
  • Frame material

    Carbon

  • Wheelsize

    29

  • Front travel

    120mm

  • Rear travel

    110mm

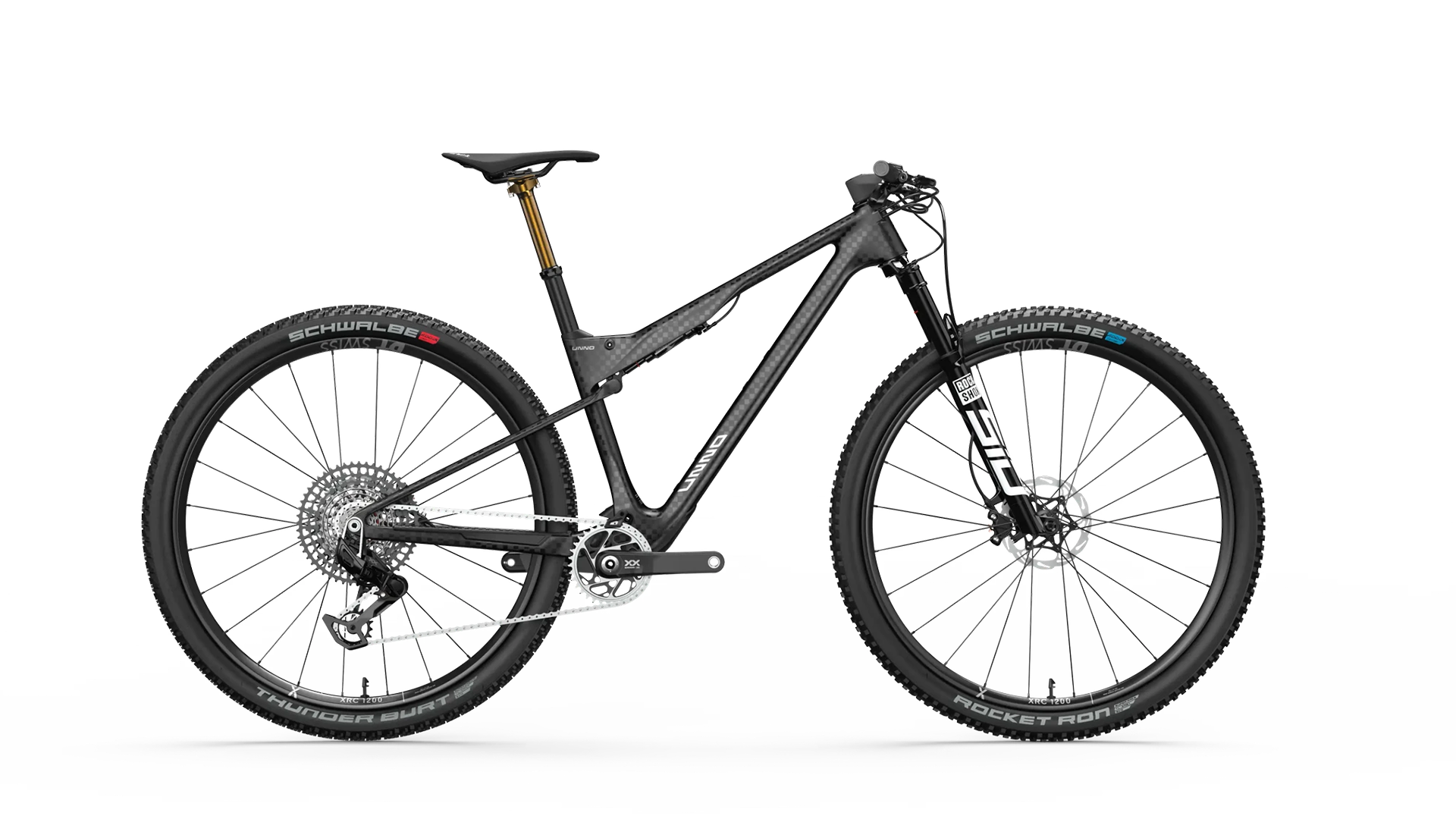

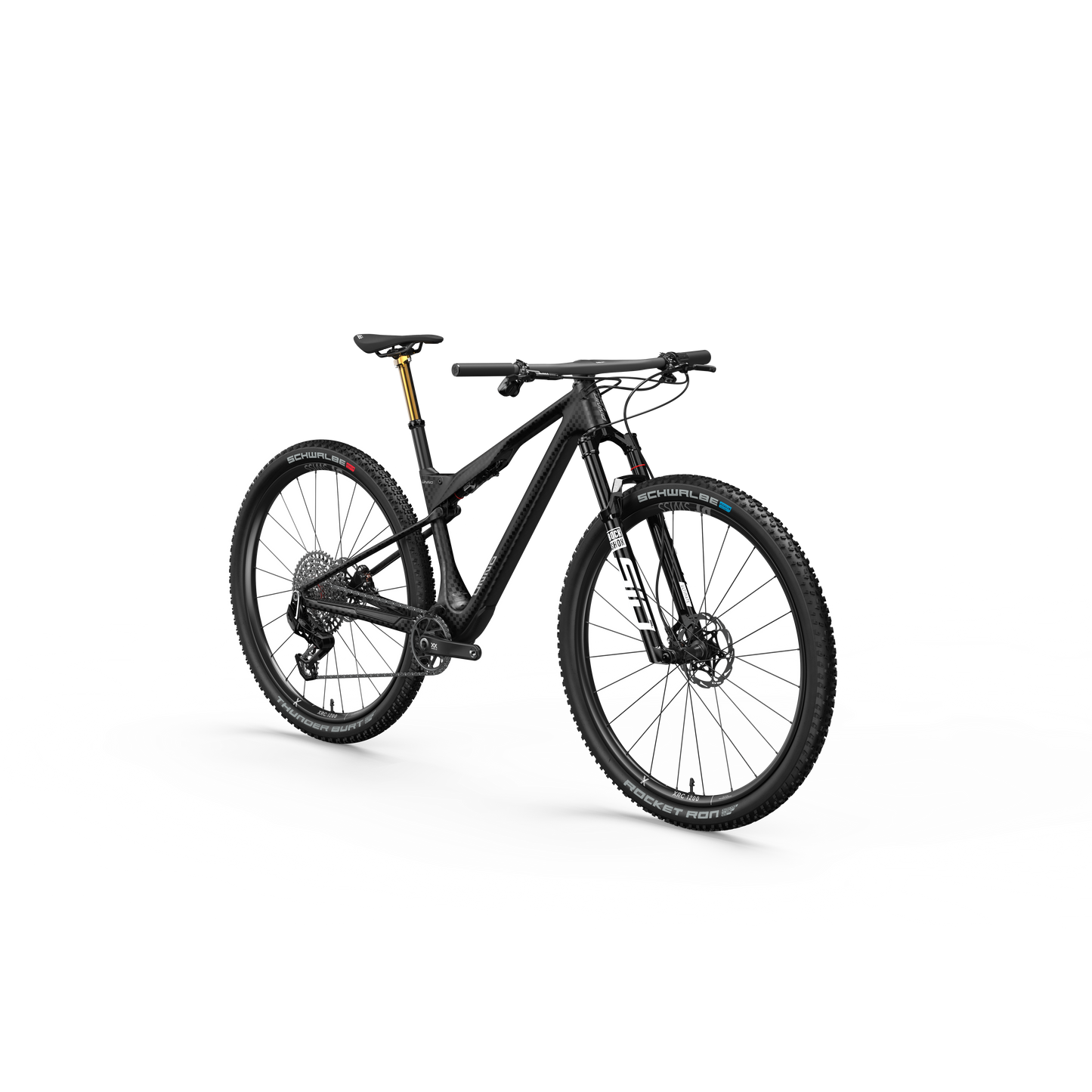

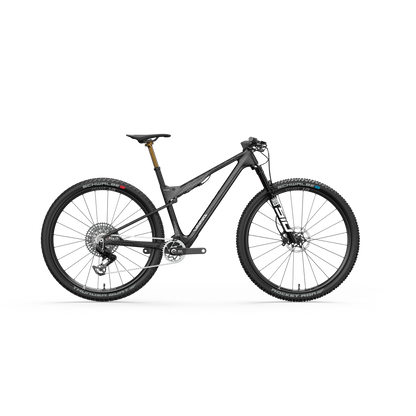

  • 2025 Unno Horn Factory SL

    Frame

    Unno HM Carbon T800 and T1100

    Fork

    ROCKSHOX SID SL Ultimate, 110mm

    Shock

    ROCKSHOX SID LUXE Ultimate, 190x37.5mm

    Handlebar

    Unno DEUX XC Integrated 760mm HM Carbon

    Stem

    Unno DEUX XC Integrated 60mm HM Carbon

    Headset

    ACROS Block-Lock

    Brakes

    FORMULA Cura X

    Front rotor

    FORMULA 160mm

    Rear rotor

    FORMULA 160mm

    Shifter

    SRAM AXS Pod Discrete Clamp

    Rear derailleur

    SRAM XX SL Eagle AXS. T-Type transmission. 12 speed

    Crankset

    SRAM - XX SL Spider Power Meter Q174, 170mm

    Bottom bracket

    SRAM Dub

    Cassette

    SRAM - XX SL XS 1299. 12 speed. 10-52t

    Chain

    SRAM - XX SL T-Type 118 links. Flat top. 12 speed

    Seatpost

    FOX Transfer SL 31.6mm - 125mm, Factory Series, Kashima

    Saddle

    FIZIK Vento Antares 00

    Front hub

    DT SWISS XRC 1200 29”, Center Lock

    Rear hub

    DT SWISS XRC 1200 29”, Center Lock

    Spokes

    DT SWISS

    Rims

    DT SWISS XRC 1200 29”

    Rear rim

    DT SWISS XRC 1200 29”

    Front tyre

    SCHWALBE Rocket Ron Evo, Super Ground, TLE, 29” x 2.25”

    Rear tyre

    SCHWALBE Rocket Ron Evo, Super Ground, TLE, 29” x 2.25”

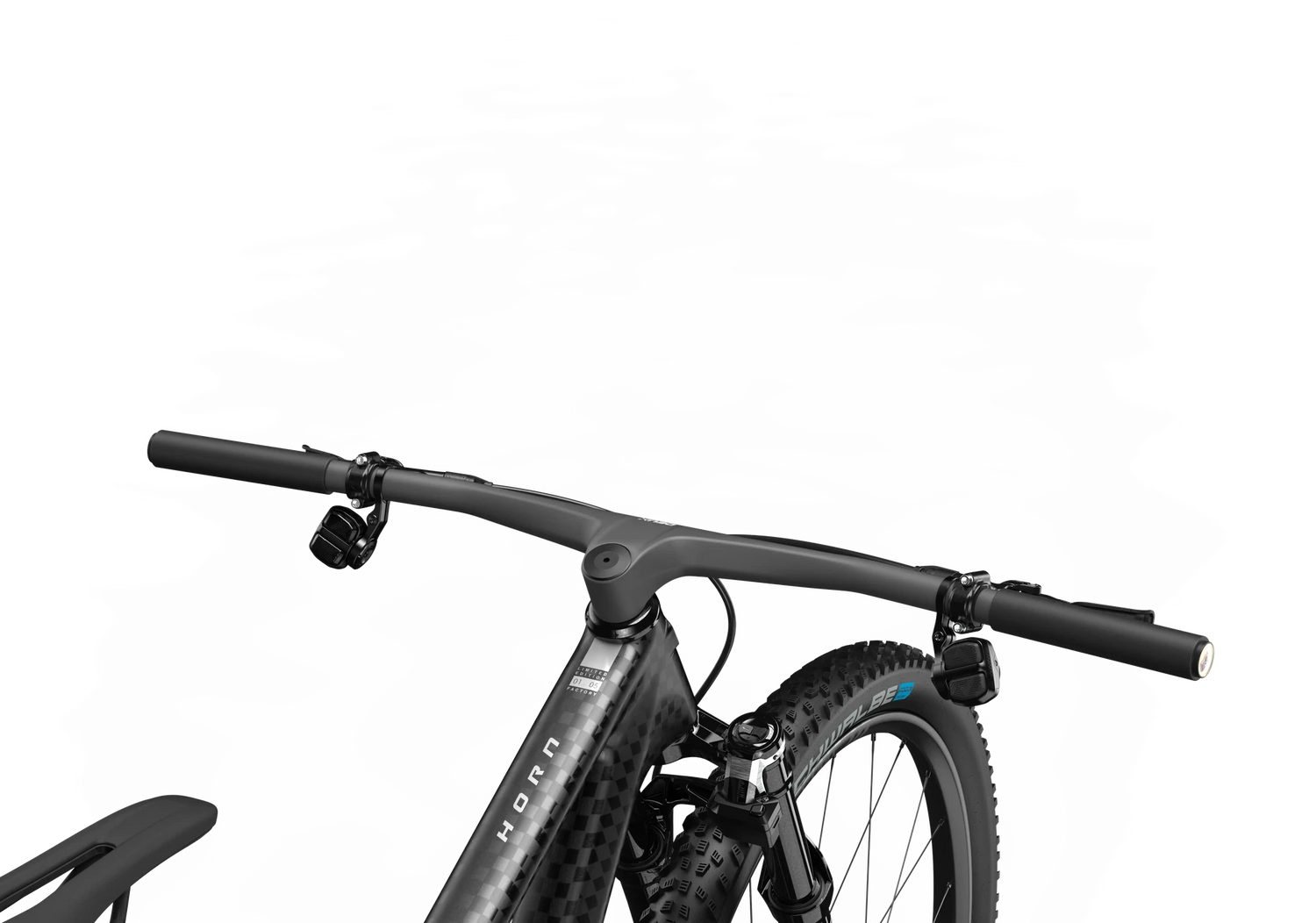

Integrated cockpit

Unno DEUX XC Integrated cockpit gives you perfect control and comfort on the 760mm HM carbon bar and 60mm stem with minimum weight.

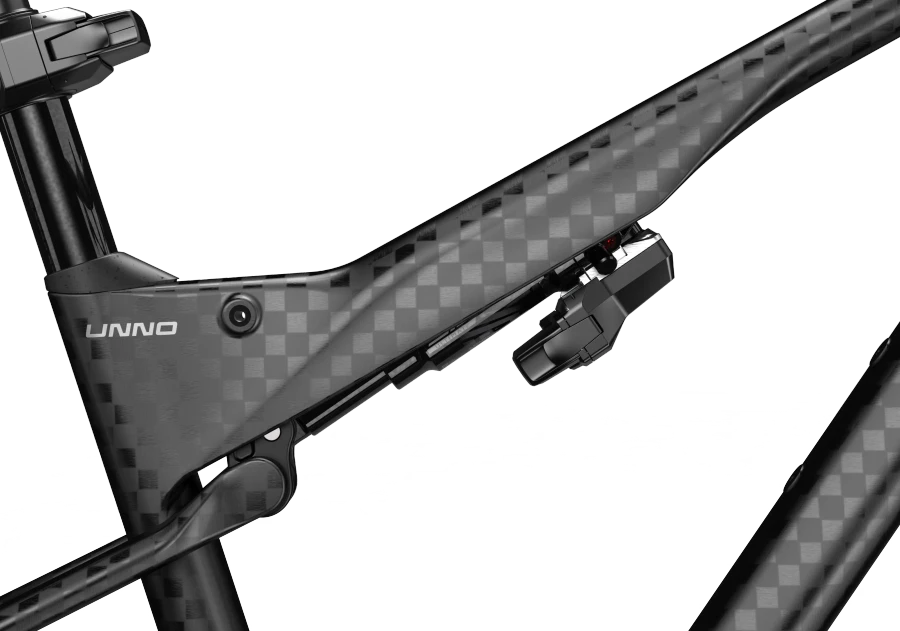

Custom shock Tune

A specially tuned shock provides enough ramp-up at the end to avoid harsh bottom-outs, and a neutral anti-squat allows you to ride with the shock fully open, maximizing traction on challenging terrain.

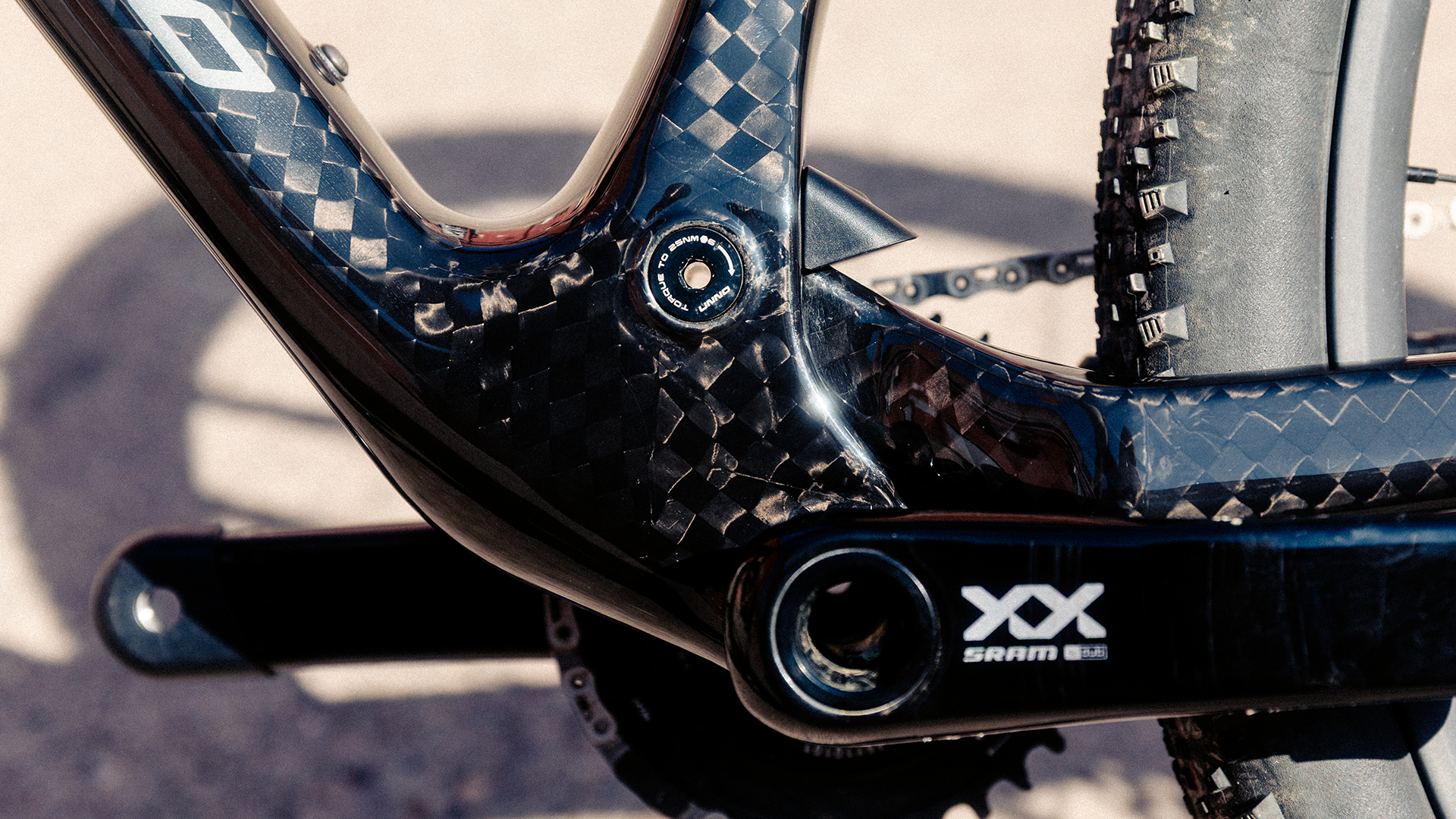

Flex Stays

Flex-stays design saves weight by eliminating a rear pivot with bearings and hardware, without compromising suspension sensitivity.
