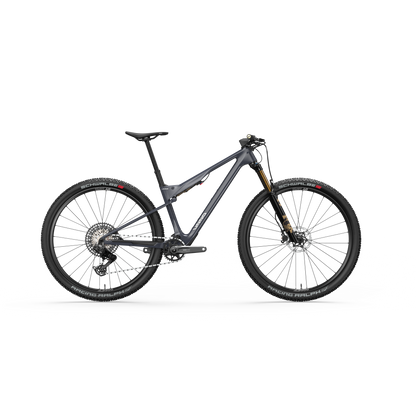

files/04_RACE_0d19bb19-80f3-4206-8648-1cd8168db76e.png
11:26 PM
Couldn't load pickup availability

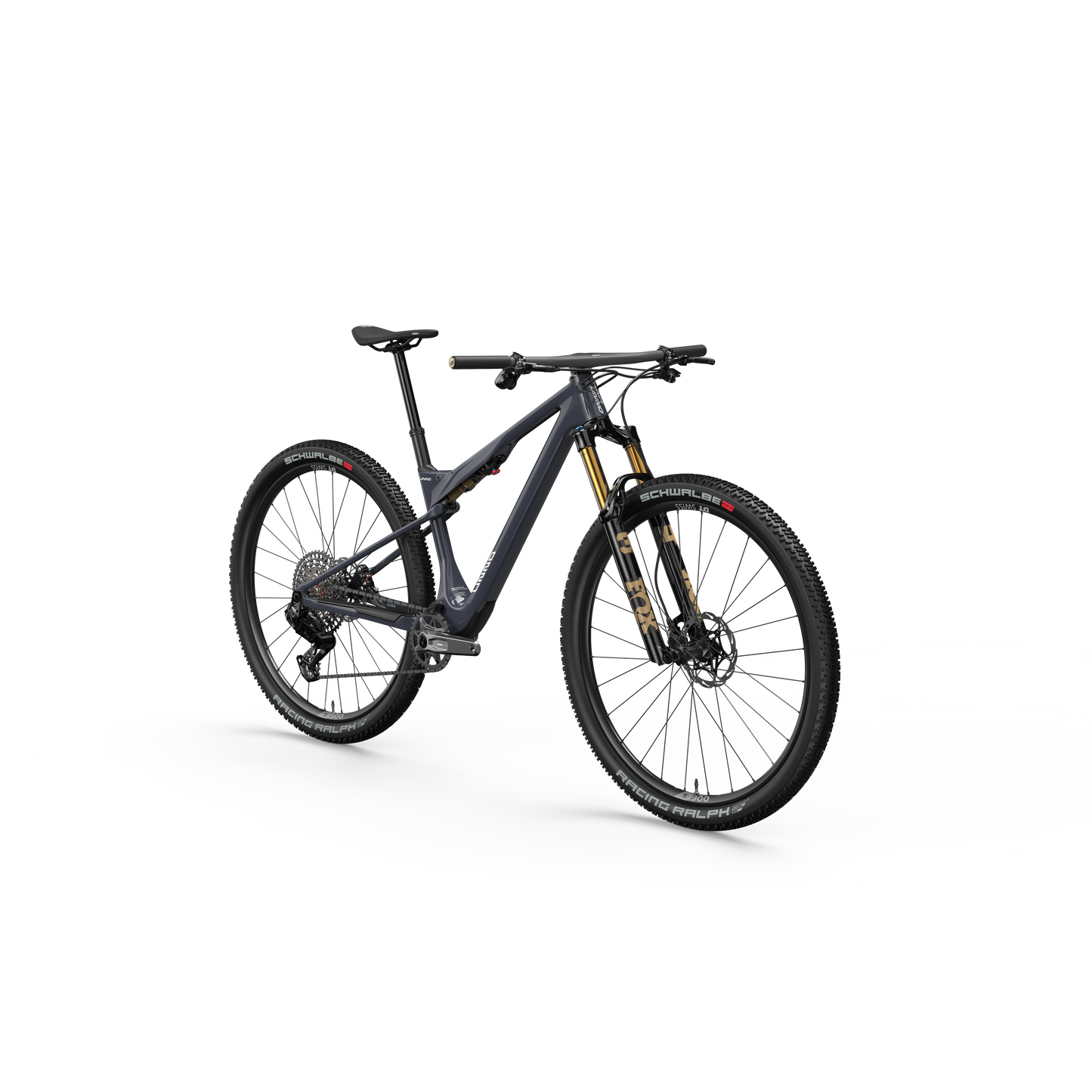

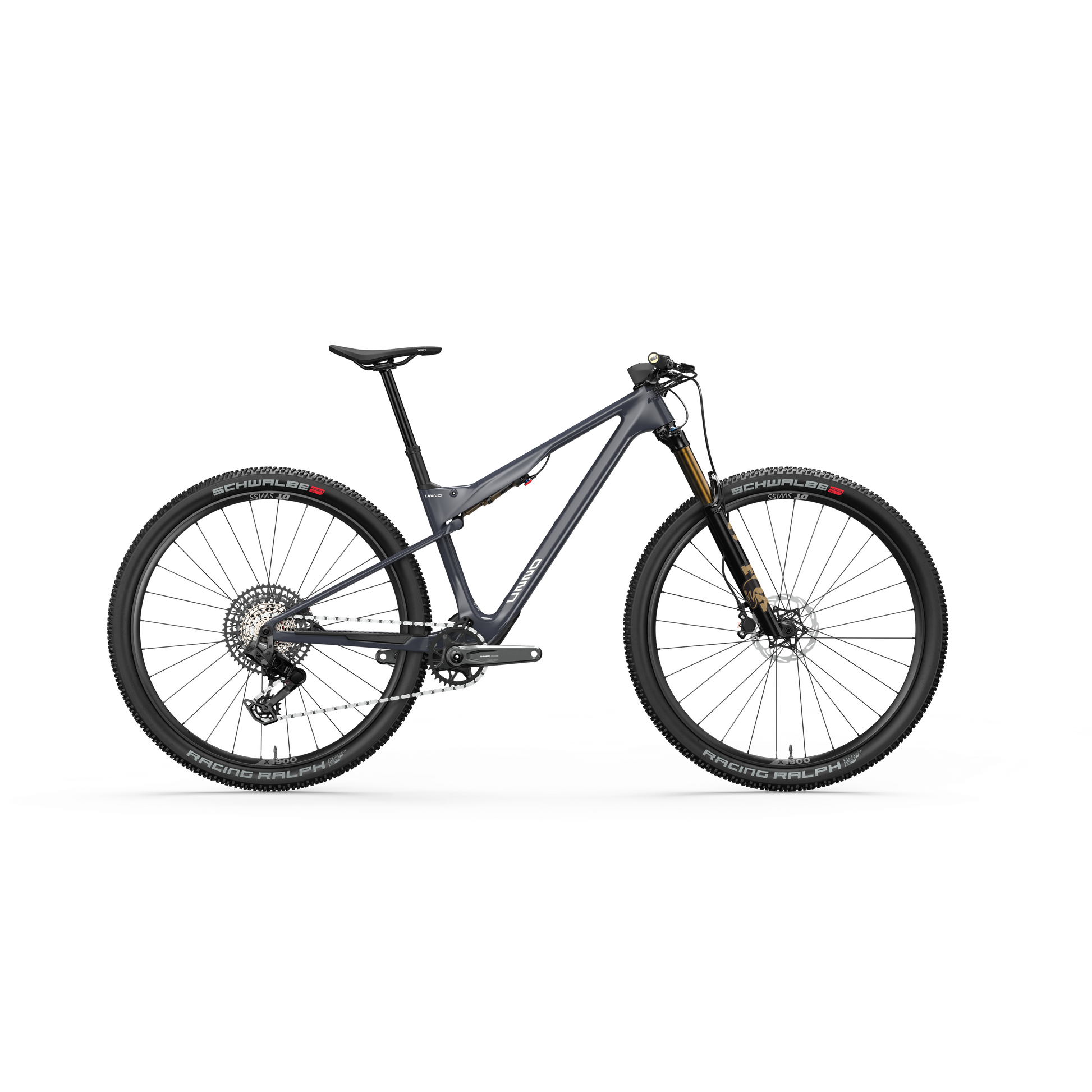

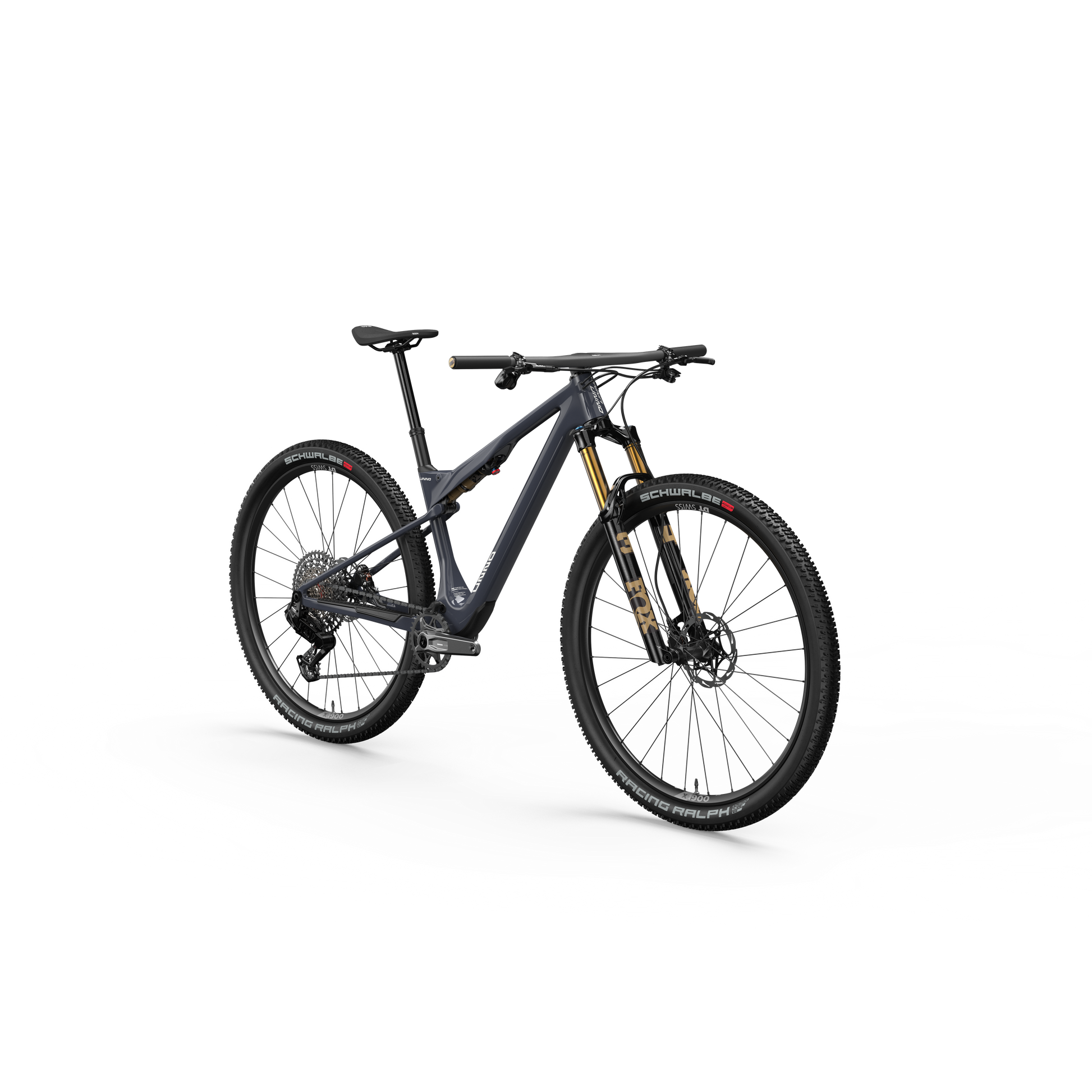

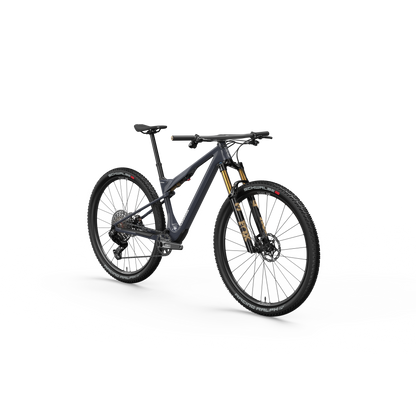

UNNO HORN RACE
The Ultimate XC Race Machine
Precision-engineered in Barcelona and built for pure speed, the UNNO HORN RACE is a cross-country weapon designed to dominate the most demanding trails and racecourses. With its ultra-light carbon frame and aggressive geometry, the HORN RACE offers unmatched responsiveness, control, and acceleration.
Crafted for elite performance, every detail is dialed in—from its 110mm travel setup to the world-class componentry that keeps weight low and efficiency high. Whether you're chasing podiums or personal records, the HORN RACE is your uncompromising partner in performance.

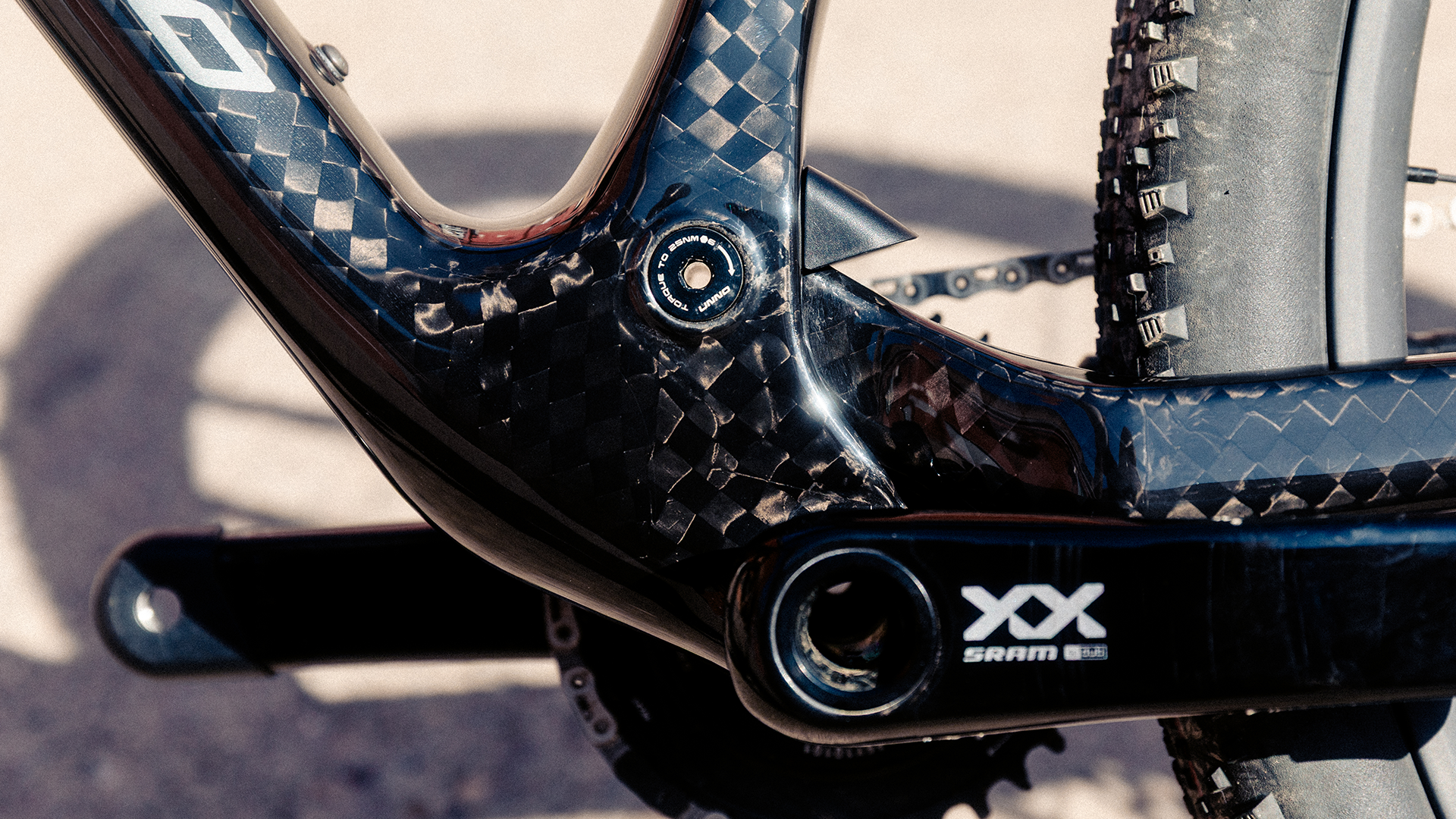

- Full carbon frame, hand-designed and engineered in-house by UNNO
- 120mm front and 110mm rear travel for race-tuned handling
- Race-ready geometry for ultimate speed and precision
- Premium build kit curated for competitive XC riders
Limited production. Unlimited performance.
This is not just a bike—it’s a statement of intent.
Frame: UNNO HORN RACE – Full carbon, 110mm travel
Fork: RockShox SID SL Ultimate 29", 120mm, Charger Race Day 2 damper
Shock: RockShox SIDLuxe Ultimate 190x40mm
Drivetrain: SRAM XX SL T-Type AXS, 12-speed
Crankset: SRAM XX SL, 170mm, 34T
Cassette: SRAM XX SL 10-52T
Brakes: SRAM Level Ultimate Stealth, 2-piston
Wheels: Crankbrothers Synthesis Carbon XCT 29"
Tyres: Maxxis Rekon Race 29x2.35"
Handlebar: Carbon integrated bar/stem combo
Seatpost: RockShox Reverb AXS XPLR (wireless dropper)
Saddle: Fizik Vento Argo
Weight: Approx. 9.4 kg (Size M, w/o pedals)
Highlights
-
Frame material
Carbon
-
Wheelsize
29
-
Front travel
120mm
-
Rear travel
110mm
Specifications
-
2025 Unno Horn Race
Frame
Unno HM Carbon T800 and T1100
Fork
FOX 34 SL FACTORY 120mm, 44mm offset, 15x110mm
Shock
FOX Float SL Factory
Handlebar
Unno DEUX XC Integrated 760mm HM Carbon
Stem
Unno DEUX XC Integrated 60mm HM Carbon
Headset
ACROS Block-Lock
Brakes
FORMULA Cura X
Front rotor
FORMULA 160mm
Rear rotor
FORMULA 160mm
Shifter
SRAM AXS Pod Discrete Clamp
Rear derailleur
SRAM S1000 Eagle AXS T-Type 12 speed
Crankset
SRAM S1000 170mm
Bottom bracket
SRAM DUB
Cassette
SRAM 70 XS 1270 T-Type, 10-52t
Chain
SRAM 70 118 links. Flat top. 12 speed T-Type
Seatpost
ONEUP - V3 31.6mm - 150mm
Saddle
FIZIK Terra Ridon X5 Terra Ridon X5, 145mm, XC
Front hub
DT SWISS X 1900 29”, Center Lock
Rear hub
DT SWISS X 1900 29”, Center Lock
Spokes
DT SWISS
Rims
DT SWISS X 1900 29"
Rear rim
DT SWISS X 1900 29”
Front tyre
SCHWALBE Racing Ralph Evo, Super Ground, TLE, 29” x 2.35”
Rear tyre
SCHWALBE Racing Ralph Evo, Super Ground, TLE, 29” x 2.35”
Integrated cockpit
Unno DEUX XC Integrated cockpit gives you perfect control and comfort on the 760mm HM carbon bar and 60mm stem with minimum weight.
Custom shock Tune
A specially tuned shock provides enough ramp-up at the end to avoid harsh bottom-outs, and a neutral anti-squat allows you to ride with the shock fully open, maximizing traction on challenging terrain.

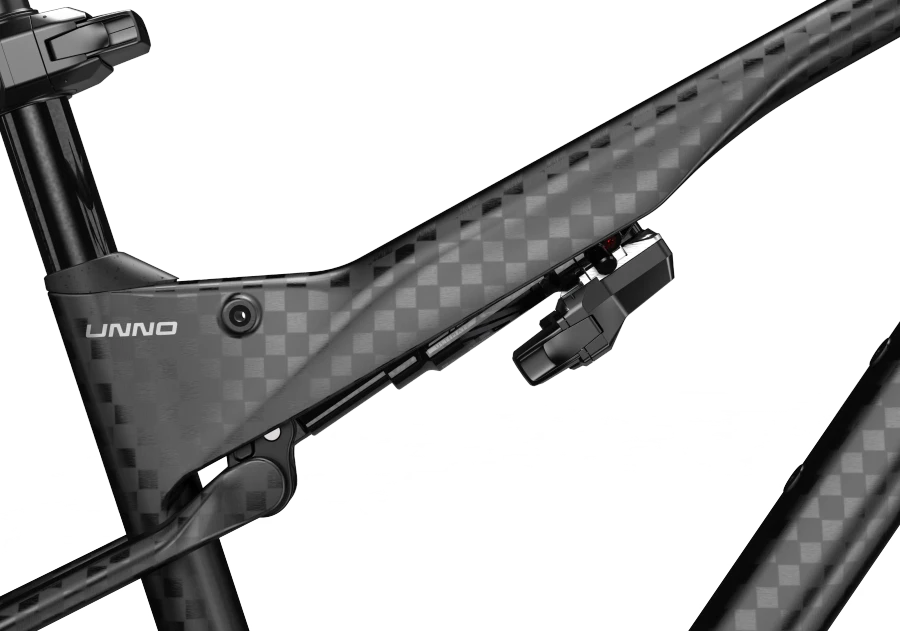

Flex Stays
Flex-stays design saves weight by eliminating a rear pivot with bearings and hardware, without compromising suspension sensitivity.
