Unno MITH Race RS 2027
Unno MITH Race RS 2027
Out of stock
SKU:
files/unno-20261023-race-rs-main.png
07:05 AM
Couldn't load pickup availability

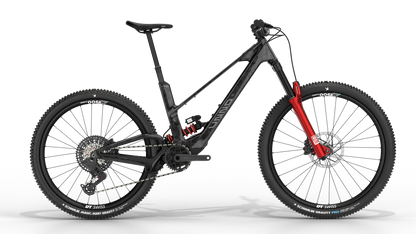

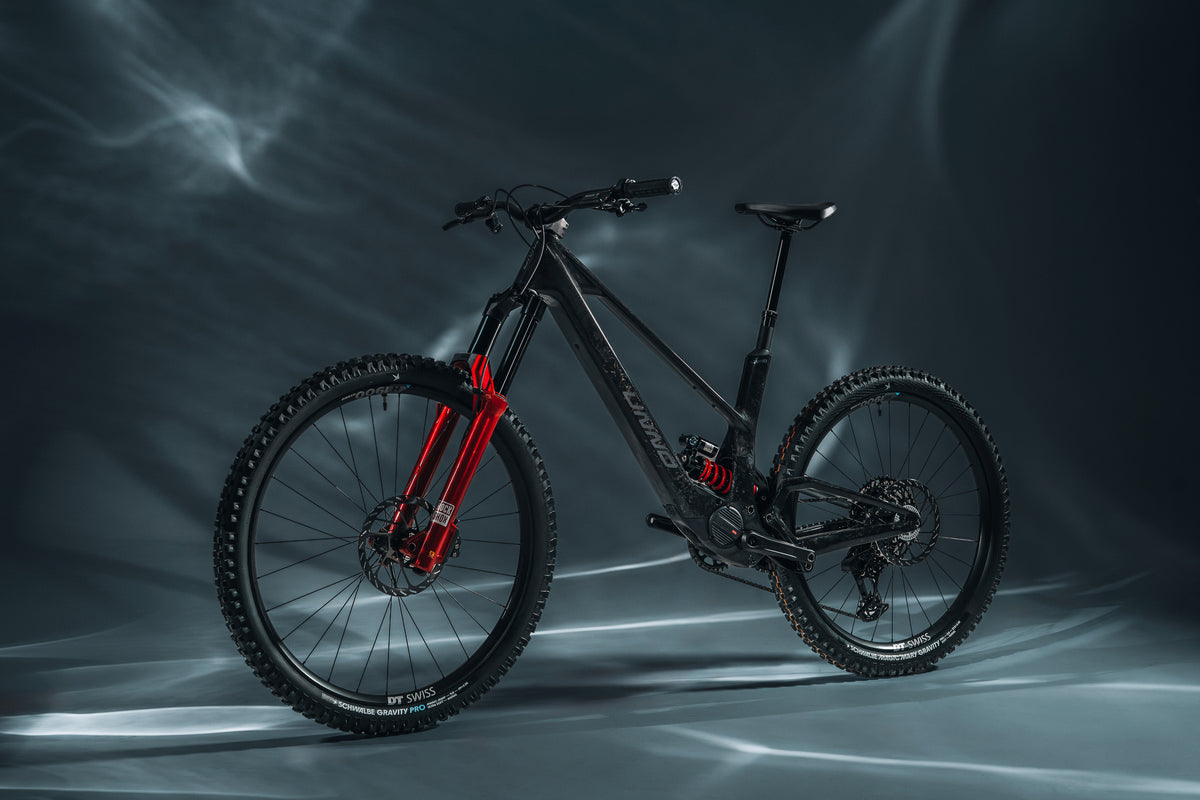

The MITH Race RS puts RockShox coil suspension at the centre of UNNO's full-power enduro bike. A red ZEB Ultimate fork and matching Vivid Coil Ultimate shock sit against the forged-carbon finish, with 170mm of travel up front and 160mm at the rear. It's a build for riders who want to spend their climbing time earning another demanding descent.
The Avinox M2S drive unit supplies up to 130Nm in regular modes and 150Nm in Boost, with a maximum output of 1300W. An integrated 800Wh battery gives this long-travel platform a substantial energy reserve, while the top-tube touchscreen and wireless handlebar controller keep the system within easy reach. The supplied charger is the 168W, 4A unit.
A coil build with room to move
The Vivid Coil uses a custom UNNO tune and a spring rate matched to each frame size. A 63.5-degree head angle and mixed wheel sizes suit the bike's descending focus: a 29-inch front wheel for rolling through rough ground, with a 27.5-inch rear wheel that leaves more room to move over the back of the bike. Reach runs from 430mm in S1 to 490mm in S3, so the size choice is worth making carefully.
SRAM S1000 AXS T-Type shifting, Maven Base brakes and DT Swiss H1900 wheels make this a purposeful complete build. Schwalbe Magic Mary Gravity Pro tyres use Ultra Soft rubber at the front and Soft at the rear. The OneUp alloy bar and forged stem keep the cockpit straightforward, and cables enter the frame directly rather than passing through the headset - a useful detail when maintenance comes round.
Size and geometry
UNNO rider-height guidance is a starting point. Compare reach and stack with a bike you know before choosing your size.
| Measurement | S1 | S2 | S3 |
|---|---|---|---|
| Recommended rider height | 155 - 170 cm | 170 - 180 cm | 180 - 195 cm |
| Top tube length (mm) | 560 | 590 | 623 |
| Head tube length (mm) | 107 | 120 | 145 |
| Head angle (degrees) | 63.5 | 63.5 | 63.5 |
| Seat tube length (mm) | 400 | 420 | 440 |
| Effective seat angle (degrees) | 77 | 77 | 77 |
| Chainstay length (mm) | 450 | 450 | 450 |
| Wheelbase (mm) | 1225 | 1261 | 1302 |
| Stack (mm) | 624 | 636 | 658 |
| Reach (mm) | 430 | 460 | 490 |
| Standover height (mm) | 706 | 706 | 706 |
| Bottom bracket height (mm) | 345 | 345 | 345 |
| Front travel (mm) | 170 | 170 | 170 |
| Rear travel (mm) | 160 | 160 | 160 |
Build details
| Shock spring | S1: 275lb; S2: 325lb; S3: 400lb |
|---|---|
| Grips | ODI Elite Pro lock-on, 130mm |
| Display | Avinox DP100, 2-inch OLED touchscreen |
| Remote | Avinox BC100 wireless controller |
| Supplied charger | Avinox 168W, 4A |
| Chainring | e*thirteen Helix Race e*spec, 36t, 8mm offset, 55mm chainline |
| Axles | Front: 15x110mm; rear: 12x148mm, UNNO custom rear axle |
Highlights
-
Frame material
Carbon
-
Wheelsize
Mullet
-
Front travel
170mm
-
Rear travel
160mm
-
Motor brand
Avinox
-
Max torque
130Nm
-
Peak power
1300W
-
Battery capacity
800Wh
Specifications
-
Unno MITH Race RS 2027
Frame
T700/T1000 carbon fibre monocoque with virtual-pivot suspension
Fork
RockShox ZEB Ultimate, Electric Red, 170mm travel, 29-inch, Boost 15x110mm, 44mm offset
Shock
RockShox Vivid Coil Ultimate, custom UNNO tune, 230 x 65mm; S1: 275lb; S2: 325lb; S3: 400lb
Handlebar
OneUp Alloy, 800mm wide, 35mm rise, 35mm clamp, 5-degree upsweep, 8-degree backsweep
Stem
OneUp Forged, 42mm
Headset
Cane Creek Forty, IS41-42/28.6 - IS52/40
Brakes
SRAM Maven Base
Front rotor
SRAM HS2, 200mm, 6-bolt
Rear rotor
SRAM HS2, 200mm, 6-bolt
Rear derailleur
SRAM S1000 Eagle AXS T-Type, 12-speed
Crankset
e*thirteen Helix Core e*spec, 155mm
Cassette
SRAM 70 XS-1270 T-Type, 10-52t
Chain
SRAM 70 T-Type, 120 links
Seatpost
OneUp V3 mechanical, 31.6mm
Saddle
Fizik Terra Aidon X5, 145mm
Rims
DT Swiss H1900, 29-inch, 30mm internal width
Rear rim
DT Swiss H1900, 27.5-inch, 30mm internal width
Front tyre
Schwalbe Magic Mary Gravity Pro, 29 x 2.5-inch, Ultra Soft, TLR
Rear tyre
Schwalbe Magic Mary Gravity Pro, 27.5 x 2.5-inch, Soft, TLR
Motor
Avinox M2S, 250W rated; up to 1300W and 130Nm in regular modes, up to 1300W and 150Nm in Boost
Battery
Avinox FS800, 800Wh integrated battery

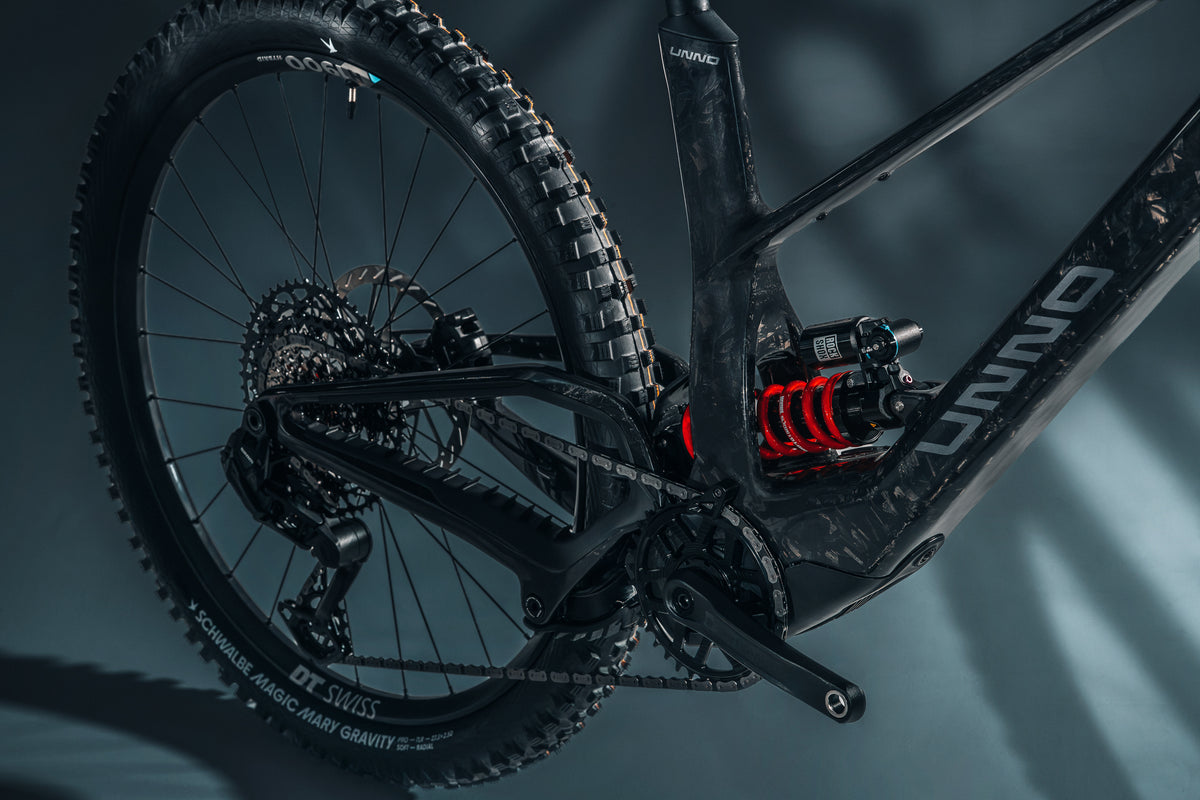

A coil shock tuned for the MITH

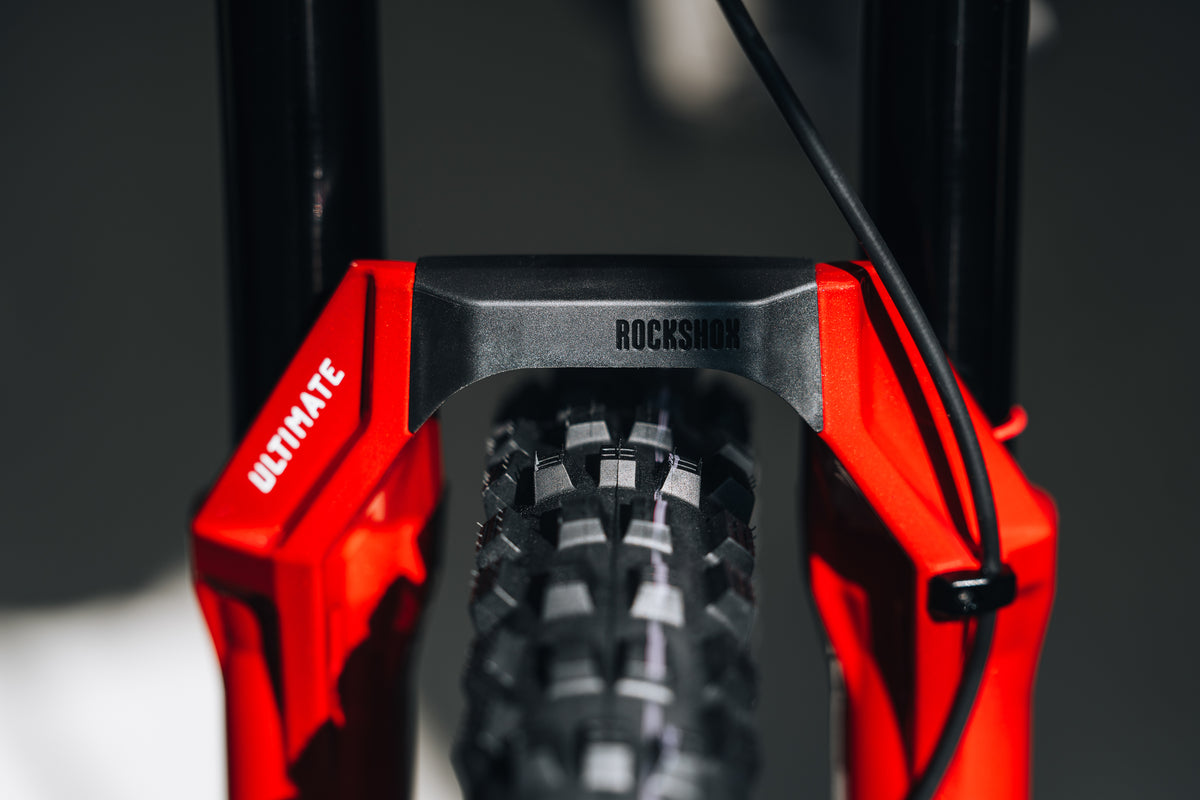

The Vivid Coil Ultimate has a custom UNNO tune and a size-matched spring, giving the Race RS its own suspension character. Paired with the 170mm ZEB Ultimate, it makes this a compelling choice if your riding centres on rough, sustained descents.

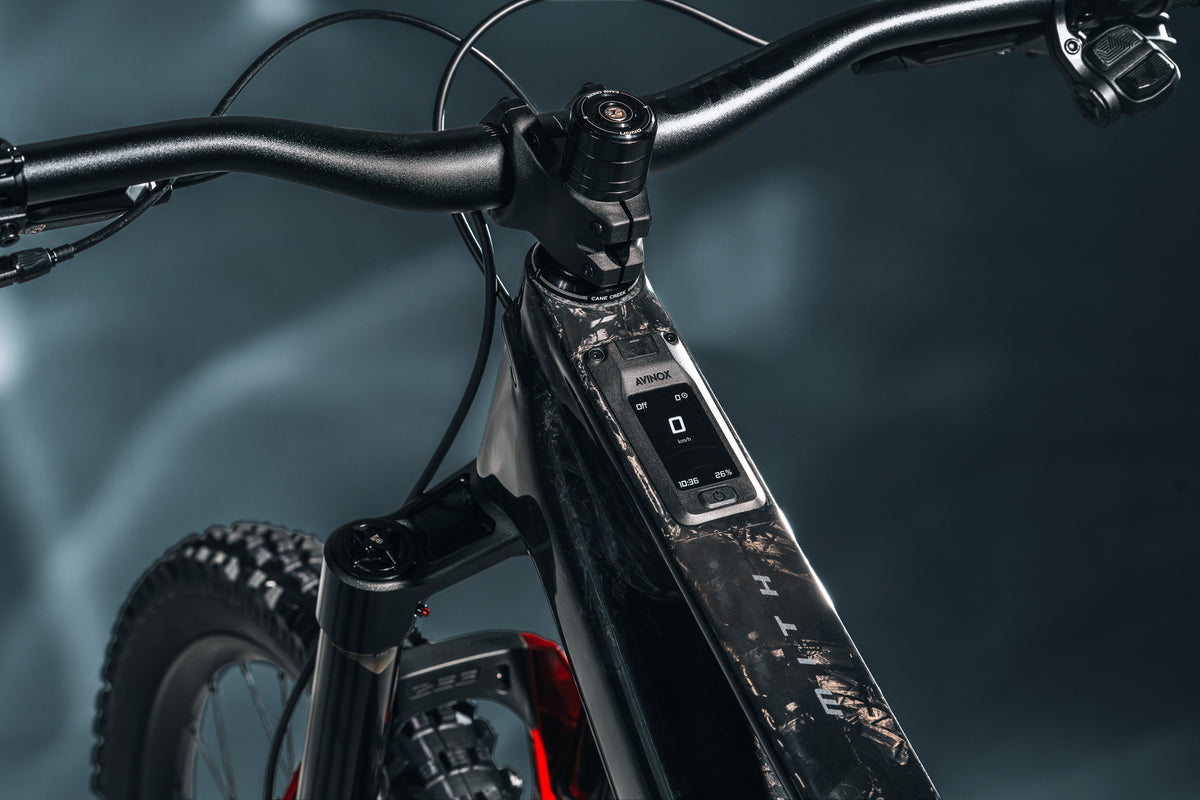

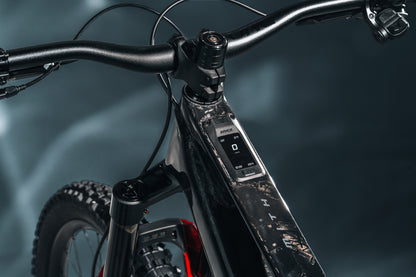

Power for the climb back up
The Avinox M2S delivers up to 130Nm in regular modes and 150Nm in Boost, with an 800Wh battery integrated into the frame. The two-inch top-tube touchscreen and wireless controller put ride information and assistance controls close at hand, ready for the next lap.
Descending room, deliberate sizing
A 29-inch front wheel, 27.5-inch rear wheel and 63.5-degree head angle give the MITH its descending focus. The smaller rear wheel leaves space to move on steep ground, while three frame sizes offer 430, 460 and 490mm reach. Choose by fit and handling preference, with the geometry table as your guide.

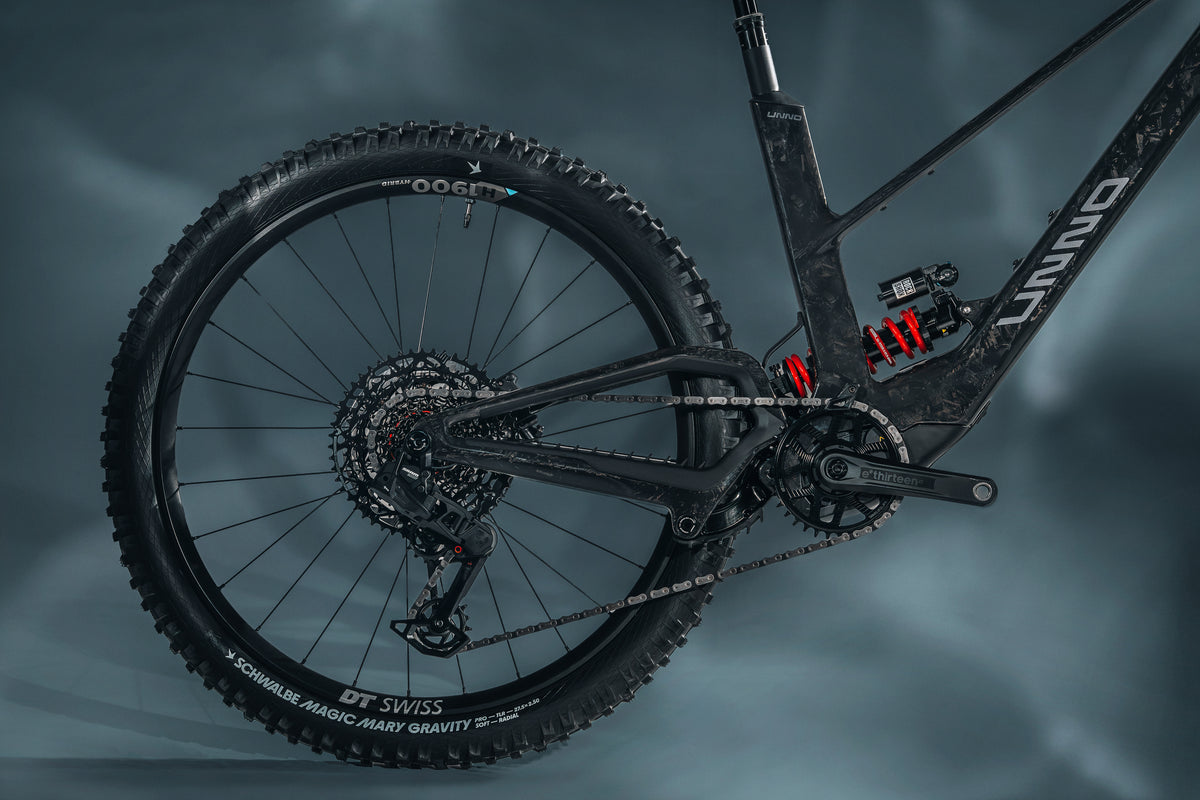

A complete build for demanding trails
SRAM S1000 AXS T-Type provides wireless shifting across a 10-52t cassette. Maven Base brakes use 200mm HS2 rotors, and DT Swiss H1900 wheels carry 2.5-inch Magic Mary Gravity Pro tyres. The Ultra Soft front compound prioritises grip, with Soft rubber at the rear.
