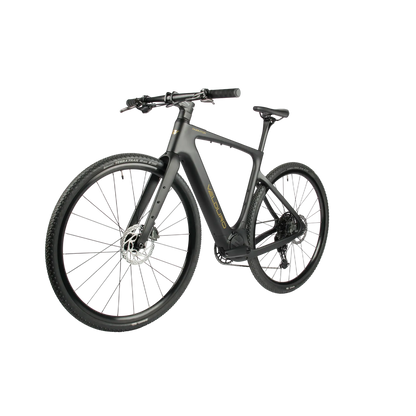

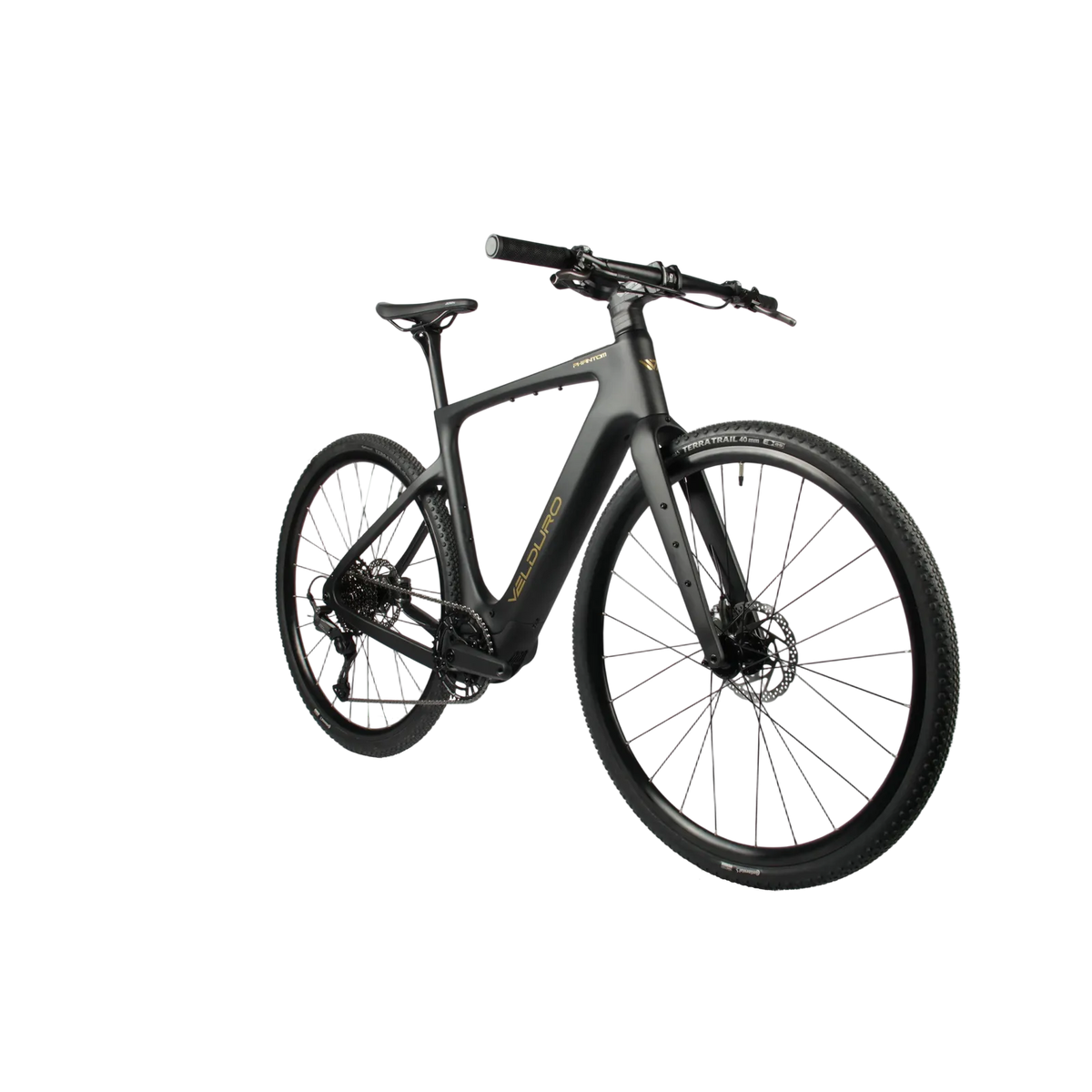

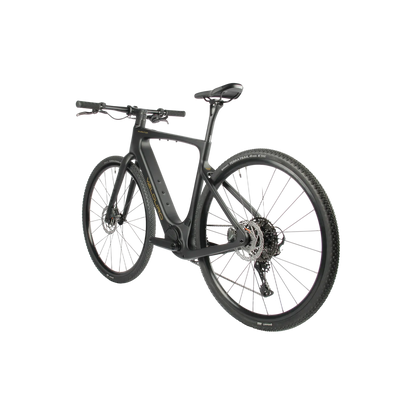

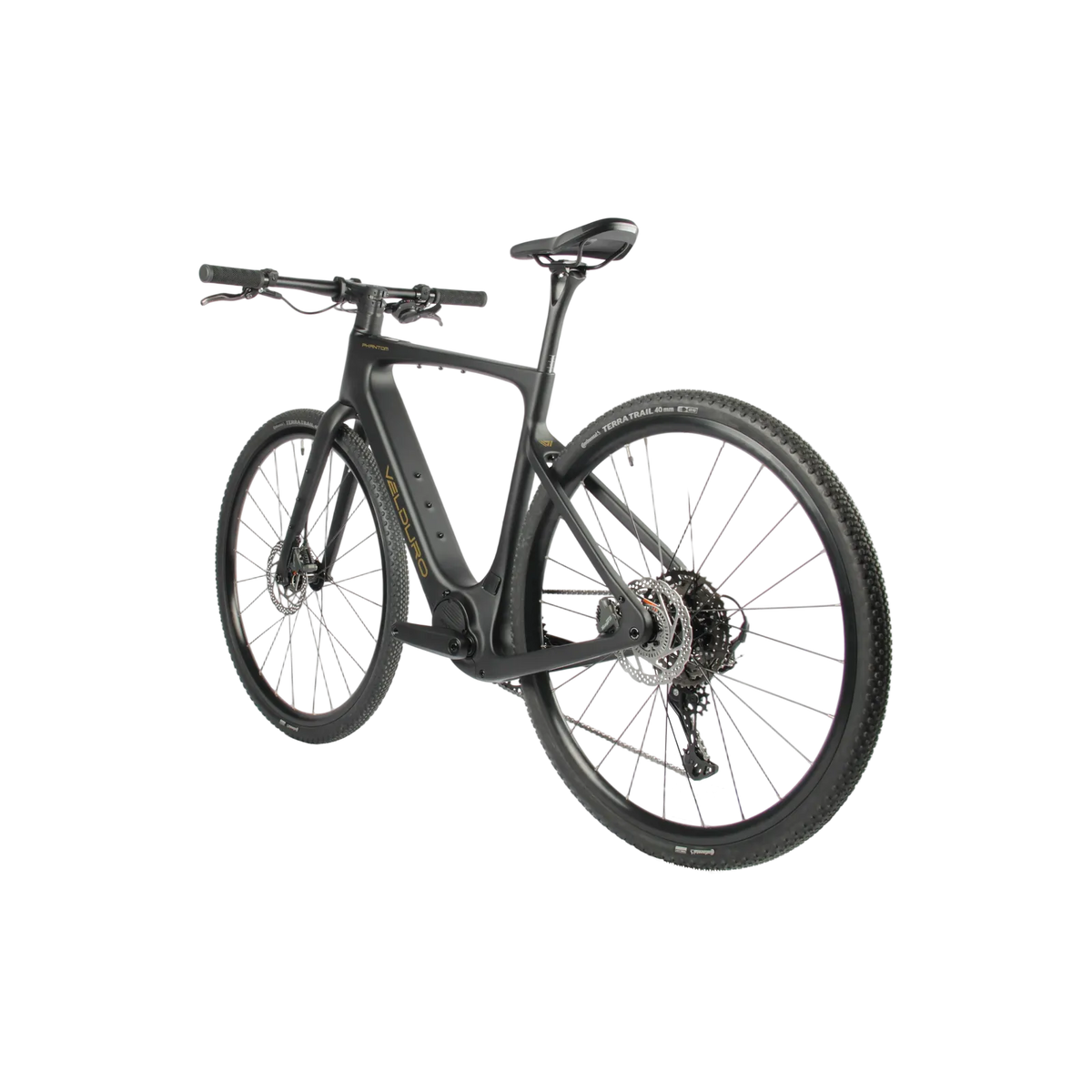

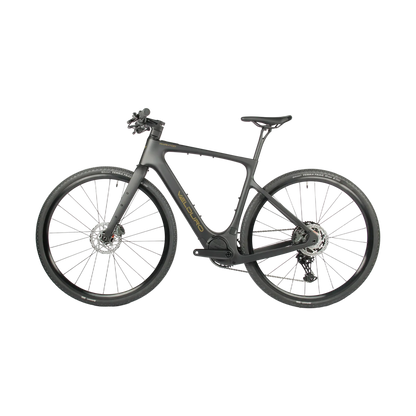

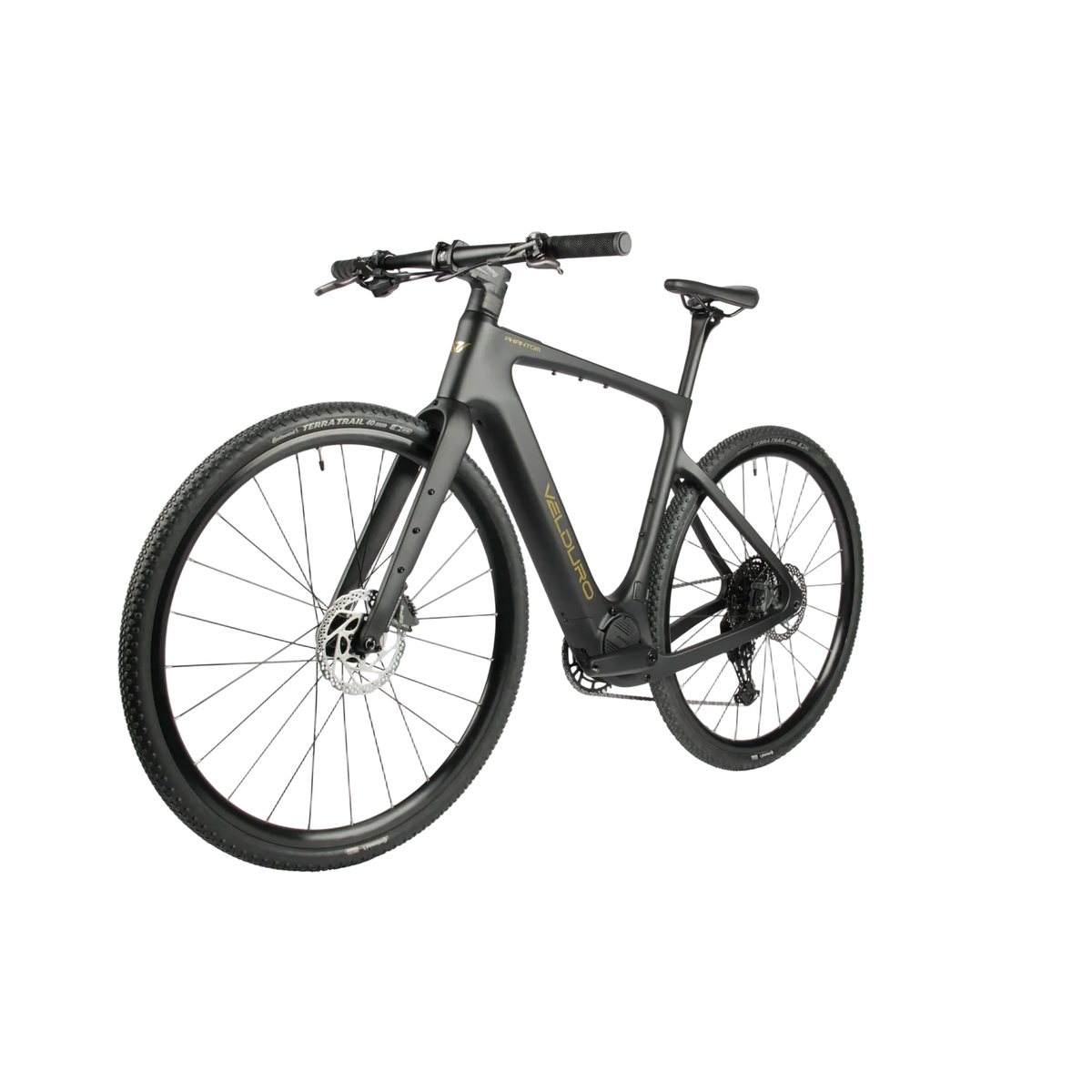

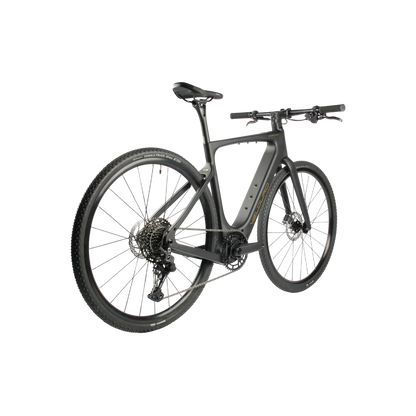

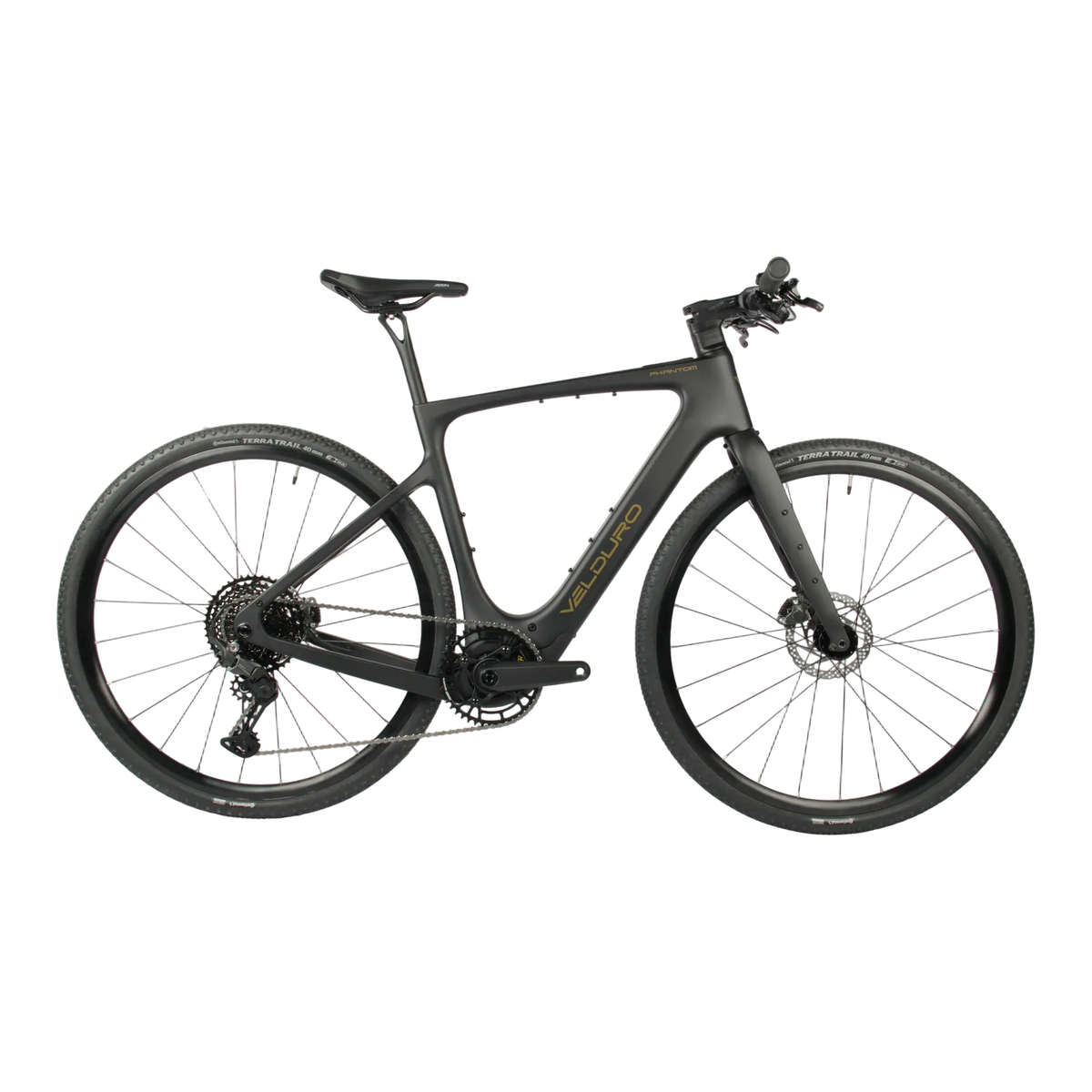

Velduro Phantom S M2 2026
Velduro Phantom S M2 2026
Out of stock
SKU:PHSSMBAA
files/velduro-20261008-online-m2-img-33.png
05:12 AM
Couldn't load pickup availability

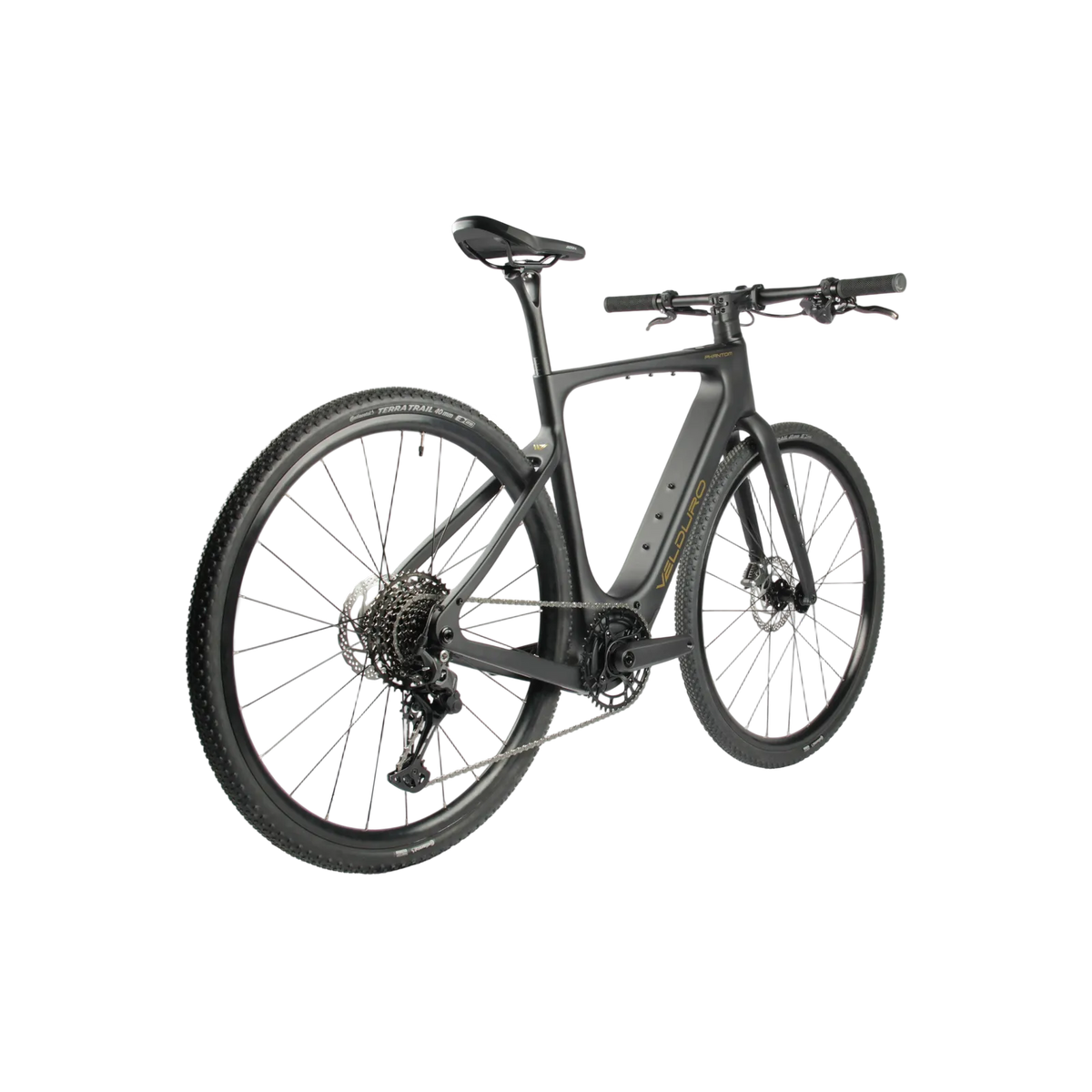

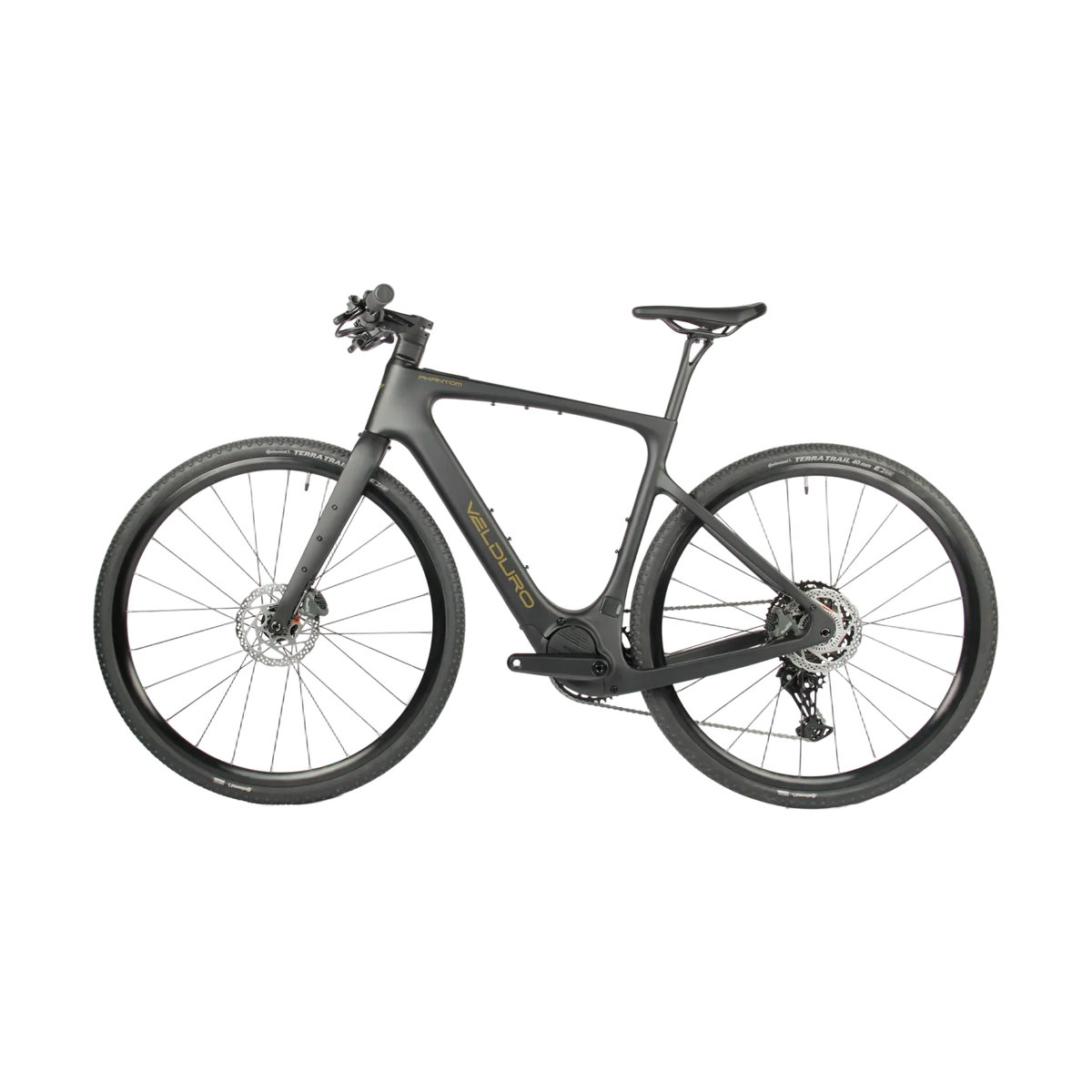

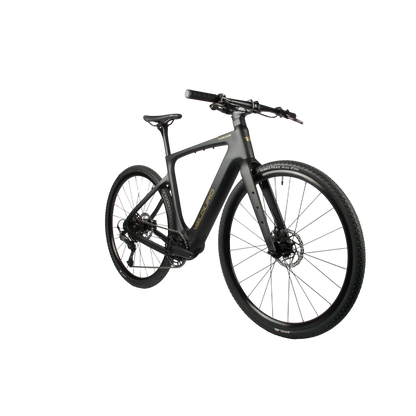

The Velduro Phantom S puts the Phantom's carbon frame and Avinox M2 assistance into a flat-bar bike for commuting, everyday riding and exploring beyond the usual route. It is the straightforward option in the range if you want familiar controls and a bike that can turn a weekday journey into a longer ride home.
A rigid carbon fork keeps the front end simple, while the frame and fork provide mounting points for carrying equipment. The 600Wh battery sits inside the frame, and the DP100 display and wireless controls bring the drive system together at the cockpit.
A practical flat-bar build
The specification pairs Shimano CUES 11-speed gearing with an 11-45t cassette and SRAM S300 hydraulic disc brakes. The 680mm alloy handlebar gives it a different riding position from the drop-bar Phantom models, with a size-specific stem and a carbon seatpost.
It is a useful combination for riders who want one electric bike to cover regular journeys and less structured weekend miles. A 4A charger is included; pedals and luggage are separate.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
-
Motor brand
Avinox
-
Max torque
110Nm
-
Battery capacity
600Wh
Specifications
-
Velduro Phantom S M2
Frame
Velduro Phantom carbon gravel frame; integrated battery; internal cable routing; 12 x 142mm rear axle; eight mounting points; rack compatible
Fork
Carbon gravel fork; six mounting points; 12 x 100mm axle; 50mm offset
Handlebar
Velduro alloy flat bar; 31.8mm clamp; 680mm width
Stem
Velduro alloy road stem; Small/Medium 75mm, Large/XL 95mm
Headset
Token TK155SP alloy; 28.6mm; 52mm upper and lower
Brakes
SRAM S300 hydraulic disc brakes, two-piston
Front rotor
SRAM CenterLine, 160mm
Rear rotor
SRAM CenterLine, 160mm
Rear derailleur
Shimano CUES RD-U6000, 11-speed
Crankset
Avinox SL 165mm cranks; Avinox 104 BCD spider; Velduro 44t alloy chainring with 3mm inward offset
Cassette
Shimano CUES LG400, 11-speed, 11-45t
Chain
Shimano LG500 LINKGLIDE
Seatpost
Velduro carbon, 27.2mm diameter, 380mm length
Saddle
Fizik Terra Aidon X5
Front hub
Velduro hub; two bearings; 24 holes; six-bolt disc mount; 12 x 100mm
Rear hub
Velduro hub; four bearings; 24 holes; six-bolt disc mount; 12 x 142mm; HG freehub
Rims
Velduro 700c alloy rim; 24 holes; 25mm internal width; 25mm depth; hooked
Rear rim
Velduro 700c alloy rim; 24 holes; 25mm internal width; 25mm depth; hooked
Front tyre
Continental Terra Trail, 700 x 45c; supplied with tube; tubeless ready
Rear tyre
Continental Terra Trail, 700 x 45c; supplied with tube; tubeless ready
Motor
Avinox M2
Battery
Avinox 600Wh integrated battery
More support when the route climbs
The Avinox M2 delivers up to 110Nm in its regular assistance modes, with up to 125Nm available in Boost. It gives you extra support when gradients steepen, while the ride settings let you choose how much assistance to call on.
Familiar controls for everyday miles
The 680mm flat bar places the brake levers and shifter in a familiar layout. It makes the S the Phantom choice for riders who prefer a straightforward cockpit for journeys, paths and relaxed exploration.
A platform for carrying your day
The frame is rack-compatible, with eight mounting points on the frame and six on the rigid carbon fork. That gives a luggage setup somewhere to start when the ride needs more than a jersey pocket.
One chainring, useful everyday gearing
Shimano CUES 11-speed shifting works with an 11-45t cassette and a single 44t chainring. The controls stay simple, with no front derailleur to manage as the route changes.
Assistance without a separate battery bag
The 600Wh battery is integrated into the carbon frame, keeping the drive-system package within the bike. The DP100 display and wireless controls provide the specified interface for managing assistance while you ride.
