Velduro Phantom X M2 2026
Velduro Phantom X M2 2026
Out of stock
SKU:PHXSMBAA
files/velduro-20261008-online-m2-img-39.png
05:12 AM
Couldn't load pickup availability

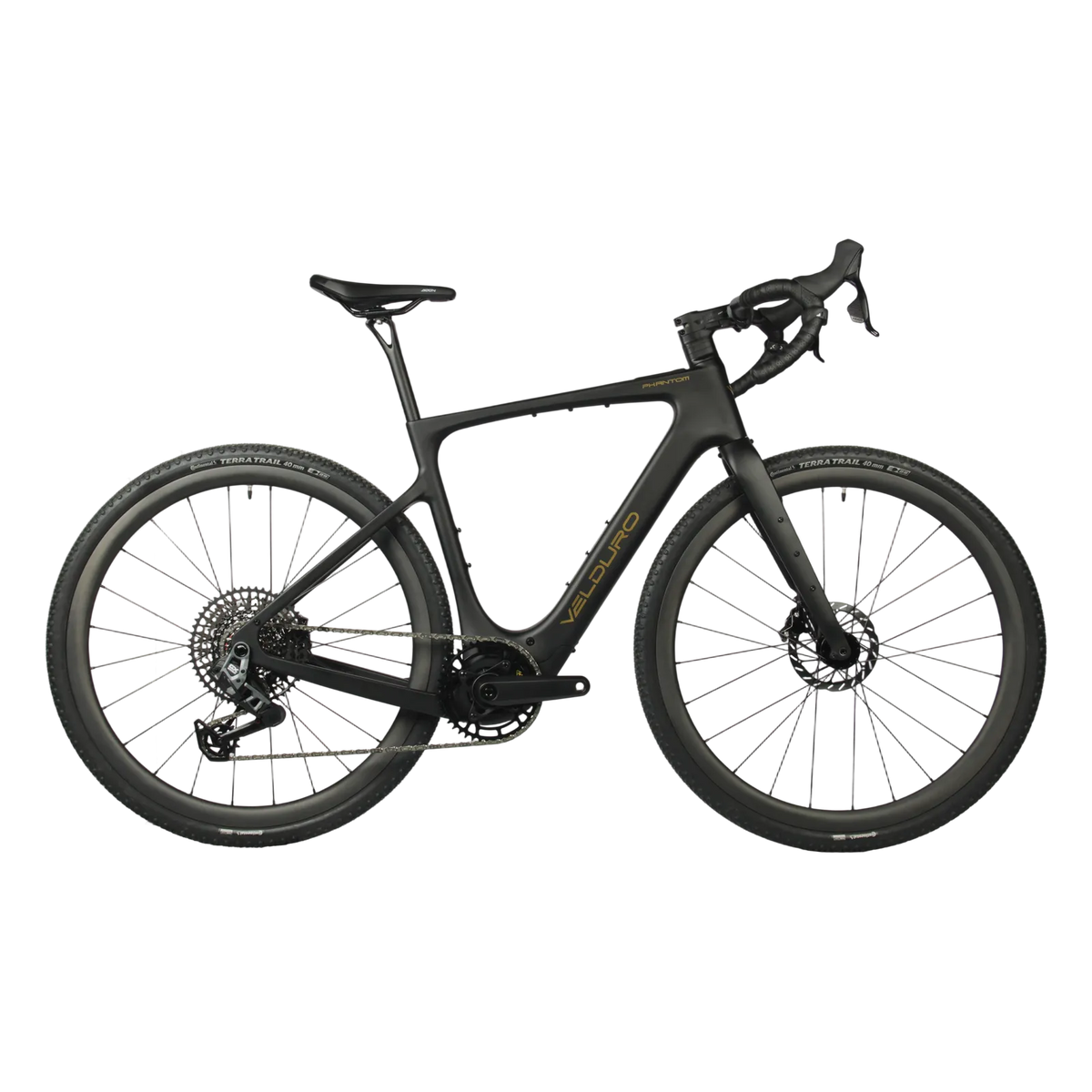

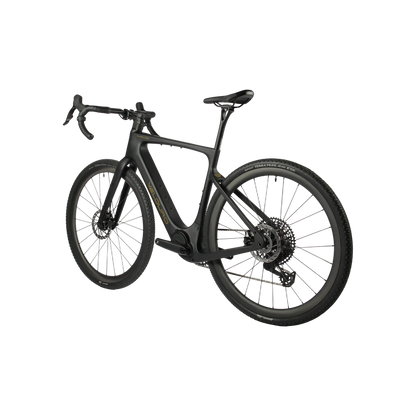

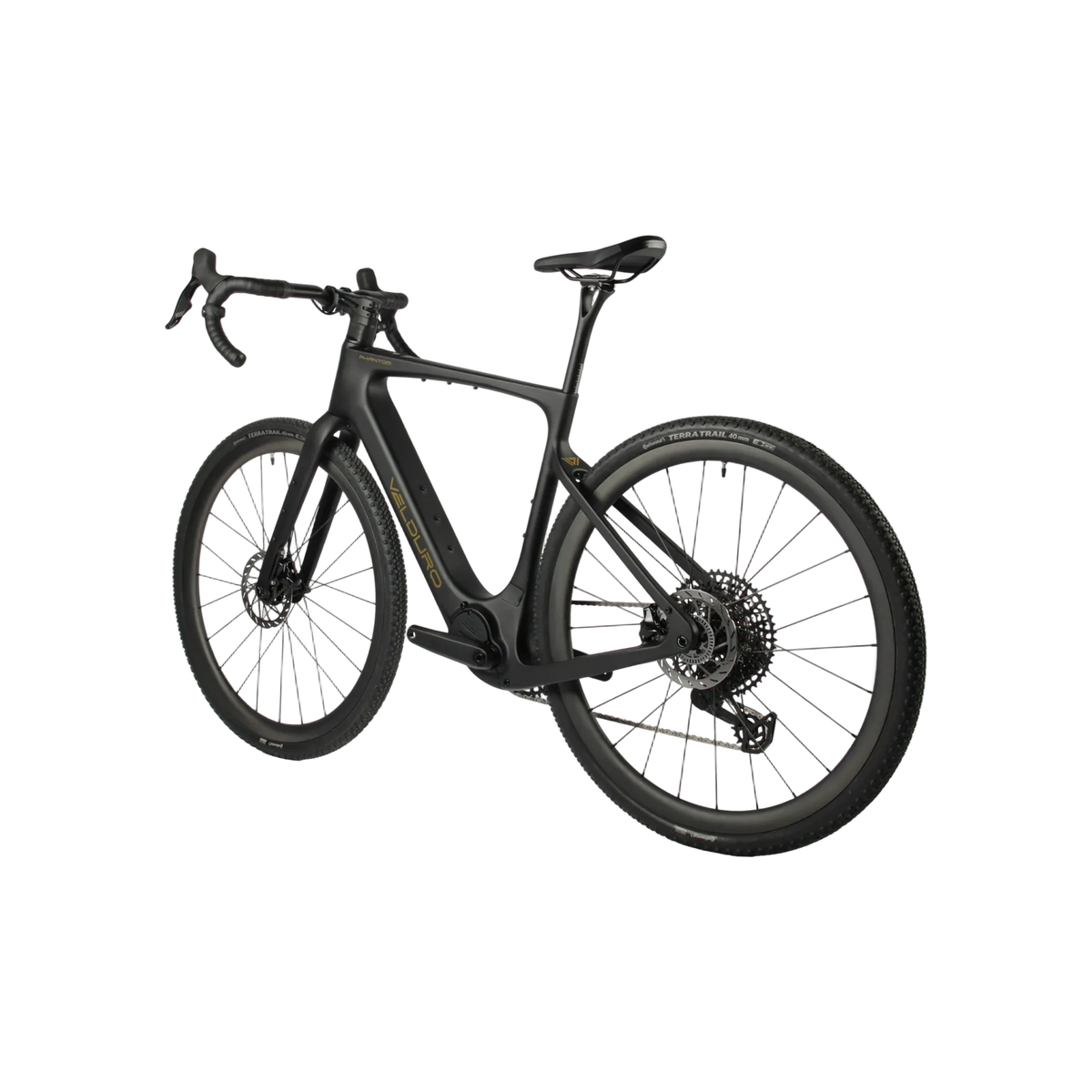

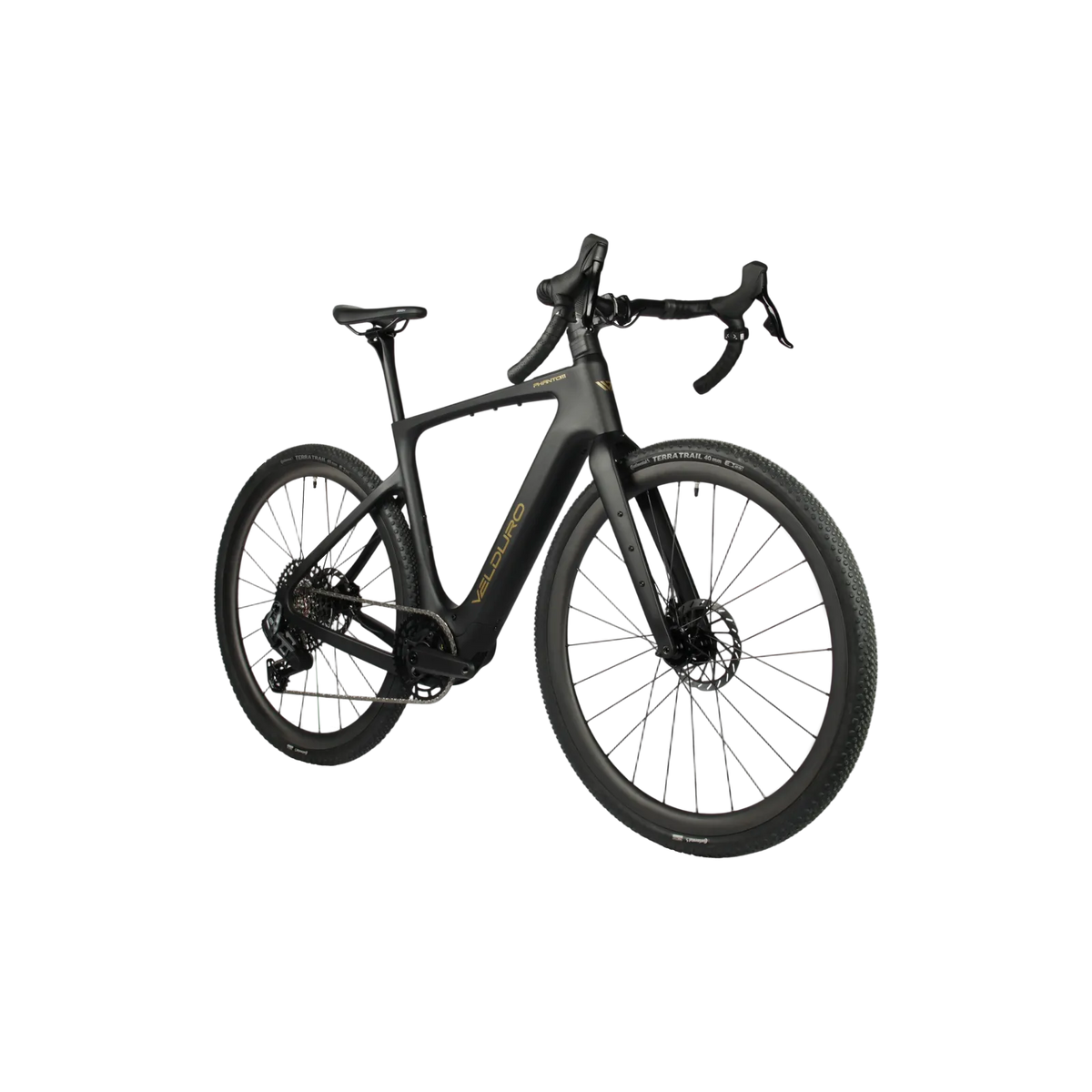

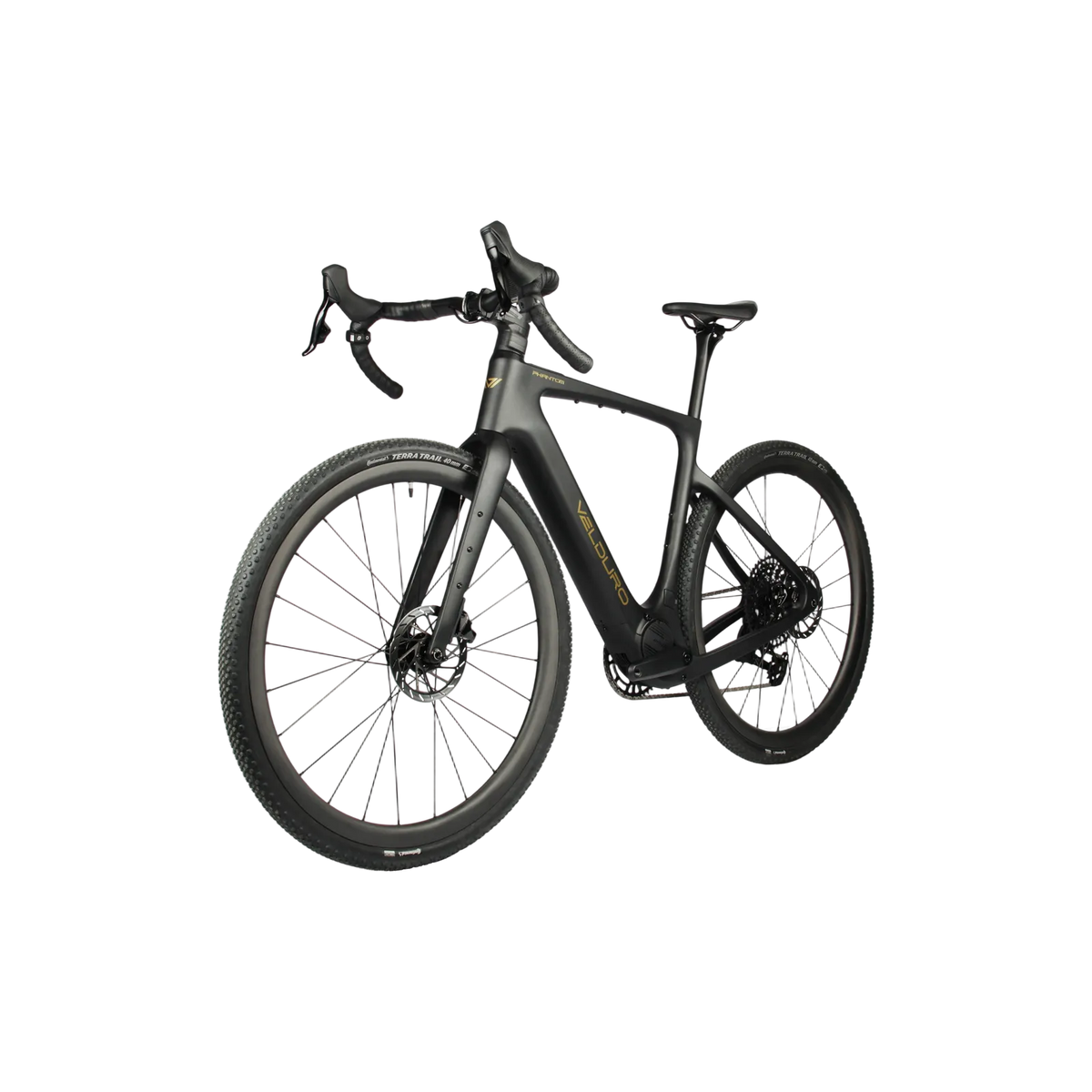

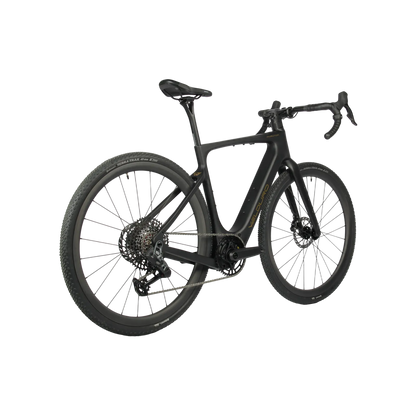

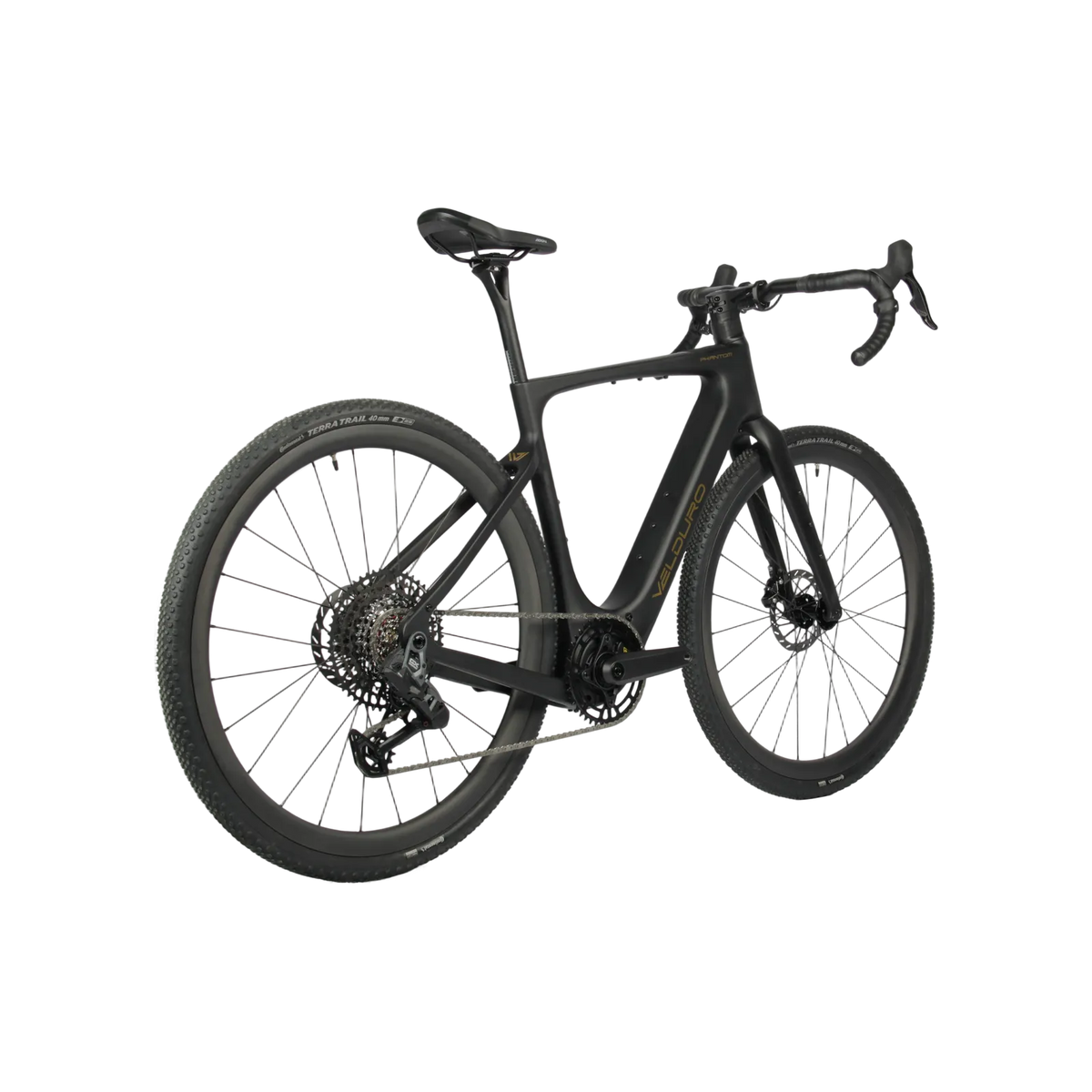

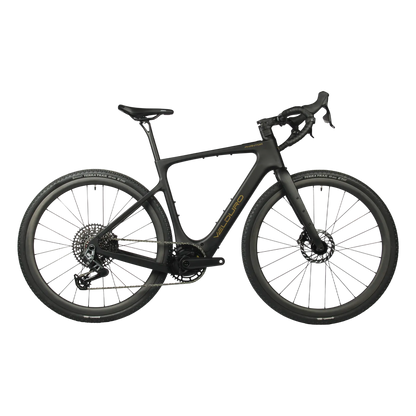

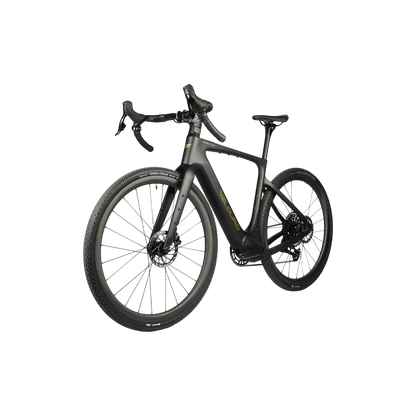

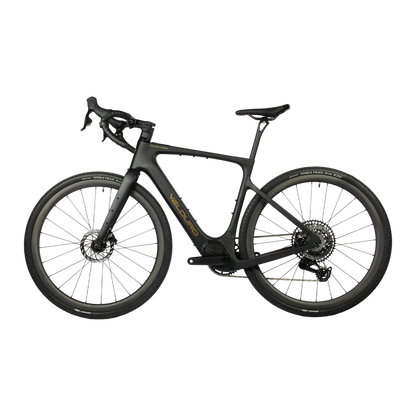

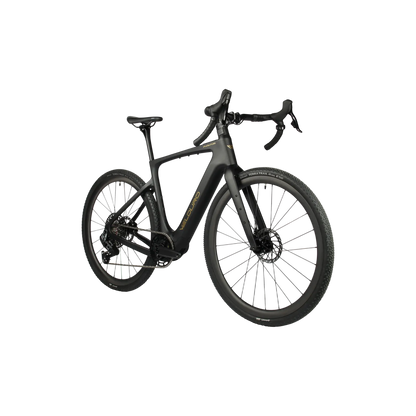

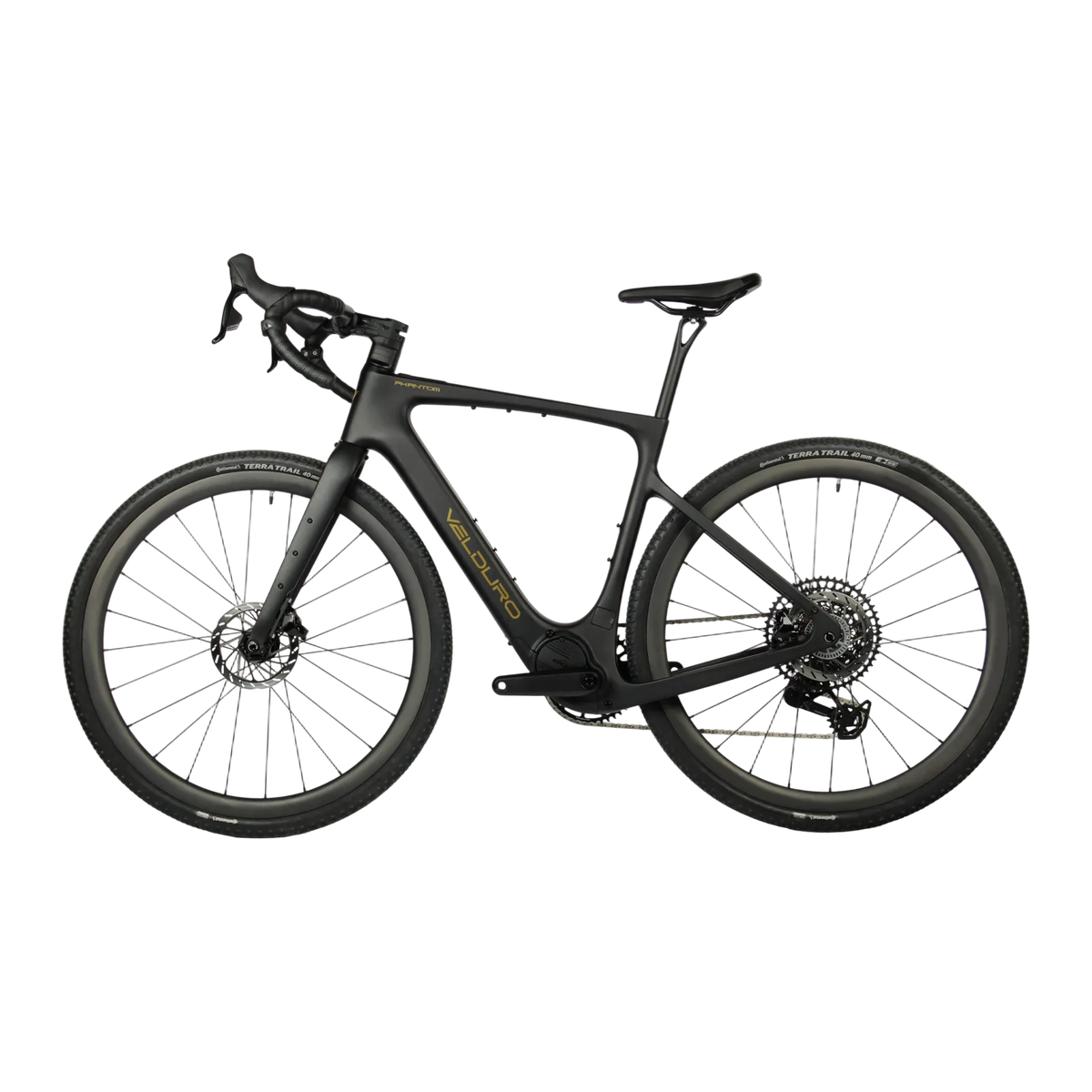

The Velduro Phantom X is the rigid-fork, drop-bar option for riders who want an assisted gravel bike that feels focused on covering varied ground. A carbon frame, carbon fork and carbon wheelset form the build, with Avinox M2 assistance and a 600Wh battery integrated into the chassis.
Choose it for mixed routes where tarmac links, gravel tracks and longer seated climbs all matter. The rigid fork keeps the setup simple, while the flared carbon handlebar offers the drop-bar layout that separates the X from the flat-bar Phantom S.
A gravel build with room to travel
SRAM Rival XPLR AXS 13-speed shifting is paired with a 44t chainring. The 45mm Maxxis Rambler tyres give the build its gravel focus, and mounting points on the frame and fork add options for longer rides with equipment.
Stem length and handlebar width vary with frame size, keeping the cockpit choice tied to the size you buy. The bike is tubeless-ready but supplied with tubes, and includes a 4A charger. Pedals and luggage are not included.
Highlights
-
Frame material
Carbon
-
Wheelsize
700c
-
Motor brand
Avinox
-
Max torque
110Nm
-
Battery capacity
600Wh
Specifications
-
Velduro Phantom X M2
Frame
Velduro Phantom carbon gravel frame; integrated battery; internal cable routing; 12 x 142mm rear axle; eight mounting points; rack compatible
Fork
Carbon gravel fork; six mounting points; 12 x 100mm axle; 50mm offset
Handlebar
Velduro carbon; 31.8mm clamp; 15-degree flare; Small/Medium 420mm, Large/XL 440mm width
Stem
FSA SMR alloy, -6 degrees; Small 70mm, Medium 80mm, Large 90mm, XL 100mm
Headset
FSA No.55R 1.5-inch / 558 ACR alloy gravel; 52mm upper and lower
Brakes
SRAM Rival AXS HRD hydraulic shift-brake system
Front rotor
SRAM HS2, 160mm
Rear rotor
SRAM HS2, 160mm
Shifter
SRAM Rival AXS HRD integrated shift-brake controls
Rear derailleur
SRAM Rival XPLR AXS, with power cable
Crankset
Avinox SL 165mm cranks; Avinox 104 BCD spider; Velduro 44t alloy chainring with 3mm inward offset
Cassette
SRAM Rival XPLR XG-1351, 13-speed
Chain
SRAM Rival Transmission Flattop
Seatpost
Velduro carbon, 27.2mm diameter, 380mm length
Saddle
Fizik Terra Aidon X5
Front hub
Velduro hub; two bearings; 24 holes; six-bolt disc mount; 12 x 100mm
Rear hub
Velduro hub; four bearings; 24 holes; six-bolt disc mount; 12 x 142mm; XDR freehub
Rims
Velduro 700c carbon rim; 24 holes; 24mm internal width; 35mm depth; hooked
Rear rim
Velduro 700c carbon rim; 24 holes; 24mm internal width; 35mm depth; hooked
Front tyre
Maxxis Rambler, 700 x 45c; supplied with tube; tubeless ready
Rear tyre
Maxxis Rambler, 700 x 45c; supplied with tube; tubeless ready
Motor
Avinox M2
Battery
Avinox 600Wh integrated battery
More support when the route climbs
The Avinox M2 delivers up to 110Nm in its regular assistance modes, with up to 125Nm available in Boost. It gives you extra support when gradients steepen, while the ride settings let you choose how much assistance to call on.
Keep the gravel setup straightforward
The carbon fork gives the X a rigid front end for mixed-surface rides, without suspension settings to manage. Six fork mounting points also make it a useful starting point for a considered luggage setup.
Gravel shifting from the drop bar
SRAM Rival XPLR AXS 13-speed shifting is specified with a single 44t chainring. It brings electronic control to the X's drop-bar build and keeps gear changes within the same cockpit layout as the brakes.
A wheelset chosen for the route
The build uses Velduro carbon 700C rims with 24mm internal width and 45mm Maxxis Rambler tyres. It is a defined gravel package, with tubeless compatibility available when you choose to convert from the supplied tubes.
Leave the short loop behind
Eight frame mounting points, six on the fork and rack compatibility leave options for carrying kit. The integrated 600Wh battery keeps the electrical package within the frame while the luggage setup can be tailored to the trip.
