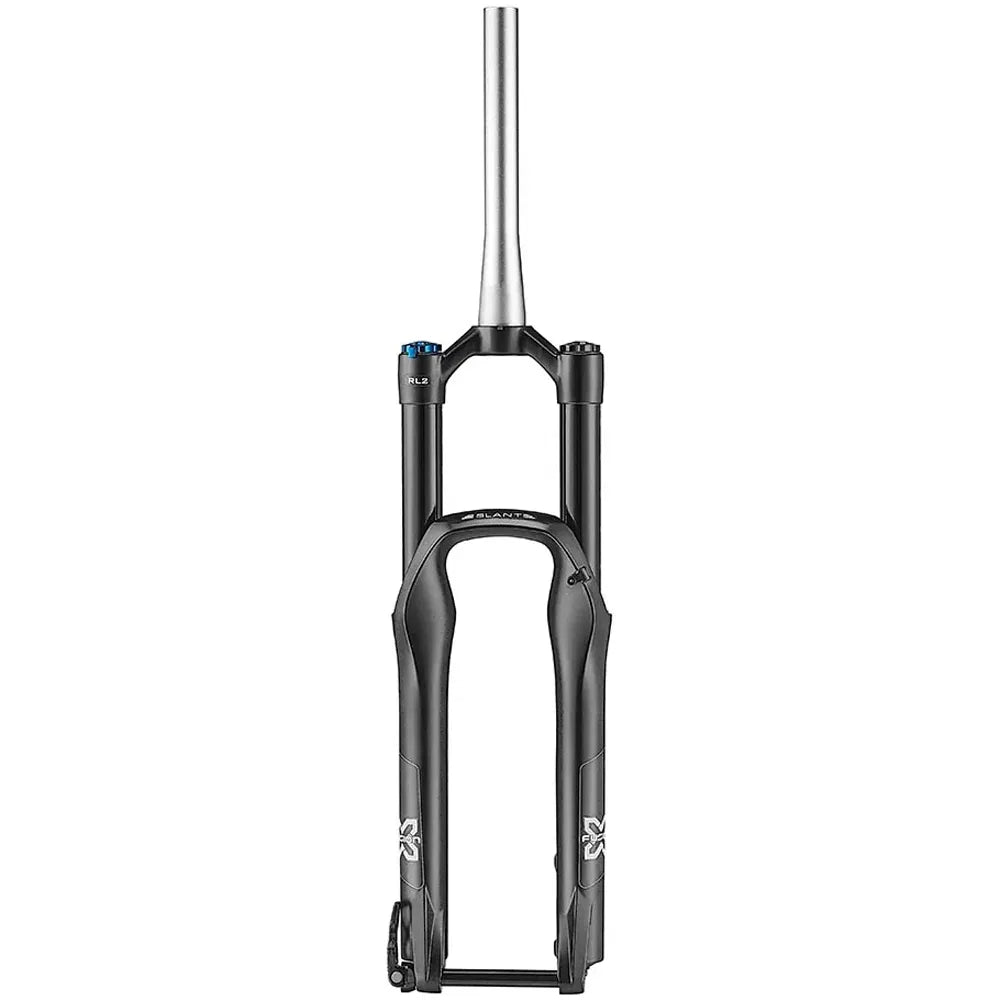

X-Fusion Slant 34 RL2 26

The Slant series was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks.

At X-Fusion they have taken note that not only suspension products have been progressing over the last few years, but the rider has as well. You all are fitter, faster, stronger and are looking for a product to match.

The 34mm stanchion tube chassis provides the perfect balance between weight and strength in the trail and all-mountain category.

The RL2 damper has rebound damping adjustment and uses an on-off switch for lockout.

Nvolve Wiper seals reducing seal drag and increasing durability.

Weight: 4.2lbs/1905 grams
• Wheel Size: 26" | 27.5"
• Travel: 160mm (ITA 100/120/140/160mm)
• Stanchion: 34mm Aluminum
• Spring: Air
• Damper: RL2
• Adjustments RL2: Lockout., Rebound,,Air Pressure
• Steerer: Tapered only
• Axle:LockX 100x15mm (NON-BOOST)
• Colors: Flat Black
• Axle to Crown: 545mm @ 160mm of travel
• Offset: 40mm
• Rotor Size:180mm / 203mm(XF adaptor only)
