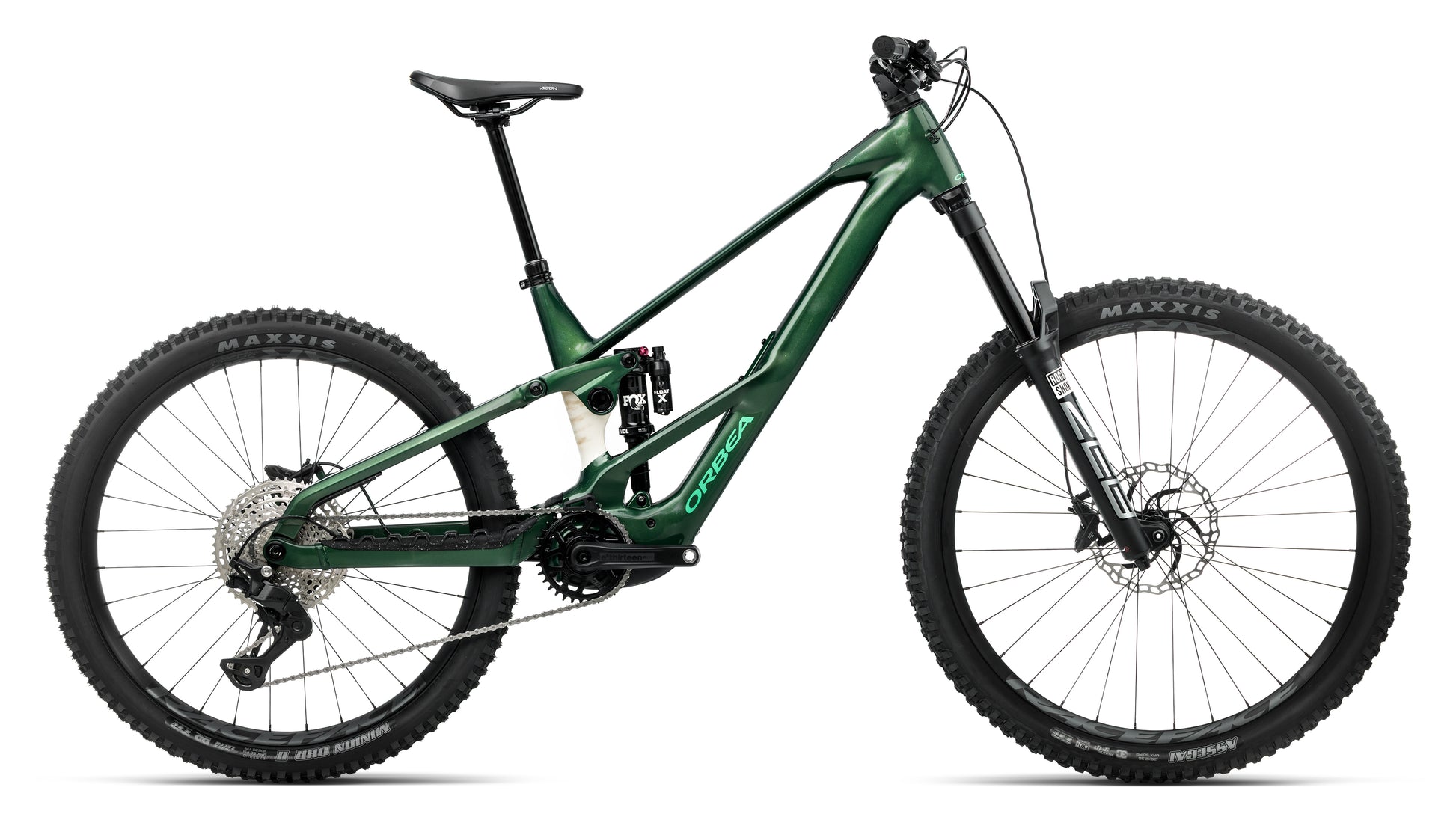

Orbea Wild LT H20 2027 - The Yes Machine
The Orbea Wild LT is a full-power eMTB built for steep, technical riding, big descents and demanding climbs. Orbea has focused this generation around handling, control and rider confidence rather than simply chasing headline power figures.
Low Centre of Gravity, Rallon-Inspired Kinematics
The Wild LT uses a low, centralised mass layout and suspension kinematics developed from Orbea's Rallon enduro platform. With 170mm of rear travel, the bike is designed to stay calm at speed, keep traction on rough ground and give the rider room to move on steep terrain.
DJI Avinox Power with Orbea RS Tune
The DJI Avinox drive system is tuned by Orbea's RS philosophy for fast, natural response when climbing technical sections. The result is a bike that delivers serious support without feeling disconnected from the trail.
Hydro Alloy Chassis
This Hydro alloy model uses Orbea's hydroformed aluminium Wild LT frame with Concentric Boost suspension, deep dropper-post insertion and integrated frame protection. The platform is available in both 29" and Mullet wheel configurations, which BRINK groups together using the Wheelsize option.
Build Kit
The H20 is the most accessible Wild LT build, with a tough alloy frame, RockShox ZEB Base fork, Fox Float X Performance shock, Shimano Deore drivetrain and dependable four-piston braking.
Colour And Finish Notes
Some Orbea colour names include C. View plus matt or gloss finish notes. We have simplified the option names on BRINK so the selector stays easy to read, while the finish detail remains here in the product copy. Matt and gloss references are finish notes from Orbea rather than separate customer options.
Highlights
-
Frame material
Aluminium
-
Wheelsize
29"
-
Front travel
170mm
-
Rear travel
170mm
-
Motor brand
DJI
-
Max torque
130Nm
-
Battery capacity
800Wh
Specifications
-
Orbea Wild LT H20 2027 - 29"
Frame
Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Fork
RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost
Shock
Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC21, 0º
Headset
Acros ZS56
Brakes
Shimano MT420 Hydraulic Disc
Shifter
Shimano Deore M6200 I-Spec EV
Rear derailleur
Shimano Deore M7200 SGS Shadow Plus
Crankset
e*thirteen Helix Core e*spec
Cassette
Shimano CS-M6200 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
Orbea eBike chainguide
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Aidon 208x145mm manganese rail
Rims
Race Face AR 30c Tubeless Ready
Rear rim
Race Face AR 30c Tubeless Ready
Front tyre
Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Rear tyre
Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Motor
DJI Avinox M2
Battery
DJI Avinox 800Wh
-
Orbea Wild LT H20 2027 - Mullet
Frame
Orbea Wild Hydro, Mullet wheels, Concentric Boost 12x148
Fork
RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost
Shock
Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC21, 0º
Headset
Acros ZS56
Brakes
Shimano MT420 Hydraulic Disc
Shifter
Shimano Deore M6200 I-Spec EV
Rear derailleur
Shimano Deore M7200 SGS Shadow Plus
Crankset
e*thirteen Helix Core e*spec
Cassette
Shimano CS-M6200 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
Orbea eBike chainguide
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Aidon 208x145mm manganese rail
Rims
Race Face AR 30c Tubeless Ready
Rear rim
Race Face AR 30c Tubeless Ready
Front tyre
Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Rear tyre
Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Motor
DJI Avinox M2
Battery
DJI Avinox 800Wh
DJI Avinox RS Power
The Wild LT uses DJI's compact Avinox drive unit with Orbea's RS tune, giving serious climbing support without losing the natural, controlled feel you want on steep technical trails.
Steep And Deep Ready
Long-dropper clearance and a steep-seat-tube layout give room to move on descents while keeping the climbing position efficient when the trail points back up.
Adjustable Geometry
A geometry flip chip lets you fine-tune the Wild LT for terrain and wheel setup, giving you a higher or lower position without changing the bike's aggressive intent.
Optimised Frame Rigidity
Orbea tunes frame stiffness around the motor, suspension and battery layout so the Wild LT feels composed under power, precise in corners and stable when the trail gets rough.
800Wh Battery Option
The 800Wh battery gives the Wild LT the range for long days and big elevation, housed low in the frame to keep weight central and handling calm.
600Wh Battery Option
The Wild LT platform also supports a lighter 600Wh battery setup where lower weight and a sharper, more playful ride feel are the priority.
RS Remote Control
The compact RS remote keeps key controls close to hand, so assistance and ride functions are easy to reach without cluttering the cockpit.
