Orbea

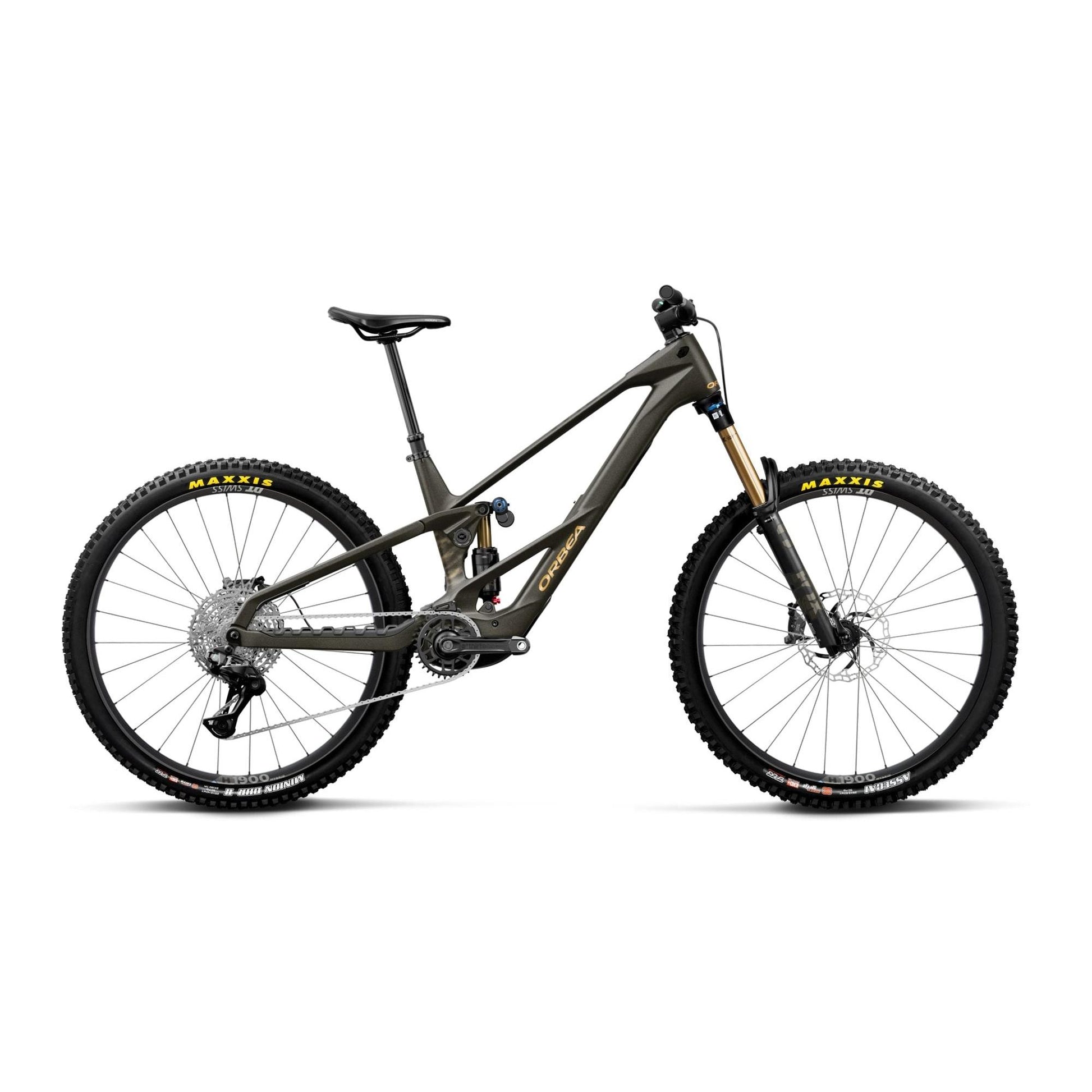

Orbea Wild LT M10 2027
Orbea Wild LT M10 2027
Low stock: 1 left
SKU: U31805X6
Barcode: 8434446248009
files/Orbea-Wild-LT-M10-2027-S-Royal-Plum-Noctiluca-29-BRINK.jpg
03:40 PM
Couldn't load pickup availability
Choose a size, colour and wheel setup to see current availability. Contact BRINK if you would like us to check a particular build or lead time.
Orbea Wild LT M10 2027 - The Yes Machine
The Orbea Wild LT is a full-power eMTB built for steep, technical riding, big descents and demanding climbs. Orbea has focused this generation around handling, control and rider confidence rather than simply chasing headline power figures.
Low Centre of Gravity, Rallon-Inspired Kinematics
The Wild LT uses a low, centralised mass layout and suspension kinematics developed from Orbea's Rallon enduro platform. With 170mm of rear travel, the bike is designed to stay calm at speed, keep traction on rough ground and give the rider room to move on steep terrain.
DJI Avinox Power with Orbea RS Tune
Orbea tunes the Avinox M2S for technical climbs. In Auto, Trail and Turbo, the factory settings allow up to 750W and 130Nm. Hold the + button on the Orbea controller for more than a second to engage Boost. The M2S can then deliver up to 1,300W and 150Nm for up to 60 seconds. The countdown on the display shows how much of that burst is left. Both wheel setups come with an 800Wh battery inside the down tube.
OMR Carbon Chassis
This Carbon model uses Orbea's OMR carbon Wild LT frame with Concentric Boost suspension, deep dropper-post insertion and integrated frame protection. The platform is available in both 29" and Mullet wheel configurations, which BRINK groups together using the Wheelsize option.
Build Kit
The M10 pairs a FOX 38 Factory fork with a FLOAT X2 Factory shock, Shimano XT 12-speed shifting and four-piston XT brakes. Both versions have a 29-inch front wheel. Choose the full 29-inch build for a matching rear wheel or the Mullet for a 27.5-inch rear. The MC22 dropper has its own mechanical lever.
Colour And Finish Notes
On the carbon models, Orbea's C. View finishes are paint schemes designed to show the carbon beneath the colour. We have simplified the option names on BRINK so the selector stays easy to read, while the finish detail remains here in the product copy. Matt and gloss references are finish notes from Orbea rather than separate customer options.
Highlights
-
Frame material
Carbon
-
Wheelsize
29" or Mullet
-
Front travel
170mm
-
Rear travel
170mm
-
Motor brand
DJI
-
Max torque
150Nm (Boost)
-
Peak power
1,300W (Boost)
-
Battery capacity
800Wh
Specifications
-
Orbea Wild LT M10 2027 - 29"
Frame
Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
Fork
Fox 38 Float Factory 170, Grip X2, 15x110, Kashima
Shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
Handlebar
OC Mountain Control MC21 Alu SL, Rise 35, Width 800
Stem
OC Mountain Control, 0°
Headset
Acros ZS56
Brakes
Shimano XT 8220 Hydraulic Disc
Shifter
Shimano XT M8200 I-Spec EV
Rear derailleur
Shimano Deore XT RD-M8200-SGS, mechanical 12-speed
Crankset
e*thirteen Helix Core e*spec
Cassette
Shimano CS-M7200 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
Orbea eBike chainguide
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Aidon 208x145mm manganese rail
Rims
29-inch front
Rear rim
29-inch rear
Front tyre
Maxxis Assegai 2.50", tubeless ready
Rear tyre
Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Motor
DJI Avinox M2S
Battery
DJI Avinox 800Wh
-
Orbea Wild LT M10 2027 - Mullet
Frame
Orbea Wild OMR 2027, Mullet wheels, Concentric Boost 12x148
Fork
Fox 38 Float Factory 170, Grip X2, 15x110, Kashima
Shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
Handlebar
OC Mountain Control MC21 Alu SL, Rise 35, Width 800
Stem
OC Mountain Control, 0°
Headset
Acros ZS56
Brakes
Shimano XT 8220 Hydraulic Disc
Shifter
Shimano XT M8200 I-Spec EV
Rear derailleur
Shimano Deore XT RD-M8200-SGS, mechanical 12-speed
Crankset
e*thirteen Helix Core e*spec
Cassette
Shimano CS-M7200 10-51t 12-Speed
Chain
Shimano M6100
Chain guide
Orbea eBike chainguide
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Saddle
Fizik Aidon 208x145mm manganese rail
Rims
29-inch front
Rear rim
27.5-inch rear
Front tyre
Maxxis Assegai 2.50", tubeless ready
Rear tyre
Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Motor
DJI Avinox M2S
Battery
DJI Avinox 800Wh
DJI Avinox RS Power
The Wild LT uses DJI's compact Avinox drive unit with Orbea's RS tune, giving serious climbing support without losing the natural, controlled feel you want on steep technical trails.
Steep And Deep Ready
Long-dropper clearance and a steep-seat-tube layout give room to move on descents while keeping the climbing position efficient when the trail points back up.
High or low for the trail
The flip chip changes the bottom bracket height by 8mm and the head angle by half a degree. High gives the pedals more clearance on technical climbs. Low brings the bike closer to the ground for fast descents. The full 29-inch and Mullet builds each use their own rear linkage.
Optimised Frame Rigidity
Orbea tunes frame stiffness around the motor, suspension and battery layout so the Wild LT feels composed under power, precise in corners and stable when the trail gets rough.
Carbon Fibre Link
Carbon Wild LT models use a carbon fibre link to save weight and sharpen suspension response, keeping the rear end precise without giving up the bike's big-hit character.
